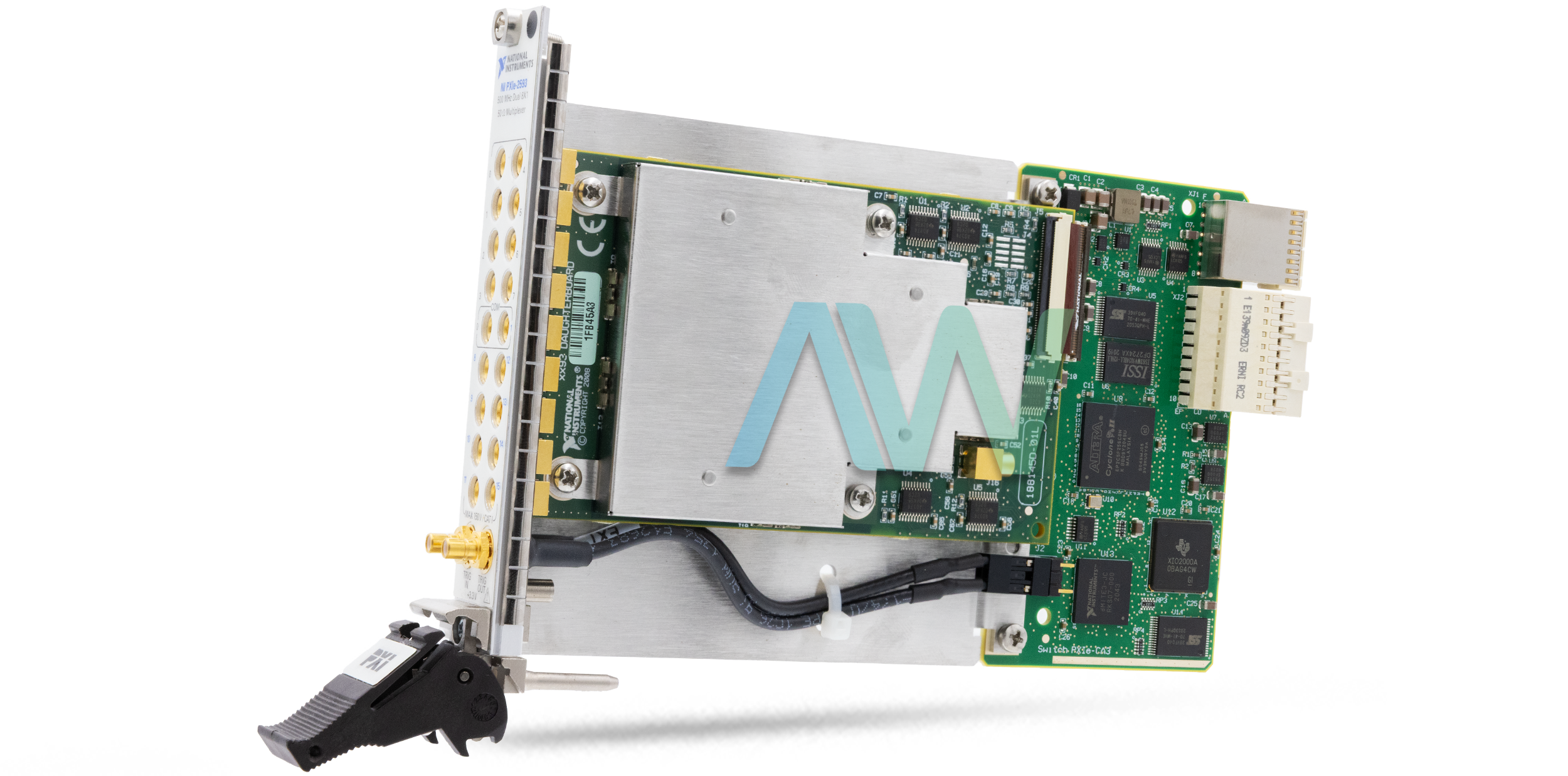

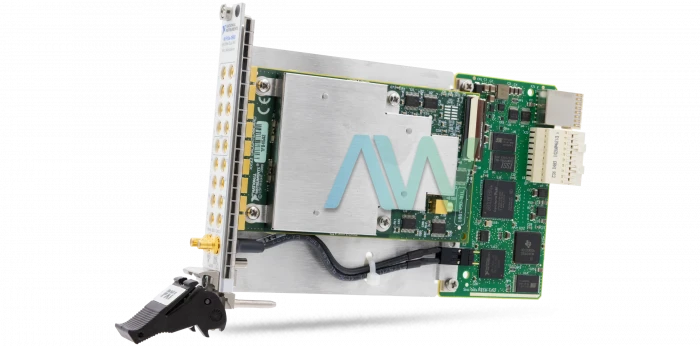

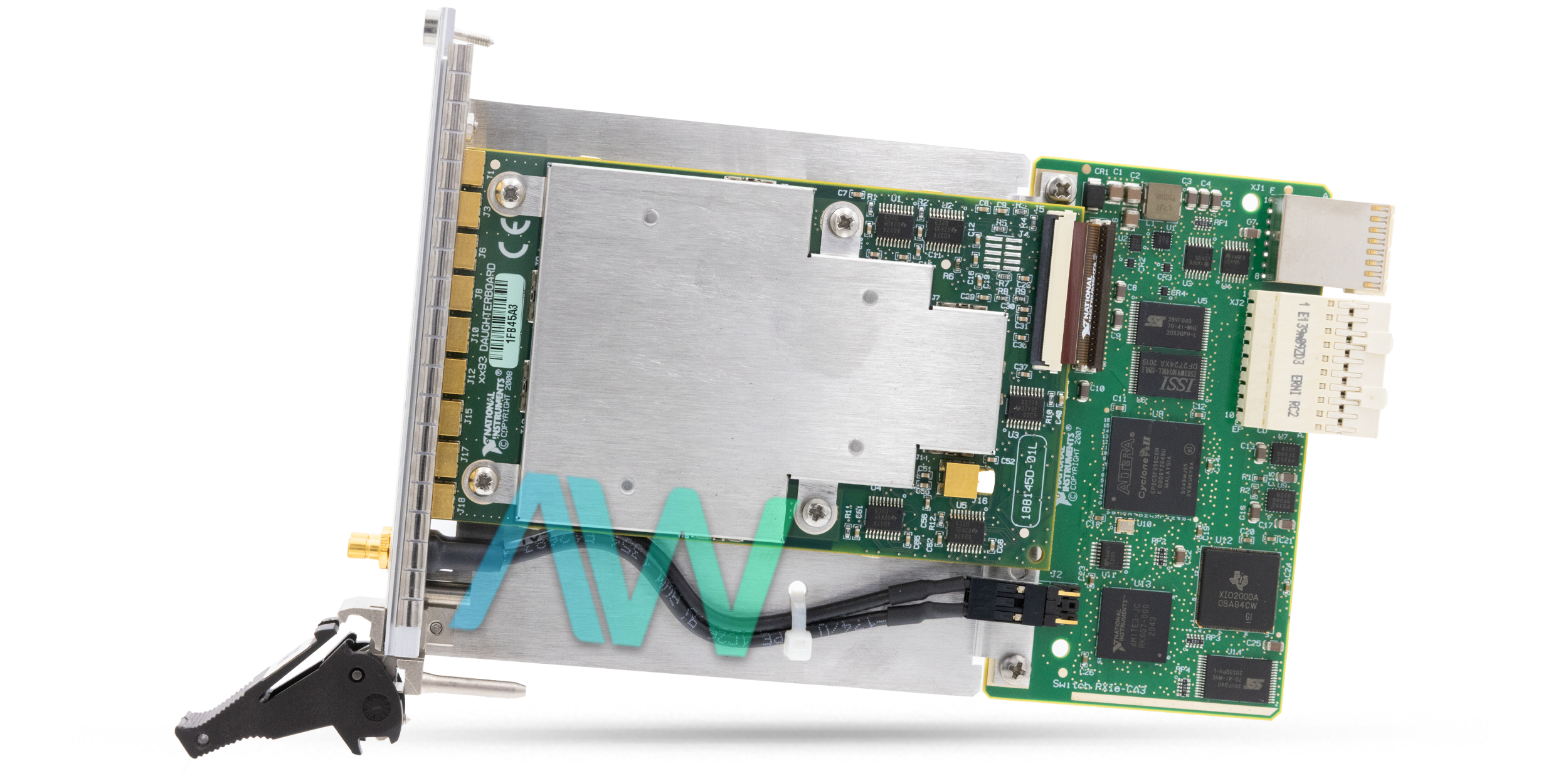

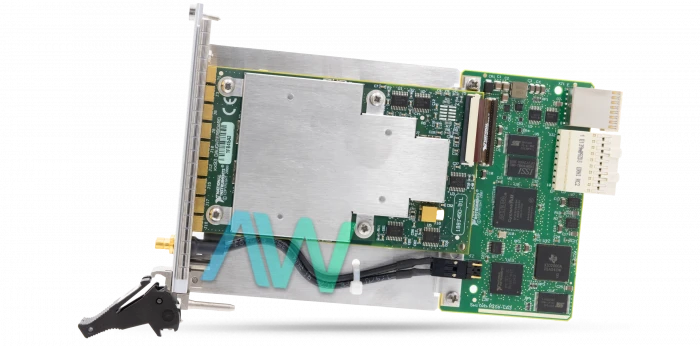

National Instruments PXIe-2593 PXI RF Multiplexer Switch Module
The National Instruments PXIe-2593 (Part Number: 780587-93) is a high-density, 50 Ω RF Multiplexer Switch Module, which can be configured in several ways: as an unterminated multiplexer, an externally terminated multiplexer, or a dimensionally versatile sparse matrix. Each configuration handles signal frequencies from DC to beyond 500 MHz. The NI PXIe-2593 Multiplexer Switch Module is well-suited for signal generation in high-channel-count applications to various test points on devices or units under test (DUTs or UUTs). This module allows users to link multiple inputs to one output or to one input, to make wiring in automated test systems a simpler process.
The PXIe-2593 is a one-slot PXI RF Multiplexer Switch Module designed to integrate with high-frequency instruments such as the NI PXI-5404 frequency generator and the NI PXI-5112 high-speed digitizer. The NI PXIe-2593 has 16 channels with an external 50 Ω MCX terminator on half of the channels, allowing the user to utilize this module as a terminated multiplexer. The PXIe-2593 can be configured as quad 3×1 multiplexers using its 16 channels. The PXIe 2593 module has a minimum switch load of 10 μA, 10 mV and a maximum RF carry power from 10 W up to 500 MHz (per channel).
While maintaining a bandwidth lower than 500 MHz, the NI PXIe 2593 Multiplexer Switch Module can be configured as a versatile sparse matrix. This is useful when the need arises to route signals between any pair of channels or commons.
| Model | PXIe-2593 |
|---|---|
| Part Number | 780587-93 |
| Manufacturer | National Instruments |
| Type | PXI RF Multiplexer Switch Module |
| Switch Bandwidth | 500 MHz |
| Channels | 16 |
| Banks | 1 |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 12 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-2593 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-2593:
National Instruments PXIe-2593 Frequently Asked Questions
Question: What is the maximum insertion loss of the PXIe-2593?
Answer: The maximum insertion loss of the PXIe-2593 is -1.9 dB.
Question: What type of relays are in the NI PXIe-2593?
Answer: The relays in the NI PXIe-2593 are electromechanical.
Question: Which topologies are available for the PXIe-2593?
Answer: The PXIe-2593 has the following topology options: a 16 x 1 multiplexer, an 8 x 1 terminated multiplexer, a dual 4 x 1 terminated multiplexer, a dual 8 x 1 multiplexer, or an independent model.
Question: What is the maximum switching voltage for the NI PXIe-2593?
Answer: The NI PXIe-2593 has a maximum switching voltage of 150 V, CAT I for both channel-to-channel and channel-to-ground.
