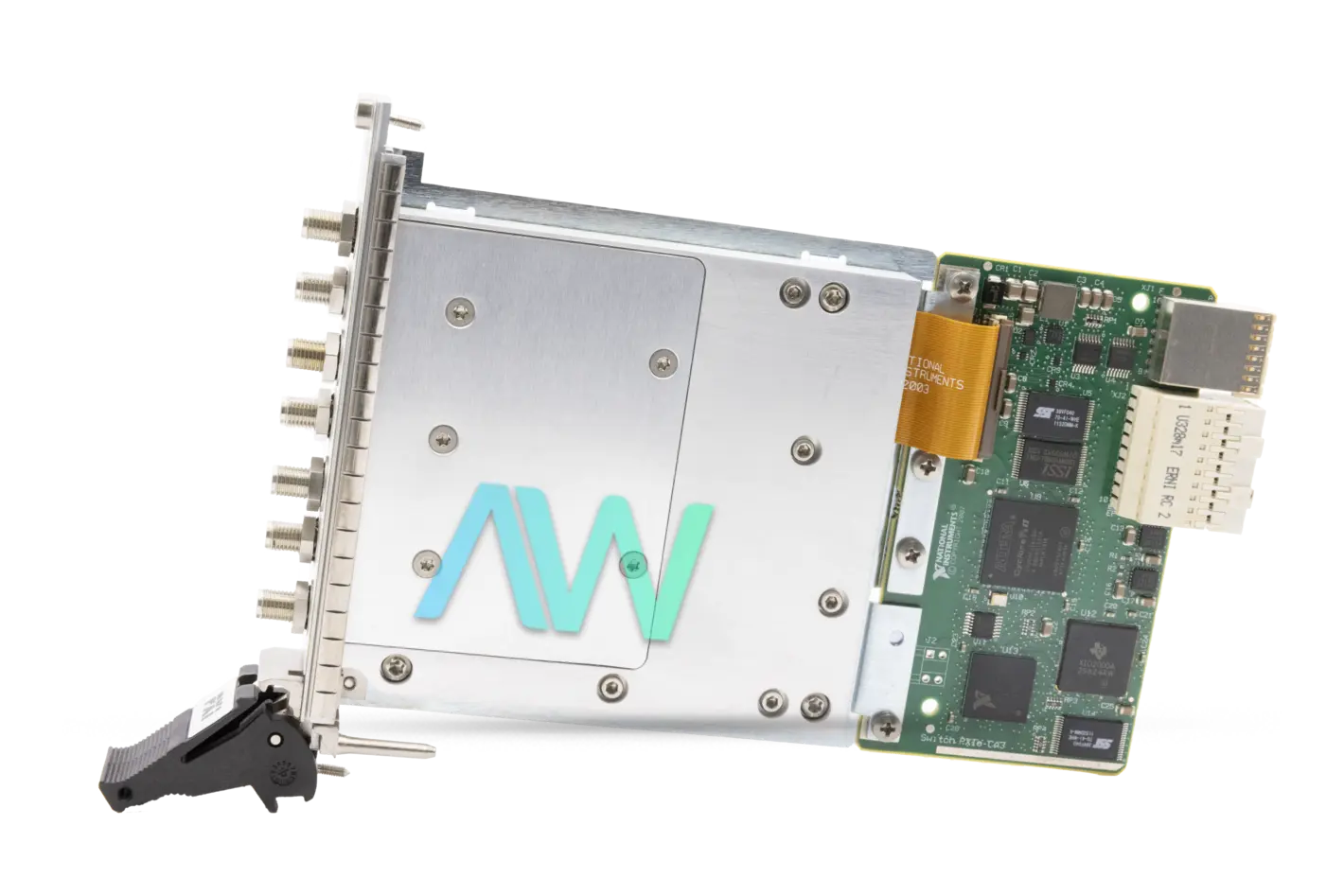

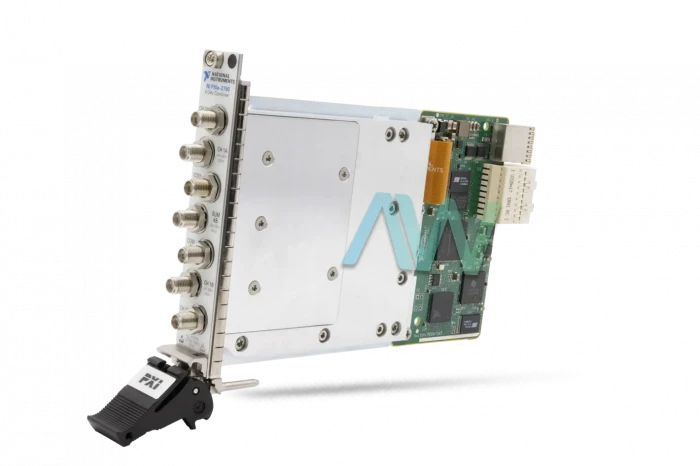

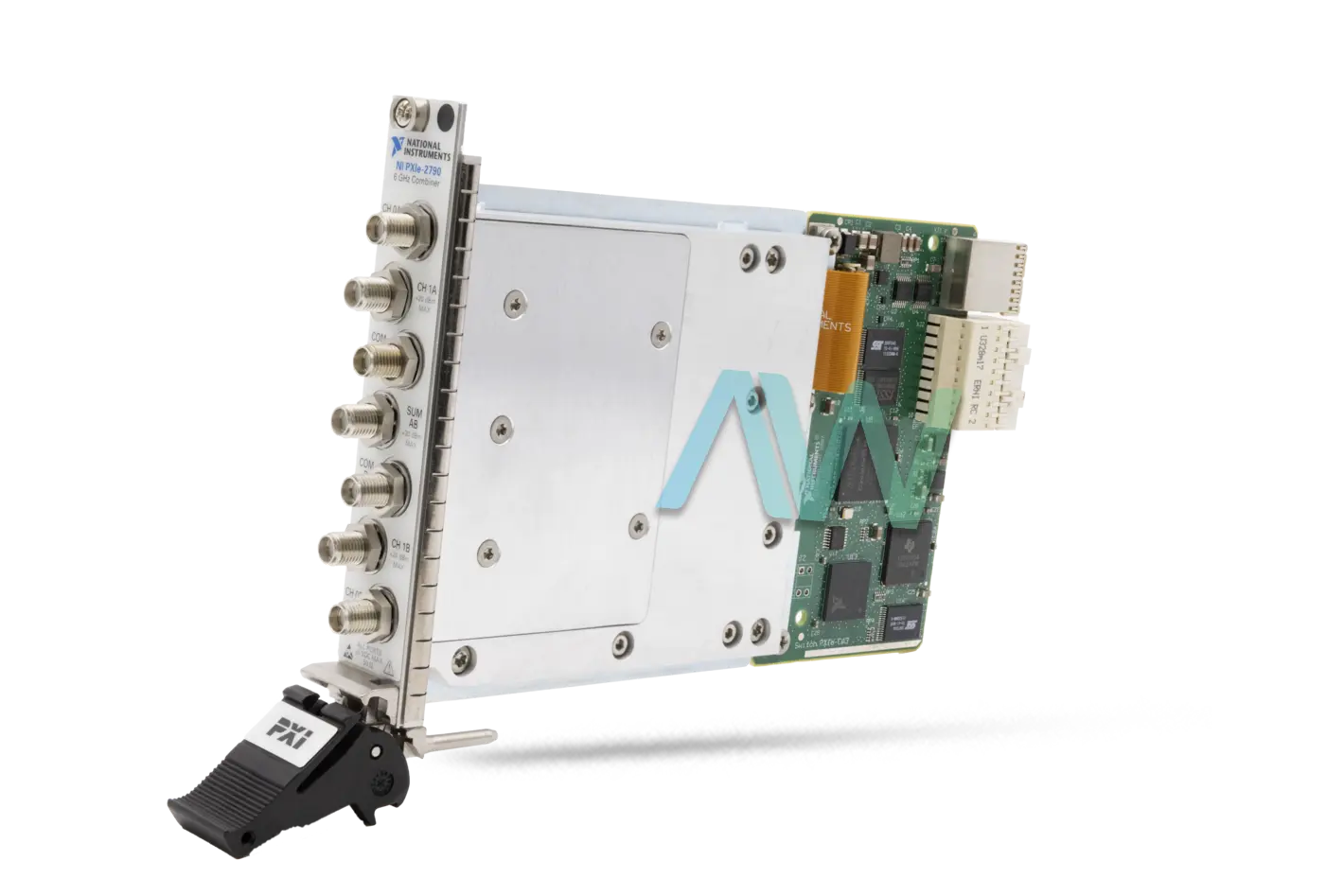

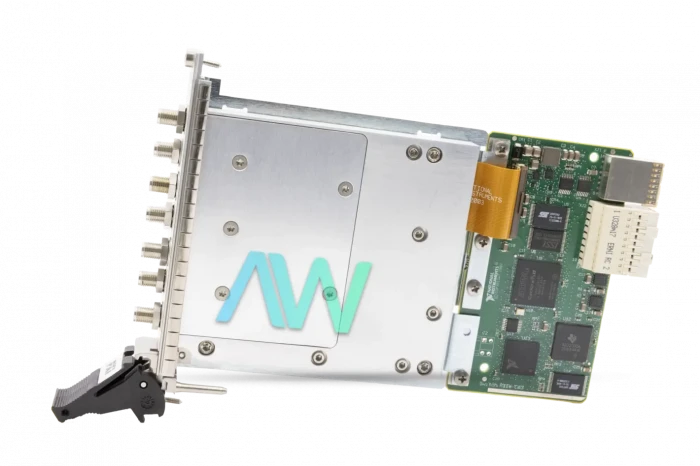

National Instruments PXIe-2790 PXI RF Multiplexer Switch Module
The NI PXIe-2790 (Part Number: 782576-01, 196806C-01L) is a solid-state power combined Multiplexer Switch Module that is well-suited for multi-DUT cellular and wireless connectivity production test applications. This module operates from 10 MHz to 6 GHz and has the capability to save RF path calibration details. This module also has fast switching times. The PXIe-2790 has a 50-ohm termination on channels and COM lines to minimize reflections of the RF signal.
The NI PXIe-2790 features high-performance solid-state relays that offer unique benefits such as an unlimited mechanical lifetime and front-mounted SMA connectors that enable easy connection to the user’s RF devices.
The PXIe-2790 PXI RF Multiplexer Switch Module has a minimum input frequency of 10 MHz, a maximum input frequency of 6 GHz, and a characteristic impedance of 50 Ohm. The maximum safe input voltage is +/-5 V. The operational shock is 30 g peak, half-sine, 11 ms pulse. While operating and nonoperating, the random vibration is 5 to 500 Hz, 0.3 grms and 5 to 500 Hz, 2.4 grms respectively. The NI PXIe-2790 recognizes trigger pulse widths less than 150 ns.
The National Instruments PXIe-2790 Multiplexer Switch Module features an FET switch and seven female SMA jacks. The power requirement for this module is 0.9 W at 3.3 V, and 0.6 W at 12 V. The pollution degree of this module is 2 and the maximum altitude is 2,000 m. The dimensions are 21.6 cm x 2.0 cm x 13.0 cm. This module weighs 13.9 oz.
| Model | PXIe-2790 |
|---|---|
| Part Number | 782576-01, 196806C-01L |
| Manufacturer | National Instruments |
| Type | PXI RF Multiplexer Switch Module |
| Switch Bandwidth | 6 GHz |
| Channels | 2 |
| Switch Type | FET |
| Front Panel I/O Connectors | Female 7 SMA Jacks |
| Power Requirements | 0.6 W at 12 V and 0.9 W at 3.3 V |
| Max Switch Operate Time | 45 µs |
| Input/Output Trigger Sources | PXI Trigger Lines 0–7 |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | –20 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 13.9 oz. |
| Warranty | Three Year Warranty |
| PXIe-2790 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-2790:
National Instruments PXIe-2790 Frequently Asked Questions
Question: What is the maximum insertion loss for the PXIe-2790?
Answer: The Multiplexer Switch Module has a maximum insertion loss of 3.8 dB.
Question: What type of relays are in the NI PXIe-2790?
Answer: The module has Solid State, FET relays.
Question: What is the switch time?
Answer: The PXIe-2790 has a switch time of 45 µs.
Question: Which driver should be used with the PXIe-2790?
Answer: The PXIe-2790 driver is NI-SWITCH.
