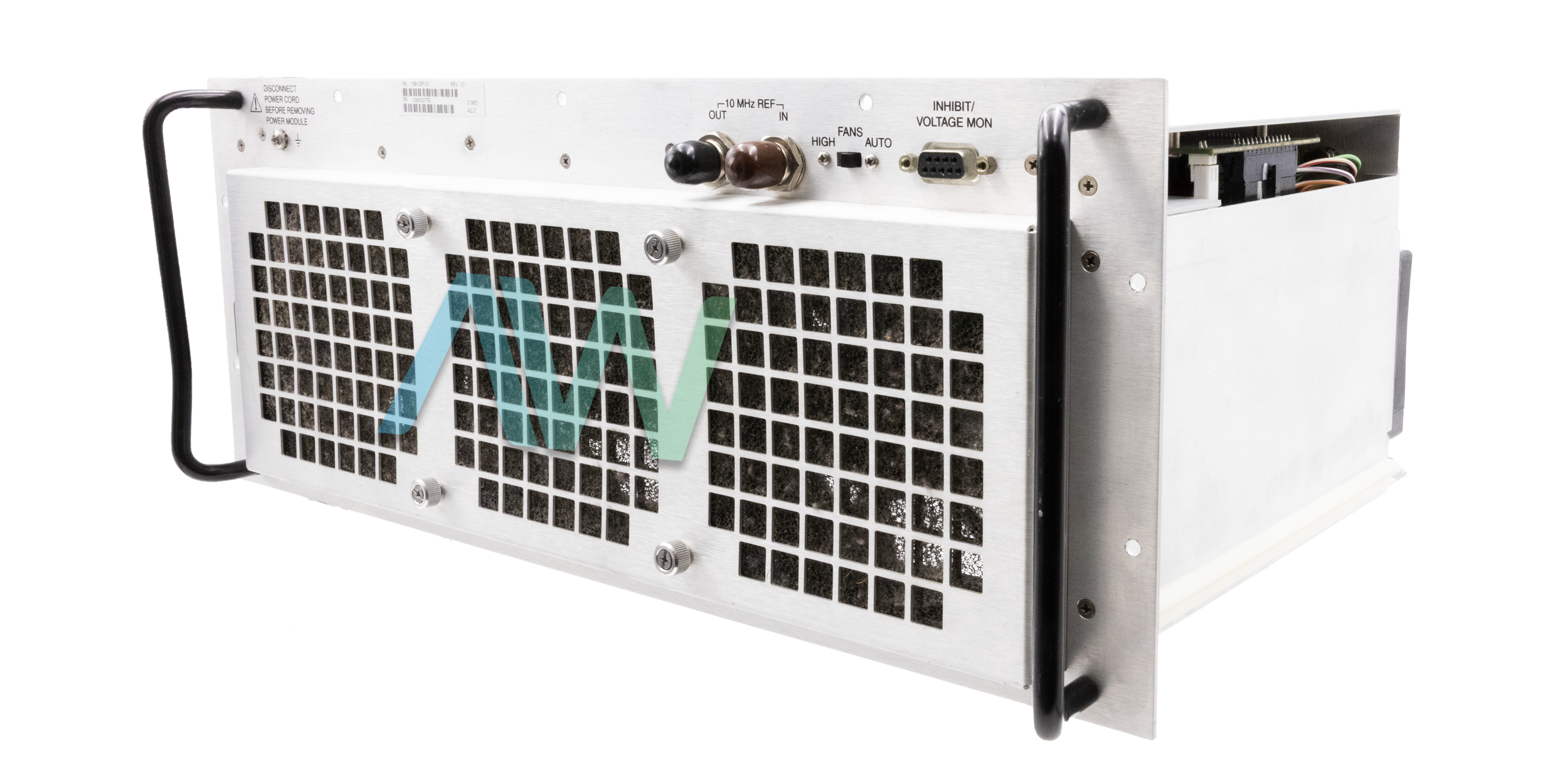

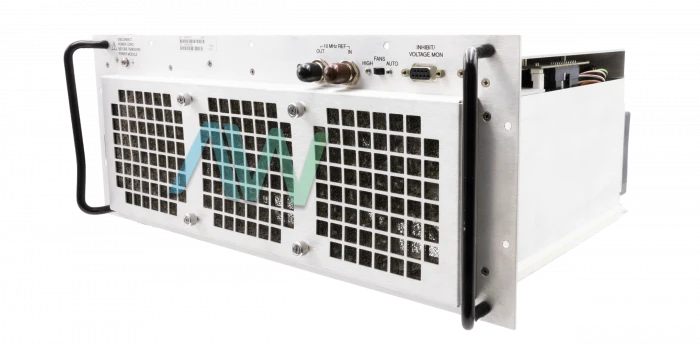

National Instruments 778647-01 Replacement Power Supply and Fan Shuttle
The 778647-01 from National Instruments is a Replacement Power Supply and Fan Shuttle designed specifically for the PXI-1044 and PXI-1045 Chassis. The modular nature of this power supply and fan shuttle makes it incredibly easy to replace a failed supply, which helps to reduce downtime. In fact, the MTTR (Mean Time To Repair) of the device is less than 5 minutes.
The 778647-01 is equipped with both cooling fans and fan-control circuits—the fan-speed selector switch can be found on the rear panel of the device. The “HIGH” setting is recommended for optimal cooling performance, while the “AUTO” setting offers a more silent operation. When “AUTO” is selected, the fan speed is determined by the temperature of the air-intake.
The 778647-01 Replacement Power Supply includes the necessary circuitry to control a front-panel LED that indicates when there is a power supply failure. The device has universal AC input which includes automatic voltage and frequency ranging and a push-reset circuit breaker for over-current protection. The AC input voltage ranges from 100–240 VAC, and the input frequency measures a range of 50/60 Hz. The voltage and frequency ranges under operating conditions measure 90–264 VAC and 47–63 Hz, respectively. The rating for the AC input current of the 778647-01 is 10–5 A, and it is safeguarded from overcurrent damage with a 12 A circuit breaker.

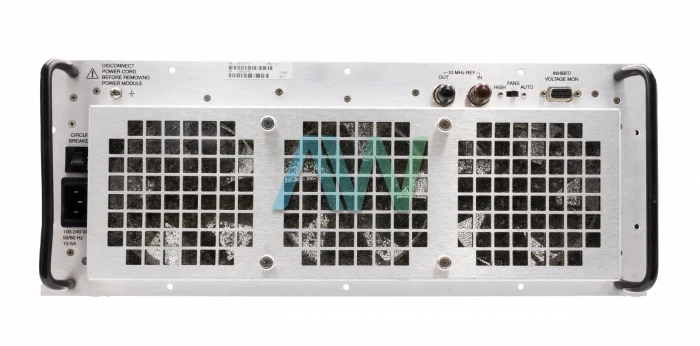

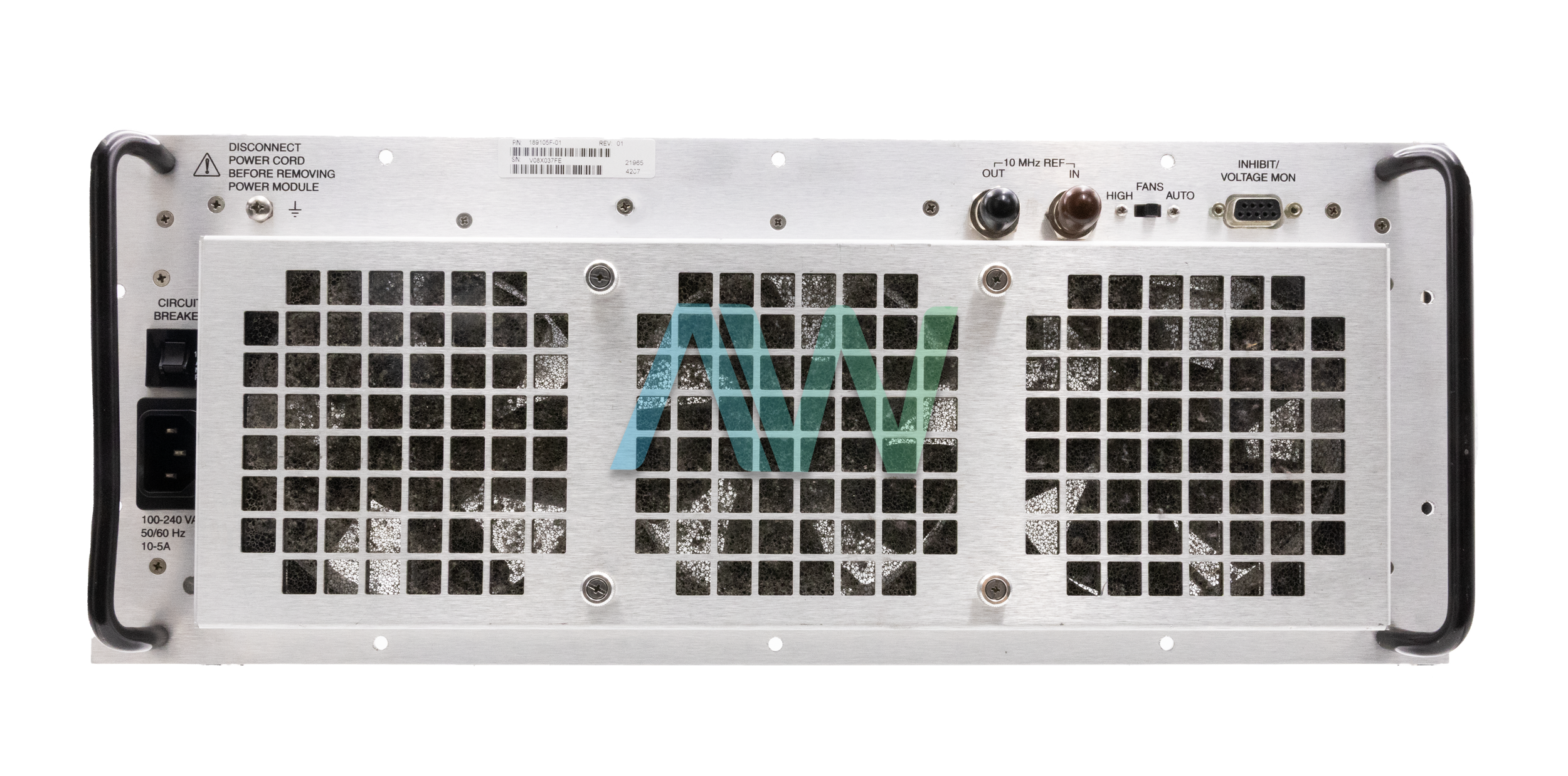

The rear panel of the ppower supply shuttle features a 9-Pin D-SUB connector, and the main power comes from an AC power cable. The power switch on the front panel controls the DC power given to the CompactPCI/PXI backplane. The DC outputs of the 778647-01 are protected from overloading or short circuiting with an automatic recovery feature.
The 778647-01 is fastened to the chassis by ten mounting screws. These can be removed by using a number one Phillips screwdriver. When removing the power supply shuttle, make sure to pull its two rear handles.
| Part Number | 778647-01 |
|---|---|
| Part Type | Replacement Power Supply and Fan Shuttle |
| Compatible With | NI PXI-1044 and NI PXI-1045 |
| AC Input Voltage Range | 100–240 VAC |
| Input Protection | 50/60 Hz |
| Input Current Rating | 10–5 A |
| Main Power Disconnect | AC Power Cable |
| Rear Panel Connector | 9-Pin D-SUB Connector |
| Operating Voltage Range | 90–264 VAC |
| Output Type | DC Output |
| Over-Current Protection | Automatic Recovery |
| Pricing | Request a Quote for Pricing Information |
| Manufacturer | National Instruments / NI |
