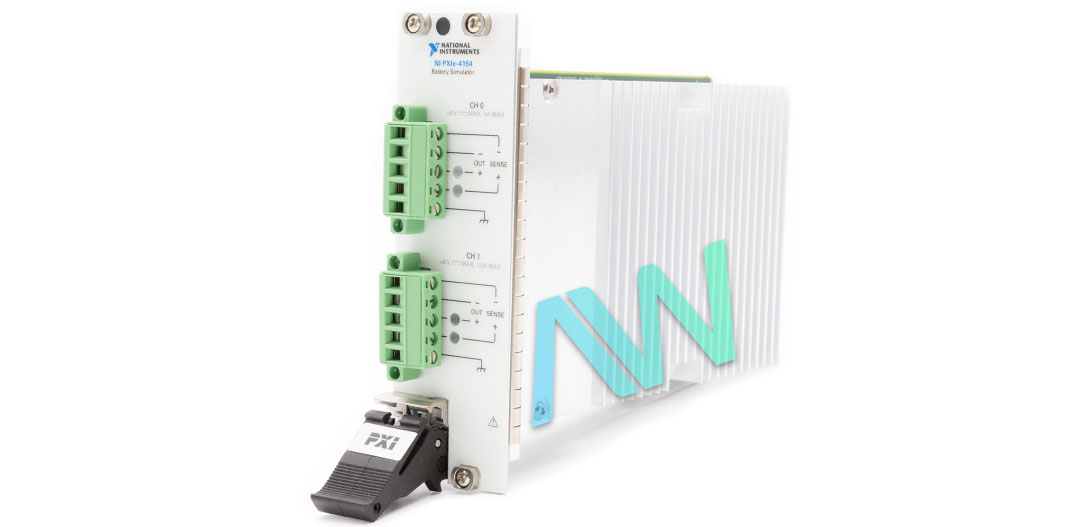

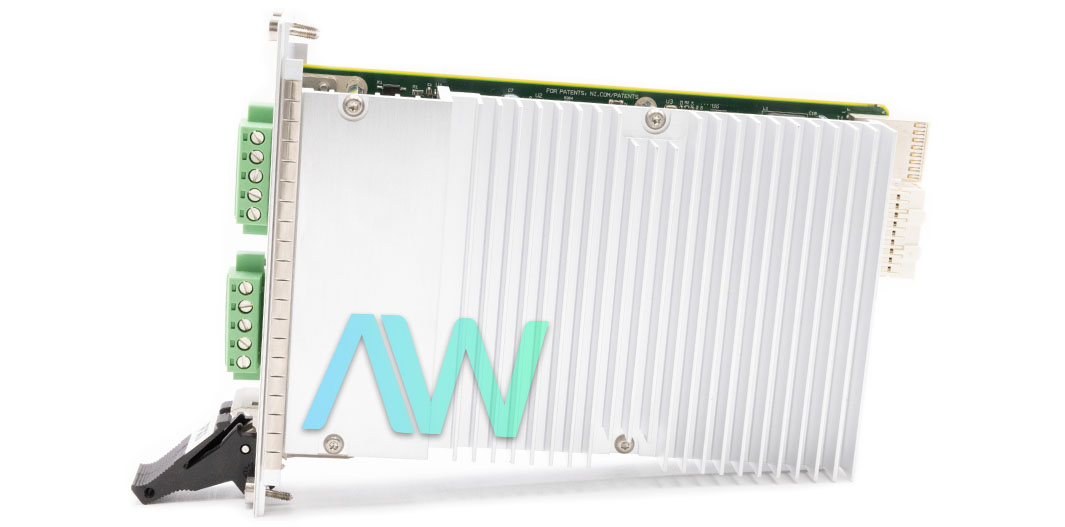

781155-01, Battery Simulator, 2 Channels, 3 A Current, PXIe-4154 Programmable Power Supply

Rated 4.9/5 | 14 ratings

781155-01 PXIe-4154 Programmable Power Supply | Apex Waves | Image
781155-01 PXIe-4154 Programmable Power Supply | Apex Waves | Image
781155-01 New
781155-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

781155-01 PXIe-4154 Programmable Power Supply | Apex Waves | Image
781155-01 PXIe-4154 Programmable Power Supply | Apex Waves | Image
781155-01 New
781155-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 781155-01 PXI Programmable Power Supply

National Instruments part number 781155-01 is an identifying part number for the PXIe-4154, a PXI Programmable Power Supply. This instrument is equipped with 2 Power Supply Channels with a Maximum Current Range of 3 A.

It is a specialized programmable power supply designed for battery simulation. It simulates a lithium‑ion battery cell’s transient speed, output resistance, and 2‑quadrant operation (source/sink). Essential for many RF and wireless applications, the simulator’s fast transient response time allows it to quickly respond to changes in load current with minimal voltage dip.

This makes the part number 781155-01 ideal for powering devices under test (DUTs) such as RF power amplifiers, cellular handsets, and various other mobile devices. To more accurately model a battery's behavior, the onboard programmable output resistance can simulate a battery’s internal resistance. Moreover, this Power Supply device features integrated current measurement for quiescent and standby measurements. In addition to the battery test system channel, this model also offers a supplemental 8 V, 1.5 A charger test system channel for power management ICs.

Users have the option to sequence and trigger outputs and measurements via the PXI backplane for synchronization with digital I/O and RF instrumentation. This device includes overvoltage protection, it automatically disconnects the output if the voltage at the Output + terminal exceeds the programmed voltage by 2.5 V, typical. It also ensures precise voltage regulation, with a maximum deviation of 3 mV per amp of output load when using remote sensing at the connector.

Part Number781155-01
Model NamePXIe-4154
Part TypePXI Programmable Power Supply
Number of Power Supply Channels2
Maximum Voltage+6V
Maximum Current3 A
Maximum Sampling200 kS/s characteristic
PXI Express Power Requirement5 W at 3.3 V, 46 W at 12 V typical
Maximum Source Update Rate1850 Updates/s characteristic
Weight19.9 oz.
