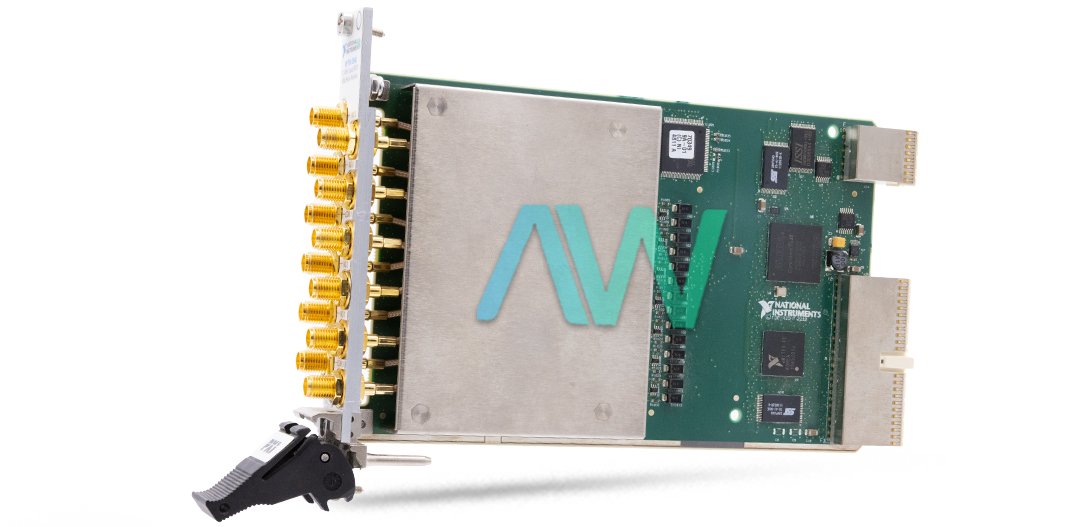

NI 778572-48 RF Relay Module | Apex Waves | Image

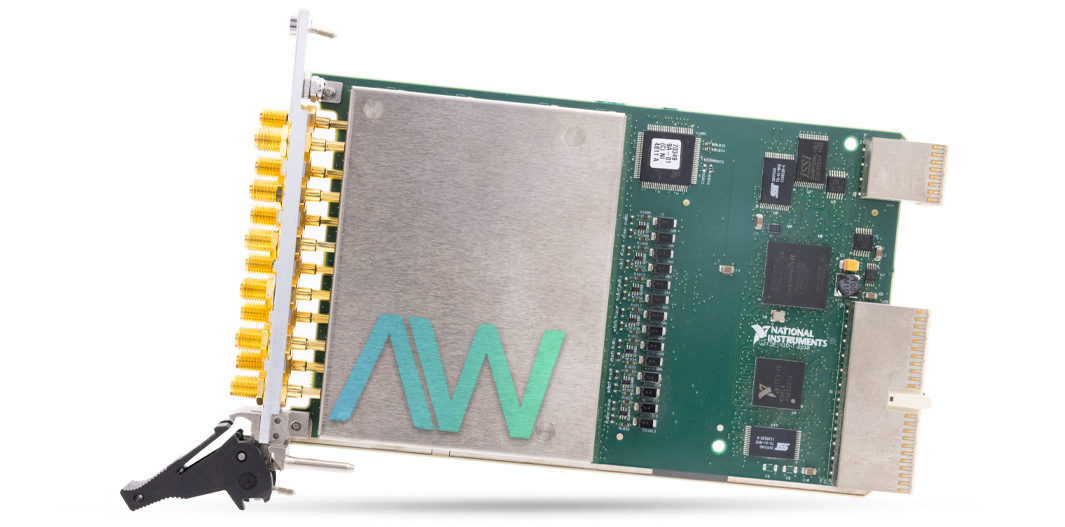

NI 778572-48 RF Relay Module | Apex Waves | Image
778572-48 New
778572-48 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

NI 778572-48 RF Relay Module | Apex Waves | Image
NI 778572-48 RF Relay Module | Apex Waves | Image
778572-48 New
778572-48 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 778572-48 RF Relay Module

National Instruments part number 778572-48 is an identifying part number for the PXI-2548, a PXI RF Relay Module. The PXI-2548 provides 2.7 GHz of bandwidth with insertion loss at 2.7 GHz less than 1.0 dB (typically less than 0.7 dB), VSWR at 2.7 GHz less than 1.7 (typically less than 1.5), and onboard relay counting. The PXI‑2548 is a Quad SPDT PXI RF Relay Module designed for general-purpose use. It serves to enhance flexibility within switch networks and ensures consistent signal paths across multiple channels, making it beneficial for constructing high-channel-count multiplexers.

With insertion loss, voltage standing wave ratio (VSWR), and isolation parameters, it minimizes signal degradation. Additionally, the onboard relay count tracking feature enables users to anticipate relay lifespan and mitigate unexpected system downtime effectively. The PXI-2548 offers a maximum relay operating time of 10.4 milliseconds, ensuring swift switching capabilities within your system. Additionally, it boasts a maximum scan rate of 45 channels per second, allowing for rapid data acquisition and processing. Each PXI Programmable Resistor Module is furnished with a 37-pin D-SUB connector on the front board, facilitating access to all channels alongside a 2x2 Micro-Fit connector for seamless integration with a PXI Digital Multimeter (DMM).

The accompanying driver software provides a user-friendly interface, enabling inputs in units of temperature or resistance and facilitating configuration of resistance across each channel without necessitating direct control of individual relays. PXI Programmable Resistor Modules automatically regulate resistance values via an I/O connector, enabling their use in HIL testing for rapid system testing across various simulated conditions. The programmable resistors on the NI PXI-2548 serve as test modules that simulate the behavior of resistance-based input and output devices, such as potentiometers, RTDs, voltage dividers, and bridge elements. The overall resistance on each channel, measured across the front connector terminals, is controlled by adjusting the circuit path resistance through the selective routing of discrete resistors using relays.

Part Number778572-48
Model NamePXI-2548
Part Type2.7 GHz 50 Ω Quad SPDT PXI RF Relay Module
Relay TypeElectromechanical latching
I/O Connectors12 SMA jacks, gold plated
Maximum Switching Voltage30V
Maximum Switching Current0.5A
Maximum RF Power10 W
Maximum Relay Operate Time10.4 ms
PXI Power Requirement3.7 W at 5 V
0.3 W at 3.3 V
