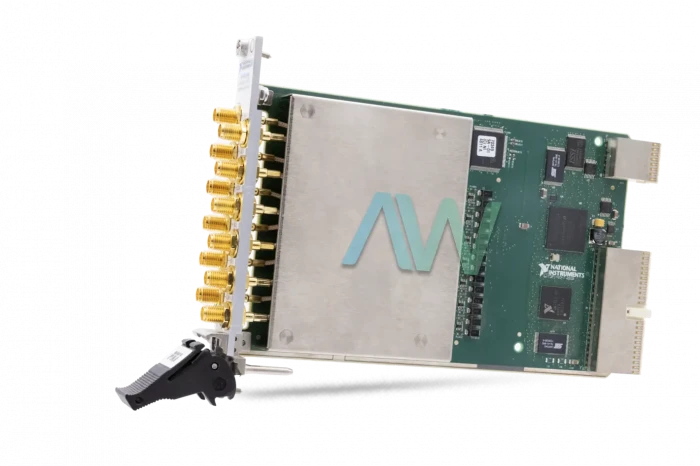

PXI-2548 National Instruments Relay Module | Apex Waves | Image
PXI-2548 New
PXI-2548 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-2548 National Instruments Relay Module | Apex Waves | Image
PXI-2548 National Instruments Relay Module | Apex Waves | Image
PXI-2548 New
PXI-2548 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-2548 PXI RF Relay Module

The National Instruments PXI-2548 (Part number: 778572-48) is a General-Purpose Switching Module that has single-pole and double-throw, independent relays (SPDT). The NI PXI-2548 Switching Module reproduces the conduct of resistance‐based gadgets by controlling a progression of relays that varies resistance over each channel. The capacity to rapidly and precisely fluctuate resistance, with resolution down to 0.25 Ω, makes this gadget well‐suited for reenacting environmental conditions in hardware‐in‐the‐loop (HIL) approval. Each PXI Programmable Resistor Module utilizes a 37‐ pin D‐SUB connector on the front board to give access to all channels and additionally has a 2x2 Micro‐Fit connector for simple association with a PXI Digital Multimeter (DMM). The driver software gives a basic UI that acknowledges inputs to units of temperature or resistance and configures the resistance over each channel, without expecting to specifically control individual relays.

On the NI PXI-2548, programmable resistors are test modules that imitate the conduct of resistance-based information sources and outputs, including: potentiometers, RTDs, voltage dividers, and bridge elements. The total resistance over each channel, estimated over the front connector terminals, is controlled by manipulating the circuit path resistance by utilizing relays to specifically route through discrete resistors. PXI Programmable Resistor Modules automatically control the estimations of resistance showing up through an I/O connector, empowering utilization in HIL approval, which performs fast framework tests amid an assortment of simulated framework conditions.

This model offers 2.7 GHz of bandwidth, Insertion loss at 2.7 GHz <1.0 dB (typical <0.7 dB), VSWR at 2.7 GHz <1.7 (typical <1.5) and onboard relay counting.

ModelPXI-2548
ManufacturerNational Instruments
Part Number778572-48
TypePXI RF Relay Module
Banks4
Switch Bandwidth2.7 GHz
Characteristic Impedance50 Ohms
ConfigurationQuad SPDT Relays
Bus ConnectorPXI Hybrid
AC Carry Current0.5 A Maximum
AC Switching Voltage30 V
Termination?No
Dimensions8.5 x 0.8 x 5.1 in.
Weight9 oz.
Warranty2-3 Year Warranty
PXI-2548 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-2548:

National Instruments PXI-2548 Frequently Asked Questions



Question: What is the scan rate of the PXI-2548?

Answer: The scan rate of the PXI-2548 is 45 cycles/s.



Question: What type of I/O connectors are on the RF Relay Module?

Answer: The I/O Connectors on the PXI-2548 are 12 SMA jacks that are gold-plated.



Question: What is the channel-to-channel skew for the NI PXI-2548?

Answer: The channel-to-channel skew is <15 ps, typical.



Question: What type of relays does the module have?

Answer: The PXI-2548 has electromechanical relays.
