PXI-2570, 40 Channel SPDT, 100 V Switching Voltage, PXI Relay Module

Rated 4.8/5 | 16 ratings

NI PXI-2570 PXI Relay Module | In Stock Ships Today! | Image
PXI-2570 National Instruments Relay Module | Apex Waves | Image
PXI-2570 New
PXI-2570 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

NI PXI-2570 PXI Relay Module | In Stock Ships Today! | Image
PXI-2570 National Instruments Relay Module | Apex Waves | Image
PXI-2570 New
PXI-2570 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

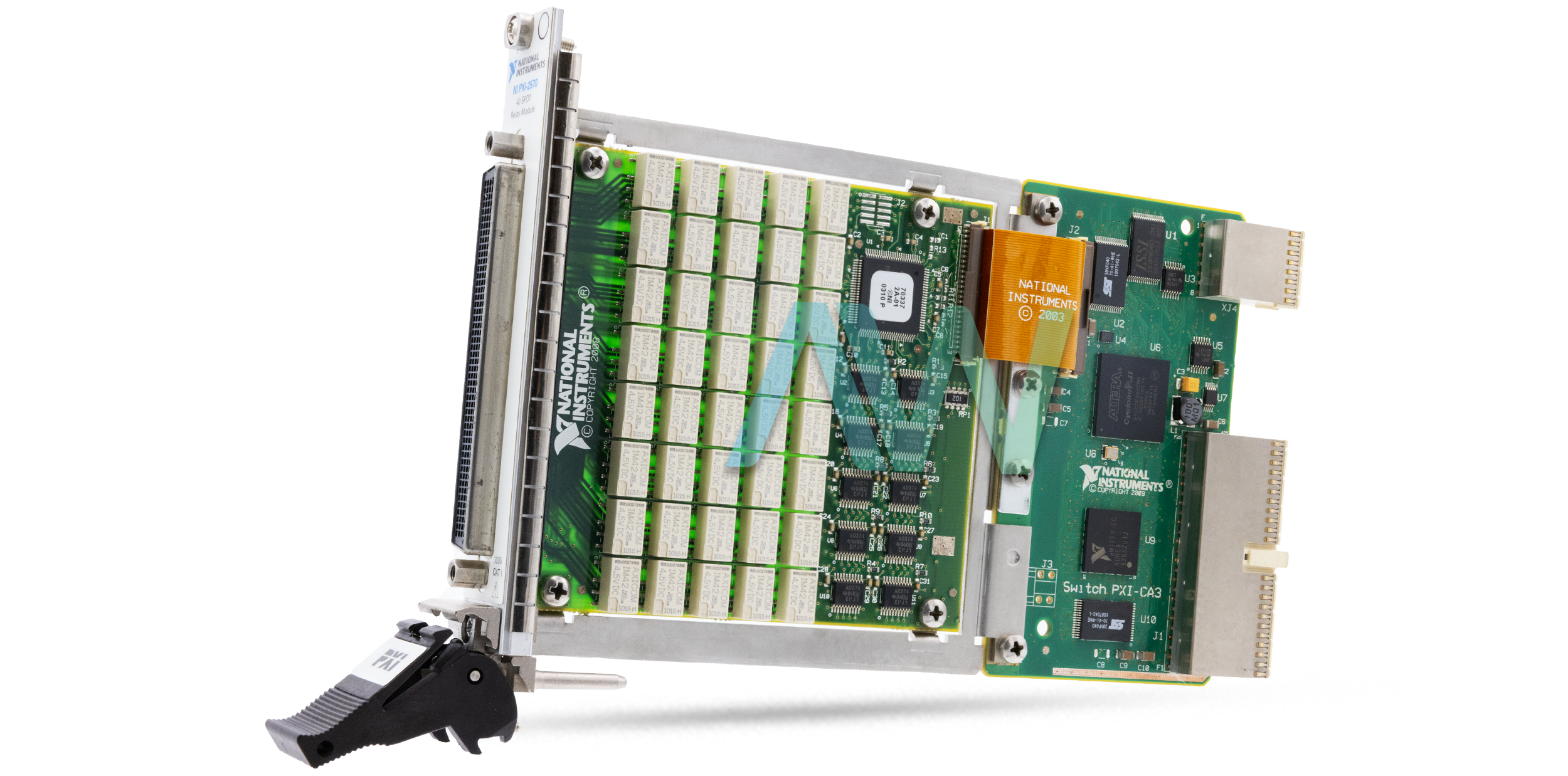

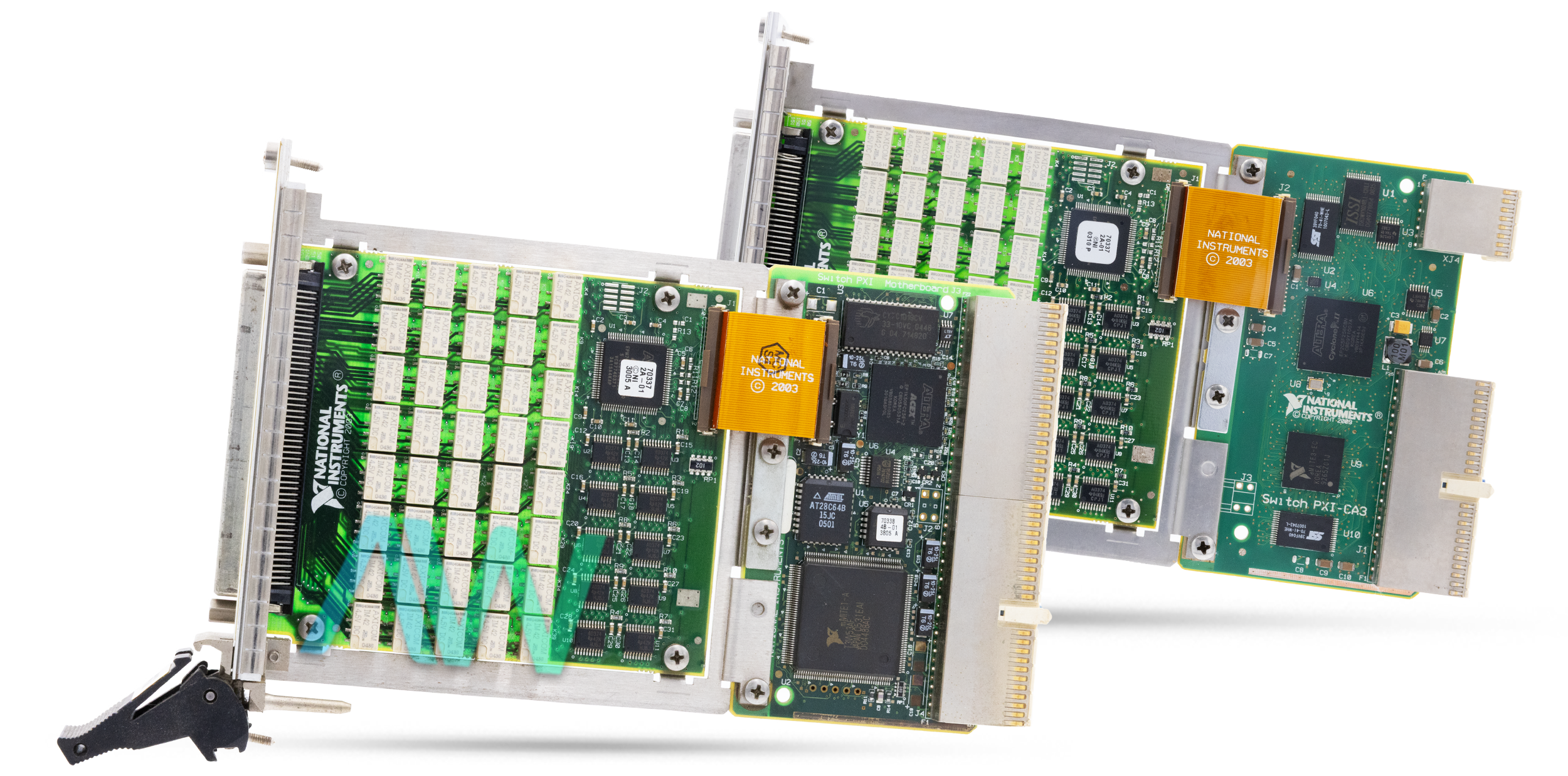

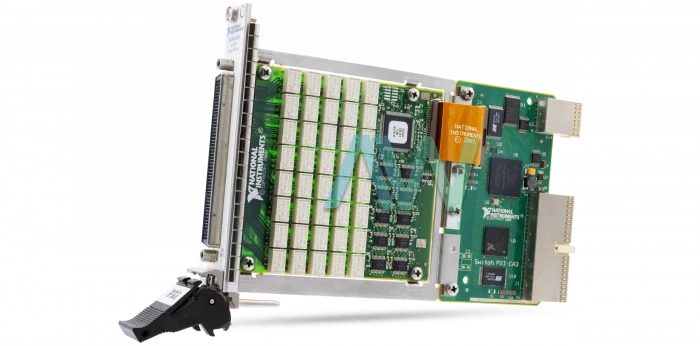

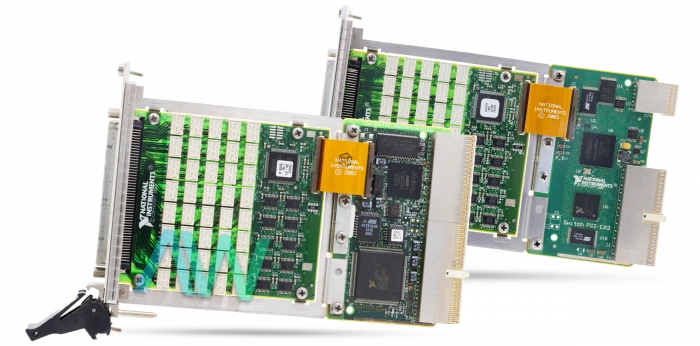

National Instruments PXI-2570 PXI Relay Module

The PXI-2570 PXI Relay Module (Part Number: 778572-70) is equipped with 40 individual SPDT (Form C), latching relays. The NI PXI-2570 optimizes relay density in one PXI slot. Each relay comprises a normally closed (NC), normally open (NO), along with a common (COM) terminal. Since there are 40 channels on the module, the user can switch  multiple ATE loads in one PXI chassis or a great quantity of channels in a numerous-chassis configuration. It has a switch bandwidth of 40 MHz.

This module also offers automatic scanning; it can expand throughput in computerized test applications by the utilization of scanning. Scanning enhances throughput by downloading a list of as many as 32,000 associations with the switch and cycling through the list utilizing an event (trigger) with no intrusion from the host processor. Scanning is most productively achieved by matching the PXI-2570 with an instrument such as the NI PXI-4070 6 1⁄2-digit FlexDMM, which initiates a trigger after every estimation.

All National Instruments PXI Switch Modules can be used with NI-SWITCH, which is an IVI-compliant driver with full functionality for switch modules. For extra help with arranging, programming, and controlling higher channel count switching systems, NI Switch Executive software is a simple to utilize, intelligent switch management and visual routing environment. This PXI Relay Module is also compatible with Visual Basic, C/C++, LabVIEW, Measurement Studio, and LabWindows/CVI.

The NI PXI-2570 can perceive trigger pulse widths under 150 ns if the user disables digital filtering. Tight synchronization is additionally possible with devices via hardware triggers. This module is UL and CE compliant. The PXI-2570 Relay Module is also rated for Measurement Category I and can carry signal voltages to a maximum of 100 V. This module can withstand up to 500 V impulse voltage.

The NI device weighs 5.5 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, and an operating and non-operating random vibration of 0.31 grms and 2.46 grms respectively–all at a frequency range of 5 to 500 Hz.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-2570 is no longer available from National Instruments the PXI Relay Module will remain available with us. Request your quote today!

ModelPXI-2570
ManufacturerNational Instruments
Part Number778572-70
TypePXI Relay Module
Channels40
Switch Bandwidth40 MHz
Relay ConfigurationSPDT
I/O Connector200 POS LFH Matrix 50, Receptacle
PXI Power Requirement 2.5 W at 3.3 V, 6 W at 5 V
Relay TypeElectromechanical, Latching
Operating Temp Range  0 °C to 55 °C
Storage Temp Range -20 °C to 70 °C
Dimensions8.5 in. × 0.8 in. × 5.1 in.
Weight5.5 oz.
WarrantyThree Year Warranty
PXI-2570 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information!

Associated part numbers for PXI-2570:

National Instruments PXI-2570 Frequently Asked Questions



Question: What is the maximum switching voltage?

Answer: The maximum switching voltage for the PXI-2570 is 100 V channel-to-channel and channel-to-ground.



Question: Which type of I/O connector does the device have?

Answer: The PXI-2570 has a 200 POS LFH Matrix 50, receptacle I/O connector.



Question: Where can I find the connector pinout for the Relay Module?

Answer: The connector pinout can be found in the "NI PXI-2570 Specifications" document under the "Manuals & PDFs" tab.



Question: What type of relay configuration does the NI PXI-2570 have?

Answer: The Relay Module has an SPDT relay configuration.
