Q: What is the maximum relay operating time for the PXI-2586?

The maximum relay operating time for the PXI-2586 is 15.4 ms.

Q: What type of I/O connector is on the PXI-2586?

A 20-position, Positronic GMCT series plug is the I/O connector on the PXI-2586.

Q: What is the power requirement for the PXI-2586?

The power requirement for the PXI-2586 is 5 W at 5 V and 2.5 W at 3.3 V.

Q: What size is the NI PXI-2586 module?

The NI PXI-2586 module is a 3U, one slot module with dimensions of 8.5 x 0.8 x 5.1 in.

PXI-2586, 10-Channel, SPST Relay Module

Rated 4.5/5 | 18 ratings

PXI-2586 National Instruments Relay Module | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

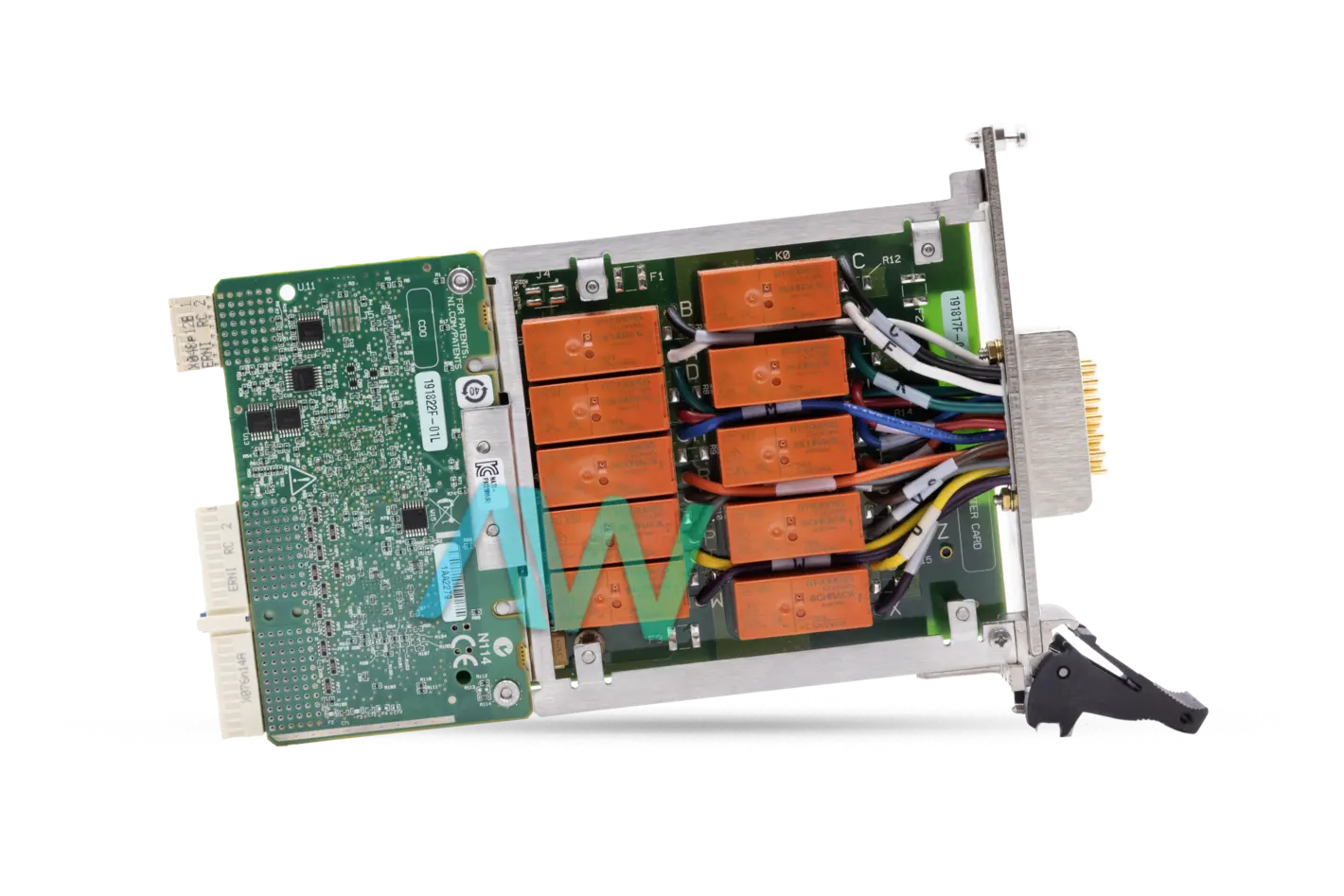

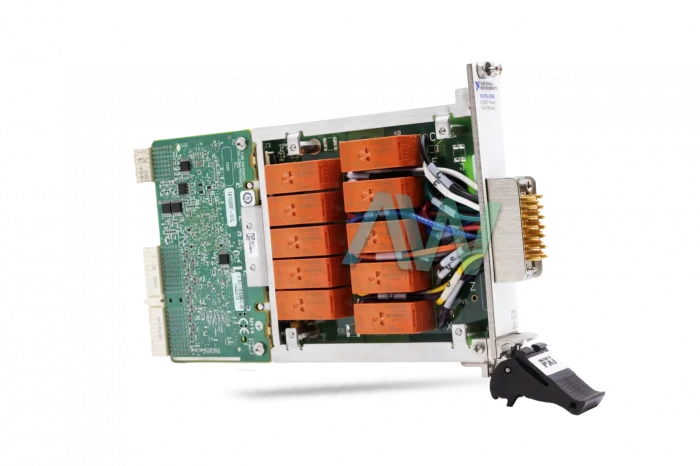

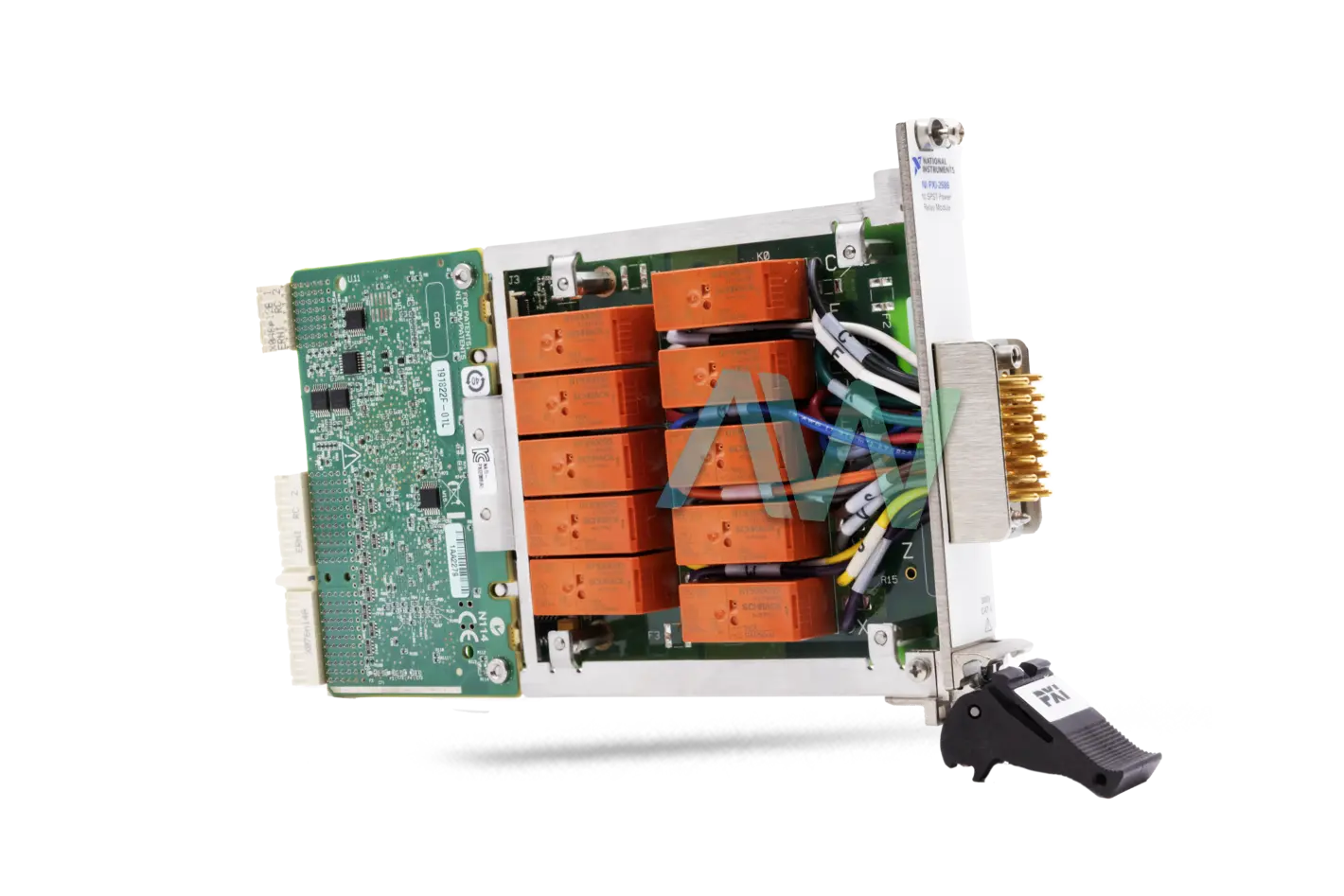

National Instruments PXI-2586 PXI Relay Module

The National Instruments PXI-2586 (Part Number: 778572-86) is a general purpose, 12 A, 10-Channel SPST PXI Relay Module. This product is considered a viable solution for switching loads and power signals in control applications and automotive, battery, and power supply testing. The NI PXI-2586 is entirely software programmable and is offered with the PC based program. With this Relay Module, the user can achieve two topologies: 10-SPST and 5-DPST. As far as its input characteristics are concerned, this model is designed to handle 300 V maximum switching voltage (channel-to-channel) and 300 V, CAT II (channel-to-ground). The NI PXI 2586 can provide 12 A maximum carry or switching current per channel or common, while operating at less than or equal to 45 °C.

This PXI Relay Module comes equipped with single-side stable, electromechanical relays featuring silver-nickel relay contact material. The National Instruments PXI-2586 weighs around 400 g (14 oz) and is a 3U, one slot type PXI module with 21.6 x 2.0 x 13.0 cm physical dimensions. The relays utilized in this module are field replaceable, with a mechanical relay life of 1 x 107 cycles.

As far as its triggering capabilities are concerned, this model can recognize trigger signals generated at 150 ns minimum pulse width through PXI trigger lines 0–7. However, with digital filtering disabled users can let their PXI-2586 recognize trigger pulse widths < 150 ns. While operating at 23 °C with 50 ohms termination, this Relay Module can work with less than or equal to -85 dB channel-to-channel crosstalk in 10 kHz frequency band.

Model	PXI-2586 (778572-86)
Manufacturer	National Instruments
Type	PXI Relay Module
Relays	10
Switch Bandwidth	20 MHz
Scan Rate	65 cycles/s
Dimensions	8.5 x 0.8 x 5.1 in.
Weight	14 oz.
Warranty	2-3 Year Warranty
PXI-2586 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.
