Q: What type of relay configuration does the PXI-2599 have?

The PXI-2599 has an SPDT relay configuration.

Q: What is the scan rate of the NI PXI-2599?

2 cycles/s is the scan rate of the NI PXI-2599.

Q: How many I/O connectors does the PXI-2599 module have?

There are six SMA jacks for I/O connectors on the PXI-2599 module.

Q: What are the PXI-2599 module’s relays operating/release time?

The PXI-2599 module’s relays have an operating/release time of 10 ms.

PXI-2599, 26.5 GHz, PXI RF Relay Module

Rated 4.8/5 | 9 ratings

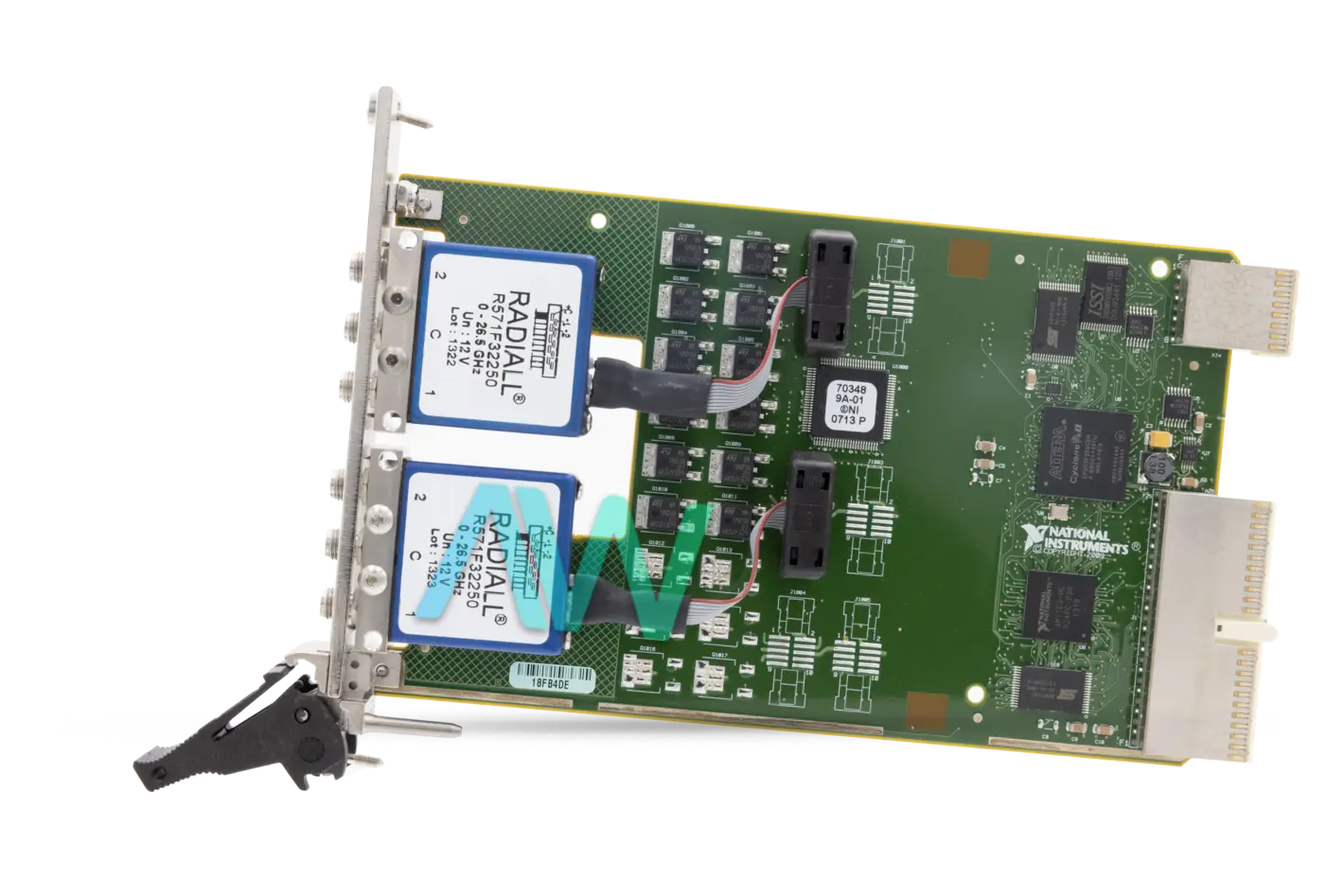

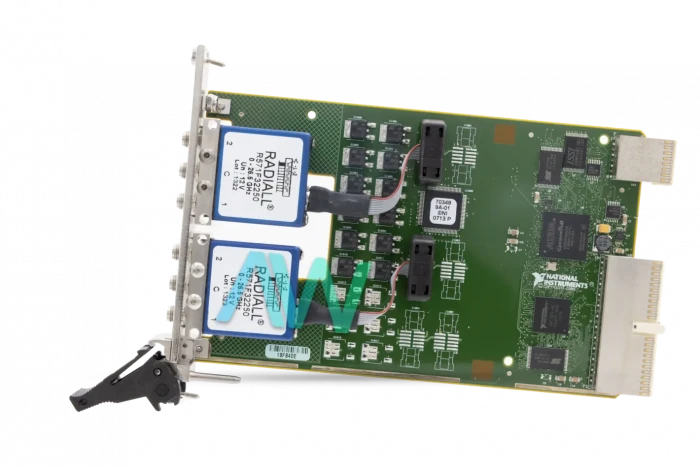

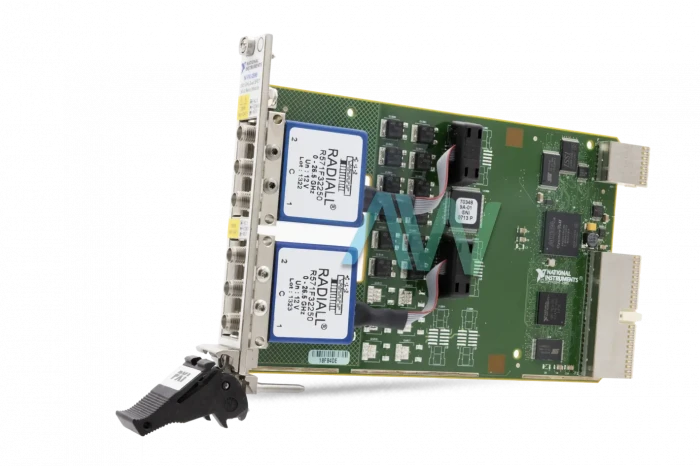

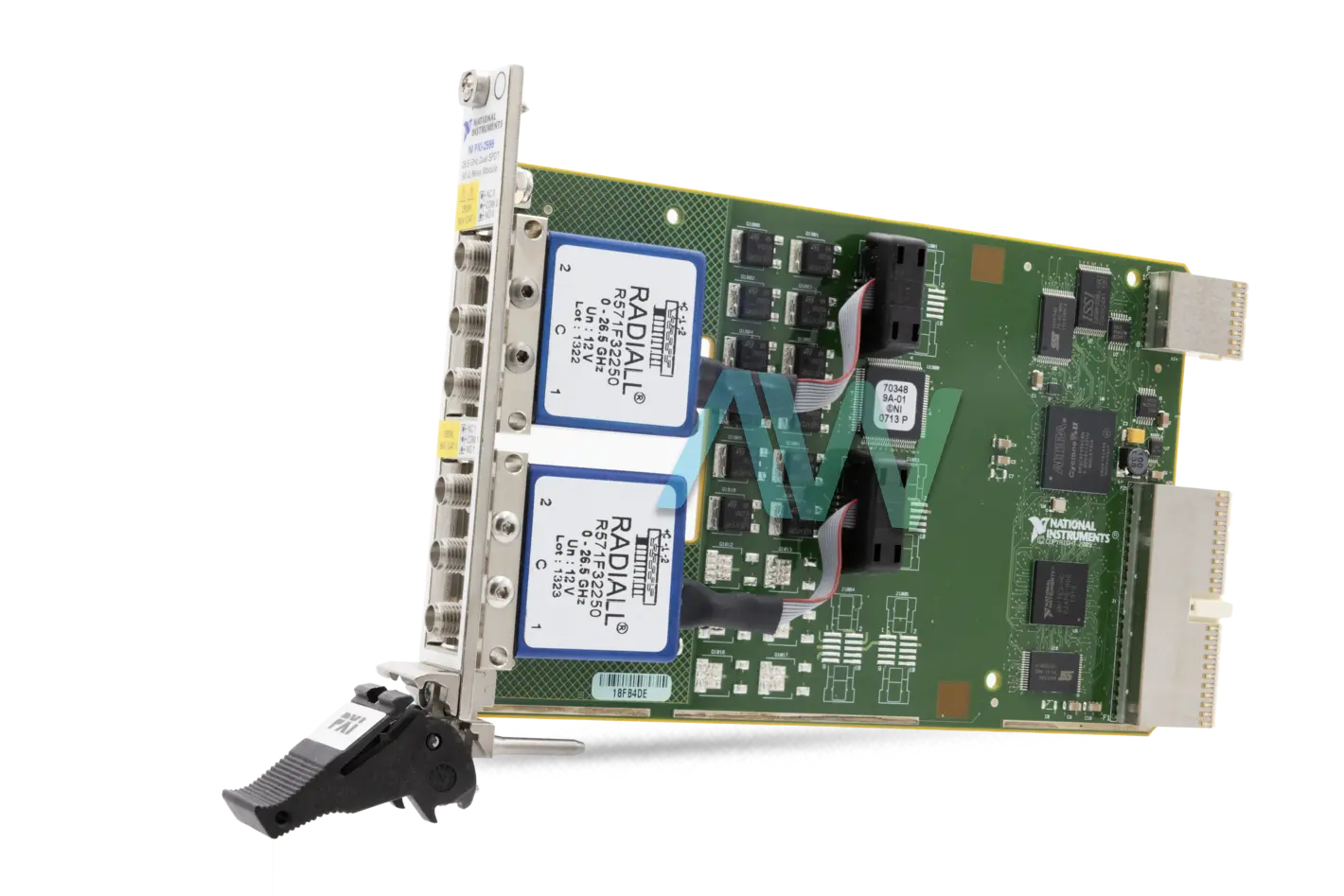

PXI-2599 National Instruments Relay Module | Apex Waves | Image

❮ ❯
