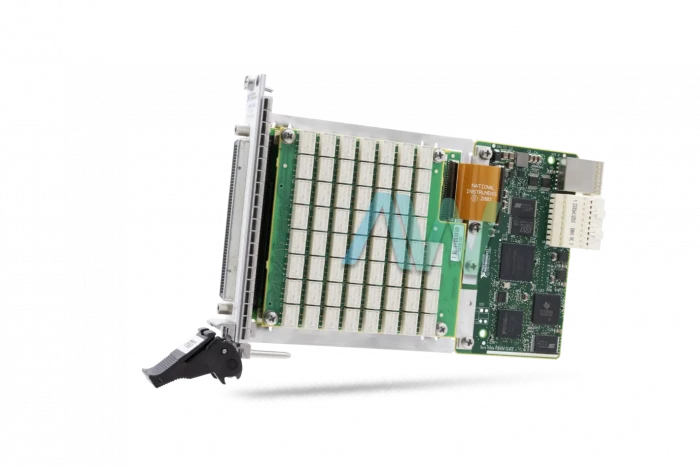

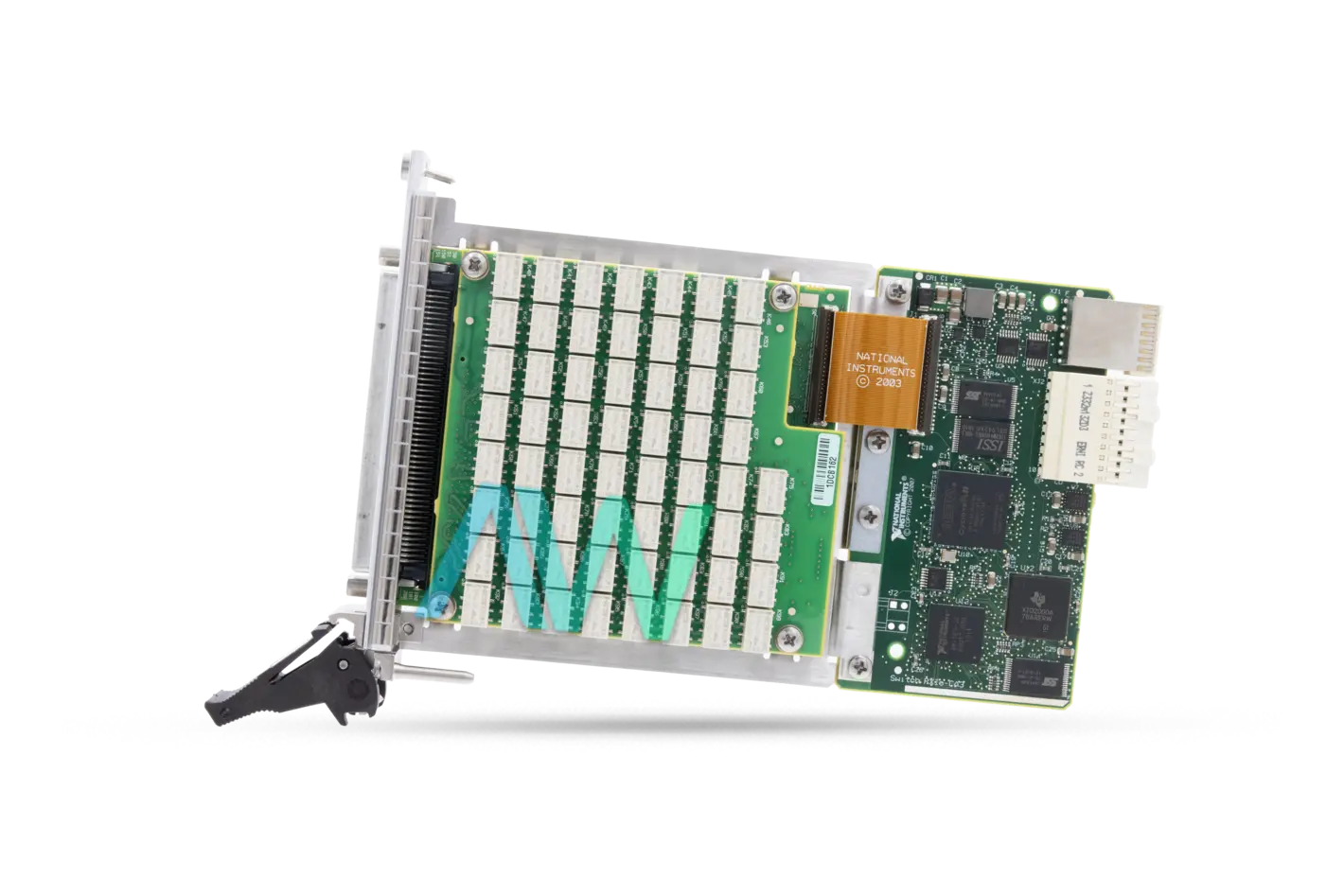

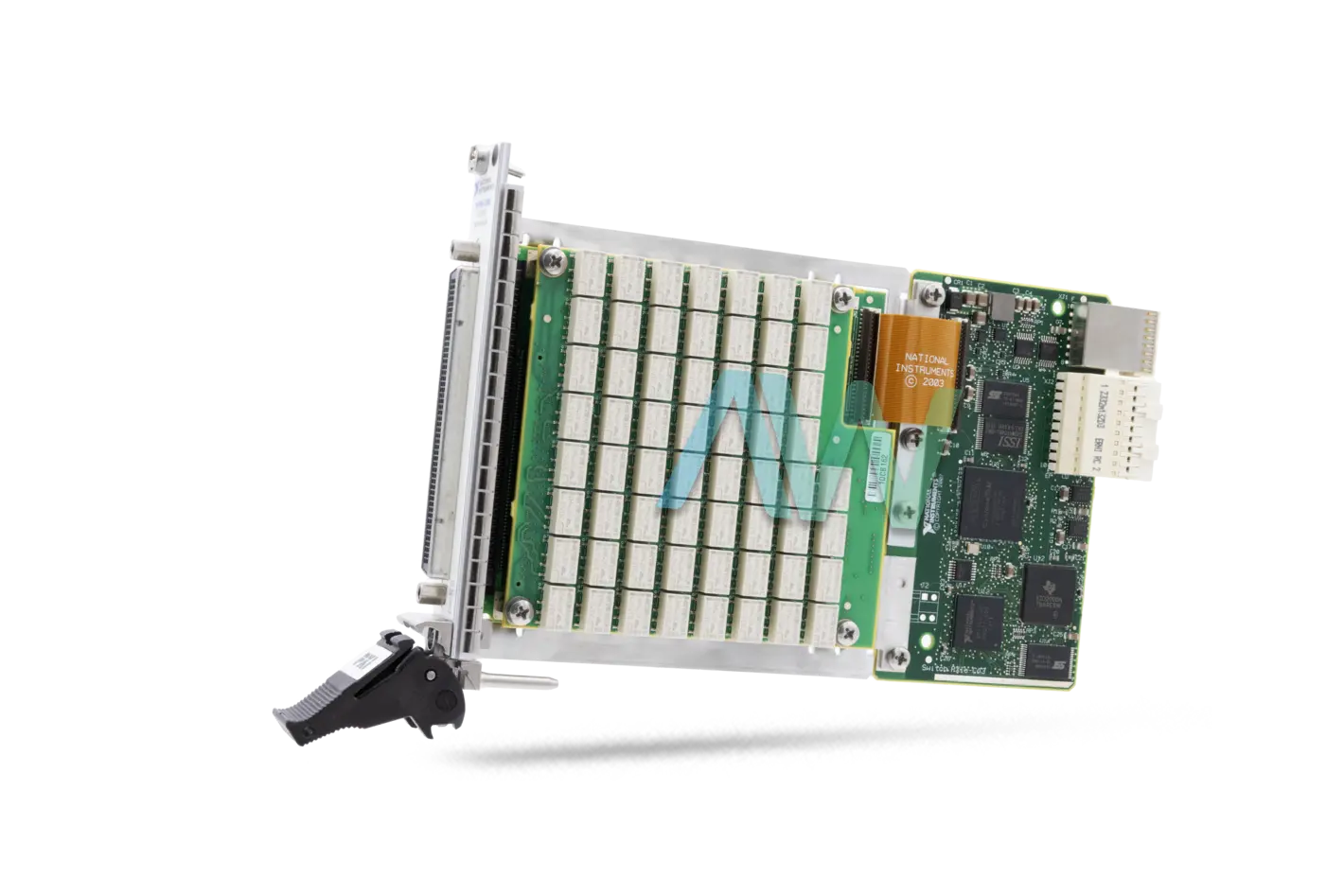

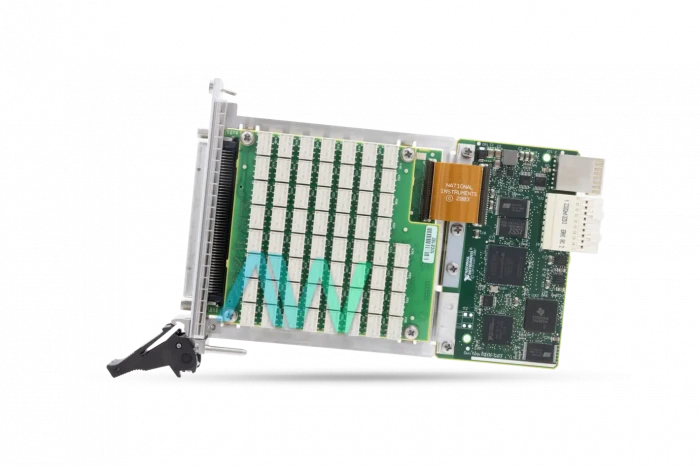

National Instruments PXIe-2569 PXI Relay Module
The PXIe-2569 (Part Number: 780587-69) is a 100-Channel Relay Module from National Instruments, with a single-pole single-throw relay. The topologies of the module are either both 100-SPST and 50-DPST. The module also implements the mechanism for input and output triggers. The source and destination for the triggers are PXI trigger lines. The value of the minimum pulse width for the input triggers is 150 nanoseconds. It enables the user to program the output triggers. Their pulse width ranges from 1 microsecond to 62 microseconds. This module also offers a step scan capability. The NI PXIe-2569 Relay Module comes with a built-in step scan list of 32,000, which enables the user to utilize deterministic scanning.
The PXIe-2569 offers a maximum switching voltage of 100 volts. This value is for the channel-to-channel voltage. The value for the channel-to-ground switching voltage is also 100 volts. This module is specifically designed for Measurement Category 1. This module implements a feature for protection against impulse voltages. The instrument has the capability to withstand the impulse voltage of 800 volts. The NI PXIe-2569 Relay Module implements an additional protection feature to ensure smooth operation of the module against high voltage transients. These transients may occur due to switching inductive loads.
The PXIe-2569 offers a value for minimum switch load of 20 mV or 10 mA. The initial value of DC path resistance for the instrument is less than 0.55 ohms. Its value at the end of the life of relay is one ohm. The typical bandwidth of the Relay Module is greater than or equal to 20 MHz.
As a PXIe compatible module. the PXIe-2569 is a one slot and 3U size module. The physical dimensions measure 8.5 in. × 0.8 in. × 5.1 in. (21.6 cm × 2.0 cm × 13.0 cm), and it weighs a total of 10.2 oz (289 g). When operational, the temperature range spans from 0 °C to 55 °C. When not in use, the storage temperature range is -20 °C to 70 °C.
| Model | PXIe-2569 |
|---|---|
| Part Number | 780587-69 |
| Manufacturer | National Instruments |
| HTS Code | 8471801000 |
| Type | PXI Relay Module |
| Relay Configuration | SPST (open) |
| Relays | 100 |
| Switch Bandwidth | 20 MHz |
| Power Requirement | 6 W at 5 V, 2.5 W at 3.3 V |
| I/O Connector | 200 POS LFH Matrix 50 Type |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -20 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 10.2 oz. |
| Warranty | Three Year Warranty |
| PXIe-2569 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-2569:
National Instruments PXIe-2569 Frequently Asked Questions
Question: What is the scan rate of the PXIe-2569?
Answer: The scan rate of the PXIe-2569 is 145 cycles/s.
Question: What type of I/O connector is on the NI PXIe-2569?
Answer: The NI PXIe-2569 has 200 POS LFH Matrix 50, receptacle I/O connectors.
Question: What is the relay operating time for the PXIe-2569?
Answer: The PXIe-2569 has a relay operating time of 1 ms typical and 3.4 ms maximum.
Question: What is the maximum switching current DC for the NI PXIe-2569?
Answer: The maximum switching current DC for the NI PXIe-2569 is 1 A.
