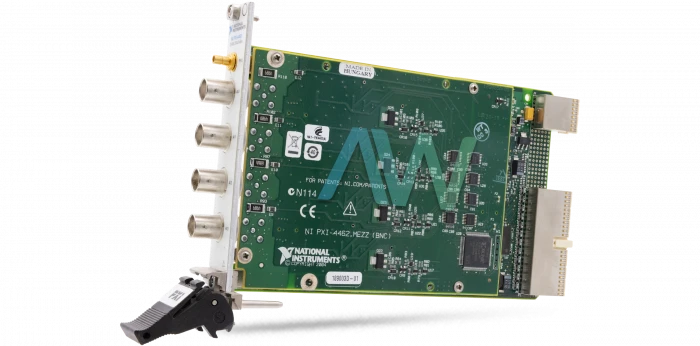

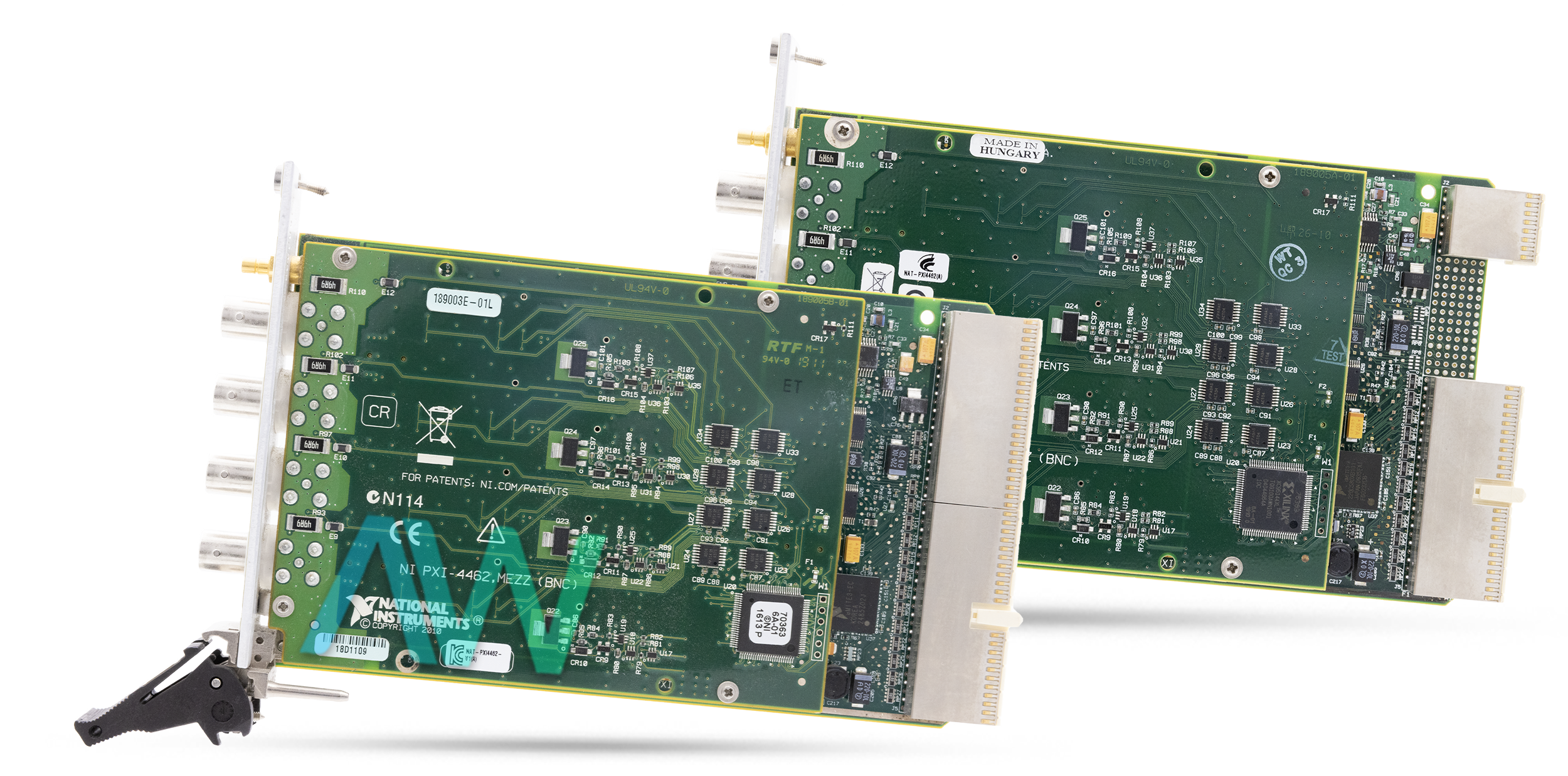

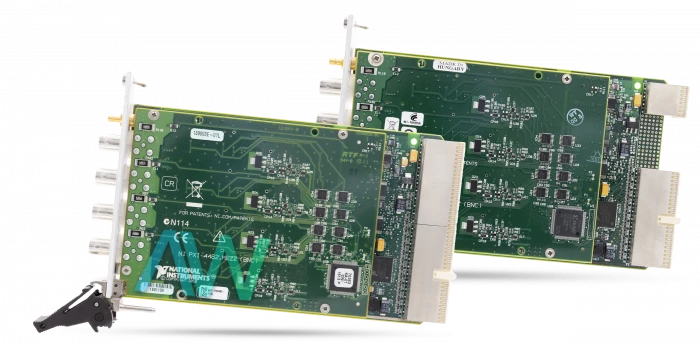

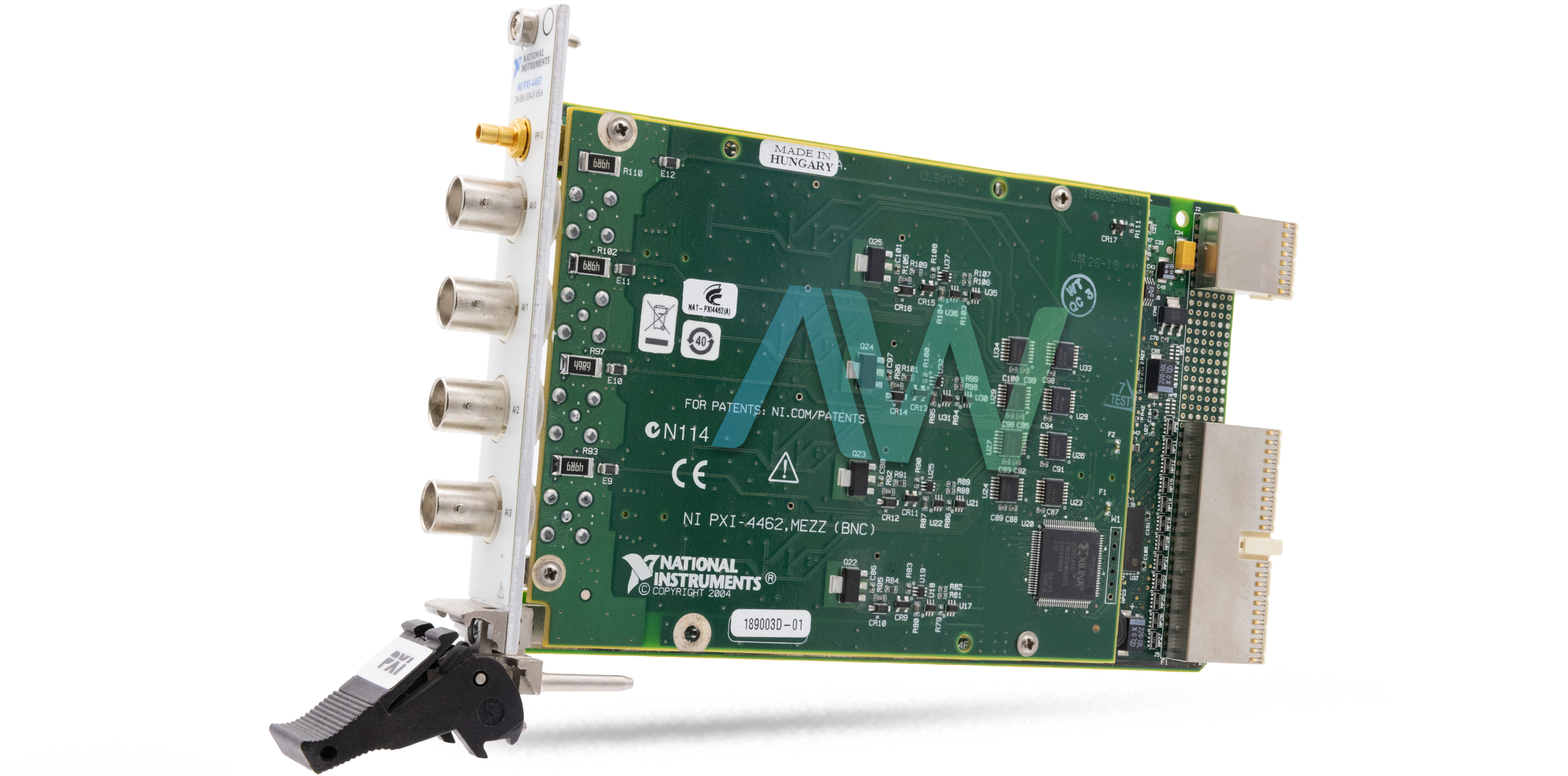

National Instruments PXI-4462 PXI Sound and Vibration Module
The PXI-4462 (Part Numbers: 779132-01, 779688-01, 779131-01, 188261G-01, 188261E-01), a high-performance 4-input sound and vibration module, for precise measurements in sound and vibration applications. With its delta-sigma design and 24-bit resolution ADC, it offers remarkable precision and dynamic range. It enables high-fidelity signal capture with sample rates ranging from 1 kS/s to 204.8 kS/s in increments as tiny as 181.9 μS/s. The difference between the part numbers of the sound and vibration module is that part number 779131-01 is the standard version of the device, while part number 779688-01 is hybrid slot compatible. Part number 779132-01 is equipped with a sound and vibration measurement suite.
This module offers four independently selected software sampled input channels that can be configured as differential or pseudodifferential. Input coupling can be set to AC or DC on a per-channel basis, offering flexibility for various measurement scenarios. In order to accommodate varying input signal levels, the PXI-4462 has a programmable gain amplifier stage that allows gain adjustment from -20 to +30 dB in 10 dB steps. Because it supports single-ended and differential signal connections, it can be used with a variety of transducers.
The PXI-4462 has the ability to synchronize data acquisition with external events using analog and digital triggering capabilities. Any input channel can provide analog triggers, which have hysteresis, slopes, and trigger levels that can be adjusted. Digital triggers with adjustable polarity and minimum pulse width provide additional synchronization possibilities and are compatible with 5V TTL logic.
The module uses both analog and digital filters to eliminate aliasing and guarantee accurate frequency-domain readings. With a mean total harmonic distortion (THD) of up to -109 dB, the analog inputs provide good amplitude flatness of ±0.1 dB between DC and 92 kHz.
The PXI-4462 is appropriate for a number of applications, including audio testing, automotive noise, vibration, and harshness (NVH), and machine condition monitoring. Its features include software-configurable AC/DC coupling and IEPE conditioning. Precision measurements using microphones, accelerometers, and other transducers—even with wide dynamic ranges—are made possible by its hardware and software support. Efficient data handling for real-time applications is ensured by its FIFO buffer size of 2,047 samples and direct memory access (DMA) for data transfer.
The PXI-4462 is considered Obsolete and is no longer available from the manufacturer National Instruments (NI), but the PXI Sound and Vibration Module will stay available in perpetuity with Apex Waves!
| Model | PXI-4462 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779132-01, 779688-01, 779131-01, |
| Series | DSA Devices |
| Type | PXI Sound and Vibration Module |
| Analog Input Channels | 4 |
| High-Pass Filter Cutoff Frequency | 3.4 Hz (AC Coupling -3 dB Point) |
| Maximum Sample Rate | 204.8 kS/s |
| ADC Resolution | 24 Bits, Delta-Sigma |
| Coupling | Software-Selectable AC or DC on a Per-Channel Basis |
| Compliance Voltage | ≥24 V |
| Analog I/O Connectors | BNC Female |
| Digital Trigger Connector | SMB Male |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | -20 to 70 °C |
| Dimensions | 6.3 in. × 3.9 in. (16 cm × 10 cm) without Connectors |
| Weight | 8.5 oz (241 g) |
| Pricing | Contact Us Today for a Quote! |
Associated part numbers for PXI-4462:
National Instruments PXI-4462 Frequently Asked Questions
Question: What is the difference between the two part numbers of the PXI-4462?
Answer: Part number 779688-01 is hybrid slot compatible, while part number 779131-01 is not.
Question: How many gain settings are available on the PXI-4462?
Answer: The module has six gain settings that you can use to configure your input range.
Question: Are you able to perform high-accuracy frequency-domain measurements using the PXI-4462?
Answer: Yes, the Sound and Vibration Module provides dynamic signal acquisition for making high-accuracy frequency-domain measurements.
Question: Is the AC/DC coupling software-configurable?
Answer: Yes, the PXI-4462 also includes software-configurable AC/DC coupling.
Question: How many channels of dynamic signal acquisition does the PXI-4462 provide?
Answer: The PXI Module provides four-channel dynamic signal acquisition.
Question: What drivers should be used with the PXI-4462?
Answer: The module should be used with NI-DAQmx drivers, but it also supports NI-DSA (Dynamic Signal Acquisition) driver components as part of NI-DAQmx. Ensure NI-DAQmx is installed and up to date.
PXI-4462 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
MAINTAIN-FORCED-AIR-COOLING-NOTE-TO-USERS.PDF
NI-4461-4462-CALIBRATION-PROCEDURE.PDF
NI-4461-4462-SPECIFICATIONS.PDF
NI-4462-LETTER-OF-VOLATILITY.PDF
NI-DYNAMIC-SIGNAL-ACQUISITION-USER-MANUAL.PDF
PXI-4462 Diagrams
