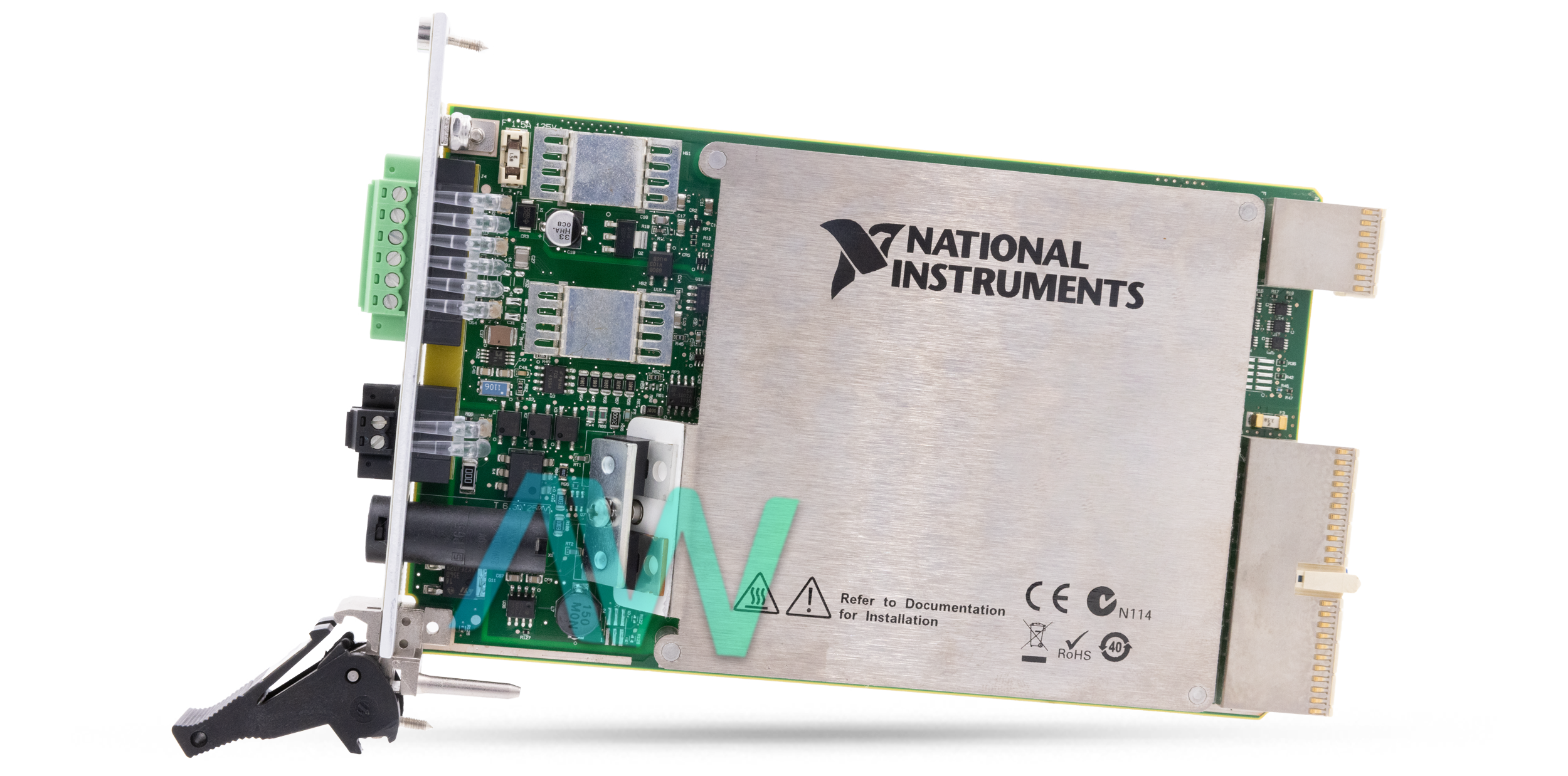

PXI-4130 National Instruments Source Measure Unit | Apex Waves | Image

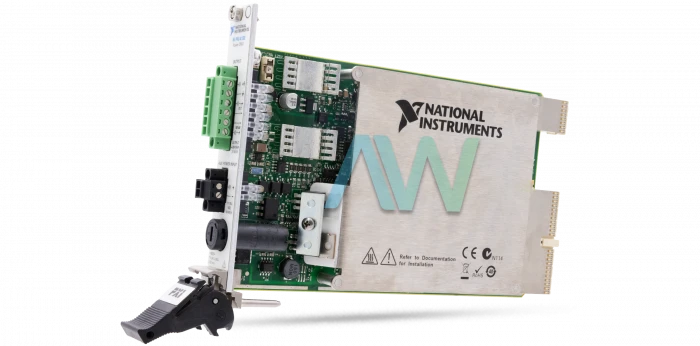

PXI-4130 National Instruments Source Measure Unit | Apex Waves | Image
PXI-4130 New
PXI-4130 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

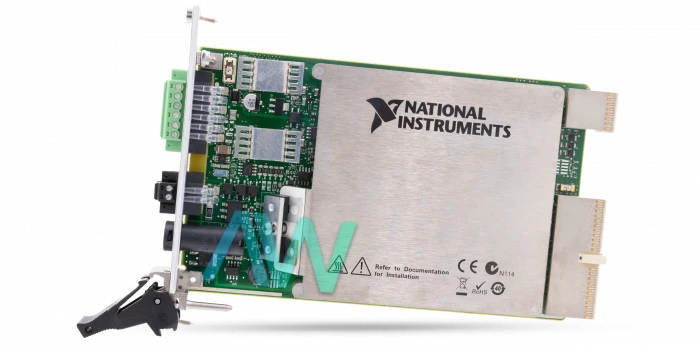

PXI-4130 National Instruments Source Measure Unit | Apex Waves | Image

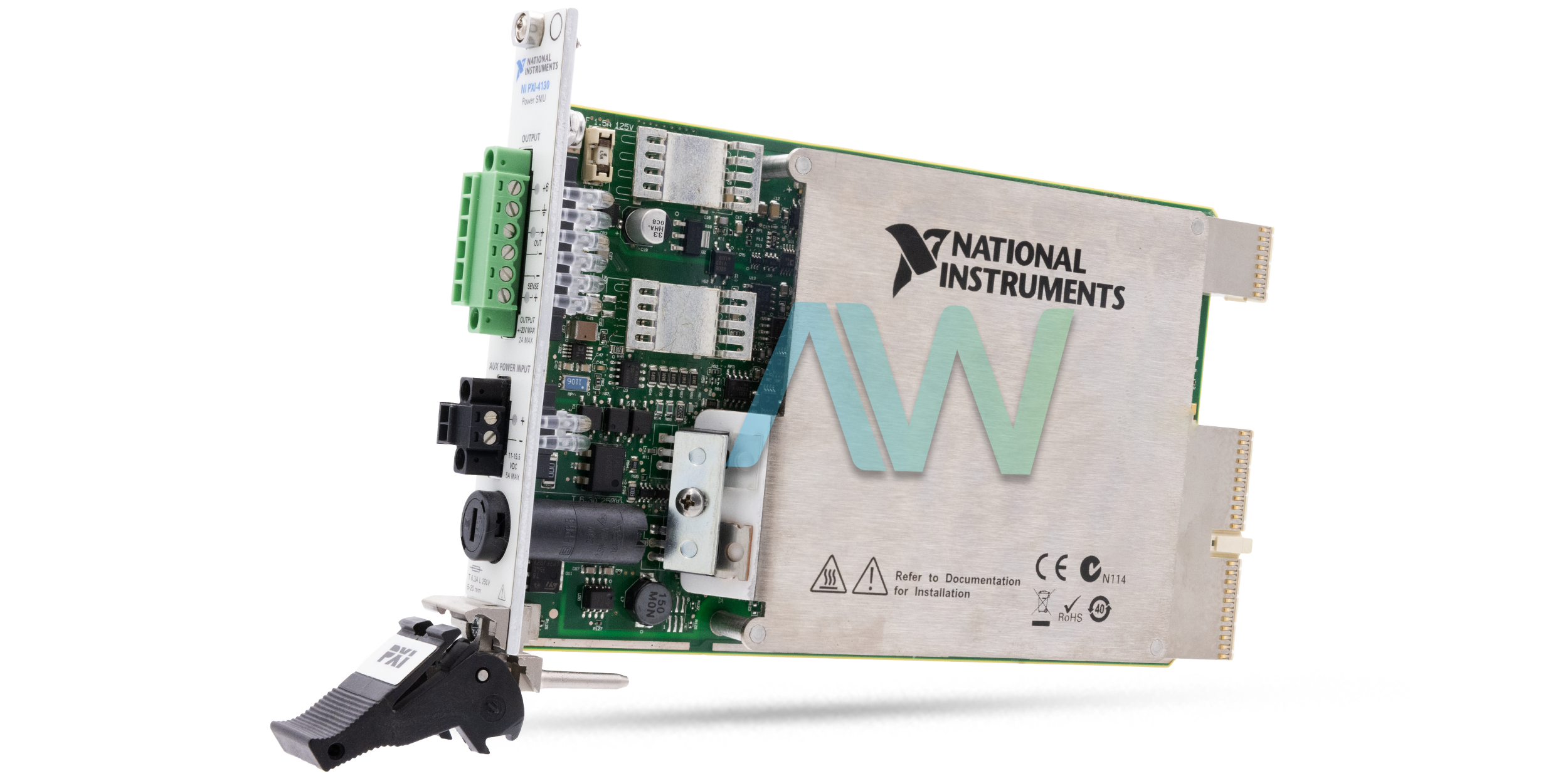

PXI-4130 National Instruments Source Measure Unit | Apex Waves | Image
PXI-4130 New
PXI-4130 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-4130 PXI Source Measure Unit

The NI PXI-4130 (Part Numbers: 779647-30 and 779647-31) is a programmable, high-control Source Measure Unit (SMU) in a single slot, 3U PXI module. It has a single detached SMU channel that offers a four-quadrant ± 20 V output that consolidates remote (4-wire) sense. This channel is fit for sourcing up to 40 W in quadrants I and III and sinking up to 10 W in quadrants II and IV. With five current giving estimation resolution down to 1 nA, this exactness source is perfect for design validation and semiconductor test applications that require automatic sourcing and sweeping and additionally high-precision estimations.

The PXI-4130 also incorporates a utility channel that can source either current or voltage with set-point and estimation resolution. This output provides up to 6 V and 1 A, as a complementary power source to the SMU channel. Applications such as transistor characterization that requires precisely sourcing a consistent current or voltage while clearing another current or voltage can significantly profit by the diminished complexity, footprint, and cost that this module offers.

The two channels of the PXI-4130 power SMU can act as either a constant voltage source or a constant current source, with a settable consistence constrain for either mode. In addition, the user can empower remote sense on the SMU channel to augment voltage output/estimation exactness on the PXI-4130 SMU under test for high-accuracy applications.

The PXI-4130 is run using the NI-DCPower driver software which can be programmed using software like LabVIEW or LabWindows/CVI. It has a recommended warm-up time of 30 minutes and should be calibrated at least once a year.

It is possible to control the PXI-4130 either inside from the PXI backplane or remotely through a front-board associated assistant DC supply. The NI device weighs 11 oz, and measures 8.5 x 5.1 x 0.8 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -40 °C to 70 °C, noncondensing operating and storage humidity ranges of 10% to 90% and 5% to 95% respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

The PXI-4130 has been declared Obsolete by National Instruments (NI), but the SMU will remain available in perpetuity with Apex Waves!

ModelPXI-4130
Part Numbers779647-30 and 779647-31
ManufacturerNational Instruments
TypePXI Source Measure Unit
SMU Channels1
Voltage Range-20 V to 20 V
Current Sensitivity1 nA
Connector TypeMini-Combicon (6 or 2 Position)
Auxiliary Power Supply Input Requirements11 VDC to 15.5 VDC
Operating Temp Range0 °C to 55 °C
Storage Temp Range-40 °C to 70 °C
Dimensions8.5 x 5.1 x 0.8 in.
Weight11 oz.
WarrantyThree Year Warranty
PXI-4130 ManualUser Manual and Maintenance Manual Available for Download
PriceSubmit a Quote Request for Pricing Information

Associated part numbers for PXI-4130:

National Instruments PXI-4130 SMU Frequently Asked Questions



Question: Why does the PXI-4130 have two part numbers?

Answer: The two part numbers have a few differences. Part number 779647-30 has -300 mA to 300 mA current range and does not include auxiliary power. Part number 779647-31 has -2 A to 2 A current range and includes auxiliary power.



Question: Which driver software is used with the NI PXI-4130?

Answer: The driver software used with the SMU is called NI-DCPower.



Question: What is the current range of the NI PXI-4130?

Answer: There are five current ranges on the Power SMU: 2 A to 200 µA.



Question: What is the relative humidity range for the Source Measure Unit?

Answer: The noncondensing relative humidity range for the PXI-4130 is 10% to 90% for operating conditions and 5% to 95% for storage conditions.

Accessory TypeModel NamePart Number
Screw Terminal AccessoryCombicon Connector Kit780557-01
Driver Downloads for PXI-4130
