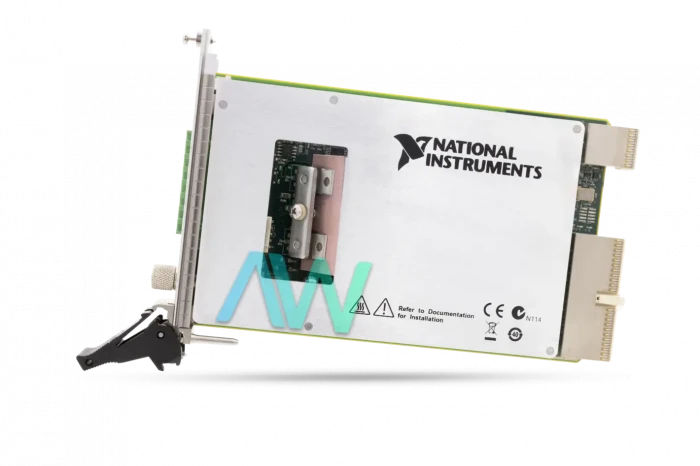

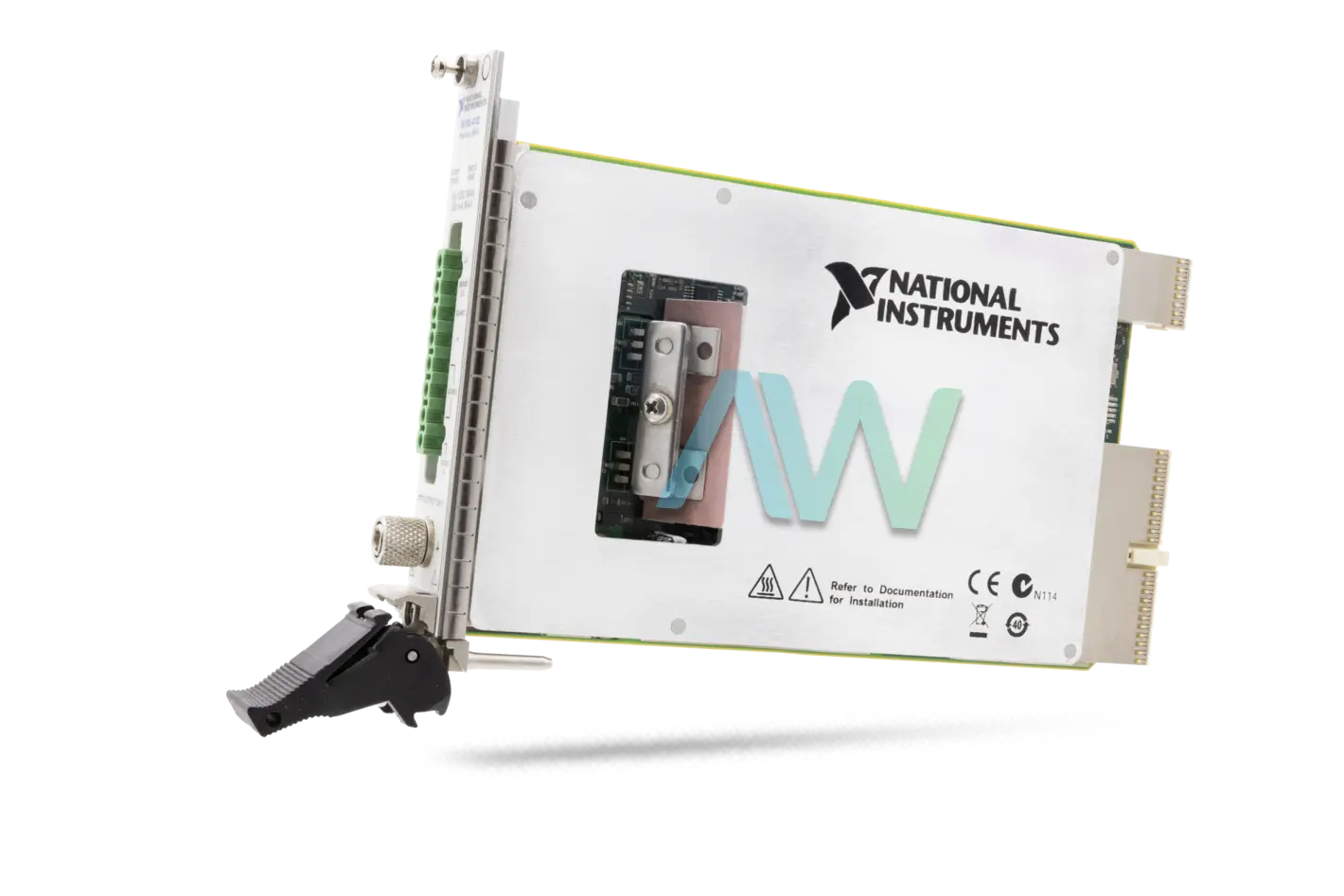

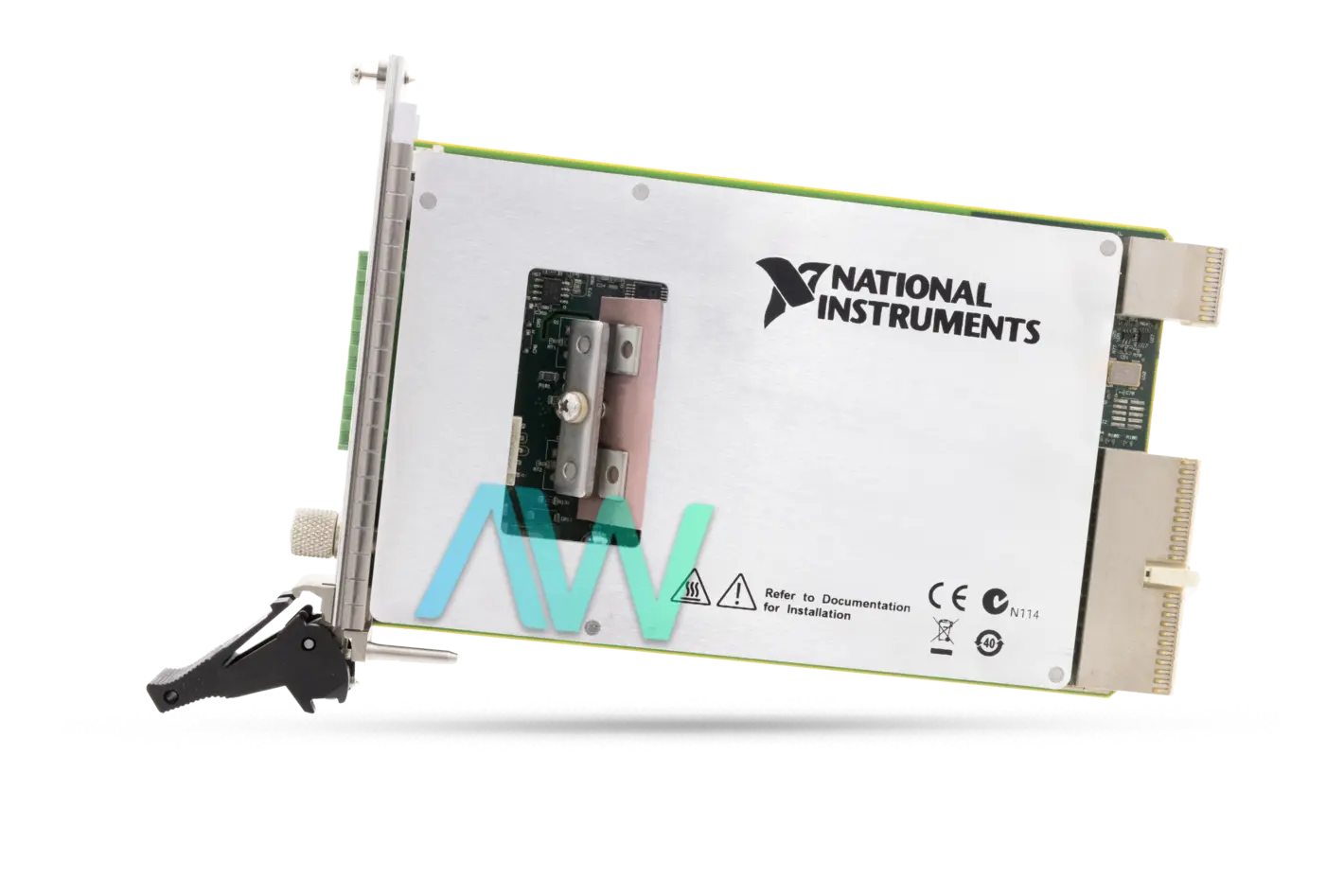

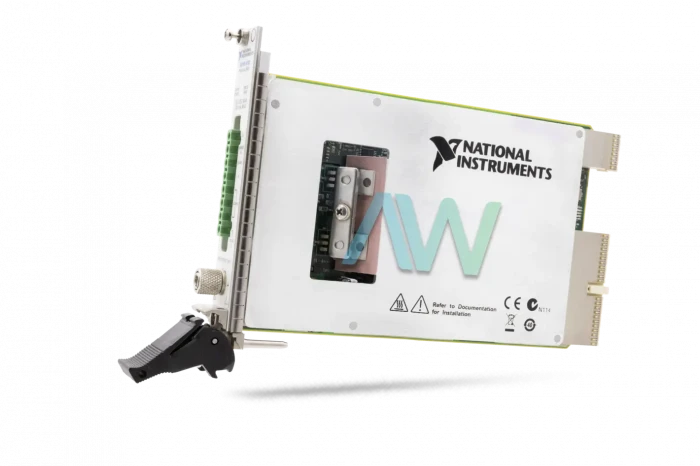

National Instruments PXI-4132 PXI Source Measure Unit
The National Instruments PXI-4132 (Part Number: 780558-01, 190463E-01L) is a 10 pA, ±100 V PXI Source Measure Unit or SMU. This high-precision, programmable SMU has a single isolated SMU channel featuring a four-quadrant output that comes integrated with external guarding as well as (4-wire) sense. The PXI-4132 is considered a viable solution for precise leakage measurements on ICs, PCBs, Cables, and other discrete components because it comes featured with better integrated guarding. With the PXI-4132 Precision SMU, the user can proceed with various high-speed current-voltage measurements on a broad range of components including organic LEDs and diodes. In addition, the user can also synchronize and operate multiple PXI-4132 modules with the help of the PXI backplane. This arrangement provides better high-speed I-V measurements on complex devices such as transistors.
As far as its measurement capabilities are concerned, the NI PXI-4132 offers 4,200 updates/s maximum source update rate and 500 ns trigger into source delay. This Source Measure Unit supports various types of input triggers, such as start, sequence, advance, source, measure, etc. This model utilizes PXI Trigger lines <0...7> as sources and destinations for triggers.
The National Instruments PXI-4132 SMU can generate different output triggers (events) including source complete, sequence engine done, sequence iteration complete, and measure complete. By design, this PXI Source Measure Unit is a 3U type, one-slot, PXI module with 2.0 cm × 13.0 cm × 21.6 cm nominal dimensions, which weighs around 295 g. This module comes equipped with 8 position, 5.08 mm COMBICON front panel connectors.
Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-4132 entered the NI Maintenance phase on December 30, 2022, it will remain available with Apex Waves. Request your quote today!
| Model | PXI-4132 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780558-01, 190463E-01L |
| Type | PXI Source Measure Unit (SMU) |
| SMU Channels | 1 |
| Voltage Range | -100 V to 100 V |
| Current Range | -100 mA to 100 mA |
| Front Panel Connectors | 8 Position COMBICON |
| Trigger Pulse Width | 100 ns Minimum |
| Input Trigger Polarity | Configurable |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -40 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. (2.0 cm × 13.0 cm × 21.6 cm) |
| Weight | 10.4 oz. (295 g) |
| Warranty | Three Year Warranty |
| PXI-4132 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-4132:
National Instruments PXI-4132 Frequently Asked Questions
Question: What is the current sensitivity of the PXI-4132 Precision SMU?
Answer: The PXI-4132 Precision SMU has a current sensitivity of 10 pA.
Question: What type of front-panel connectors are on the NI PXI-4132?
Answer: There are COMBICON, 5.08 mm 8 position nominal front panel connectors on the NI PXI-4132.
Question: What is the power requirement for the PXI-4132?
Answer: The power requirement for the PXI-4132 is 10 W at 5 V, 1 W at 3.3 V, and 2 W at 12 V, typical.
Question: What types of output triggers does the PXI-4132 have?
Answer: The PXI-4132 has the following output triggers: Measure Complete, Source Complete, Sequence Engine Done, and Sequence Iteration Done.
