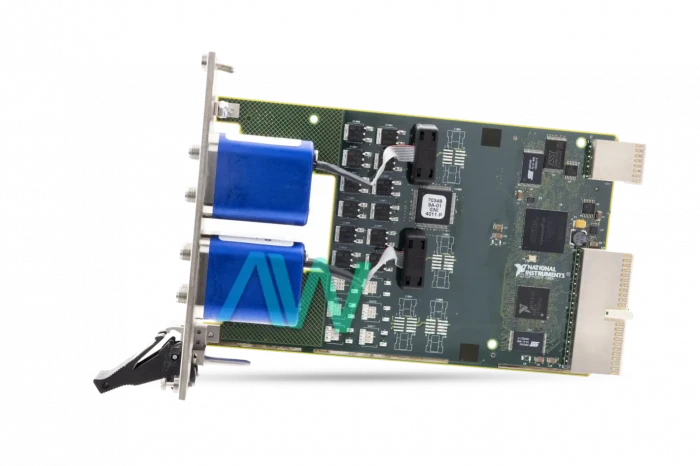

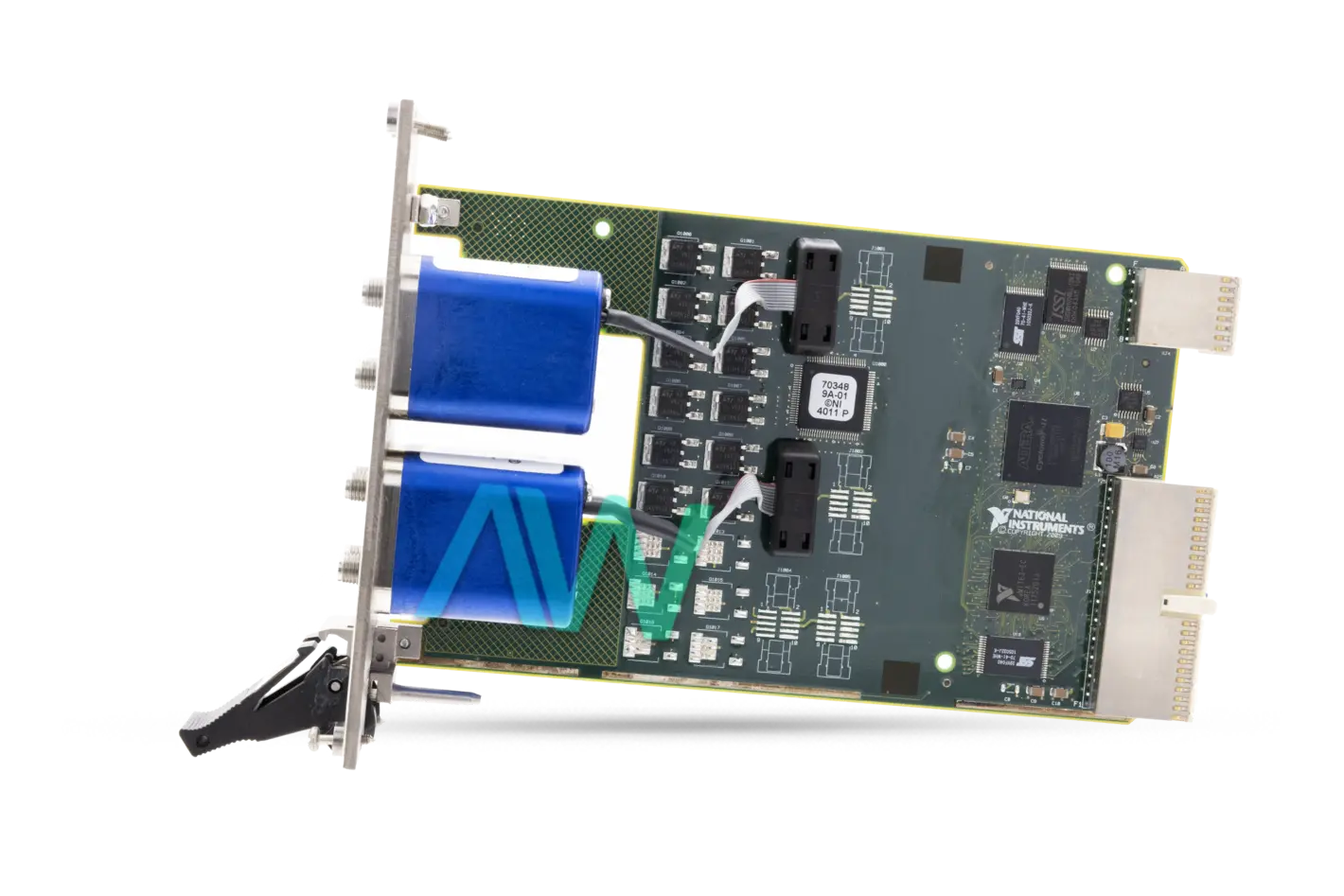

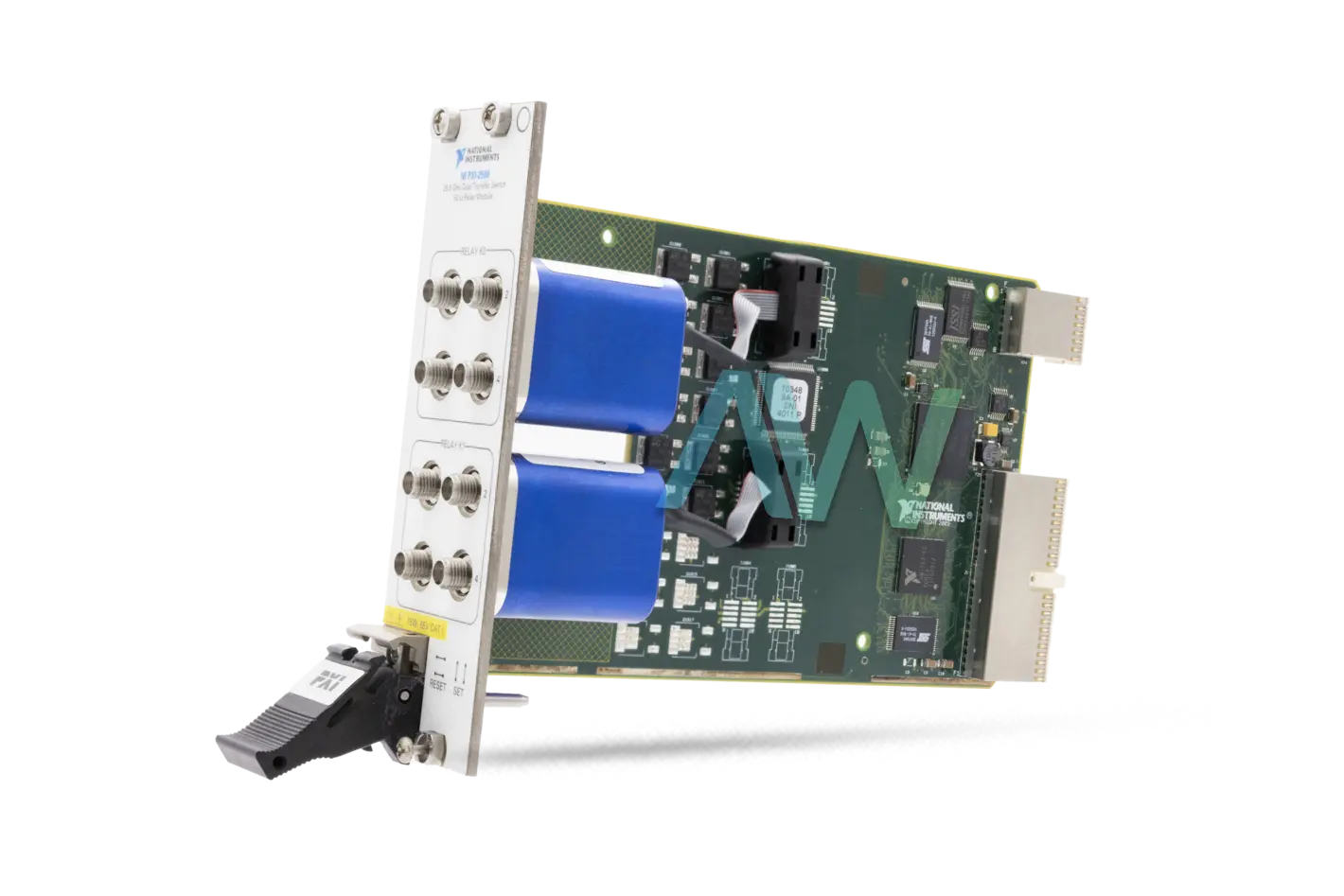

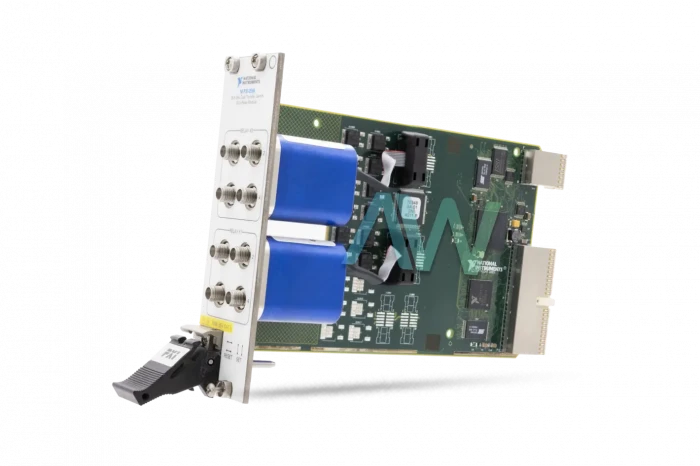

National Instruments PXI-2598 PXI Transfer Switch Module

The National Instruments PXI-2598 (Part Number: 778572-98) is a 50 Ωm, 26.5 GHz, PXI Transfer Switch Module. This module is designed for routing microwave or RF signals in ATE (automated test applications). The NI PXI-2598 can be utilized for basic signal routing, as well as for the addition and removal of components in a signal path. This Transfer Switch Module is an ideal choice for passing high-order harmonics from signal upconverter to downconverter modules. The integrated, onboard relay count tracking feature can be utilized to reduce unexpected system downtime and predict relay lifetime.

The National Instruments PXI-2598 is rated for measurement Category I. Thus, it is designed to carry signal voltages less than or equal to 100 Volts. This Transfer Switch Module offers 1.25 Arms maximum carry current per channel, 75 W maximum RF carry power, and -35 dBm maximum switch load. As far as its RF performance characteristics are concerned, the NI PXI-2598 has 50 Ω (nominal) characteristic impedance. The relays utilized in this Switch Module are electromechanical, latching type relays. These relays have 2.5 × 106 cycles for their expected mechanical relay life and <0.03 dB insertion loss repeatability. In addition, the contact material of the relays is Beryllium copper, gold-plated. For facilitating seamless input/output connections, this Switch Module comes equipped with eight SMA jacks.

By type, the NI PXI-2598 is a 3U, two slot, PXI module and it weighs around 302 grams. The recommended cycle speed for this model is 5 channels/s and it can receive trigger signals generated at 150 ns minimum pulse width.

ModelPXI-2598 (778572-98)
ManufacturerNational Instruments
TypePXI Transfer Switch Module
Switch Bandwidth26.5 GHz
Scan Rate2 cycles/s
Relay TypeElectromechanical
Dimensions8.5 x 1.6 x 5.1 in.
Weight10.6 oz.
Warranty2-3 Year Warranty
PXI-2598 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-2598:

National Instruments PXI-2598 Frequently Asked Questions



Question: What is the maximum carry current AC of the PXI-2598?



Answer: The maximum carry current AC of the PXI-2598 is 1.25 A.



Question: How many I/O connectors does the NI PXI-2598 have?



Answer: There are eight SMA jacks for I/O connectors on the NI PXI-2598.



Question: What is the power requirement for the PXI-2598?



Answer: The PXI-2598 has a power requirement of 2.5 W at 3.3 V, 1 W at 5 V, and 4 W at 12 V.



Question: What is the operating/release time of the relays on the PXI-2598?



Answer: The operating/release time of the relays on the PXI-2598 is 15 ms.
