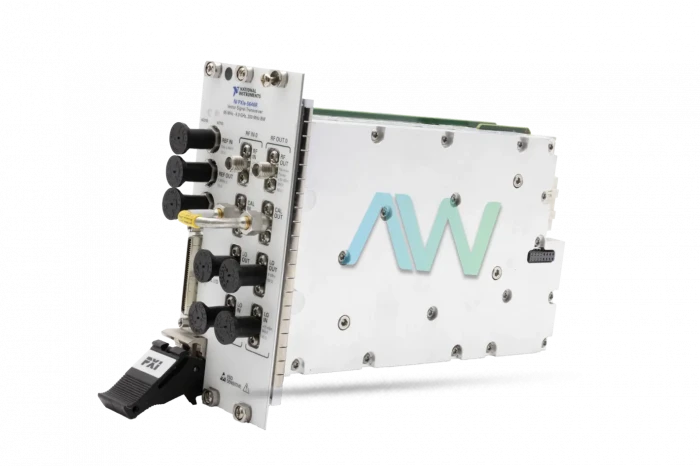

PXIe-5646 National Instruments PXI Vector Signal Transceiver | Apex Waves | Image

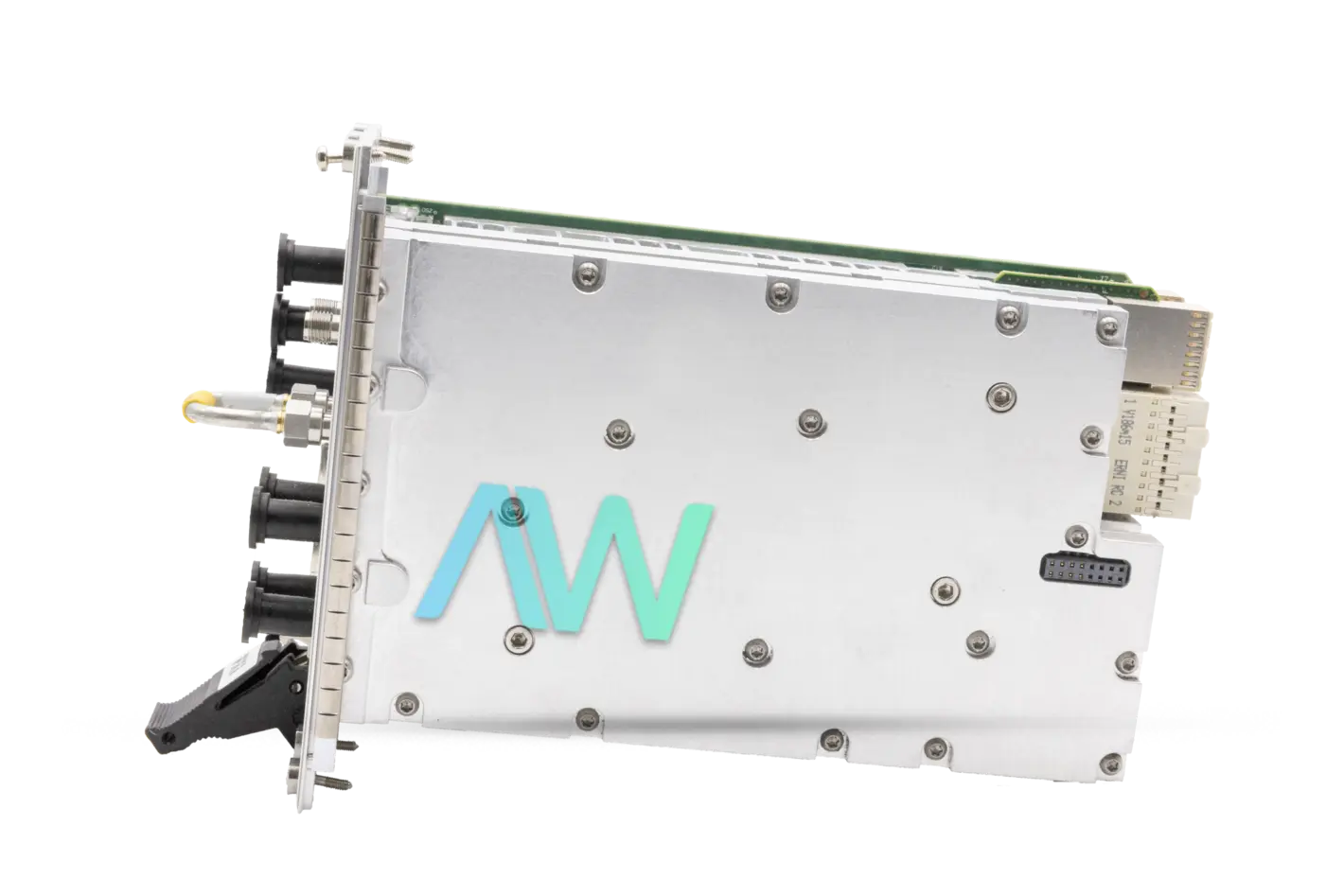

PXIe-5646 National Instruments PXI Vector Signal Transceiver | Apex Waves | Image
PXIe-5646 New
PXIe-5646 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

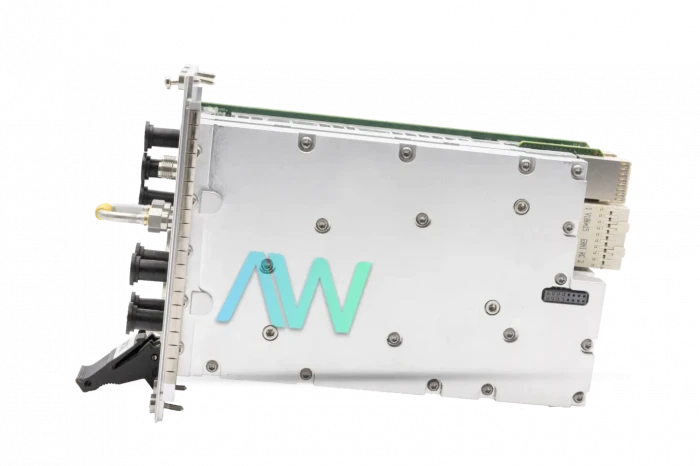

PXIe-5646 National Instruments PXI Vector Signal Transceiver | Apex Waves | Image

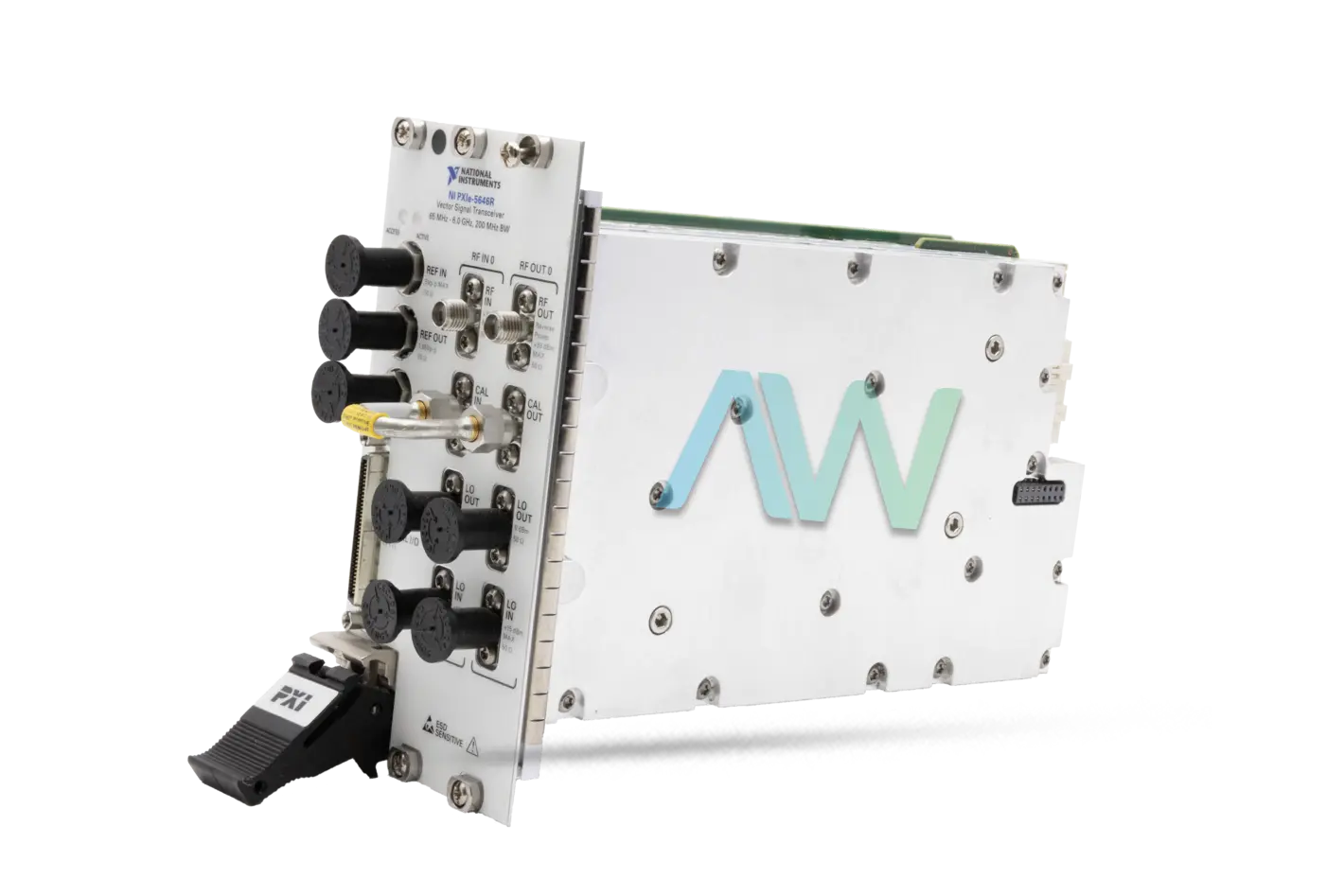

PXIe-5646 National Instruments PXI Vector Signal Transceiver | Apex Waves | Image
PXIe-5646 New
PXIe-5646 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-5646 PXI Vector Signal Transceiver (VST)

The NI PXIe-5646 (Part Number: 782952-01) belongs to a series of application test instruments that combines the functions of VSGs and VSAs in one device. This module offers NI’s unique software-designed instrument technology that allows engineers to perform the most advanced RF design and test applications, from radar prototyping to 5G test. The PXIe-5646 combines the versatility of a software defined radio architecture and RF instrument class performance.

The NI PXIe-5646R has frequency range from 65 MHz to 6 GHz and up to200 MHz instantaneous bandwidth. The expandable bandwidth of the PXIe 5646 VST allows engineers to test wireless and cellular standards while leveraging the latest performance-enhancing processing techniques such as digital predistortion.

The NI PXIe-5646R VST has a relative humidity range of 10% to 90% (noncondensing) in an operating environment. The random vibration while operating is between 5 Hz and 500 Hz, 0.3 grms, while the random vibration for non-operating is between 5 Hz and 500 Hz, 2.4 grms, respectively.

For analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), the NI PXIe 5646 has a resolution of 14 bits and 16 bits respectively. The sample rates and I/Q data rates for both ADCs and DACs is from 4 kS/s to 250 MS/s. The onboard DRAM Memory size is 512 MB per bank (2 banks), while the onboard SRAM Memory size is 2 MB. The PXIe-5646R VST’s dimensions are 2.4 in. × 5.6 in. × 8.3 in. This model weighs approximately 48.0 oz.

ModelPXIe-5646
Part Number782952-01
ManufacturerNational Instruments
TypePXI Vector Signal Transceiver
Bandwidth200 MHz
Frequency Range65 MHz to 6 GHz
Generator Tuning Time1.8 ms typical
Dimensions8.3 x 2.4 x 5.6 in.
Weight48.0 oz.
Warranty2-3 Year Warranty
PXIe-5646 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-5646:

National Instruments PXIe-5646 Frequently Asked Questions



Question: What is the ADC resolution of the NI PXIe-5646 VST?



Answer: The NI PXIe-5646 VST has an ADC resolution of 14 bits.



Question: What is the sample rate of the ADC on the NI PXIe-5646?



Answer: The NI PXIe-5646 ADC has a sample rate of 250 MS/s.



Question: What type of onboard FPGA does the PXIe-5646 have?



Answer: The PXIe-5646 has a Xilinx Virtex-6 LX240T FPGA.



Question: What type of digital I/O connector is on the PXIe-5646?



Answer: The PXIe-5646 has a VHDCI digital I/O connector.
