Q: Which driver software types can be used with the PXIe-5840 VST?

The PXIe-5840 VST can be used with NI-RFmx, NI-RFSA, and NI-RFSG driver software.

Q: What type of onboard FPGA does the PXIe-5840 Vector Signal Transceiver have?

The PXIe-5840 Vector Signal Transceiver has a Xilinx Virtex-7 X690T FPGA.

Q: How many DMA channels does the NI PXIe-5840 have?

The NI PXIe-5840 has 56 DMA channels.

Q: What type of LO OUT (RF IN and RF OUT) connectors are on the NI PXIe-5840 VST?

The NI PXIe-5840 VST has MMPX female LO OUT (RF IN and RF OUT) connectors.

PXIe-5840, 1 GHz Bandwidth, RF PXI Vector Signal Transceiver

Rated 4.6/5 | 15 ratings

PXIe-5840 National Instruments PXI Vector Signal Transceiver | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

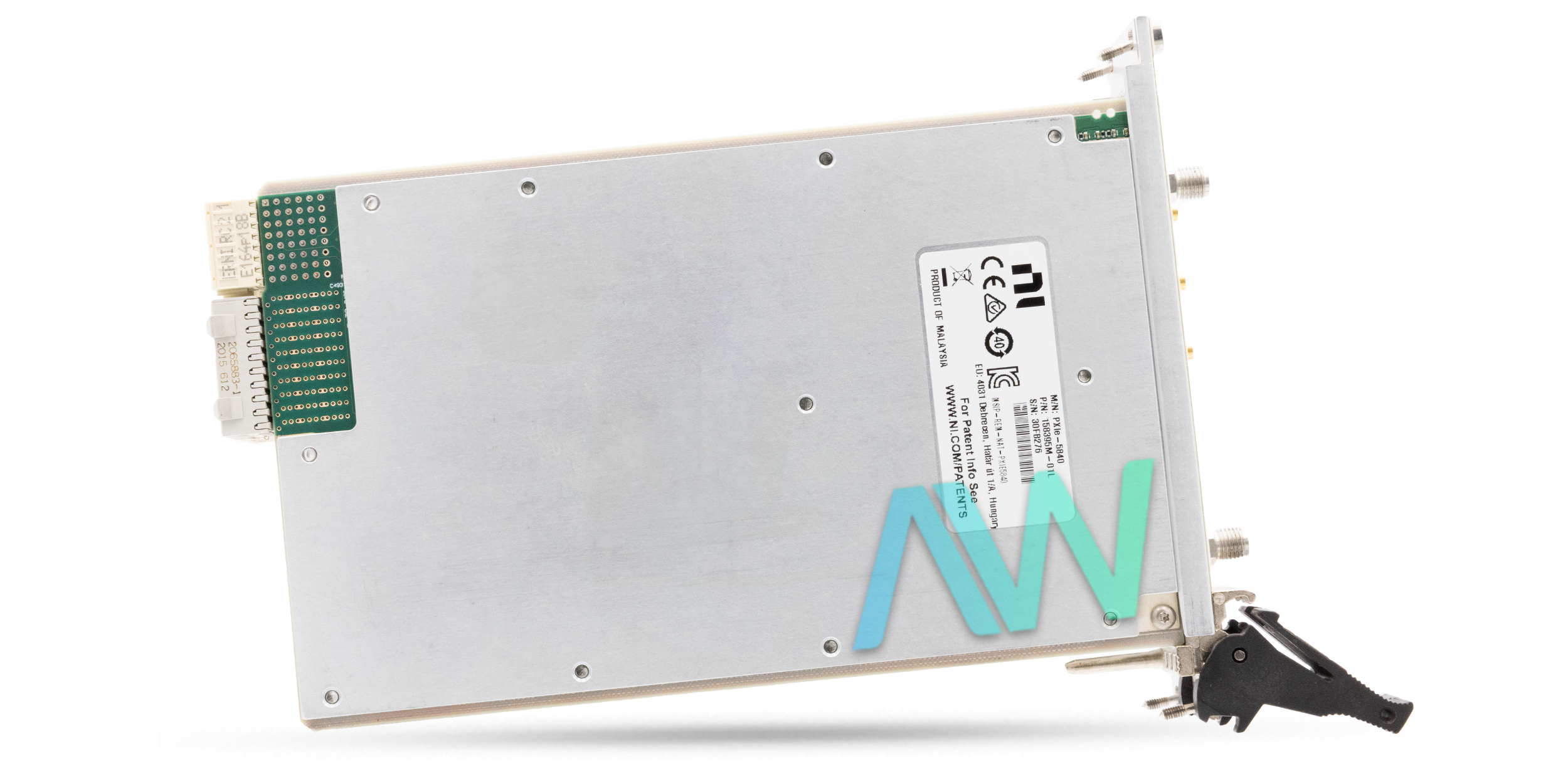

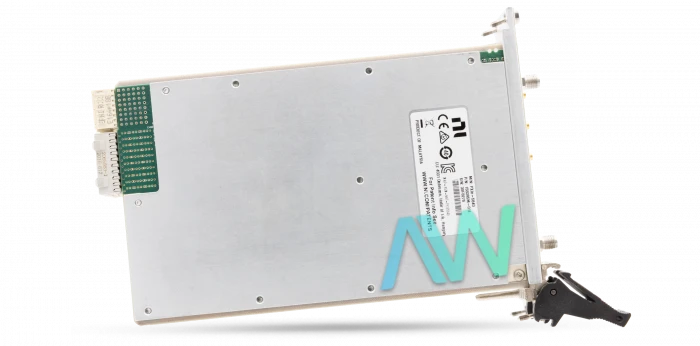

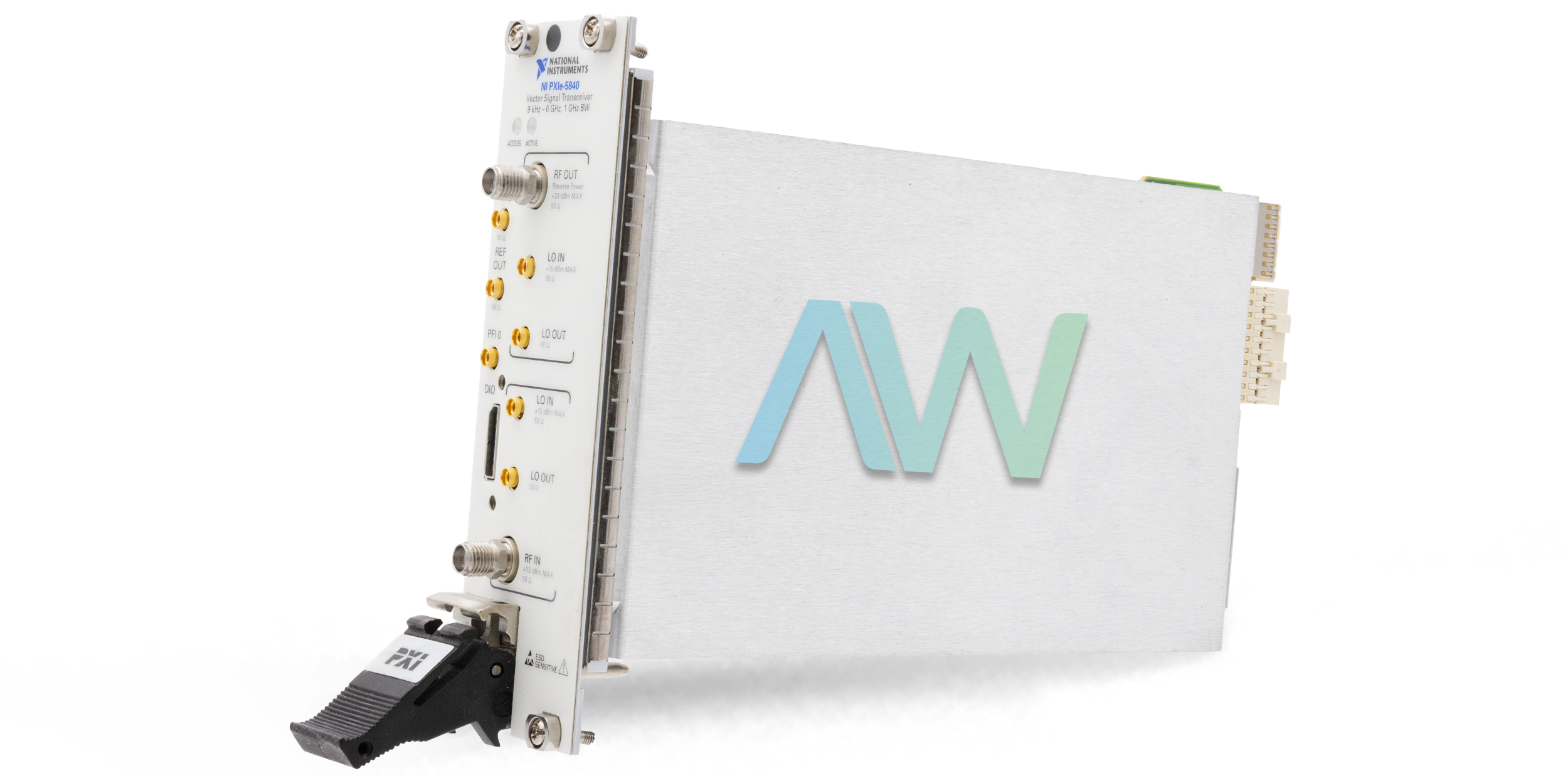

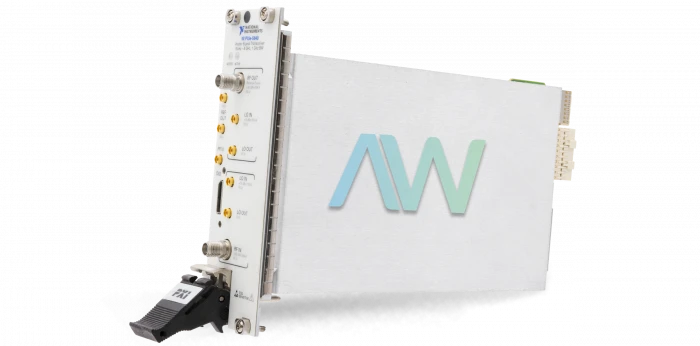

National Instruments PXIe-5840 PXI Vector Signal Transceiver

The PXIe-5840 (Part Number: 783966-01) is a 2U, 2 Slot Vector Signal Transceiver (VST) developed by National Instruments. The NI PXIe-5840 is structured with 1 GHz real-time bandwidth on both the VSA and VSG. When compared to the first generation, there is a lot of space for other functionalities in this module. The PXIe 5840 has a high-speed serial interface, ranging up to 12.5GB. It can be used for passing data in and off the device. This module has an open FPGA. LabVIEW FPGA software can be used for a range of different applications, whether it is a digital pre-distortion or custom radar IP that can be deployed onto the device. It also has extended the frequency range up to 9 kilohertz.

The National Instruments PXIe-5840 VST has Analog to Digital Converters with 14 bits resolution and a sample rate of 1.25 GS/s. For Digital to Analog Converters, the resolution is 16 bits and the sample rate is 1.25 GS/s. This module’s I/Q data rate is from 19 KS/s up to 1.25 GS/s for both converters. The operating temperature from is 0 °C to 45 °C with a relative humidity range from 10% to 90%.

The NI PXIe-5840’s design is fully capable of solving the most challenging RF design. The PXle-5840 VST meets all safety standards for measurement, control, and laboratory use. This module also meets the Electromagnetic Compatibility electrical equipment standards. It has the dimensions of 4.1 cm × 12.9 cm × 21.1 cm and weighs 794 grams.

Model	PXIe-5840
Part Number	783966-01
Manufacturer	National Instruments
Type	PXI Vector Signal Transceiver
Bandwidth	1 GHz
Frequency Range	9 kHz to 6 GHz
Generator Tuning Time	250 us (typical)
Dimensions	1.6 x 5.6 x 8.3 in.
Weight	28.0 oz.
Warranty	2-3 Year Warranty
PXIe-5840 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.
