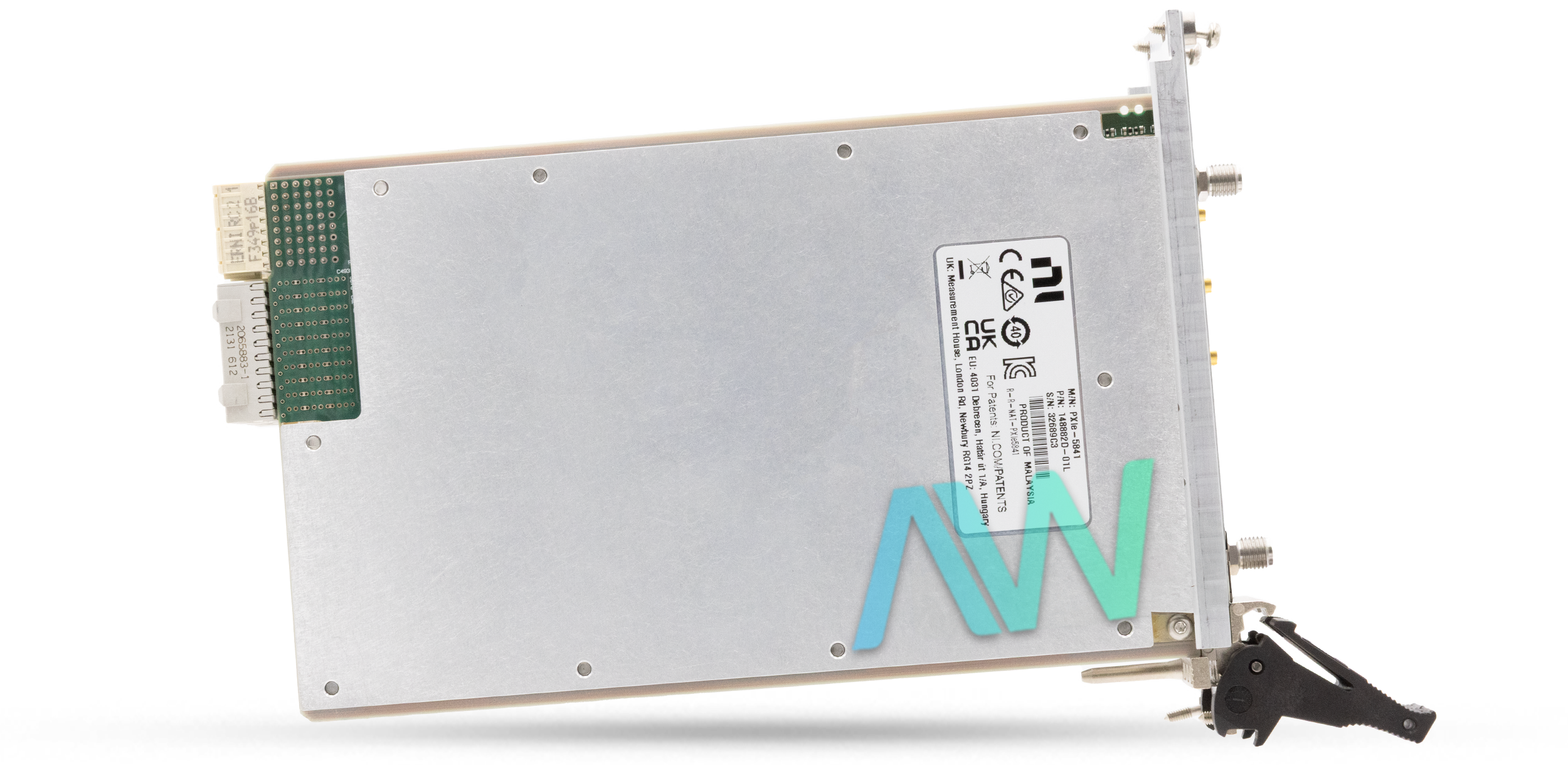

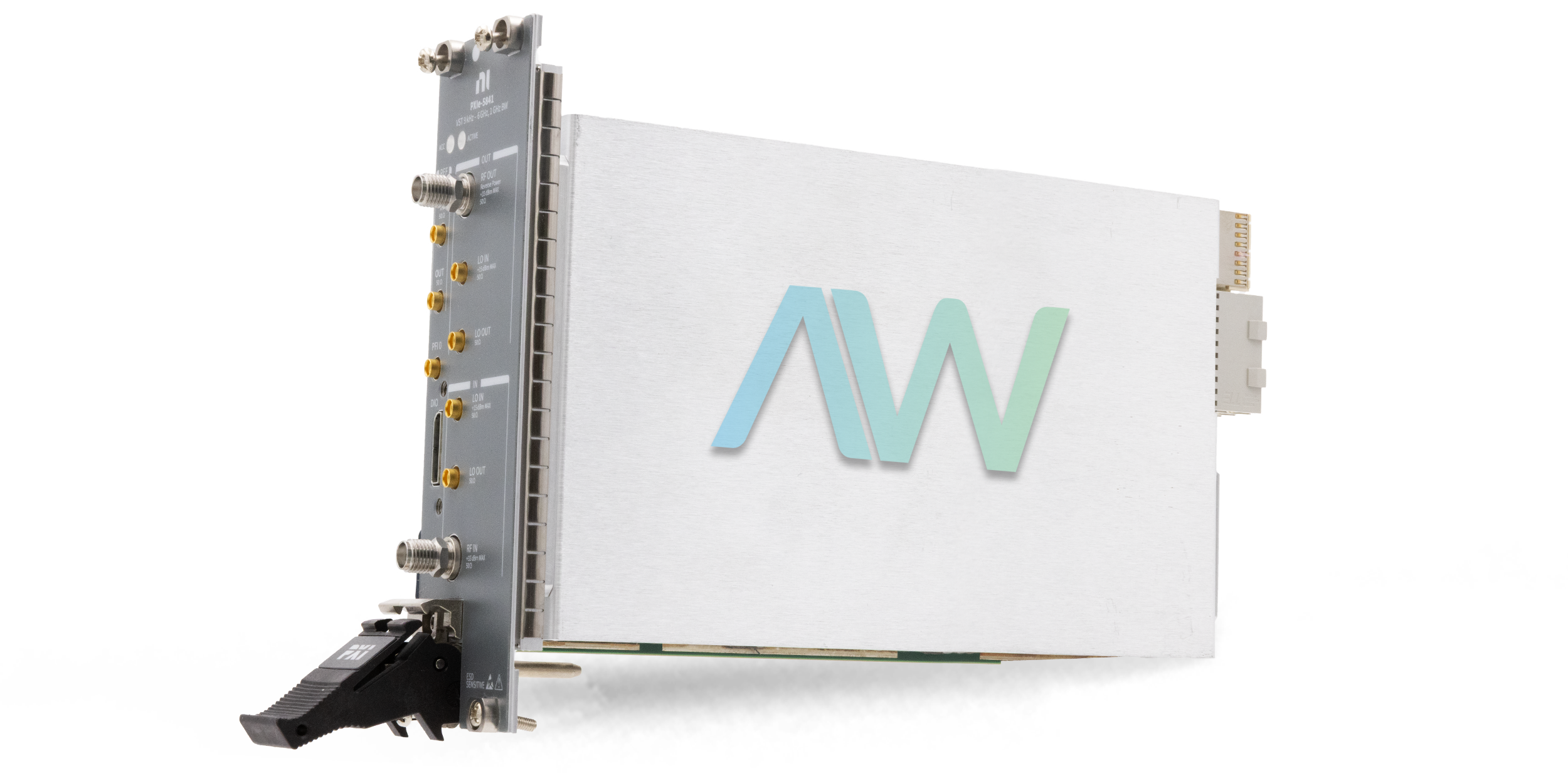

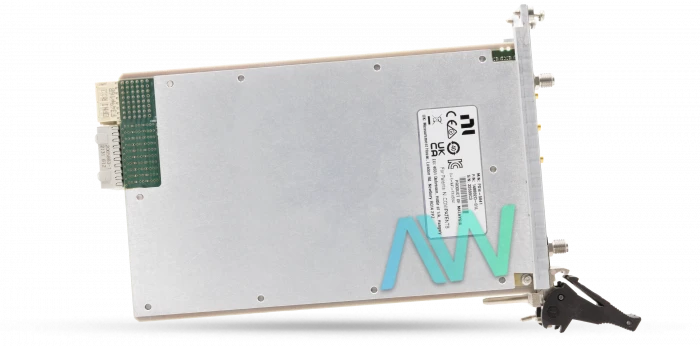

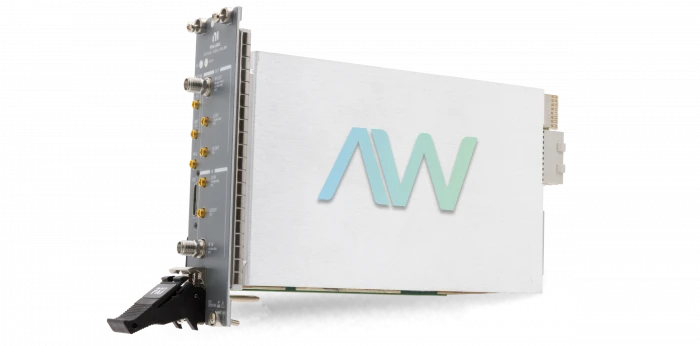

National Instruments PXIe-5841 PXI Vector Signal Transceiver
The PXIe-5841, a PXI Vector Signal Transceiver, is a product fabricated by National Instruments. The NI PXIe-5841 Vector Signal Transceiver is available in two NI part numbers: 785832-01 and 786982-01. The PXIe-5841 uses LabVIEW FPGA based software for a wide range of applications. The performance of the NI PXIe-5841 can be customized through software tunable architecture. One of the prominent applications of the PXIe-5841 is testing the wireless standards. The validation and testing of Wi-Fi and 5G NR signals can be accomplished by using the NI PXIe-5841 Vector Signal Transceiver. The fast measurement speed, reduced noise ratio, and flexibility of customized operation are key features of the PXIe-5841.
The National Instruments PXIe-5841 PXI Vector Signal Transceiver combines the characteristics of a vector signal generator and analyzer. The NI PXIe-5841 has an RF Generator which supports a frequency range of 9 kHz to 6 GHz and an instantaneous bandwidth of 1 GHz. The typical tuning time of the RF generator is 250 µS. Furthermore, the RF Analyzer also features the 9 kHz – 6 GHz frequency range and 1 GHz instantaneous bandwidth. The loopback error vector magnitude of the PXIe-5841 Vector Signal Transceiver is up to -48 dB.
The NI PXIe-5841 PXI Vector Signal Transceiver baseband characteristics include 14-bit ADC resolution, 16-bit DAC resolution, and 1.25 GS/s sample rate for both ADC and DAC operations. On the front panel, the PXIe-5841 has SMA female connectors for RF IN and RF OUT connections. The RF IN connector supports the maximum input voltage of ±10 VDC. The typical power consumption of the NI PXIe-5841 Vector Signal Transceiver is 80 W.
| Model | PXIe-5841 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 786982-01 and 785832-01 |
| Type | PXI Vector Signal Transceiver |
| I/O Type | RF |
| Bandwidth | 1 GHz |
| Total Power | 80 W |
| Calibration Interval | 1 year |
| Dimensions | 1.6 in. × 5.6 in. × 8.3 in. |
| Weight | 28.0 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-5841 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
