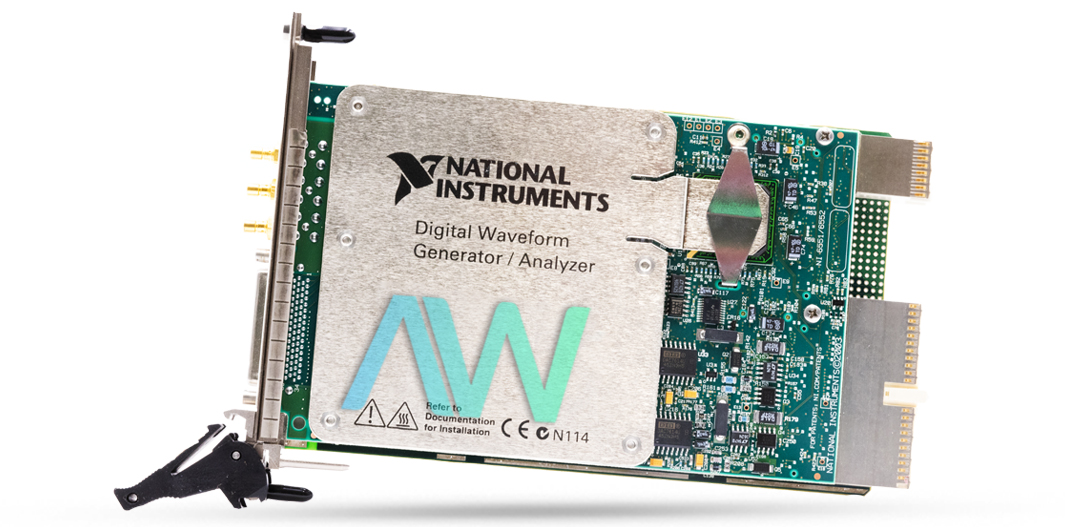

National Instruments 778538-01 PXI Digital Waveform Instrument
National Instruments 778538-01 is the part number for the PXI-6551 Digital Waveform Instrument that has 1 MBit of memory per channel. By using a memory architecture that utilizes synchronization and memory core technology, this version of the waveform instrument has an onboard memory size of 4 MBytes for both acquisition and generation. Combining the power of an analyzer and a digital waveform instruments, the 778538-01 is an excellent choice for a variety of applications, including memory chip functional testing. Boasting 20 channels that offer multiple direction control options, the device offers unparalleled communication abilities.
The programmable function interface of the 778538-01 includes 4 channels that have per-channel direction control. The acquisition channels of the instrument have 2 voltage comparators per channel, and include data, STROBE, and PFI <0..3>. In addition, the acquisition capabilities of the 778538-01 boasts programmable thresholds with a voltage range of -2.0 V to 5.5 V. With an error FIFO depth of 4,094, the waveform instrument can support up to 255 repeated errors at a maximum speed of 50 MHz.
The compact design of the 778538-01 results in a single 3U CompactPCI slot that is compatible with the PXI series. It measures 18.6 cm × 13.1 cm (7.32 in × 5.16 in) and weighs 375 g (13.2 oz), with an operating temperature range from 0 °C to 55 °C. The instrument can be safely stored in a temperature range of -20 °C to 70 °C. The recommended calibration interval of the 778538-01 is 2 years, and it has a calibration warm-up time of only 15 minutes.
| Part Number | 778538-01 |
|---|---|
| Model Name | PXI-6551 |
| Part Type | Digital Waveform Instrument |
| Memory | 1 MBit / Channel |
| Onboard Memory Size | 4 MBytes |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Dimensions | 18.6 cm × 13.1 cm (7.32 in × 5.16 in) |
| Weight | 375 g (13.2 oz) |
| Warranty | Three Year Warranty |
| Manufacturer | National Instruments (NI) |
