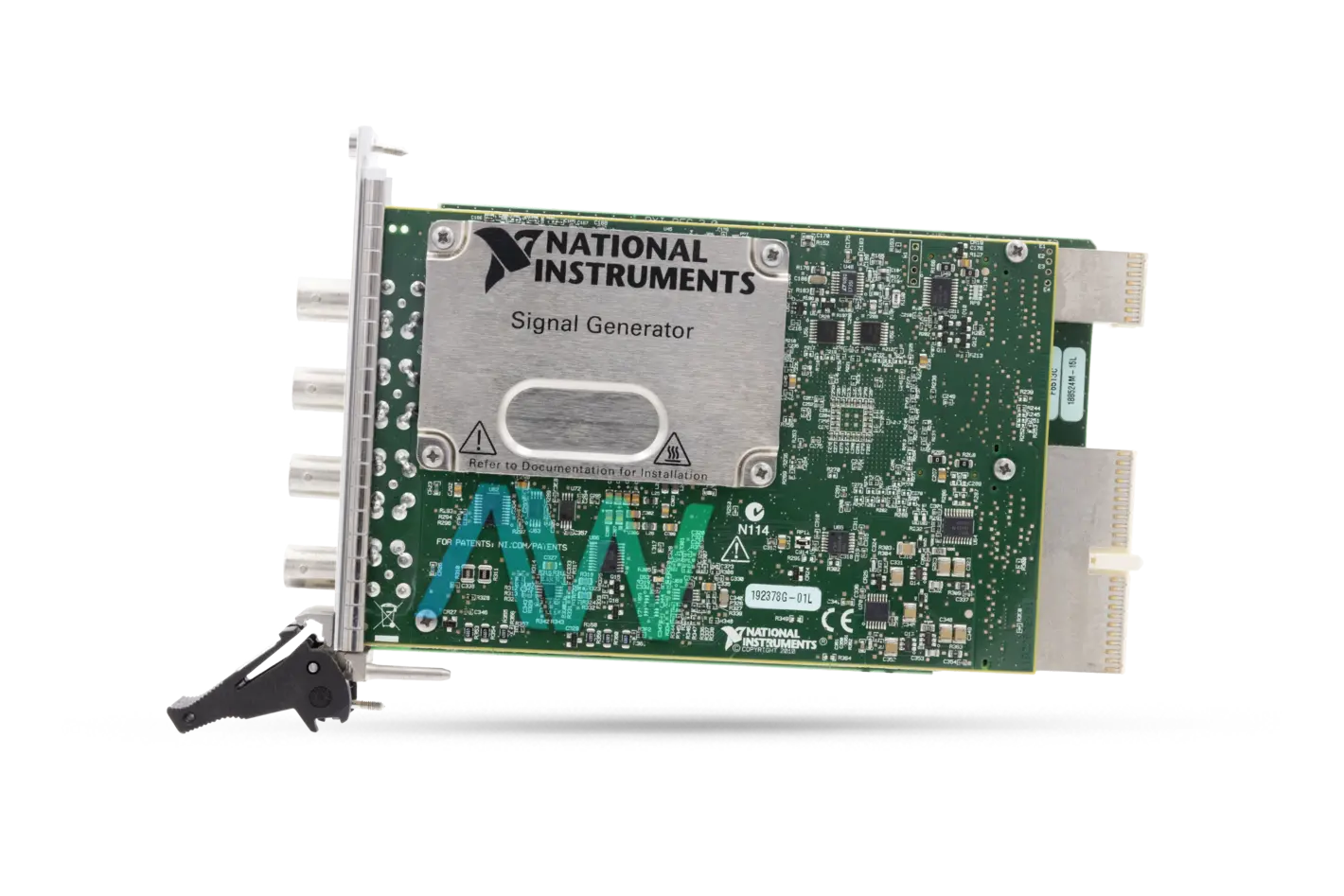

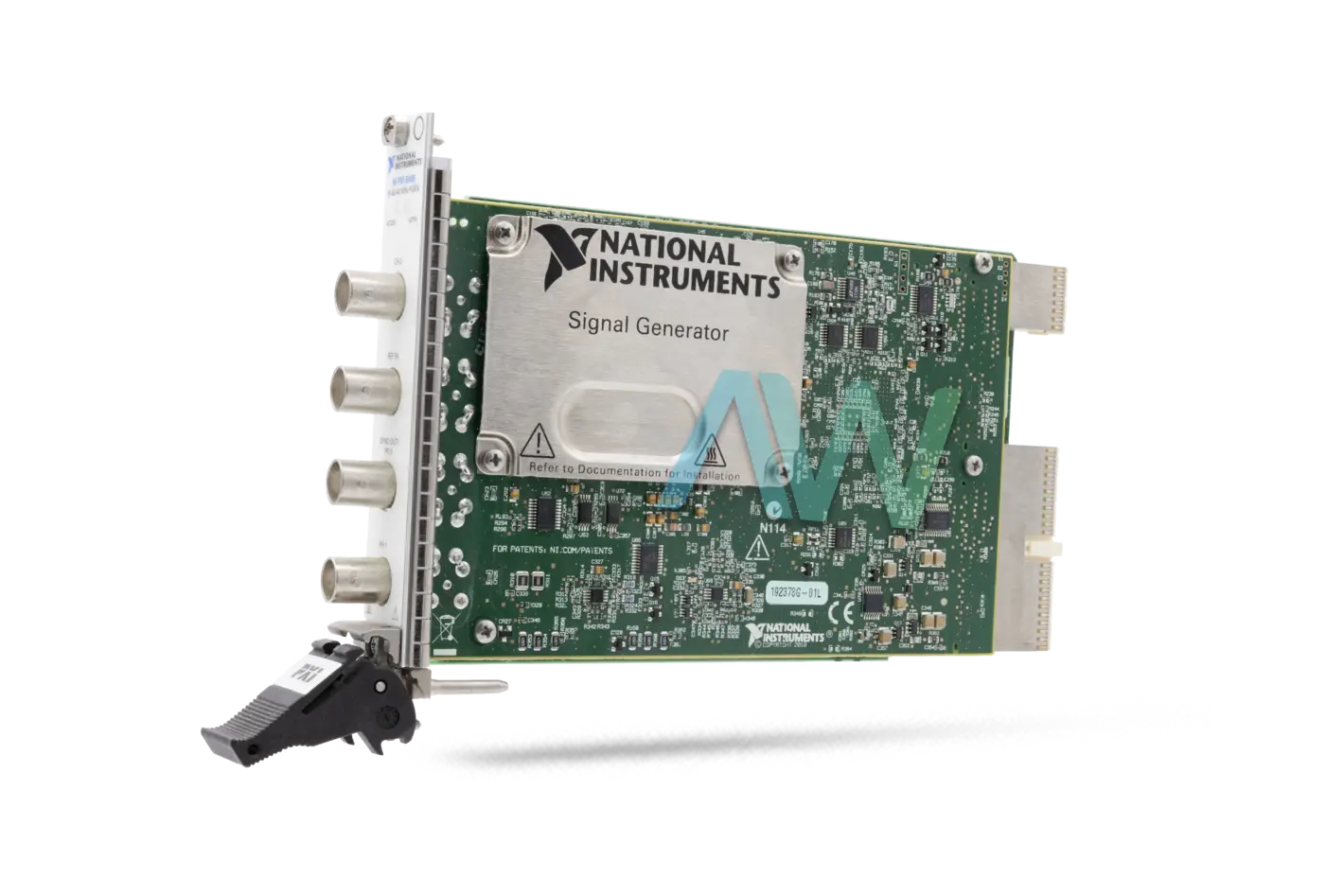

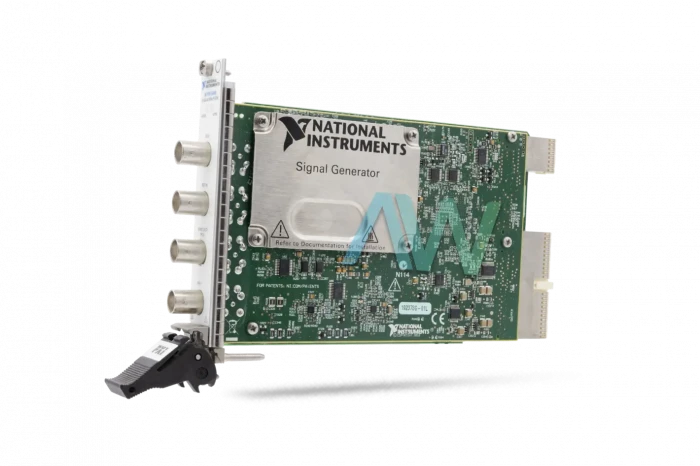

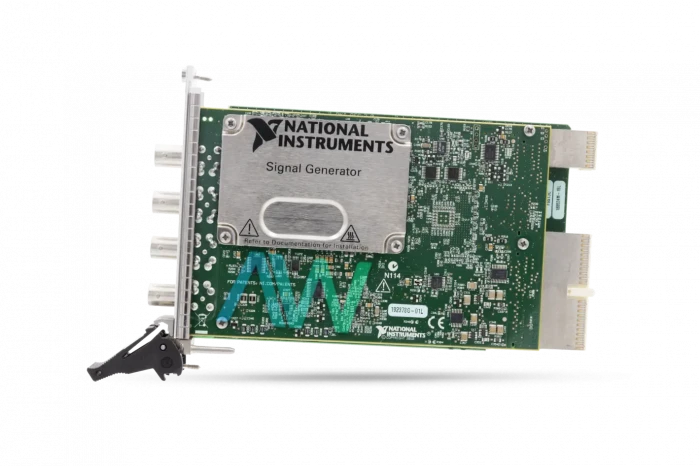

National Instruments PXI-5406 PXI Waveform Generator
The PXI-5406 (Part Number: 779657-01) Waveform Generator comes with unparalleled analog output execution. The analog output includes a 7-pole curved analog filter to suppress high-frequency signal pictures. Depending on the user’s signal and application needs, they can choose up to a 4X advanced addition for a viable testing rate up to 400 MS/s. Also, the analog output has a passband flatness of ±0.4 dB over the bandwidth for sine generation.
This PXI Waveform Generator utilizes DDS, which is a method for deriving, under computerized control, an analog frequency source from a single reference clock frequency. This system is utilized to accomplish high-frequency exactness and resolution, temperature security, and quick, phase nonstop frequency exchanging. All frequency sweeping and hopping is phase continuous. The user can create a burst of a few tones. frequency sweeping and hopping is actualized through a frequency list of steps, each of which characterizes frequency and duration. Complex frequency lists can be instructed with 32 MS/s of accessible instruction memory.
The NI PXI-5406 is a 40 MHz arbitrary function generator (AFG) that features up to 16 bits of resolution with a maximum sample rate of 400 MS/s. In addition, the device is equipped with 32 kB of installed memory for discretionary capacity generation in a conservative, 1-space 3U PXI module or PCI board. By utilizing the PXI-5406, the user can consolidate the energy of a single function generator with the adaptability and advantages of a PC to make competent virtual instrumentation arrangements.
The PXI-5406 has gone past the Mature Status of the Product Lifeycle from National Instruments, but the Waveform Generator will still be available for purchase and repairs by Apex Waves in perpetuity.
| Model | PXI-5406 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779657-01 |
| Part Type | PXI Waveform Generator |
| Maximum Bandwidth | 40 MHz |
| Maximum Update Rate | 100 MS/s |
| Analog Output Resolution | 16 bits |
| Output Channels | 1 |
| Warranty | 2-3 Year Warranty |
| PXI-5406 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-5406:
National Instruments PXI-5406 Frequently Asked Questions
Question: What is the range of signals that the PXI-5406 can generate?
Answer: The PXI-5406 can generate signals from -5 V to +5 V.
Question: What does the NI PXI-5406 use to ensure the precision of the waveforms?
Answer: The NI PXI-5406 uses direct digital synthesis (DDS) to precisely generate waveforms.
Question: What is the frequency resolution of the PXI 5406?
Answer: The PXI 5406 has a .355 μHz frequency resolution.
