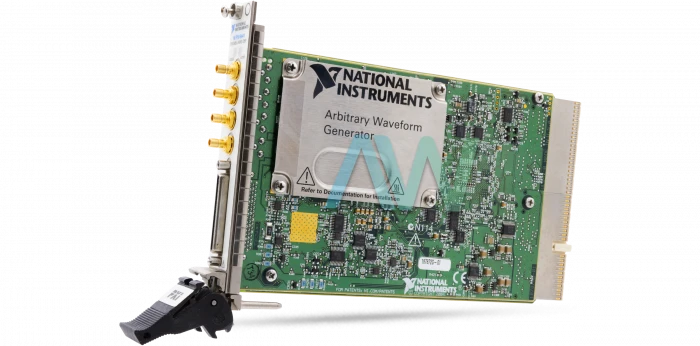

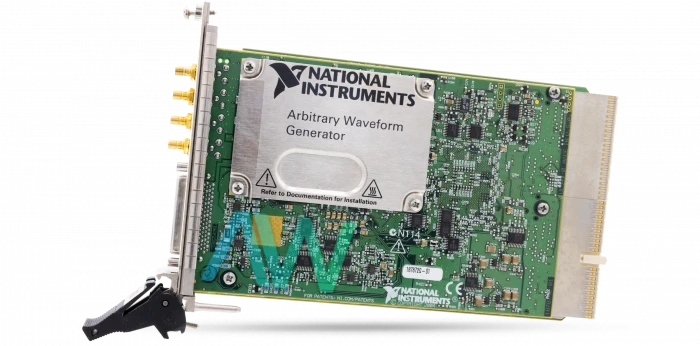

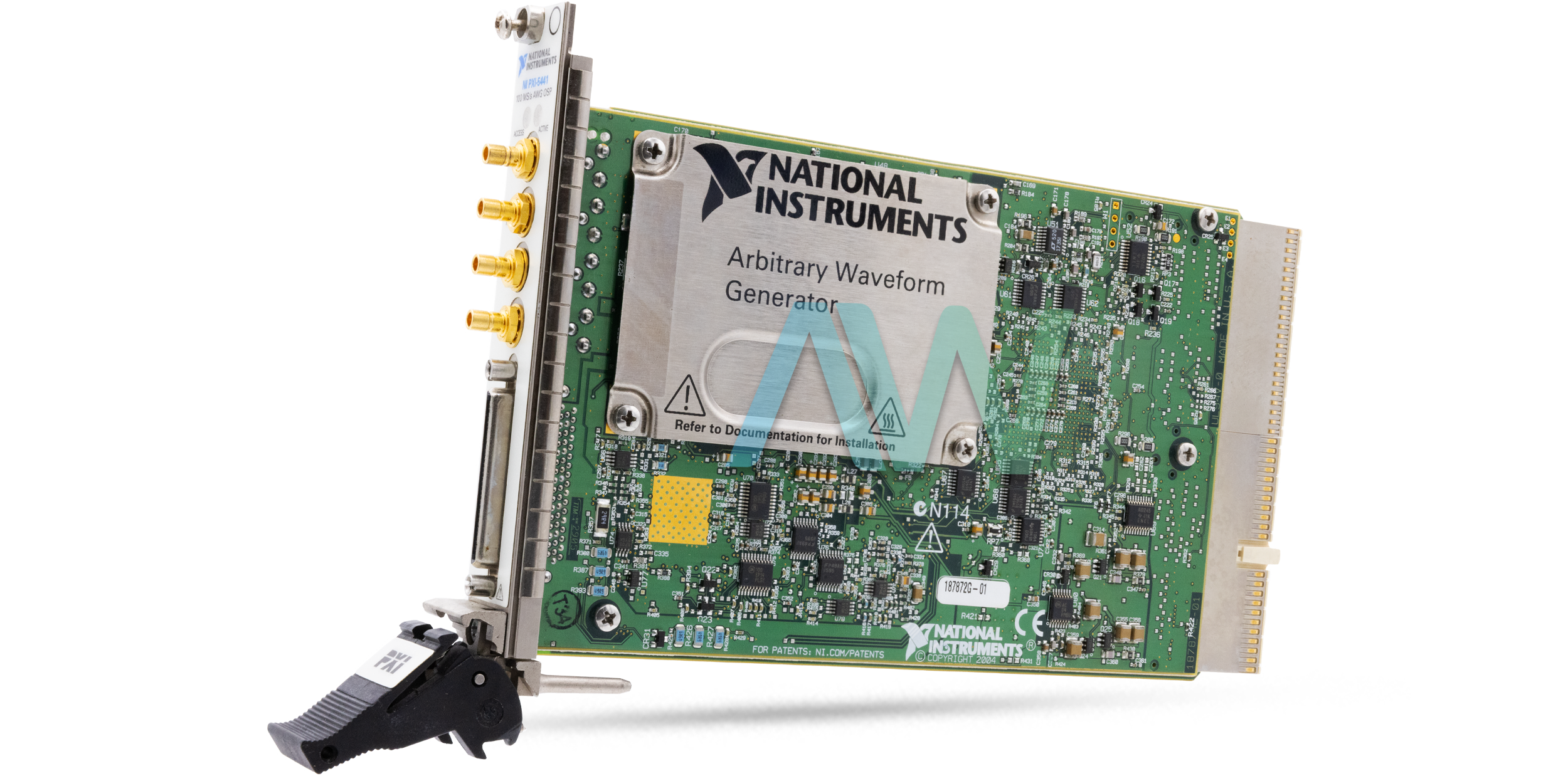

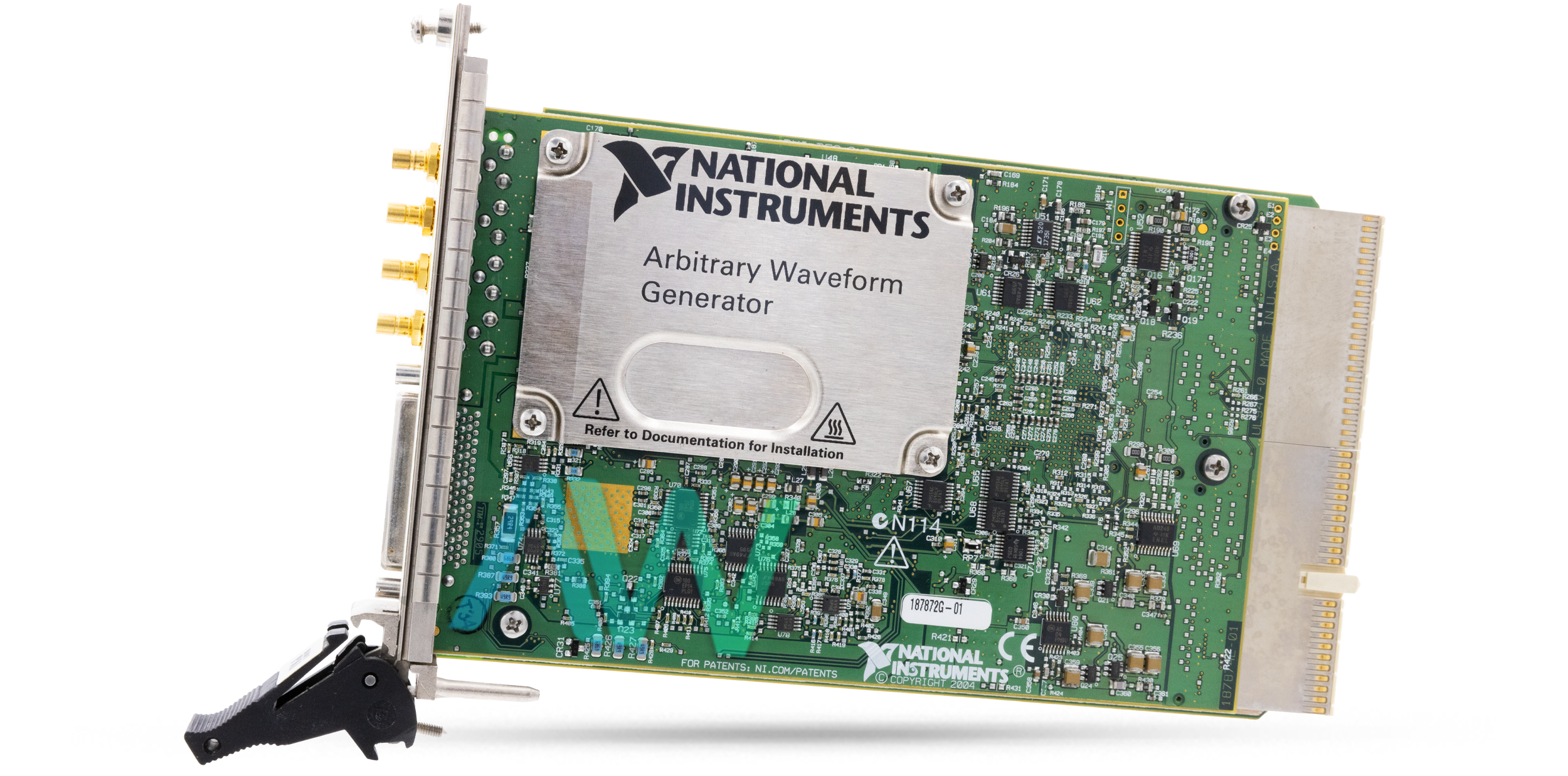

National Instruments PXI-5441 PXI Waveform Generator
The PXI-5441 (Part numbers: 779058-02, 779058-03, 779058-04, 191789A-04, 191789A-03, 187872G-01) from National Instruments is a PXI Waveform Generator capable of transferring waveform data at high speeds, with a 100 MS/s sample clock rate. Equipped with onboard signal processing capabilities, the PXI-5441 is able to directly modify and process waveforms. By utilizing the Synchronization and Memory Core (SMC) architecture of the device, users can create mixed-signal test frameworks by synchronizing the generator with digitizers and digital waveform generator/analyzers. In addition, users can synchronize multiple generators to form a phase-coherent multi-channel generator for producing I/Q signals for various applications. The three variations of the PXI-5441 have different onboard memory sizes: specifically 32 MB (779058-02), 256 MB (779058-03), and 512 MB (779058-04).
The NI PXI-5441 Waveform Generator utilizes Onboard Signal Processing (OSP), allowing the device to extend waveform playback time and reduce the memory required for storing waveform data. This is accomplished through an FPGA, which processes waveform data in real time. The OSP supports a Numerically Controlled Oscillator (NCO), enabling the PXI-5441 to generate sine, square (up to 25 MHz), triangle, ramp (up to 5 MHz), and other waveforms, similar to a function generator.
The front panel of the NI PXI-5441 features four SMB jack connectors—labeled CH 0, CLK IN, PFI 0, and PFI 1. The panel also includes a 68-pin VHDCI female connector for Digital Data & Control. Additionally, the front panel displays an ACCESS LED and an ACTIVE LED, which indicate the status of the PCI bus and the onboard generation hardware, respectively.
The operating temperature range of the NI PXI-5441 is 0 to 55 ºC, unless installed in a PXI-101x or PXI-1000B chassis, in which case the range is 0 to 45 ºC. The waveform generator weighs 345 g (12.1 oz) and measures 21.6 × 2.0 × 13.0 cm (8.5 × 0.8 × 5.1 in.).
The Mature Status has been announced by National Instruments for the PXI-5441, but the waveform generator will remain available for purchase and repairs by Apex Waves.
| Model | PXI-5441 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781949-02 |
| Type | PXI Waveform Generator |
| Maximum Bandwidth | 43 MHz |
| Maximum Update Rate | 100 MS/s |
| Analog Output Resolution | 16 bits |
| Onboard Memory Size | 32 MB (779058-02), 256 MB (779058-03), or 512 MB (779058-04) |
| Warranty | Three Year Warranty |
| PXI-5441 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-5441:
National Instruments PXI-5441 Frequently Asked Questions
Question: What is the difference between the three part numbers for the NI PXI-5441?
Answer: The three variations of the NI PXI-5441 are differentiated by the size of their onboard memory. Part number 779058-02 features an onboard memory size of 32 MB, while part number 779058-03 has a size of 256 MB. The final part number, 779058-04, boasts 512 MB of onboard memory.
Question: What type of signal processing operations can the NI PXI-5441 perform?
Answer: The NI PXI-5441 signal processing operations include FIR and CIC interpolation filters, digital prefilter gain, numerically-controlled oscillator, and I/Q mixing for quadrature digital upconversion.
Question: What are the carrier frequencies on the PXI 5441?
Answer: The PXI 5441 has carrier frequencies up to 43 MHz with 355 MHz resolution.
Question: Does the PXI-5441 support scripting?
Answer: The PXI-5441 is an Arbitrary Waveform Generator and therefore is able to support scripting.
| Part Number | Onboard Memory Size | Arbitrary Waveform Mode Memory | Arbitrary Sequence Mode Memory |
|---|---|---|---|
| 779058-02 | 32 MB | 16,777,088 Samples Maximum | 16,777,008 Samples Maximum |
| 779058-03 | 256 MB | 134,217,600 Samples Maximum | 134,217,520 Samples Maximum |
| 779058-04 | 512MB | 268,435,328 Samples Maximum | 268,435,200 Samples Maximum |
