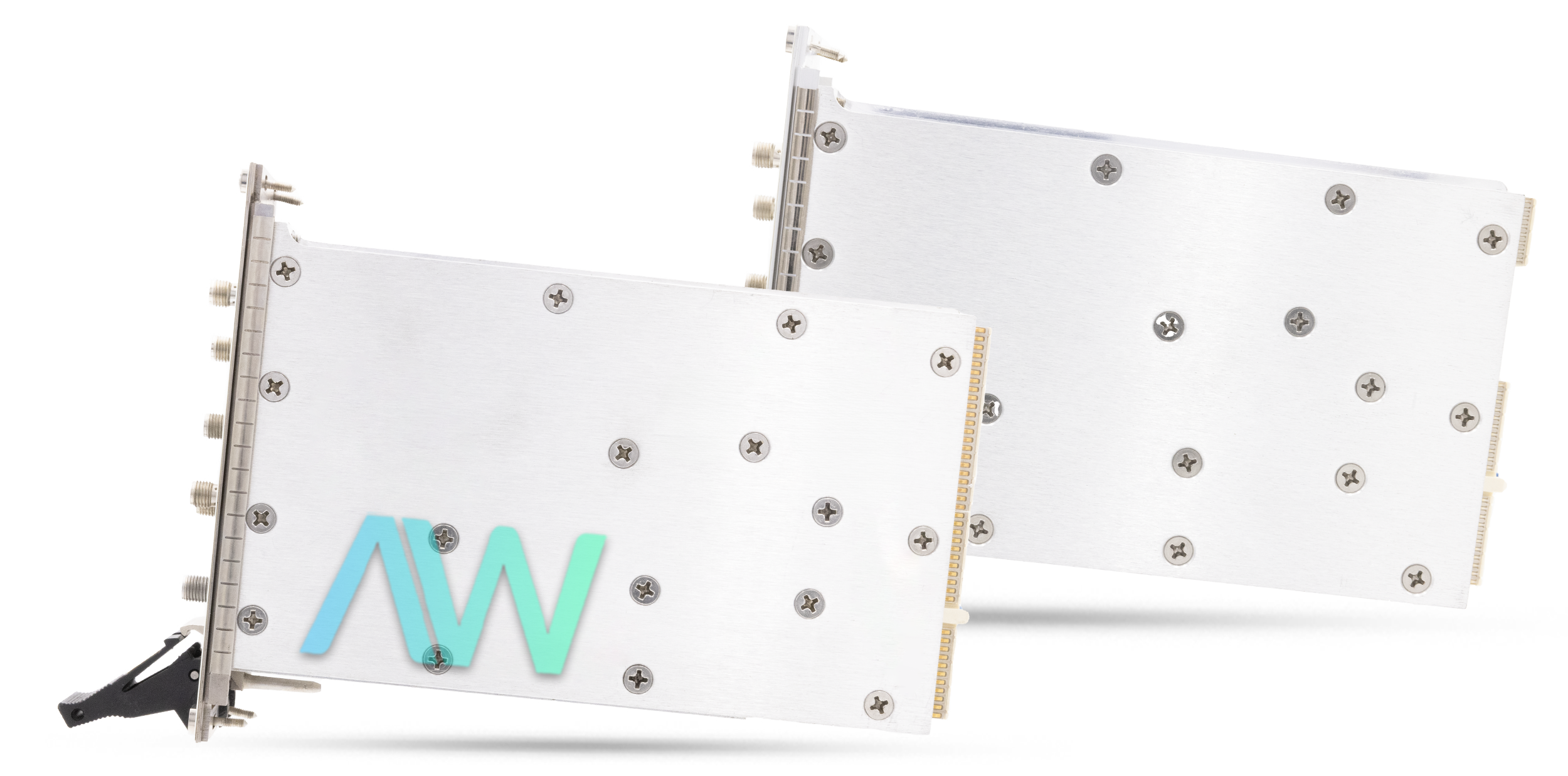

PXI-5610 National Instruments Upconverter | Apex Waves | Image

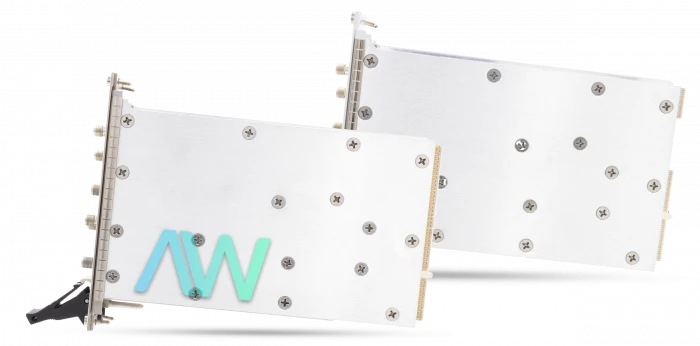

PXI-5610 National Instruments Upconverter | Apex Waves | Image
PXI-5610 New
PXI-5610 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

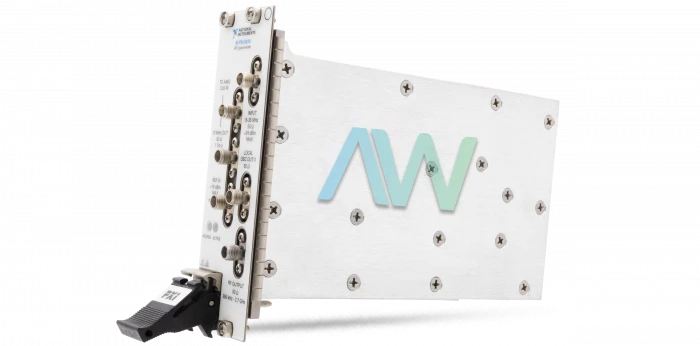

PXI-5610 National Instruments Upconverter | Apex Waves | Image

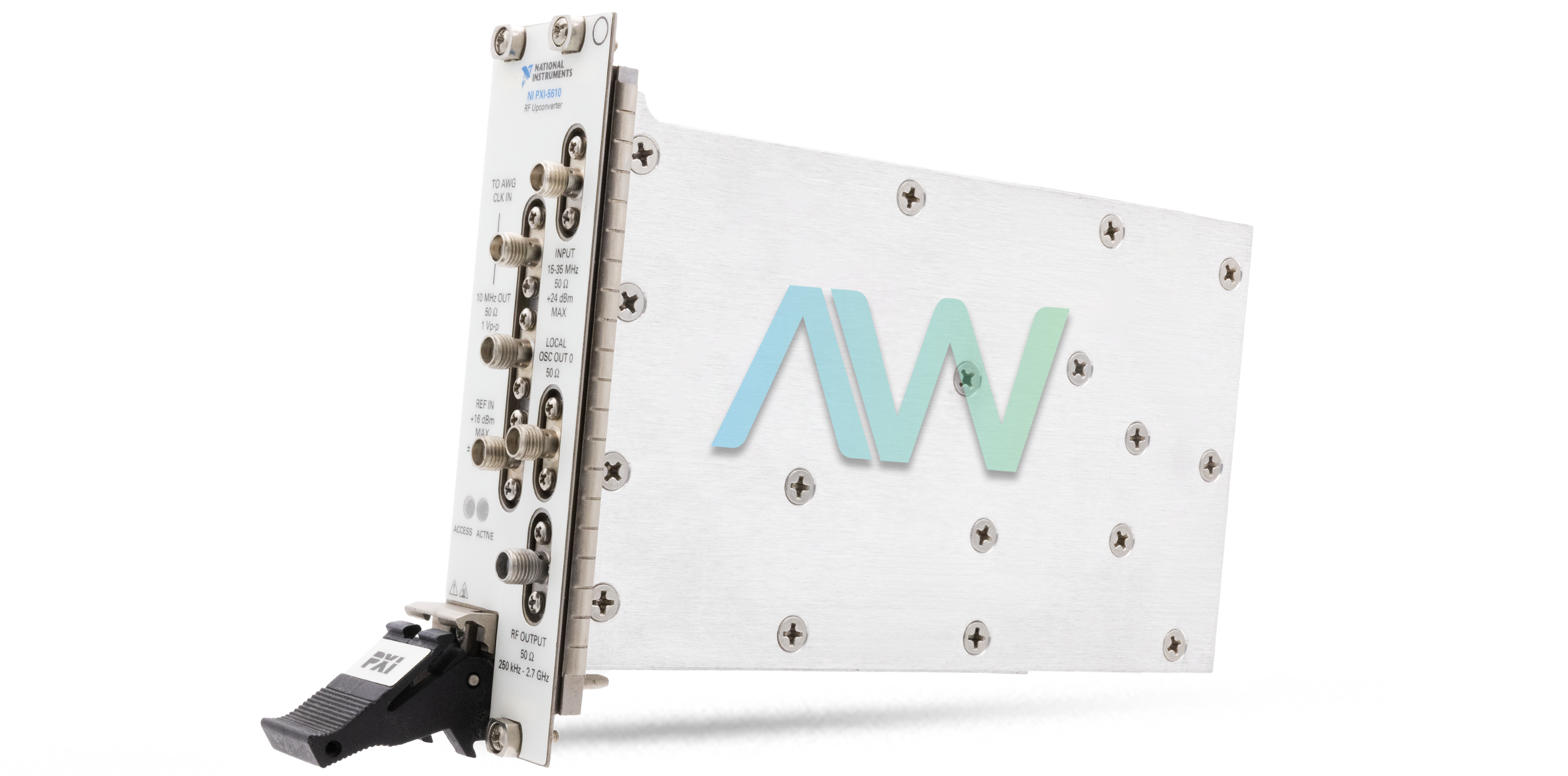

PXI-5610 National Instruments Upconverter | Apex Waves | Image
PXI-5610 New
PXI-5610 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-5610 PXI RF Signal Upconverter

The NI PXI-5610 (Part Number: 778737-01) is a 2.7 GHz Upconverter in a 2-slot, 3U PXI module. The PXI-5610 highlights a wide continuous bandwidth and a very steady timebase, accurate to within ±50 ppb. It gives astounding integration with modular function generators for RF generation applications. The NI PXI-5610 can import and export triggers from the PXI trigger bus, the PXI star trigger line, or the front board SMA connector. The PXI trigger bus extraordinarily rearranges synchronizing RF estimations with other PXI modules, such as DMMs, sound analyzers, and machine vision modules.

The NI PXI-5610 RF Signal Upconverter can have the amplitude exactness of the analog input be calibrated. Temperature variations are adjusted and corrected amid typical operation, resulting in high stability and repeatability. The device operates using the NI-RFSG driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW and LabWindows/CVI. This model also has the National Instruments NI-TUNER programming incorporated; NI-TUNER gives a driver-level interface that integrates with your choice ADE. The device hardware can be configured using the Measurement & Automation Explorer tool.

The 10 MHz reference clock on the PXI-5610 can synchronize to any of three sources – the installed high-accuracy OCXO reference clock, an outer reference clock, or the PXI backplane. By utilizing the PXI backplane, the user can synchronize the PXI-5610 and other PXI modules without utilizing any cables. The user can also synchronize the PXI-5610 to an outer source by utilizing its 6 SMA type front panel connector: the 10 MHz OUT, TO AWG CLK IN, REF IN, INPUT, LOCAL OSC OUT 0, and the RF OUTPUT connectors. It has a warm-up time of 30 minutes, a temperature range of 0 °C to 55 °C, and a recommended calibration interval of one year.

The NI PXI-5610 Upconverter works with Windows 2000/NT/XP, uses the LabVIEW and LabWindows/CVI Driver Software, offers a frequency range between 250 kHz to 2.7 GHz, 20 MHz of continuous transmission capacity, an output power range of -145 dBm to +10 dBm. 130 dB of flexible gain, and a High-stability OCXO timebase. The device has a weight of 41.1 oz., with the dimensions: 8.5 x 1.6 x 5.2 in.

ModelPXI-5610 (778737-01)
ManufacturerNational Instruments
TypePXI RF Signal Upconverter
Frequency Range250 kHz to 2.7 GHz
Real-Time Bandwidth20 MHz
Output Power Range-145 dBm to +10 dBm
Dimensions8.5 x 1.6 x 5.1 in.
Weight41.1 oz.
WarrantyThree Year Warranty
PXI-5610 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-5610:

National Instruments PXI-5610 Frequently Asked Questions



Question: What is the adjustable gain of the NI PXI-5610 RF Upconverter?

Answer: The adjustable gain of the NI PXI-5610 RF Upconverter is 130 dB.



Question: How many slots does the NI PXI-5610 Upconverter have?

Answer: The NI PXI-5610 Upconverter has 2 slots.



Question: Where can I find the NI PXI-5610 specifications?

Answer: The NI PXI-5610 specifications can be located under the Technical Specifications tab on the product page.



Question: What type of front panel connectors are on the PXI-5610?

Answer: The PXI-5610 has SMA connectors on the front panel.
