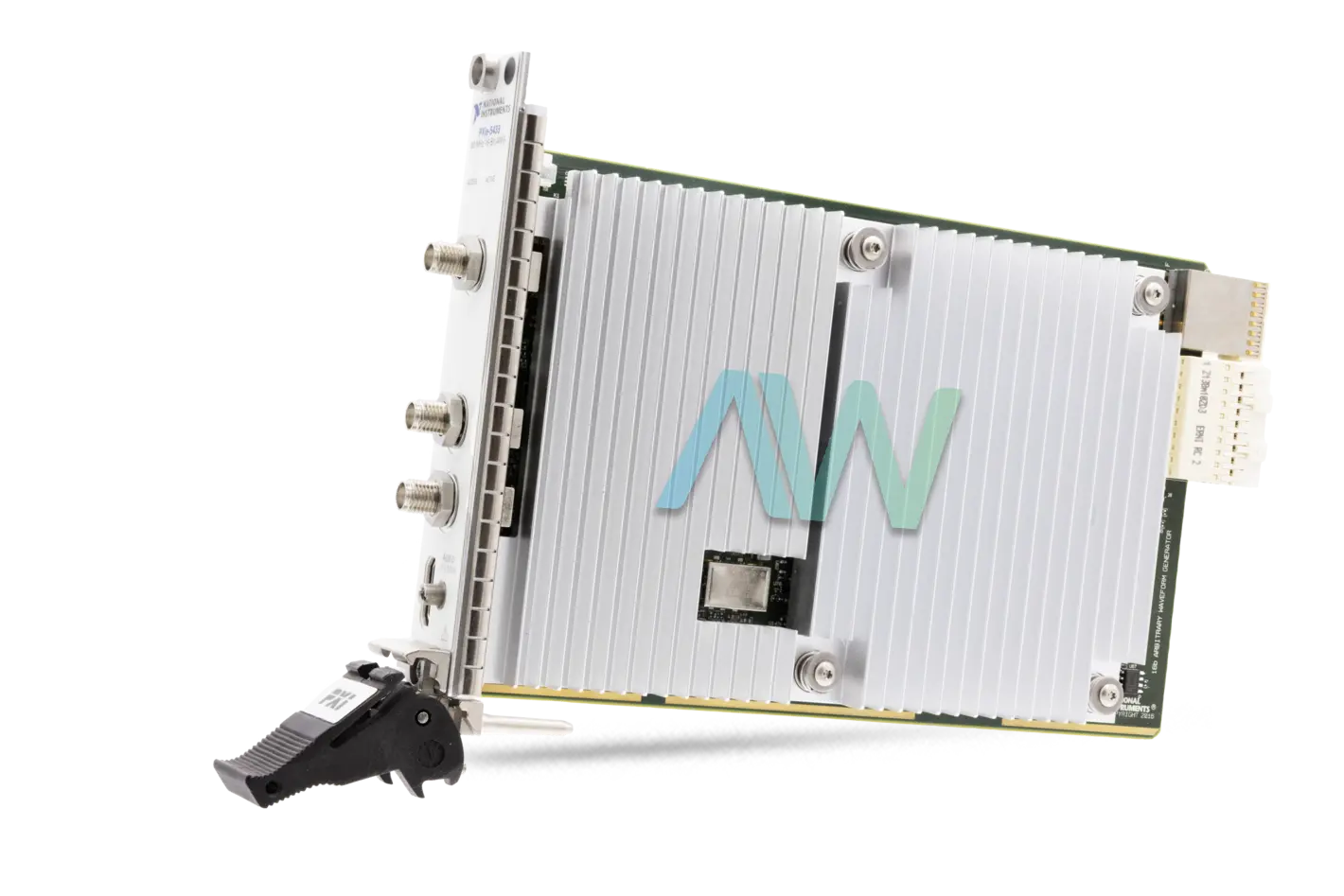

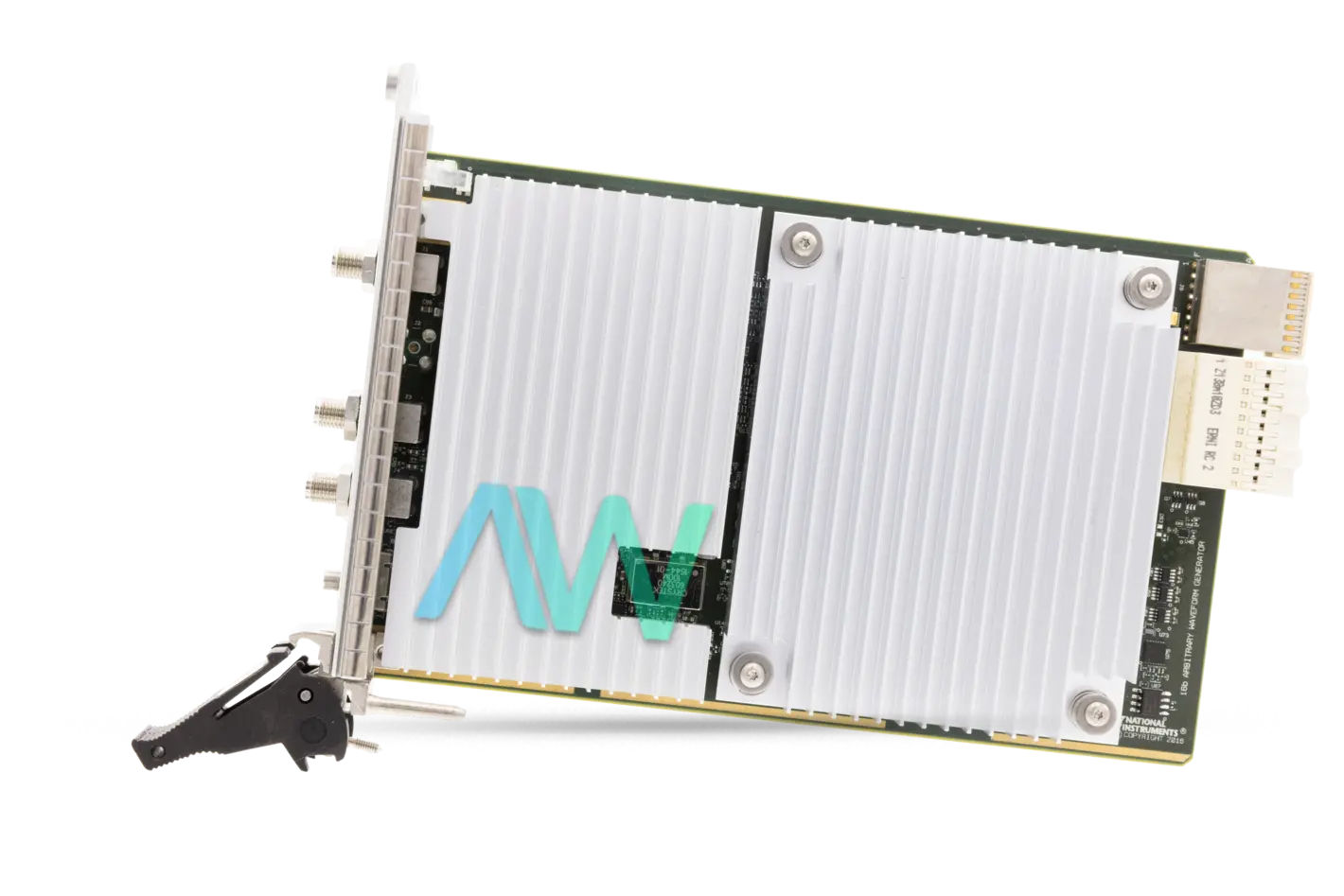

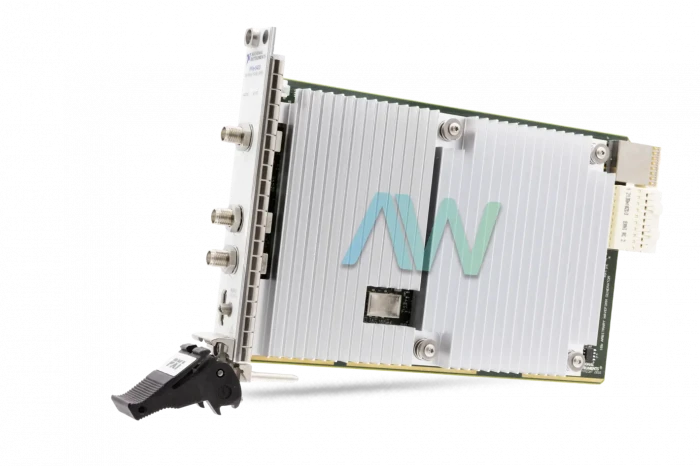

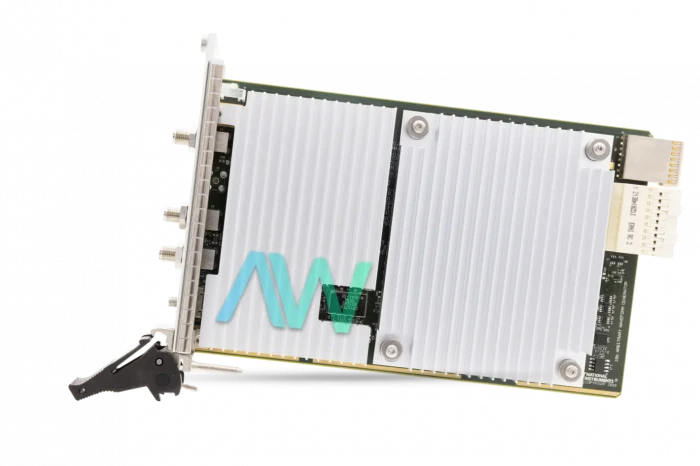

National Instruments PXIe-5433 PXI Waveform Generator

The National Instruments PXIe-5433 (Part Numbers: 785117-01 and 785118-01) is a 2-channel Waveform Generator, which supports a frequency range from 0 µHz to 80 MHz. This model is designed to meet the testing requirements for engineers in industries, such as scientific research, consumer electronics, automotive, aerospace, and defense. For more efficient test systems, users can combine the NI PXIe-5433 with the 600 PXI or 1500 PXI module series.

The NI PXIe 5433 has 2 independent, 16-bit, 800 MS/s, digital-to-analog converters (DACs), timing and synchronization, and SMA connectivity for signals up to 80 MHz. The two channels of the PXIe 5433 possess 512 MB and 1 GB storage capacities. This module can generate autonomous waveforms with a similar dynamic range and sample jitter performance.

The built-in timing and synchronization capabilities of the NI PXIe-5433 will allow users to communicate with switches and other instruments within a PXI chassis. Using the advanced timing features of the PXI chassis and additional timing software, synchronization of less than 10 ps between channels of multiple oscilloscopes can be achieved.

When the digital filter is disabled, the PXIe-5433 can accept arbitrary waveforms up to 250 MS/s. When the digital filter is enabled, this model accepts user-defined waveforms up to 400 MS/s. In this instrument, the two channels can start/stop generating signals completely independent of one another. The maximum voltage for this module is ±6 V into 50 Ω; ±12 V into High-Z. The NI PXIe-5433 PXI Waveform Generator is also capable of waveform scripting and streaming, which are advanced features added for better performance.

ModelPXIe-5433
Part Numbers785117-01 and 785118-01
ManufacturerNational Instruments
TypePXI Waveform Generator
Maximum Bandwidth80 MHz
Maximum Update Rate800 MS/s
Analog Output Resolution16 bits
Dimensions8.5 x 0.8 x 5.1 in.
WeightOne Channel: 13 oz.; Two Channels: 13.3 oz.
Warranty2-3 Year Warranty
PXIe-5433 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-5433:

National Instruments PXIe-5433 Frequently Asked Questions



Question: What are the differences between the two part numbers for the PXIe-5433?



Answer: The PXIe-5433 has two part numbers with several specifications that are different. Part number 785117-01 has 512 MB onboard memory size, 1 channel, and weighs 13 oz. Part number 785118-01 has 1 GB onboard memory size, 2 channels, and weighs 13.3 oz.



Question: What type of analog output connector is on the NI PXIe-5433?



Answer: The NI PXIe-5433 has an SMA analog output connector.



Question: What is the rise time of the PXIe-5433?



Answer: The PXIe-5433 has a rise time of 4.7 ns, measured with the digital filter enabled or 3.4 ns, measured with the digital filter disabled.



Question: Which connector block can be used with the NI PXIe-5433?



Answer: The NI PXIe-5433 can be used with the SCB-19 connector block.
