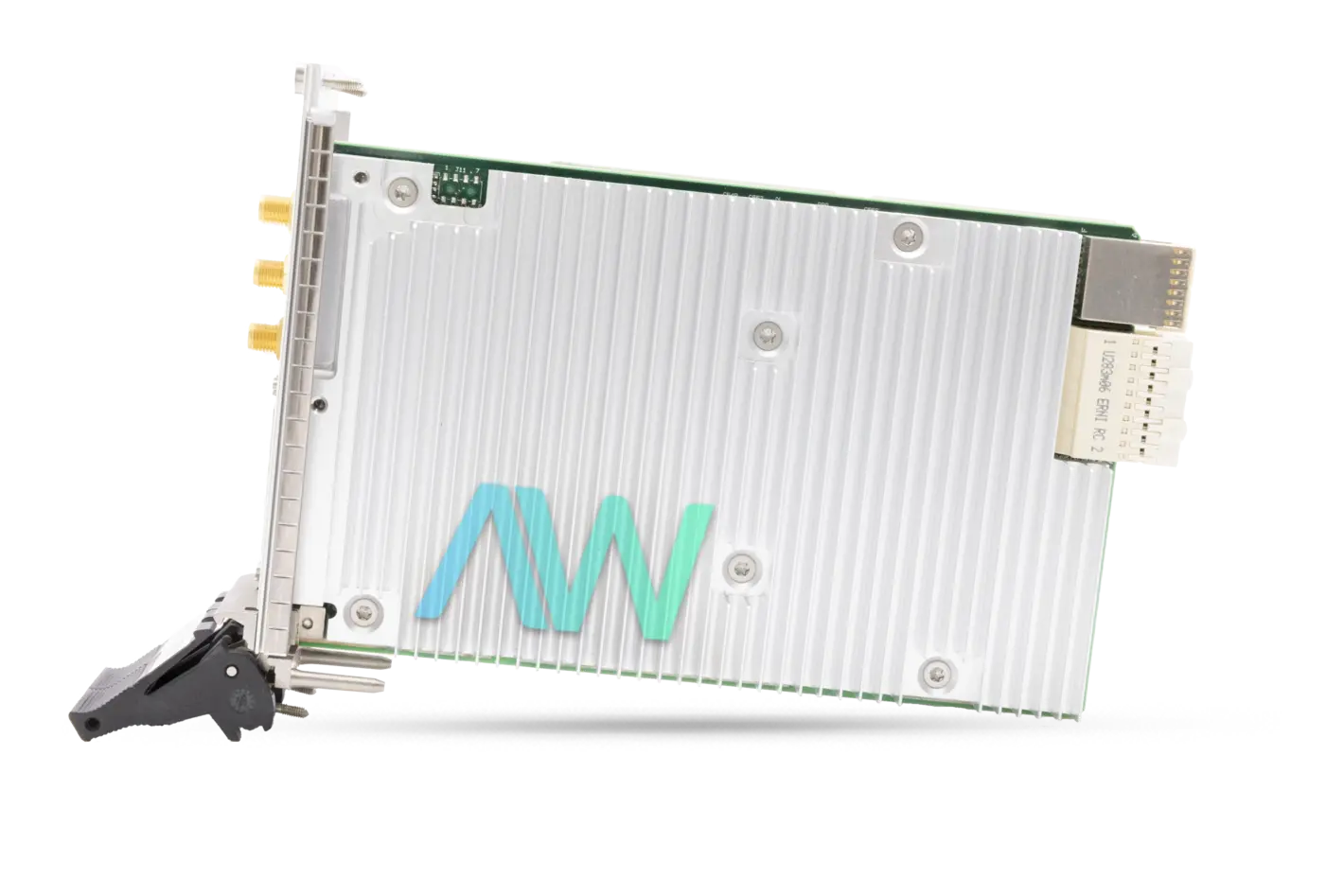

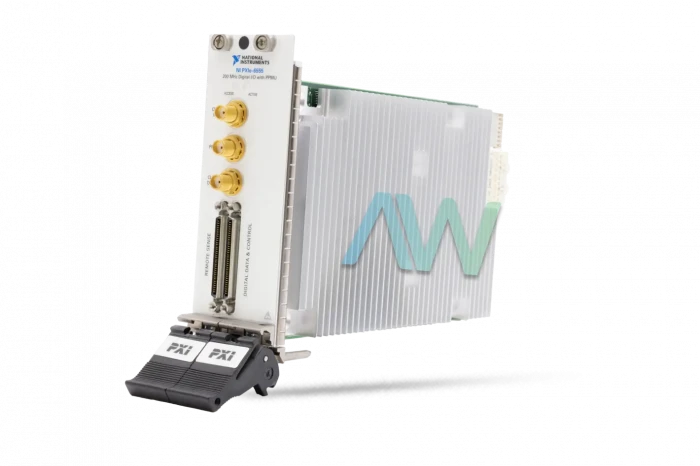

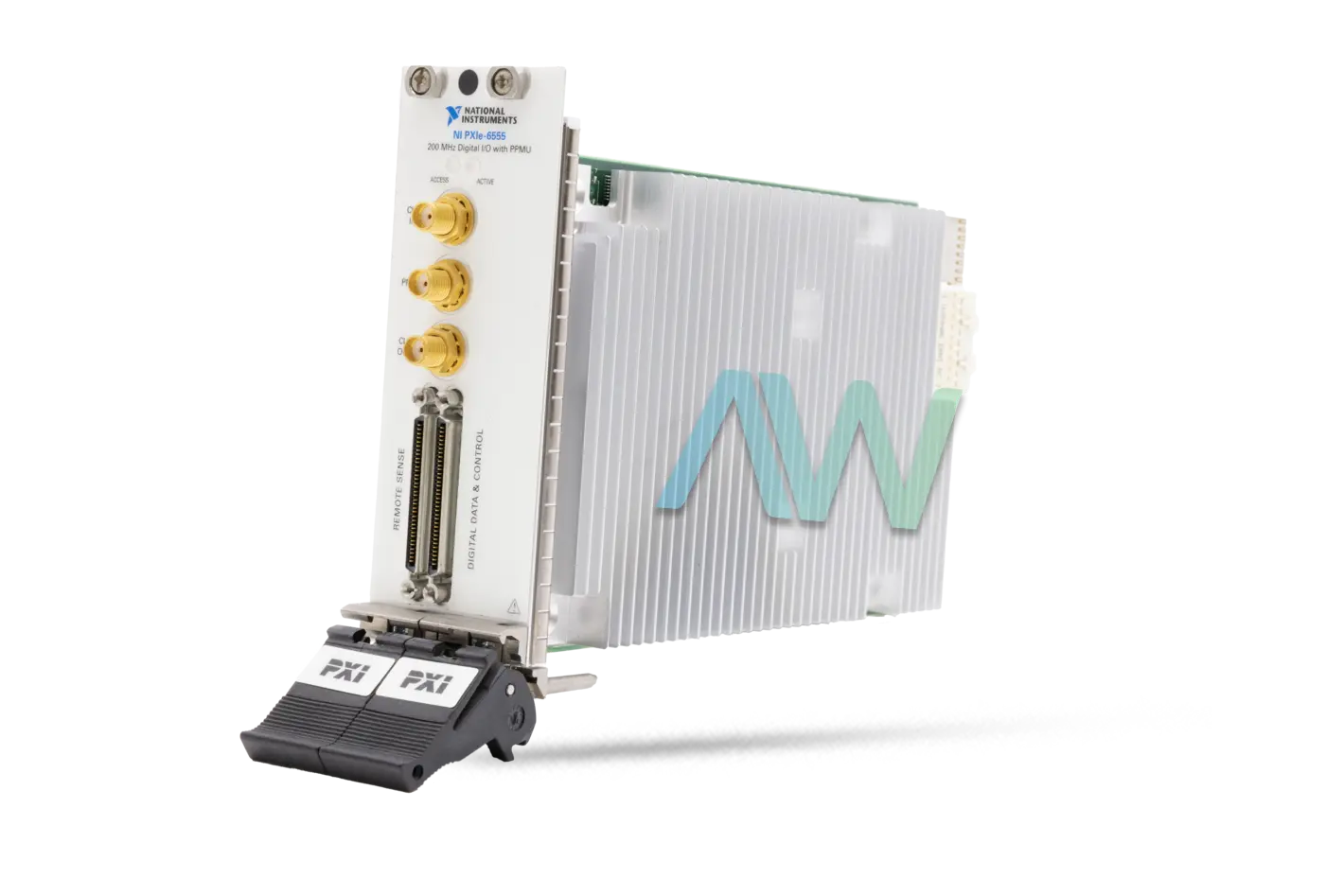

PXIe-6555 National Instruments PXI Digital Waveform Instrument | Apex Waves | Image
PXIe-6555 National Instruments PXI Digital Waveform Instrument | Apex Waves | Image
PXIe-6555 New
PXIe-6555 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXIe-6555 National Instruments PXI Digital Waveform Instrument | Apex Waves | Image
PXIe-6555 National Instruments PXI Digital Waveform Instrument | Apex Waves | Image
PXIe-6555 New
PXIe-6555 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-6555 PXI Digital Waveform Instrument

The PXIe-6555 (Part number; 781948-01) is a 24-Channel Digital Waveform Instrument manufactured by National Instruments. The NI PXIe-6555 has 30 ps timing resolution for each pin and can separately source or sink 32 mA maximum for every channel. It has a voltage range of -2 V to 7 V, with an output impedance of 50 ohms. This PXI Digital Waveform Instrument is ideal for DC parametric assessment with 24 single-ended digital pins, characterization, and interfacing. Additional capabilities of the PXIe-6555 include: per-pin advanced digital timing features, DC voltage and current parametric measurements, and hardware comparison for bit-error assessment. The device has a maximum clock rate of 200 MHz, with a maximum data rate of 200 Mb per second.

To operate the Digital Waveform Instrument, an application development environment (ADE) is required, and should be installed before the NI-HSDIO–one of LabVIEW or LabWindows/CVI would suffice. The device can be used with the NI-HSDIO instrument driver. The NI Script Editor comes with the NI-HSDIO DVD and delivers an interface to assist the user with creating linking and looping waveform generation operations. An optional type of software for the NI PXIe-6555 is the NI Digital Waveform Editor (NI DWE). This software enables users to effortlessly import information from well-known third-party electronic design automation programs, generate and edit original waveforms, and look at obtained waveforms. The NI DWE should be installed after NI-HSDIO.

Most regular NI Digital Waveform Generator/Analyzer applications, such as those for the PXIe-6555, often require that the user generate a customized accessory to swiftly reach the signals of the device under test (DUT). If the user is making a customized accessory to utilize with a device with a VHDCI DDC connector, then they can buy the mating connector for the VHDCI cable from NI. Also, users should keep in mind that they should always correctly terminate cables to prevent incorrect measurements caused by signal reflections. The device weighs 28 oz., with the dimensions: 21.6 x 2.0 x 13.0 cm.

PXIe-6555 Maintenance Status has been announced by National Instruments, but the Digital Waveform Instrument will still be available for purchase and repairs by Apex Waves.

ModelPXIe-6555
ManufacturerNational Instruments
Part Number781948-01
Channels24
Maximum Clock Rate200 MHz
Output Impedance50 Ohms
Voltage Range-2 V to 7 V
Maximum Data Rate200 Mbps
Dimensions21.6 x 2.0 x 13.0 cm.
Weight28 oz.
WarrantyThree Year Warranty
PXIe-6555 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-6555:

National Instruments PXIe-6555 Frequently Asked Questions



Question: Can I use a NI-DCPower Pulse Voltage Sequence with a NI PXIe-6555?

Answer: The DCPower Pulse is not compatible with the NI PXIe-6555. Only HSDIO is compatible with the NI PXIe-6555.



Question: How many digital pins does the PXIe 6555 have?

Answer: The PXIe 6555 has 24 single-ended digital pins.



Question: Does the NI PXIe 6555 have the ability to perform bit-error testing?

Answer: The NI PXIe 6555 does have hardware comparison for bit-error testing.
