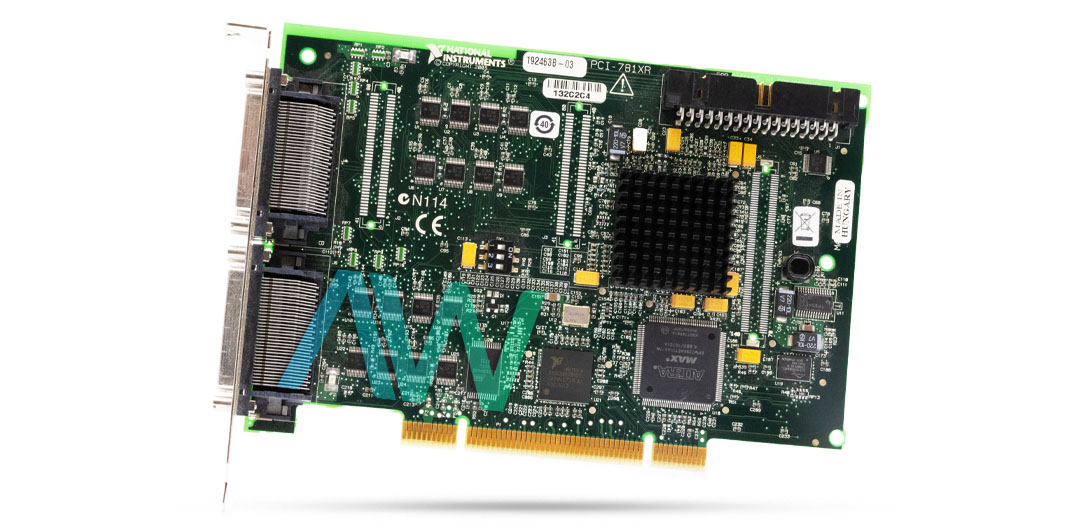

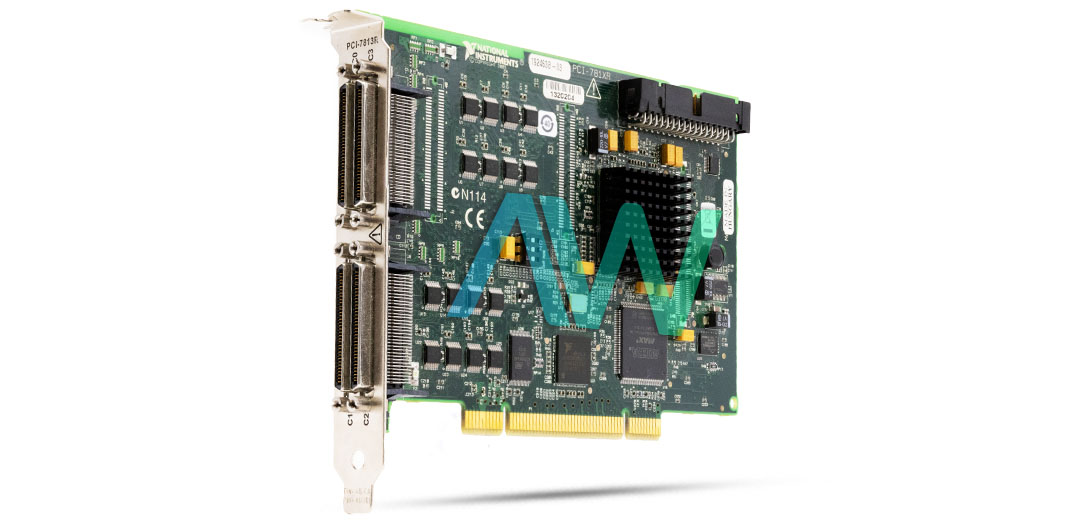

National Instruments PCI-7813R Digital Reconfigurable I/O Device
The PCI-7813R (Part numbers: 779370-01, 192463E-03, 192463B-03) is a Digital Reconfigurable I/O Device from the R Series by National Instruments that is equipped with 160 bidirectional digital I/O channels. This reliable I/O Device is an excellent choice for applications that require exact timing and control: including but not limited to high-speed waveform synthesis, sensor simulation, HIL testing, custom communications protocols, and bit error rate testing. User-defined onboard processing enabling flexible system timing and triggering is a defining feature of modules from NI's R Series.
The reconfigurable Virtex-II V3000 FPGA of the PCI-7813R offers flexible I/O operation and onboard computing. Custom onboard decision-making that operates with hardware-timed speed and dependability can also be programmed with the device. The FPGA offers 1,728 kbits of embedded block RAM, and 28,672 flip-flops. The Digital Reconfigurable I/O Device typically requires 850 mA of power at a rail of +3.3 VDC, and there is 4.50 to 5.25 VDC power at 1 A available at the I/O connector. The four I/O connectors of the PCI-7813R are high-density 68-pin female VHDCI types.
The environmental requirements for the I/O Device are intended for indoor use only, and have an operating temperature range of 0 °C to 55 °C. While in storage, the recommended temperature conditions range from –20 °C to 70 °C. Both of the temperature ranges have been tested in accordance with the specification standards of IEC-60068-2-1 and IEC-60068-2-2.
The physical dimensions of the PCI-7813R measure 6.7 in. by 4.3 in. (17 cm by 11 cm), and it weighs in at 112 g.
The Mature LifeCycle Status of the PCI-7813R has been announced by National Instruments, but the Digital Reconfigurable I/O will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PCI-7813R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779370-01, 192463E-03, 192463B-03 |
| Series | R Series |
| Type | Digital Reconfigurable I/O Device |
| FPGA Type | Virtex-II V3000 |
| Number of Flip-flops | 28,672 |
| Number of 18 × 18 Multipliers | 96 |
| Embedded Block RAM | 1,728 kbits |
| Digital I/O | 160 |
| Timebase | 40, 80, 120, 160, or 200 MHz |
| I/O Connector | 4x68-pin Female High-Density VHDCI type |
| Power Requirements | +3.3 VDC,+5 VDC -- 850 mA, 9 mA |
| Dimensions | 6.7 in. by 4.3 in. |
| Weight | 0.25 lb. |
| Software Driver | NI-RIO |
| Warranty | Three Year Warranty |
| PCI-7813R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-7813R:
National Instruments PCI-7813R Frequently Asked Questions
Question: Are the D GND, AI GND, and AO GND connected to the chassis/building ground with the PCI-7813R?
Answer: Yes, the D GND, AI GND, and AO GND are connected to the chassis ground using a DMM for the PCI-7813R.
Question: What's the maximum current load for the 5V terminal on the connector 0 of the PCI 7813R board?
Answer: The maximum current load for the 5V terminal on the connector of the 0 of the PCI 7813R board is rated 1A max.
Question: What's the fuse ampere rating of the NI PCI-7813R board?
Answer: The fuse ampere rating of the NI PCI-7813R board is 4A.
PCI-7813R PDF Manuals
GETTING-STARTED-WITH-R-SERIES-MULTIFUNCTION-RIO.PDF
NI-78XXR-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-78XXR-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
NI-R-SERIES-INTELLIGENT-DAQ-USER-MANUAL.PDF
NI-R-SERIES-MULTIFUNCTION-RIO-SPECIFICATIONS.PDF
