National Instruments PCI-7833R Digital Reconfigurable I/O Device

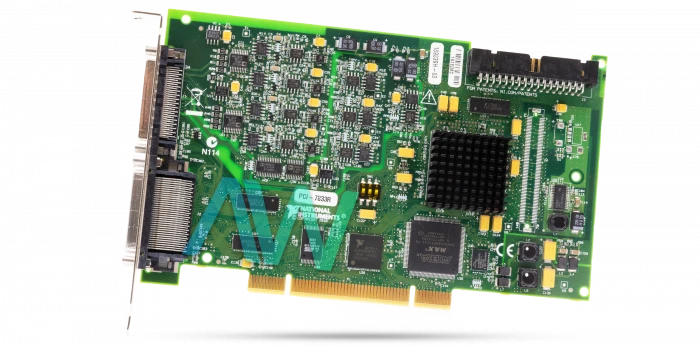

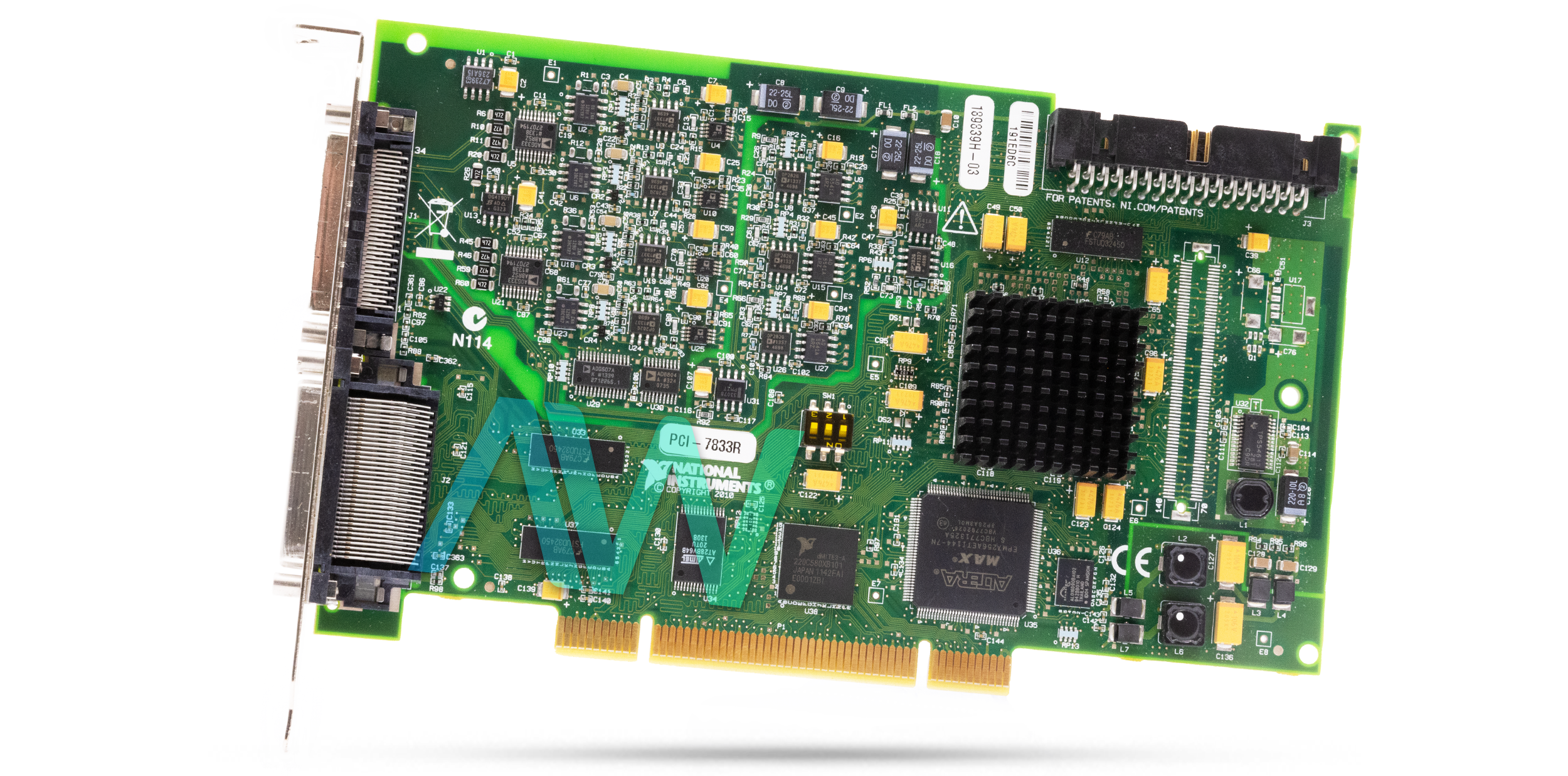

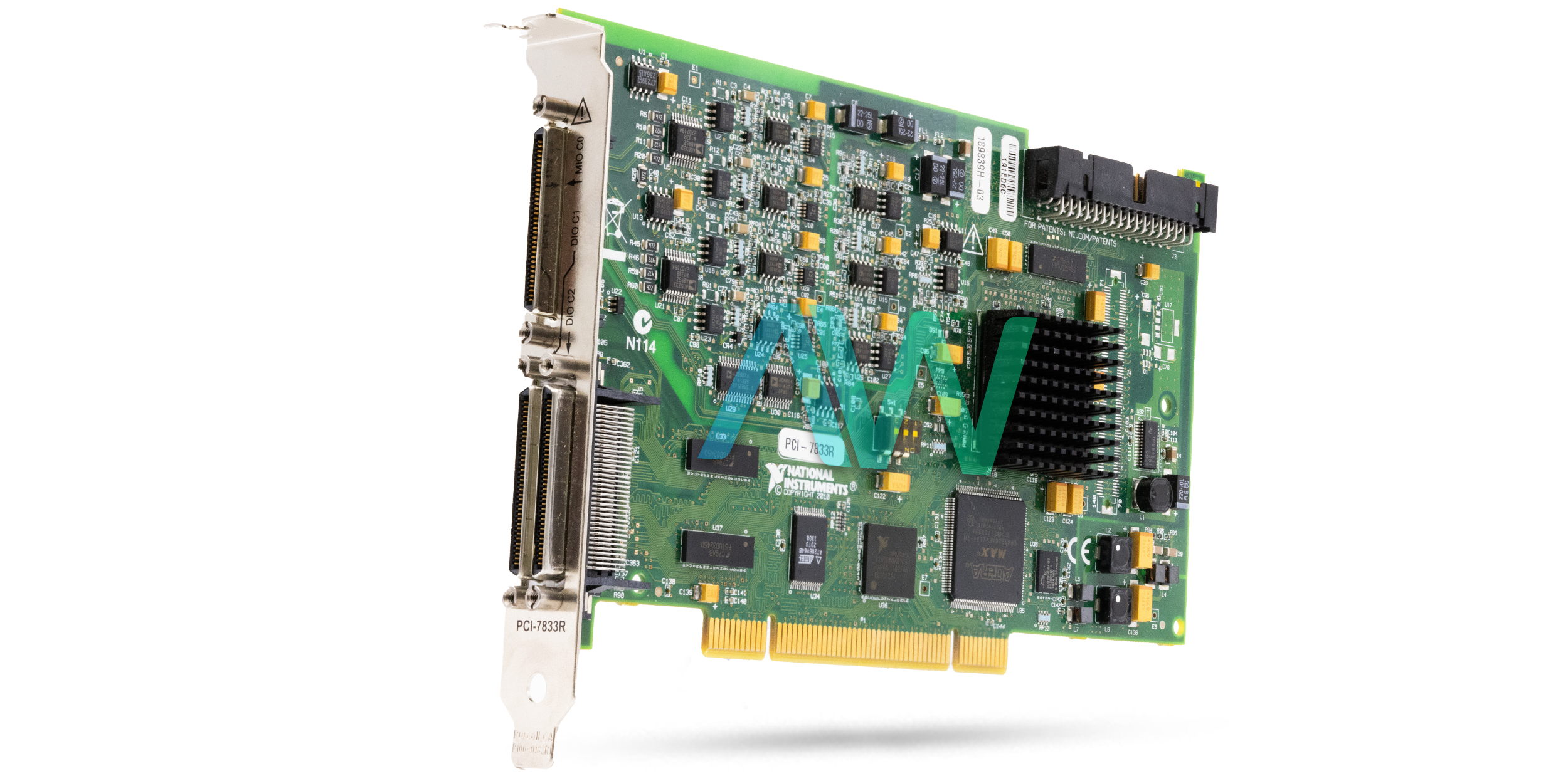

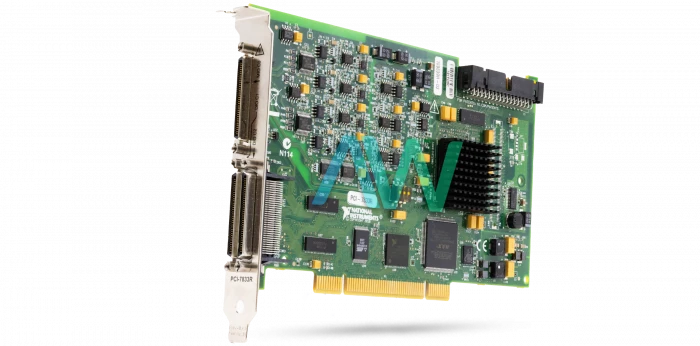

The PCI-7833R (Part Number: 779359-01) is a PCI based Digital Reconfigurable I/O Device. This device comes with a Virtex-II 3M Gate, a powerful FPGA, 8 analog inputs/outputs, and 96 digital lines. The analog inputs offered by this Digital Reconfigurable I/O Device offer up to 200 kS/s (kilosamples per second) per channel sampling rate, while the analog outputs provide a maximum update rate of 1 MS/s (megasample per second). When combining the NI PCI-7833R and the NI-9151 expansion chassis, the result is high-performance yet low cost signal conditioning, direct connectivity, and I/O channel expansion.

The FPGA used in this device comes with 28,672 flip-flops, 96 18x18 multipliers, and 1,728 kbits of embedded block RAM.. Little to no coding expertise is required in using the LabVIEW FPGA Module to graphically design the NI 7833R timing and functionality. To operate the PCI-7883R, the following software are required: the NI PXI-7833R driver software, LabVIEW 7.1 or later versions, LabVIEW FPGA (Field-Programmable Gate Array) Module 1.1 or later versions, NI-RIO 1.3 or later versions. The LabVIEW Real-Time Module is used to interact with and control the NI 7833R.

The NI PCI 7833R features an enhanced R-2R DAC in its output circuitry. This device has ±10 V range, supports DC output coupling with 1.25 Ω output impedance, and has ±2.5 mA current drive. This Digital Reconfigurable I/O Device has the capability to implement customized control logic, digital communication protocols, and inline signal processing. Moreover, the eight voltage analog output channels on this RIO Device operate under short-circuit to ground protection and have a user configurable power-on state. The 96 digital I/O channels on this device have a programmable, by line power-on state. The digital logic levels are 3.3 V TTL, 5 V TTL compatible.

This Digital Reconfigurable I/O Device comes with three 68-pin female high-density VHDCI I/O connectors. The National Instruments PCI-7833R device draws 727 mA of total current from +3.3 VDC (±5%) supply, while operating normally in a typical environment. This instrument is designed for the PCI bus and can be chosen as a master or a slave device.

The status of the PCI-7833R is now considered Obsolete by National Instruments, but this Reconfigurable I/O Device will still be available for purchase and repairs in perpetuity with Apex Waves.

ModelPCI-7833R
ManufacturerNational Instruments
Part Number779359-01
SeriesR Series
TypeDigital Reconfigurable I/O Device
Analog Input Channels8
Analog Output Channels8
ADC TypeSuccessive Approximation
Digital I/O Channels96 TTL-Compatible Channels
Reconfigurable FPGAXilinx Virtex-II V3000
Embedded Block RAM1,728 kbits
DMA Channels3
Bus InterfaceMaster, Slave
Operating Temp Range0 °C to 55 °C
Storage Temp Range–20 °C to 70 °C
Dimensions6.7 by 4.3 in. (17 cm by 11 cm)
Weight112 g.
I/O Connectors3 68-Pin Female High-Density VHDCI Connectors
Warm-Up Time15 Minutes (Recommended)
Calibration Interval1 Year

Associated part numbers for PCI-7833R:

National Instruments PCI-7833R Frequently Asked Questions



Question: What driver is used by the PCI-7833R?

Answer: The driver used by the reconfigurable I/O device is NI-RIO.



Question: What is the power available at the I/O connectors for the NI PCI-7833R?

Answer: The power available at the I/O connectors is 4.50 to 5.25 VDC, 250 mA per I/O connector pin.



Question: What is the calibration interval for the PCI-7833R?

Answer: The recommended calibration interval for the device is 1 year.



Question: Which accessories can be utilized with the NI PCI-7833R?

Answer: The Reconfigurable I/O Device can be utilized with the SH68-C68-S Shielded 68-pin VHDCI Cable, the SHC68-68-RMIO Shielded 68-pin VHDCI Cable, the NSC68-262650 Non-shielded Cable, or the NSC68-5050 Non-shielded Cable.
