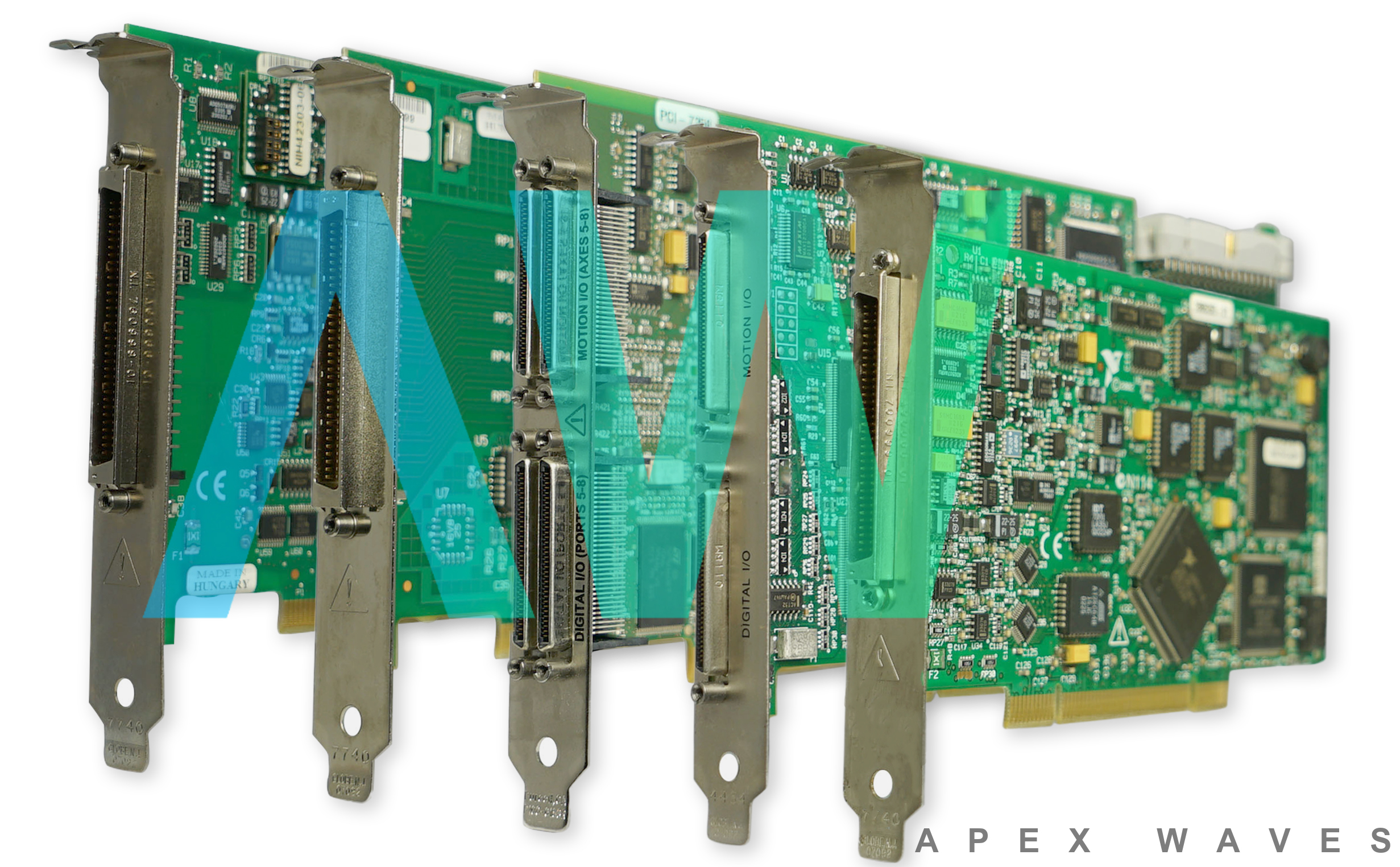

National Instruments PCI-8254R Image Acquisition Board
The NI PCI-8254R (Part number: 779303-01) is an Image Acquisition Board that allows the user to activate and coordinate numerous IEEE 1394 cameras deprived of the needed extra advanced I/O boards or custom hardware. For coordinated vision parts, this model comes with 29 computerized I/O lines. Even though it is not necessary, the client has the option to broaden the usefulness of this instrument by exploiting the reconfigurable I/O innovation. There is a module that can be utilized called NI LabVIEW FPGA. This module allows users to tweak the 29 computerized I/O lines of the module to play out a more extensive assortment of bundling investigation and applications controlled mechanically.
NI-IMAQ has a broad library of capacities users can call and handles communication between the PC and the image securing gadget, such as programming hinders and camera control. NI-IMAQ I/O gives capacities to control the I/O on the NI PCI-8254R which is a customizable device vision programming that can be used to model, benchmark, and send applications. This special configuration is versatile to great programming situations and does not require programming. It enables users to effectively arrange and benchmark a succession of visual assessment ventures and send the visual investigation framework for computerized examination. The user can perform ground-breaking visual investigation errands and settle on choices considering the consequences of individual assignments. The user can also move the designed assessment to LabVIEW. The module included in this model is comprised of NI Vision and NI Vision Assistant and a picture obtaining, preparing, and examination library with over 270 capacities.
| Model | PCI-8254R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779303-01 |
| Type | IEEE 1394a Interface |
| Number of Ports | 2 IEEE 1394a Camera Inputs |
| Image Data Transfer | 400 Mb/s |
| Digital Inputs | 15 (13 Isolated 24 V lines & 2 TTL lines) |
| Digital Outputs | 14 (4 Isolated 24 V & 10 TTL) |
| Camera Interface | IEEE 1394a |
| Power Requirements | 18 W |
| Dimensions | 4.2 in. × 6.9 in. |
| Weight | 0.25 lb. |
| Driver Software | NI Vision Acquisition Software |
| Warranty | 2-3 Year Warranty |
| PCI-8254R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-8254R:
PCI-8254R PDF Manuals
GETTING-STARTED-WITH-THE-NI-PCI-8254R.PDF
NI-FRAME-GRABBERS-PRODUCT-FLYER.PDF
NI-PCI-8254R-QUICK-START-GUIDE.PDF
NI-VISION-I-O-TERMINAL-BLOCK-AND-PROTOTYPING-ACCESSORY-USER-GUIDE-AND-SPECIFICATIONS.PDF
UPDATE-TO-NI-VISION-I-O-TERMINAL-BLOCK-AND-PROTOTYPING-ACCESSORY-FRONT-PANEL-NOTE-TO-USERS.PDF
