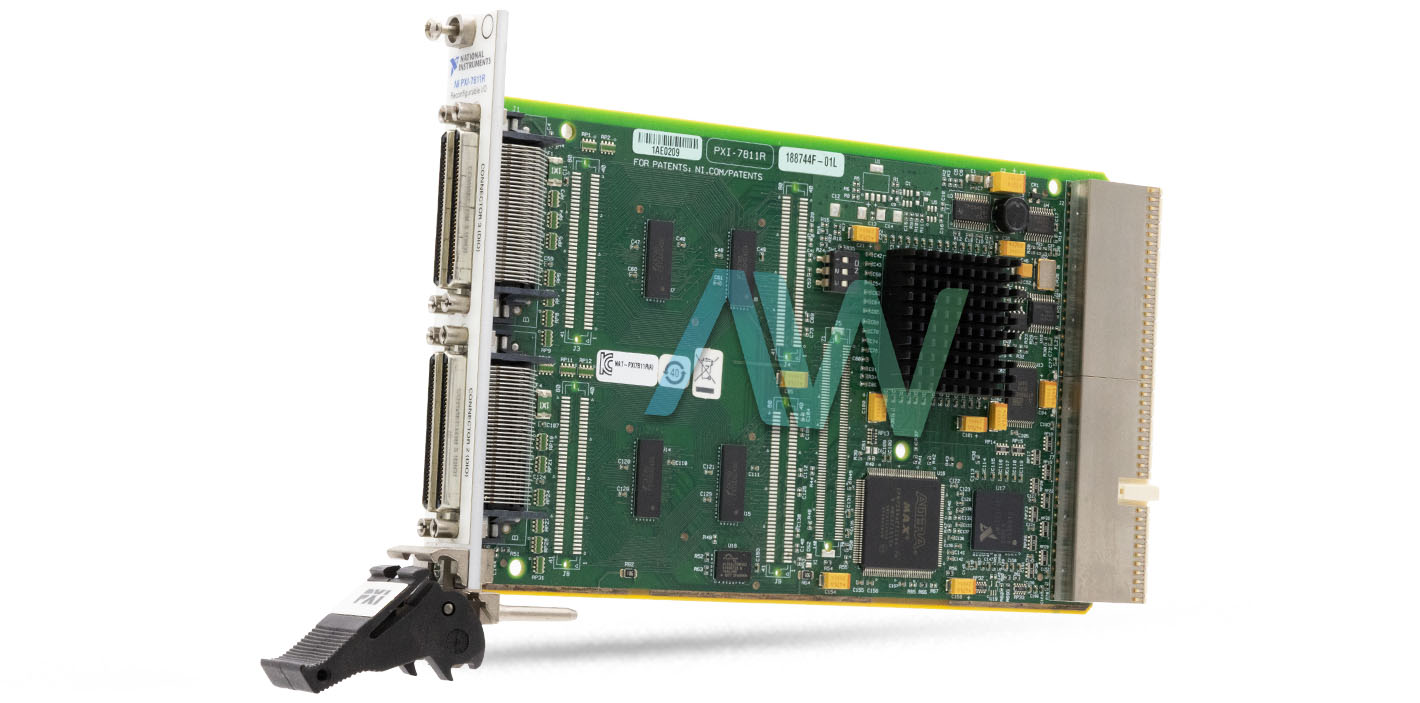

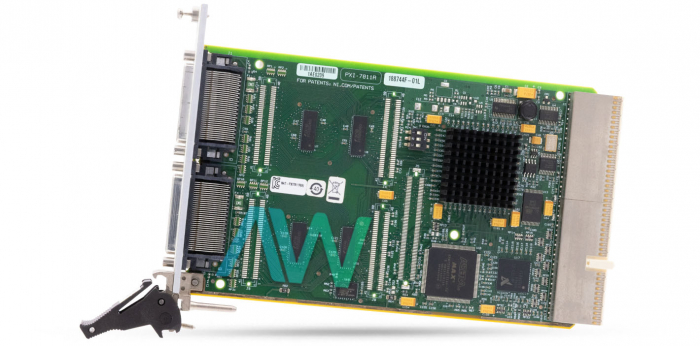

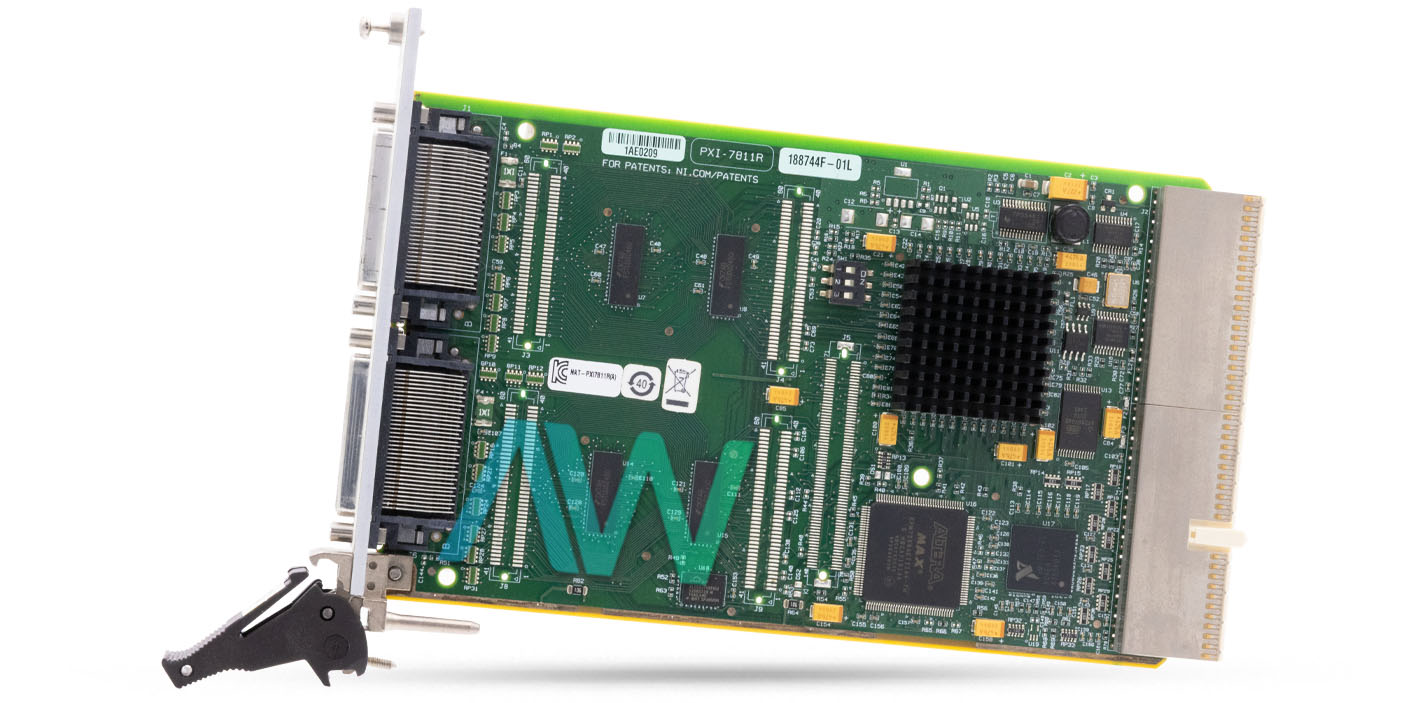

National Instruments PXI-7811 PXI Digital Reconfigurable I/O Module

The PXI-7811 (Part Number: 778800-01) is a Digital Reconfigurable I/O Module that highlights a client programmable FPGA for locally available preparing and adaptable I/O tasks. With LabVIEW FPGA, the user can exclusively arrange the computerized lines as information sources, yields, counter/clocks, PWM, encoder inputs, or concentrated correspondence conventions. The user can also program custom locally available basic leadership that executes with equipment coordinated speed and unwavering quality. The NI PXI-7811 is appropriate for a wide assortment of utilizations, such as rapid waveform generation, sensor reproduction, hardware in the loop (HIL) test, custom interchanges conventions, bit mistake rate test, and different applications that require exact planning and control.

This module comes equipped with LabVIEW FPGA, which works with LabVIEW installed innovation to broaden the LabVIEW images improvement and target FPGAs on NI RIO equipment. LabVIEW is unmistakably perfect for FPGA programming since it speaks to parallelism and information stream.

The NI PXI-7811 module utilizes the Virtex-5 FPGA with enhanced advancement abilities that give quicker code execution and expanded code limit. This Virtex-5 FPGA highlights another six-input lookup table (LUT) design for significantly enhanced asset usage and additionally DSP48 cuts that make it workable for the user to actualize more mind boggling computerized flag preparing at quicker rates. Past generation Virtex-II FPGAs utilized four-input LUTs for up to 16 mixes of computerized rationale esteems.

PXI-7811 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7811
ManufacturerNational Instruments
Part Number778800-01
SeriesR Series
TypePXI Digital Reconfigurable I/O Module
FPGA TypeVirtex-II V1000
Number of Flip-flops10,240
Number of 18 × 18 multipliers40
Embedded Block RAM720 kbits
Digital I/O160
I/O Connectors4 x 68-pin Female High-Density VHDCI type
Power Requirements+3.3 VDC,+5 VDC  -- 650 mA, 9 mA
Dimensions6.3 in. by 3.9 in.
Weight0.34 lb.
Software DriverNI-RIO
Warranty2-3 Year Warranty
PXI-7811 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
