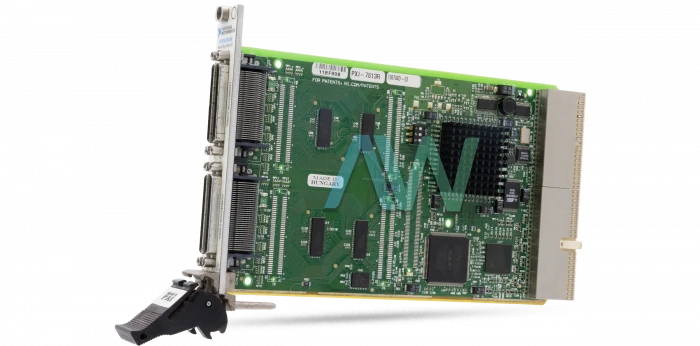

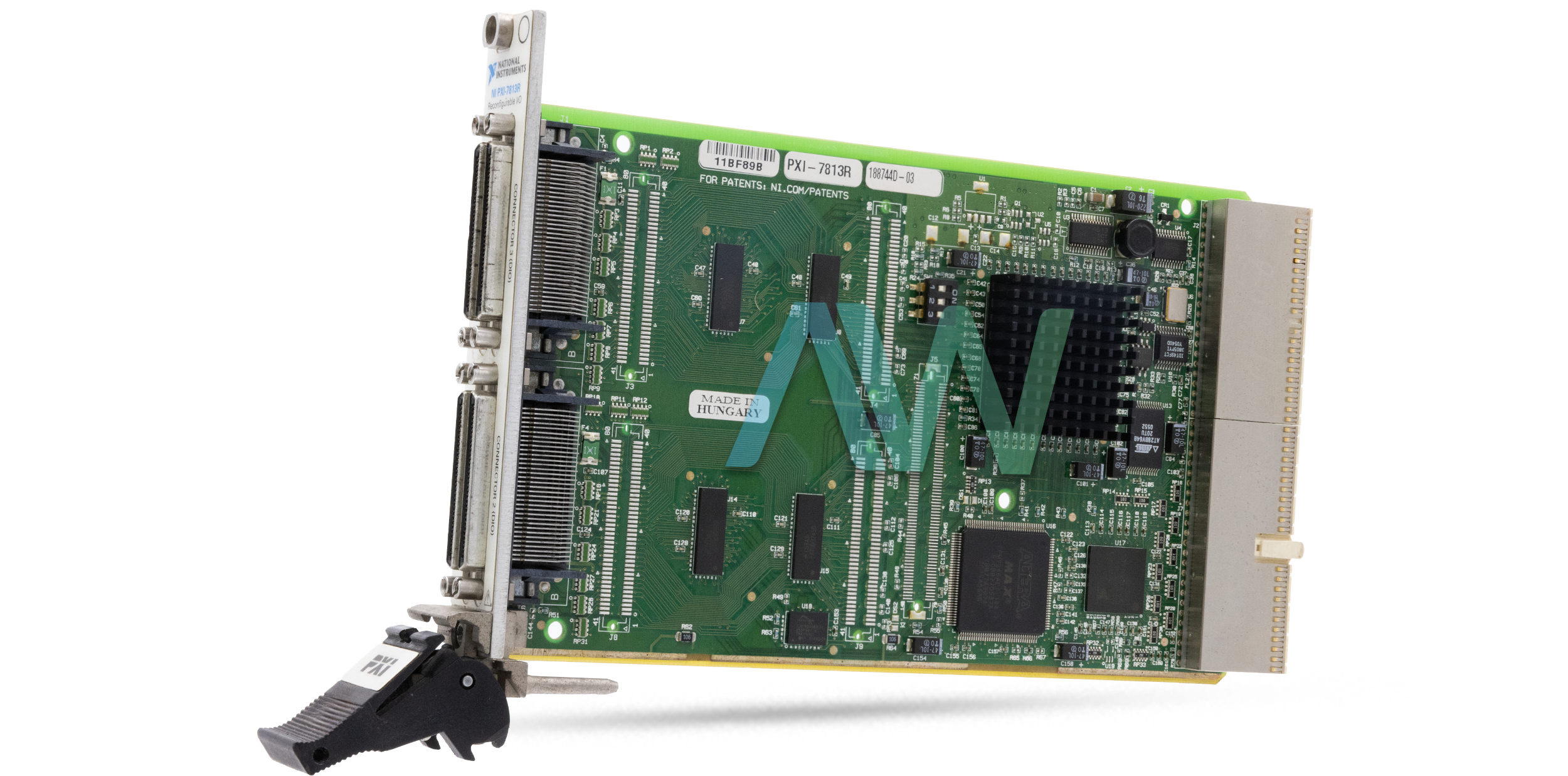

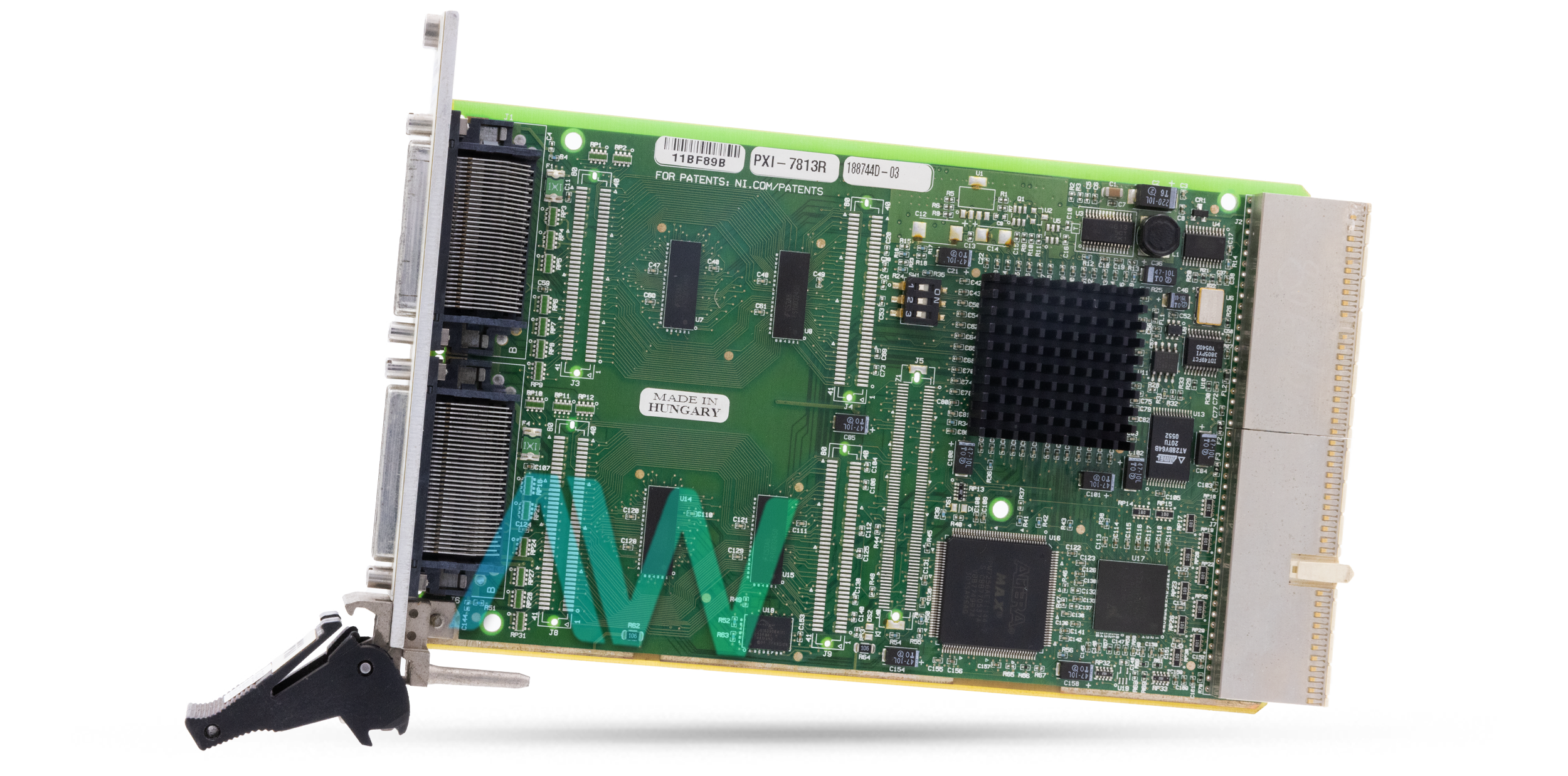

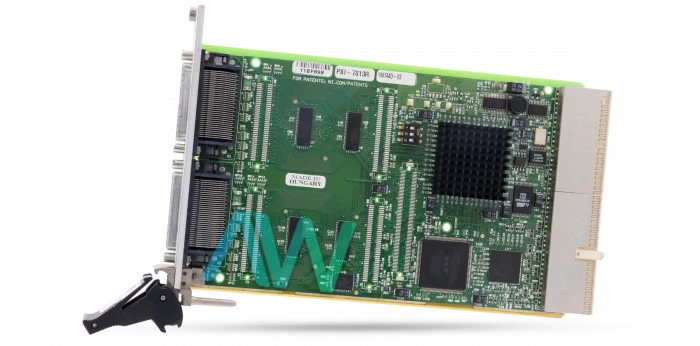

National Instruments PXI-7813R PXI Digital Reconfigurable I/O Module
The NI PXI-7813R Digital Reconfigurable I/O Module (Part Numbers: 779362-01, 188744F-03L) from National Instruments (NI) has 160 bidirectional Digital I/O lines and 3 DMA channels. Built with a user-programmable FPGA, the PXI-7813R is an excellent choice for onboard computing or operating flexible I/O. The digital I/O lines of the device can be configured independently, including as input, output, counter/timer, or more. This Reconfigurable I/O Module is an excellent choice for a wide range of applications that require exact timing and control, including high-speed waveform synthesis, sensor simulation, hardware-in-the-loop (HIL) testing, and more. The device features four 68-pin high-density female VHDCI connectors.
The PXI-7813R is intended to be used in conjunction with the LabVIEW Real-Time Module as a single-point Digital I/O. Application Development Environments such as LabVIEW and the LabVIEW Real-Time Module are used to build applications that govern the I/O module, while LabVIEW and the LabVIEW FPGA Module are used in programming the NI PXI-7813R. The reconfigurable FPGA of the module a Virtex-II V3000 FPGA type, featuring 1,7238 kbits of embedded block RAM. It is equipped with 96 18×18 multipliers, and has 28,672 flip-flops.
The bus interface of the I/O Module is a Master / Slave type with DMA data transfers. These transfers have interrupts and preprogrammed I/O. The typical power required by the device at 5 VDC is 9 mA, and it is 850 mA at 3.3 VDC. In terms of additional accessories, the PXI-7813R Module is compatible with the SCB-68 shielded connector block, as well as the SHC68-68-RDIO and SH68-C68-S NI cables. Physically, the device measures dimensions of 6.3 in. by 3.9 in. (16 cm by 10 cm). when not including the connectors, and it weighs in at 152 g. Built for indoor applications only, the specified operating environment for the PXI-7813R has temperatures ranging from 0 °C to 55 °C. For storage, these temperatures range from –20 °C to 70 °C.
The PXI-7813R has been announced as Obsolete by National Instruments/(NI), but the Digital Reconfigurable I/O Module will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-7813R |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779362-01, 188744F-03L |
| HTS Code | 8471804000 |
| Series | R Series |
| Type | PXI Digital RIO Module |
| FPGA | Virtex-II 3M Gate |
| Digital I/O | 160 Channels |
| DMA Channels | 3 |
| FPGA Embedded Block RAM | 1,728 kbits |
| # 18x18 Multipliers | 96 |
| # Flip-Flops | 28,672 |
| Dimensions | 6.3 in. by 3.9 in. (16 cm by 10 cm). |
| Weight | 152 g. |
| Warranty | Three Year Warranty |
| PXI-7813R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for PXI-7813R:
National Instruments PXI-7813R Frequently Asked Questions
Question: What does the PXI-7813R require for operation?
Answer: For operation, the RIO Module requires one cable and one connector block.
Question: What is the minimum pulse width of the module?
Answer: The minimum pulse width of is 25 ns for the input and 12.5 ns for the output.
Question: What is the embedded block RAM capacity?
Answer: The embedded block RAM capacity for the PXI-7813R is 1,728 kbits.
Question: What is the warranty length for the NI PXI-7813R?
Answer: The device has either a 2 or 3 year warranty from Apex Waves, depending on part quality.
PXI-7813R PDF Manuals
GETTING-STARTED-WITH-R-SERIES-MULTIFUNCTION-RIO.PDF
NI-78XXR-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-78XXR-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
NI-R-SERIES-INTELLIGENT-DAQ-USER-MANUAL.PDF
NI-R-SERIES-MULTIFUNCTION-RIO-SPECIFICATIONS.PDF
