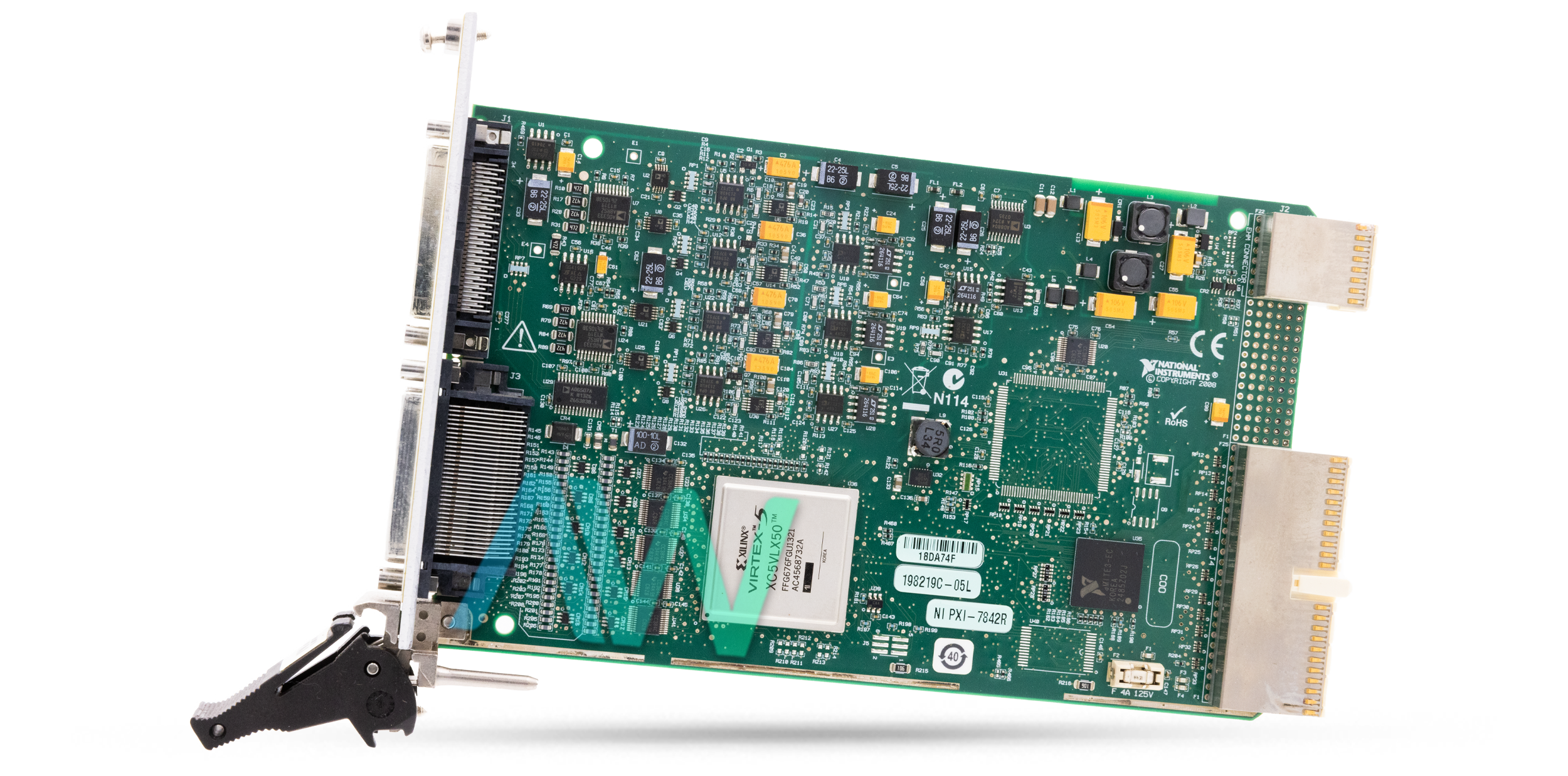

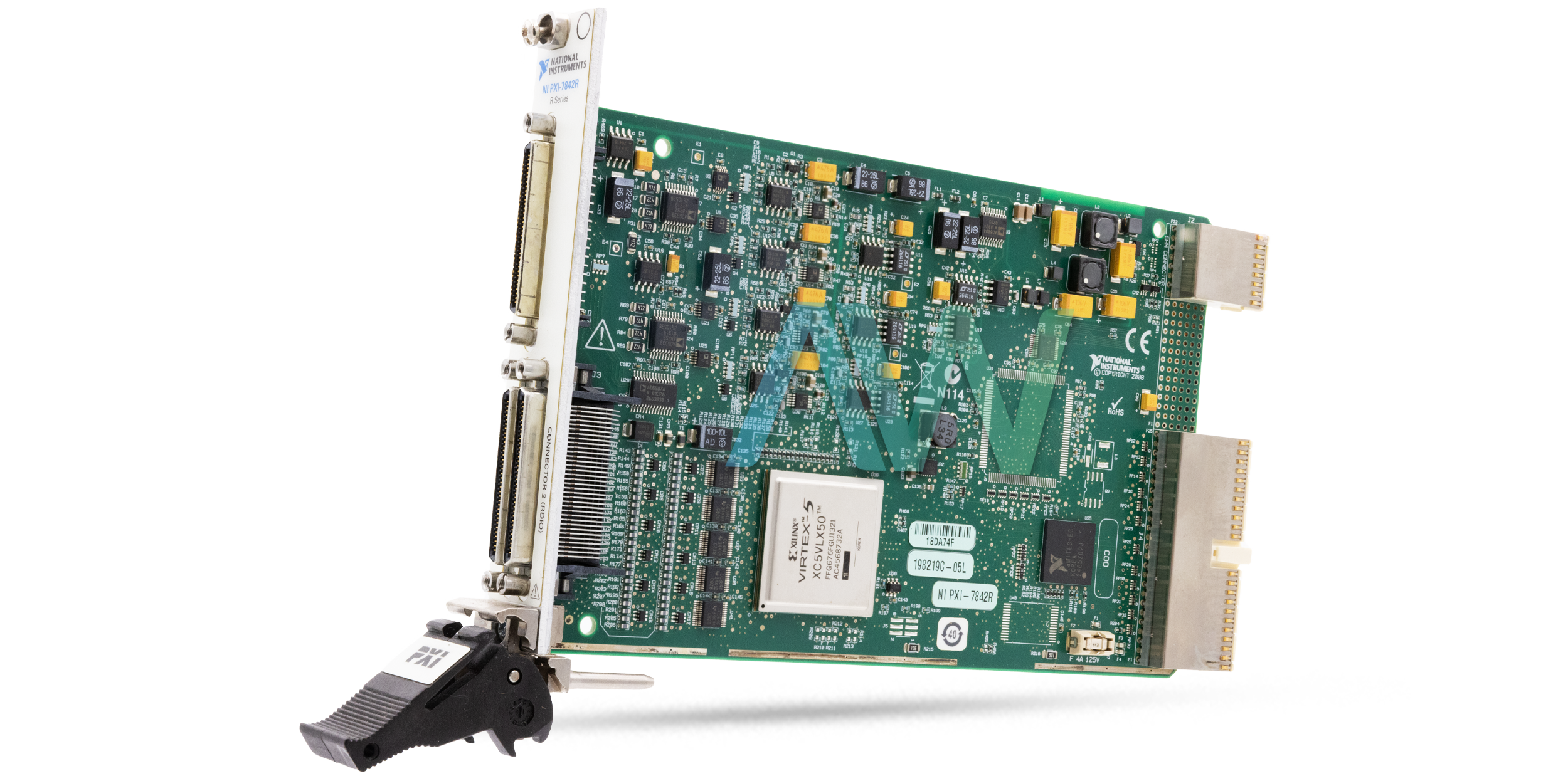

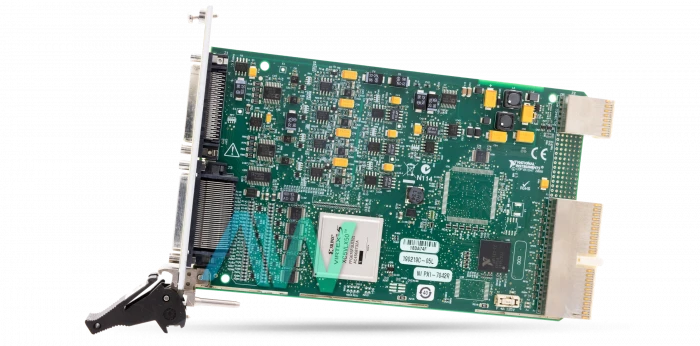

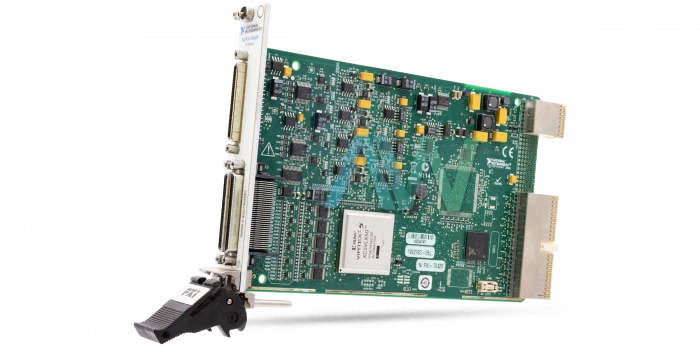

National Instruments PXI-7842R PXI Multifunction Reconfigurable I/O Module
The National Instruments PXI-7842R (Part Number: 780338-01, 198219C-05L) Multifunction Reconfigurable I/O Module is part of the R Series. This module has the following specifications: Virtex-5 LX50 FPGA, 200 kS per second maximum sample rate, eight analog input channels, eight analog output channels, 96 bidirectional digital channels nad an analog input voltage range from -10 V to 10 V. The device operates using the NI-RIO driver software.
The FPGA on the PXI-7842R can be utilized for high-performance onboard processing and governing over I/O signals to guarantee full versatility of system timing and harmonization. This Multifunction Reconfigurable I/O Module can be tailored to suit the user by using the LabVIEW Real-Time module to create applications needing exact timing and control. These applications include high-speed control, hardware-in-the-loop assessment, sensor simulation, and custom protocol communication. The LabVIEW FPGA Module can also be used in programming the device.
The National Instruments PXI-7842R input mode is software configurable with three different input modes: differential, referenced single ended, and non-referenced single ended. Whichever input mode the user chooses will apply to every input channel. The user must also be careful not to surpass the differential and common-mode input ranges because this will distort the input signals. This can additionally result in harming the module and the computer. There are also floating and ground-referenced signal sources. A device with an isolated output is a floating signal source, whereas a device with a non-isolated output is a ground referenced signal source. Several examples of a floating signal source are battery devices, and ungrounded thermocouples. For the PXI-7842R, it is already connected to a common ground point since the building system ground is coupled to a ground-referenced signal source.
A variety of cables can be used with the PXI 7842R – they are: the SHC68-68-RMIO, SHC68-68-RDIO, and SH68-C68-S cables, all with the NI SCB-68 shielded connector block accessory. The device is self-calibrating that is, it can internally measure, correct, and ensure its accuracy in the absence of external signal connections; however it can also be externally calibrated.
The PXI-7842R has been identified as Mature by National Instruments, but the Multifunction Reconfigurable I/O Module will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-7842R |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780338-01, 198219C-05L |
| Series | R Series |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA | Virtex-5 LX50 |
| Maximum Sample Rate | 200 kS/s |
| Analog Input Channels | 8 |
| Analog Output Channels | 8 |
| Digital I/O Channels | 96 |
| Analog Output Type | Voltage Output, Single-Ended |
| I/O Connectors | (3) Female 68 Pin High-Density VHDCI |
| Power Available at I/O Connectors | 250 mA / I/O Connector Pin |
| Voltage Output Range | ±10 V |
| Dimensions | 6.7 in. by 4.3 in. (17 cm by 11 cm) |
| Weight | 127 g |
| Warranty | Three Year Warranty |
| PXI-7842R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
