PXI-7853R, 750 kS/s Sample Rate, 96 Digital I/O Channels, Multifunction Reconfigurable I/O Module

Rated 5/5 | 17 ratings

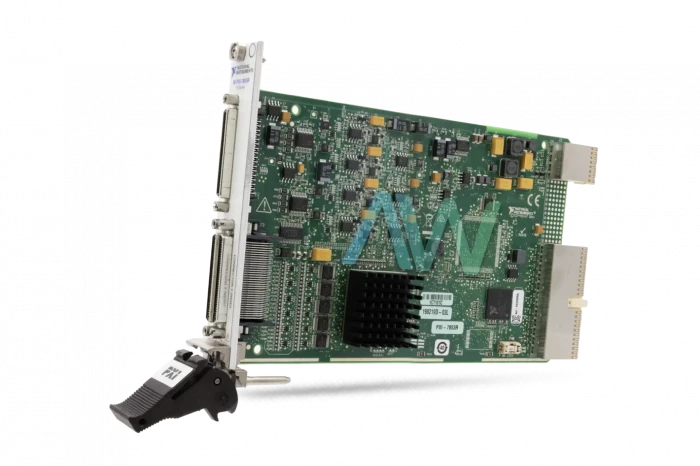

PXI-7853R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image

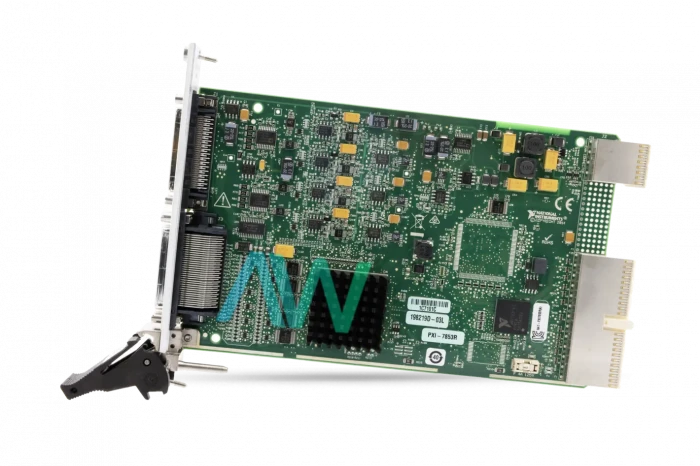

PXI-7853R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7853R New
PXI-7853R Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

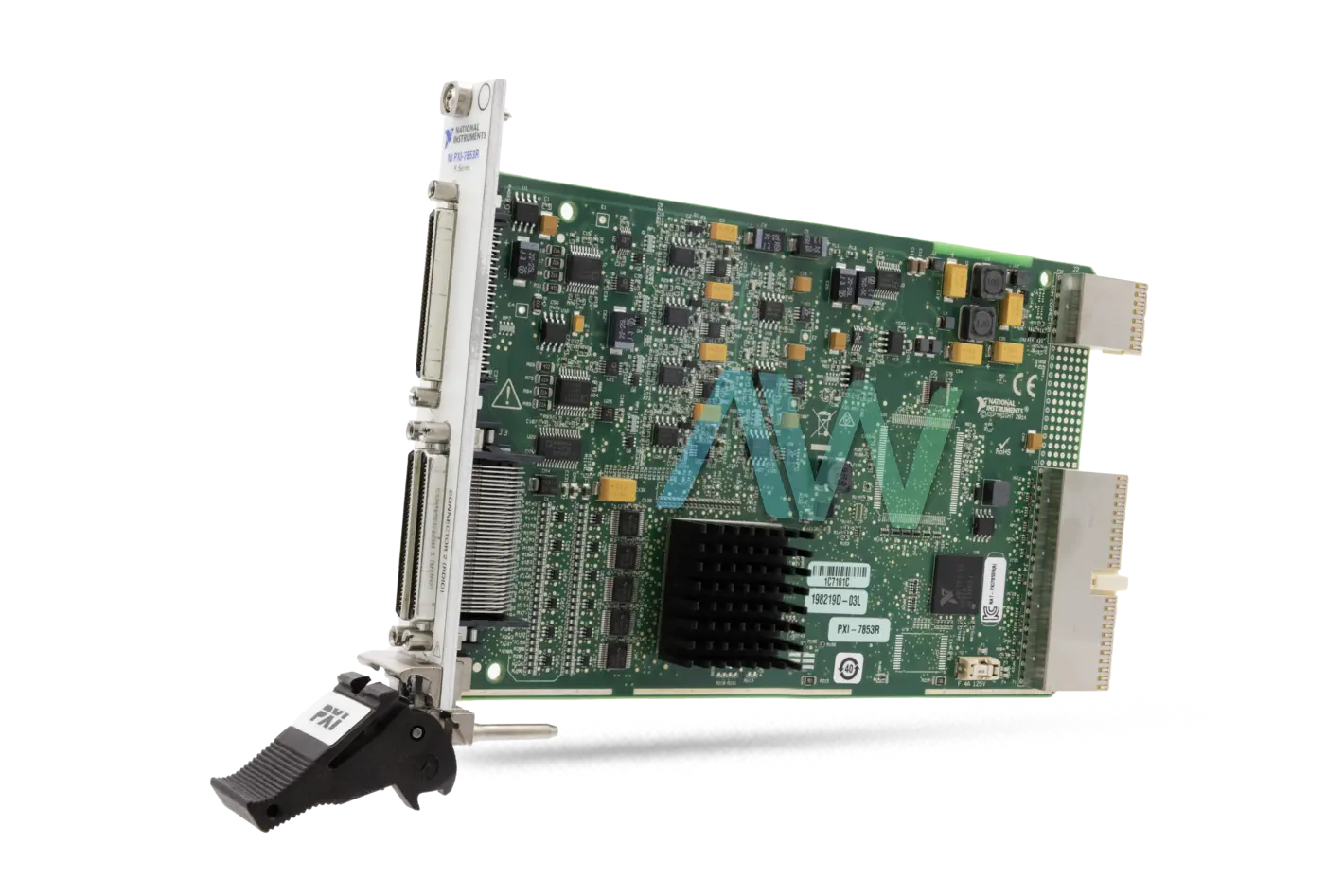

PXI-7853R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image

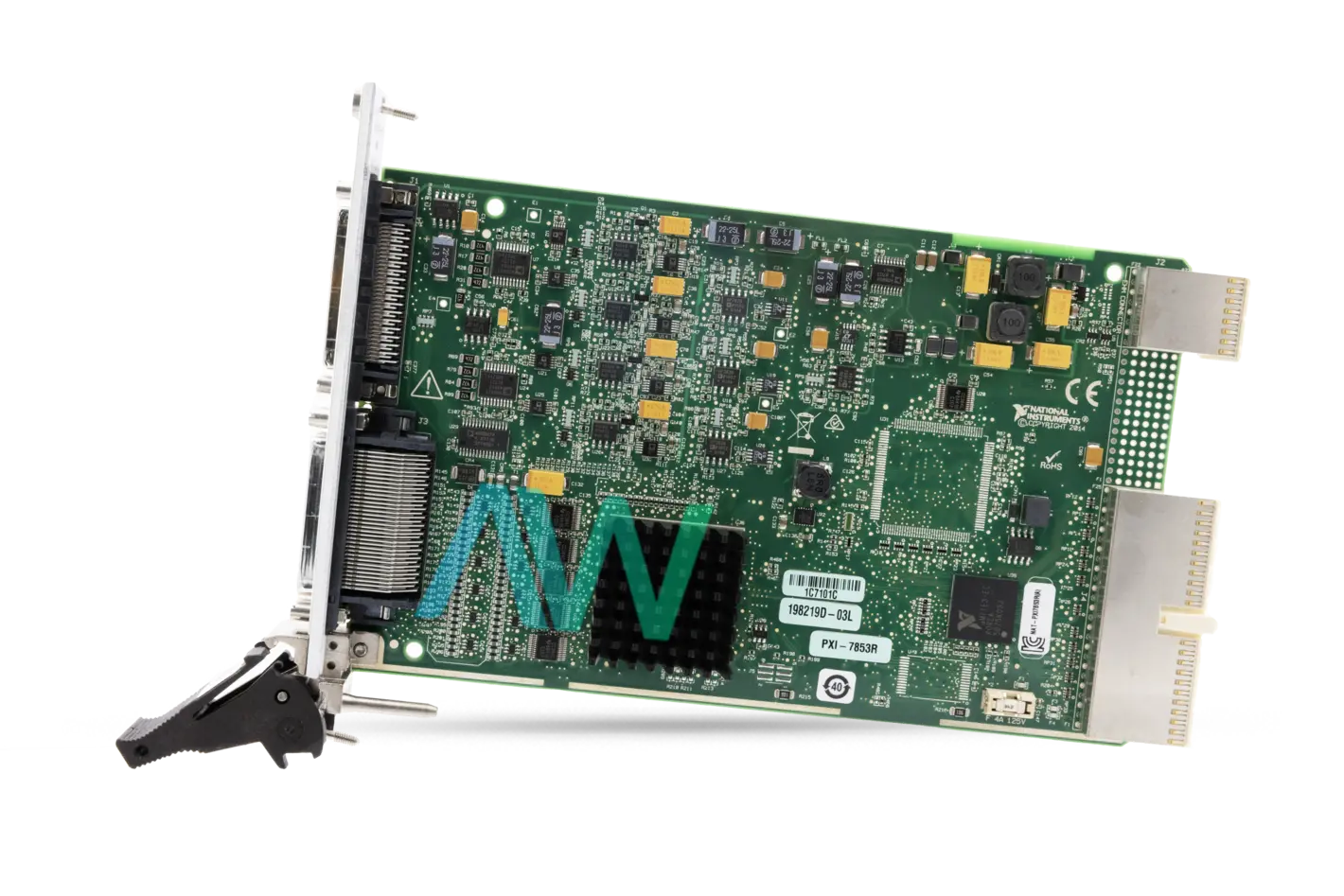

PXI-7853R National Instruments Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7853R New
PXI-7853R Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-7853R PXI Multifunction Reconfigurable I/O Module

The PXI-7853R (Part number: 780341-01, 198219B-03L) Multifunction Reconfigurable I/O Module by National Instruments comes equipped with a Virtex-5 LX85 FPGA, a maximum sample rate of 750 kS/s, digital I/O logic levels of 3.3V, 5V, an analog input voltage range of -10 V to 10 V, and does not have any dynamic RAM. There are several ways to reduce the noise and optimize measurement preciseness. These safety measures involve utilizing differential analog input links to discard common-mode noise, directing signals to the instrument cautiously, and utilizing protected, twisted-pair wires to link analog input signals to the instrument.

The National Instruments PXI-7853R module utilizes the Real-Time System Integration or RTSI bus to simply harmonize a few measurement functions to a shared trigger or timing occurrence. This Multifunction Reconfigurable I/O Module accesses the RTSI bus via the PXI trigger lines applied on the PXI backplane. The user can also use LabVIEW logic and processing in the FPGA on the PXI-7853R RIO Module. Common logic functions are basic mathematical operations, comparisons, and Boolean operations. As an added benefit, numerous functions can be applied in one design.

A valuable feature of the PXI-7853R is the capability for the user to construct unique measurements with the fixed I/O resources. One application might entail an event counter that increments when a rising edge appears on one of the three digital input lines, while a different application might involve a digital line to be asserted after an analog input surpasses a certain value. The user can apply these settings in the module for quick, versatile performance for a variety of applications.

The PXI-7853R has been declared part of the Mature Cycle of the NI Product Lifecycle. However, the module will remain available for purchase and repairs with Apex Waves.

ModelPXI-7853R
ManufacturerNational Instruments
Part Numbers780341-01, 198219B-03L
SeriesR Series
TypePXI Multifunction Reconfigurable I/O Module
FPGAVirtex-5 LX85
Maximum Sample Rate750 kS/s
Input Channels8 Analog Input
Output Channels8 Analog Output
Digital I/O Channels96 Digital I/O
WarrantyThree Year Warranty
PXI-7853R ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for More Pricing Information
