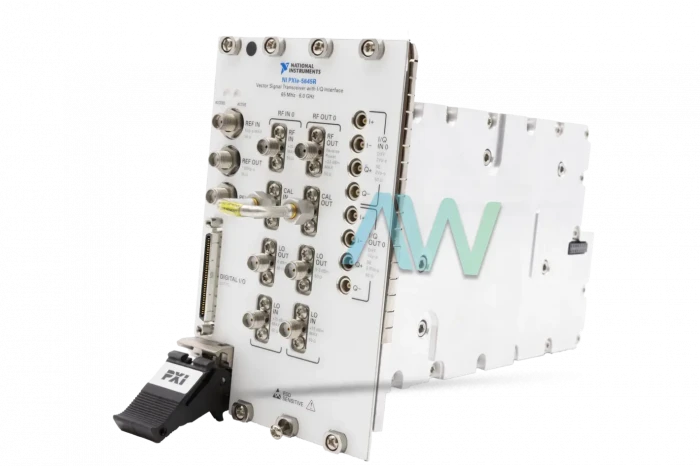

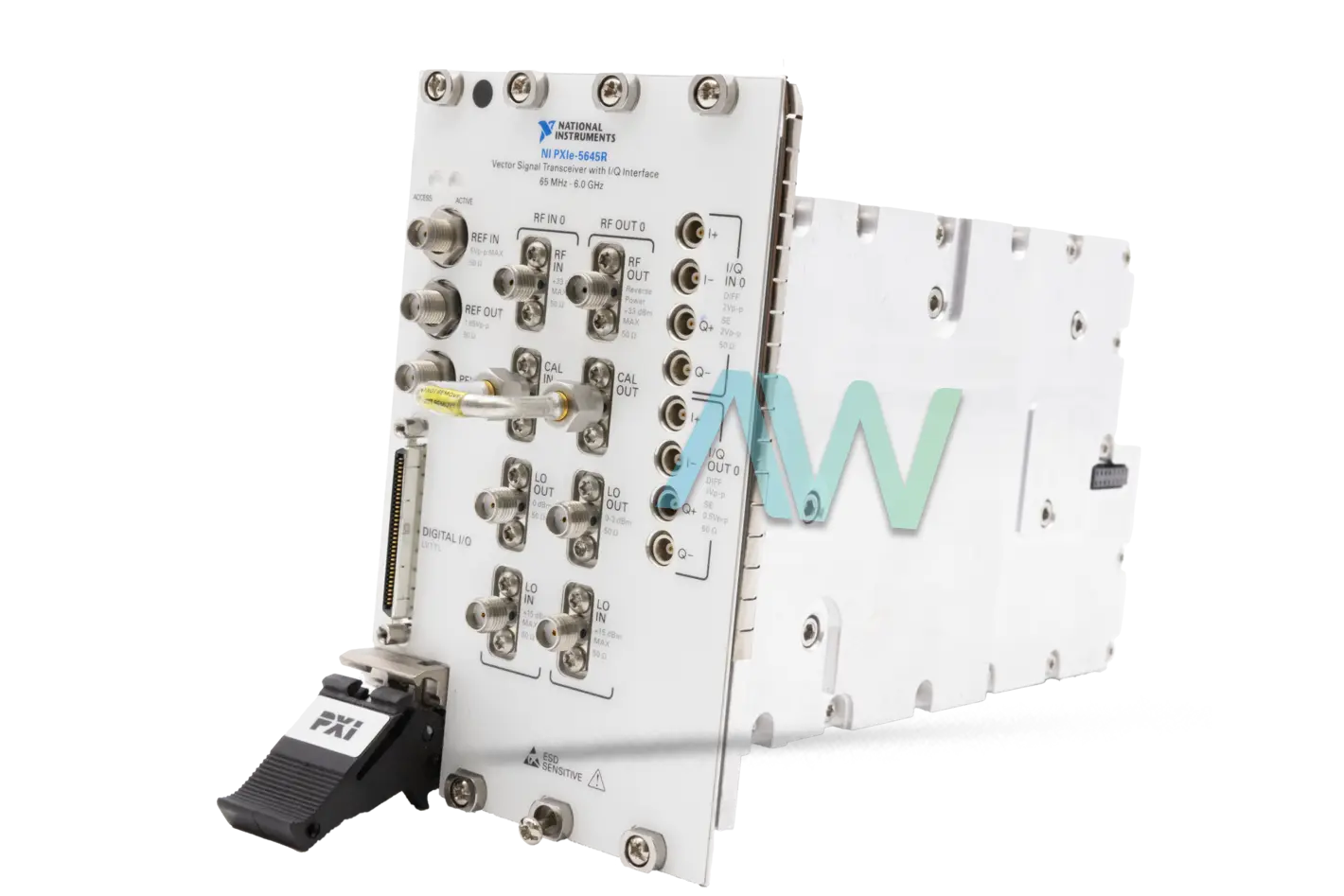

National Instruments PXIe-5645R Vector Signal Transceiver
The PXIe-5645R (Part Number: 782377-01), also known as PXIe-5645, is a Vector Signal Transceiver from National Instruments. This transceiver is manufactured using FPGA technology and can be programmed using National Instruments LabVIEW software. The PXIe-5645R has 3 sub-modules, which include a digital input/output card, a vector signal generator, and a vector signal analyzer. The frequency range of the module is 65 MHz to 6 GHz, and it possesses 24 high speed channels of digital input/output with a maximum speed of 250 Mbit/s. This device is designed as a 4-slot module, and it comes equipped with two back-plane connectors. Before using the PXIe-5645R Vector Signal Transceiver, an AC power source must be attached to the chassis.
The NI PXIe-5645R comes with a Xilinx FPGA that can be programmed by the end-user to configure the system and make it compatible for configurations of MIMO (multiple input, multiple output). It is also helpful with parallel testing of one PXI chassis. After receiving the National Instruments PXIe-5645R Vector Signal Transceiver, it is important to make sure the correct software is installed prior to installing hardware.
The NI PXIe-5645R is sensitive to electrostatic discharge because it is a precision RF instrument. Make sure to take the relevant precautions before using the instrument. This Vector Signal Transceiver fulfills the requirements for EMC (electromagnetic compatibility). EMC compatibility provides safety from dangerous interfaces while operating the device in electromagnetic environments.
| Model | PXIe-5645R (PXIe-5645) |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782377-01 |
| Series | R Series |
| Type | PXI Vector Signal Transceiver |
| Onboard DRAM Memory Size | 2 banks, 256 MB per bank |
| DMA Channels | 16 |
| Coupling | AC |
| Total Power | 56 W |
| Calibration Interval | 1 year |
| Size | 3U, 4-slot, PXIe module |
| Dimensions | 3.2 x 5.6 x 8.3 in. |
| Weight | 4 lbs. |
| Warranty | 2-3 Year Warranty |
| PXIe-5645R Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
