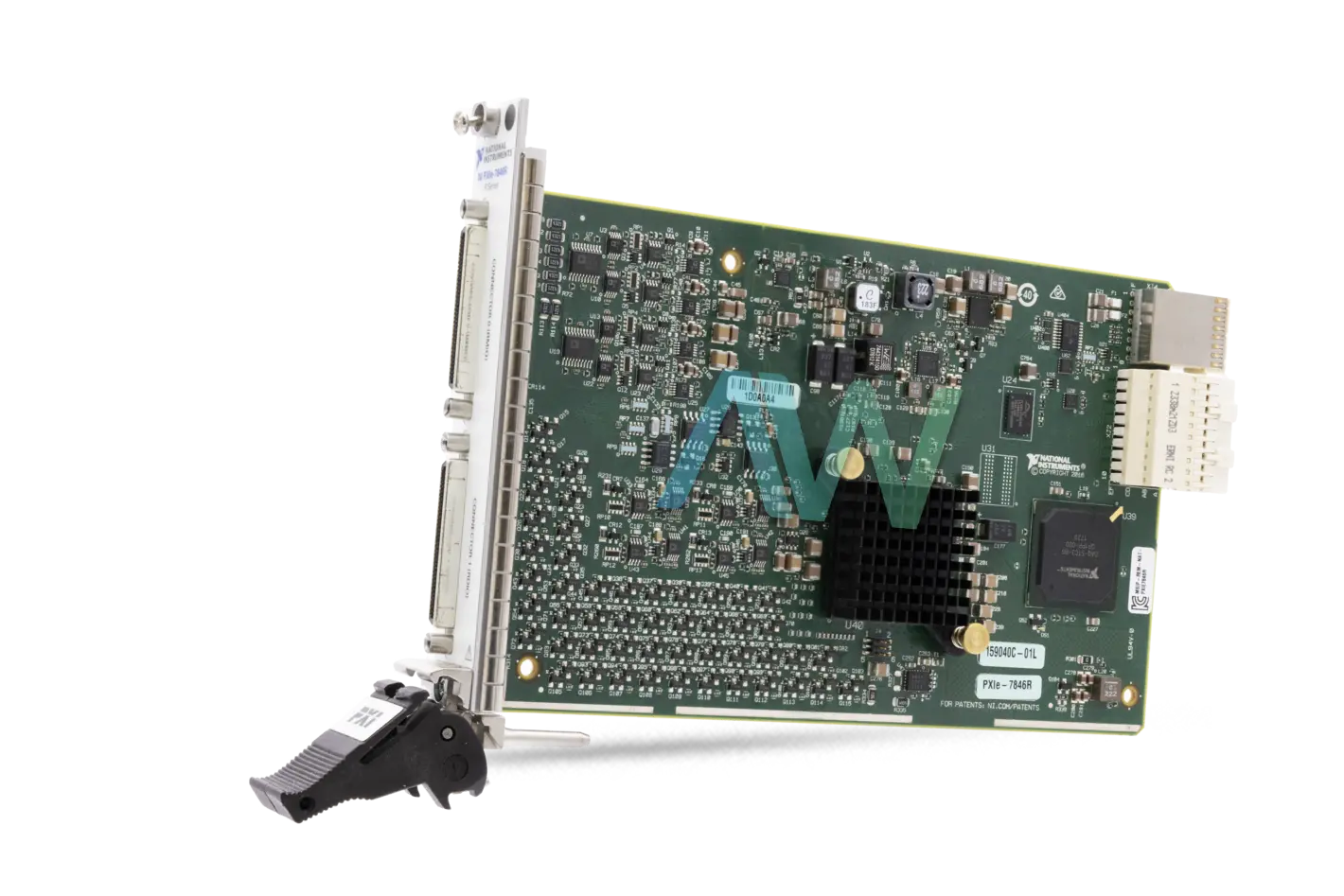

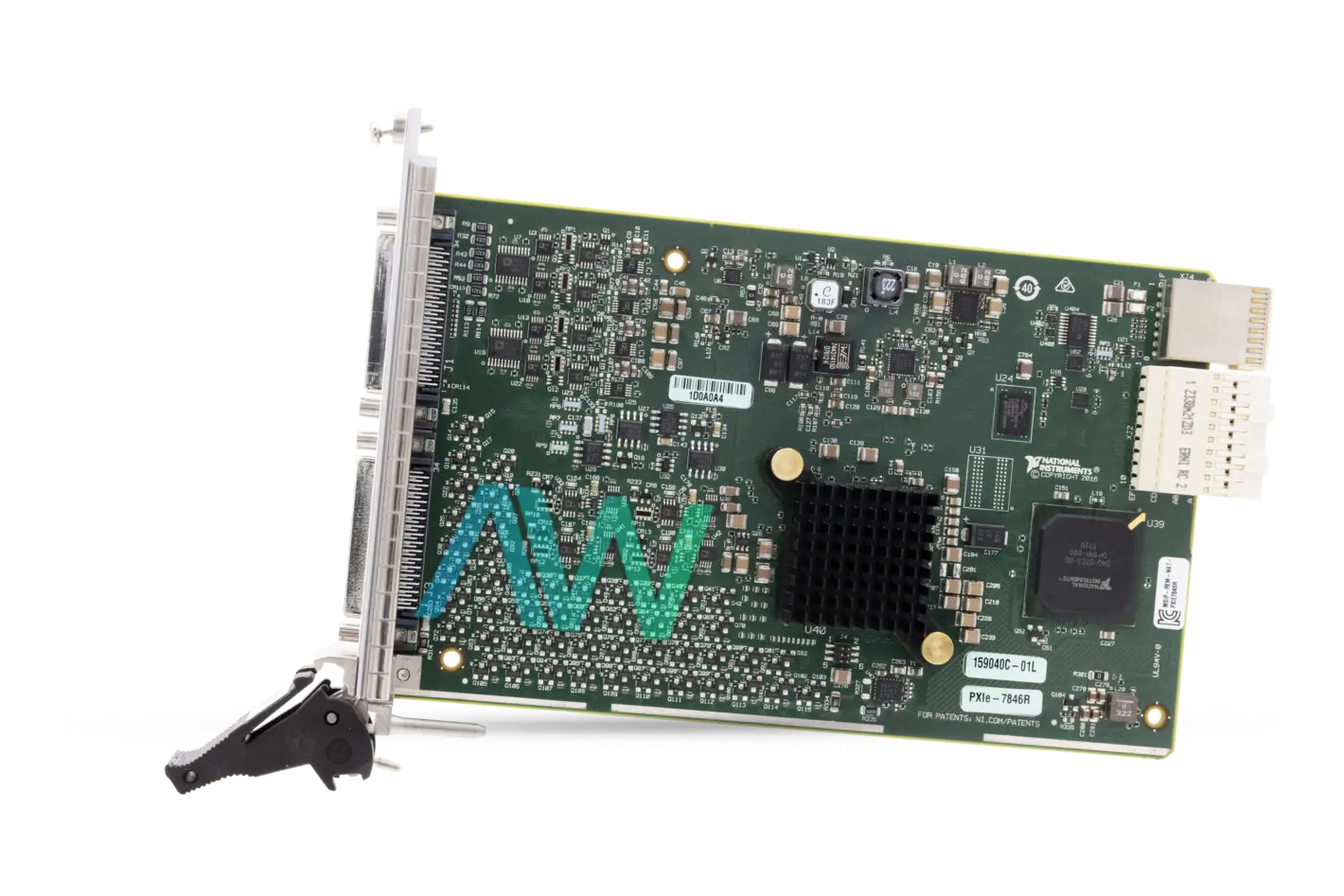

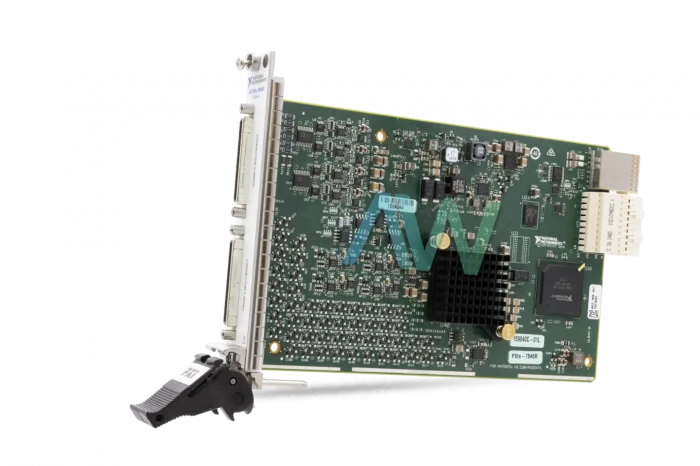

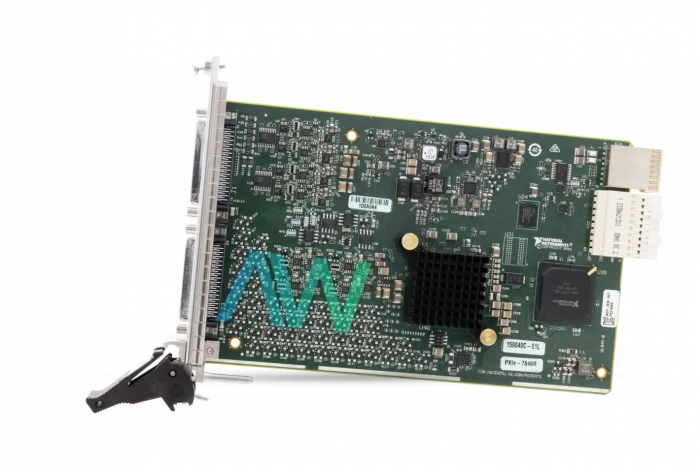

National Instruments PXIe-7846R PXI Multifunction Reconfigurable I/O Module
The PXIe‑7846R (Part Number: 784143-01) comes with a Xilinx FPGA, which is one of the business' most progressive FPGAs, as well as a game-changing line of All Programmable SoC and 3D ICs. NI assumed a key part in characterizing the necessities for Xilinx 7 arrangement gadgets and was a lead accomplice in the all Programmable SoC program. As opposed to utilizing the elite/high-control process custom fitted for illustrations chipsets in PCs or the low-control process focused to cell phone gadgets, Xilinx worked with TSMC to build up a procedure custom-made to the necessities of all Programmable gadgets. Along these lines, the TSMC 28 nm high performance low power (HPL) process innovation incorporates the correct blend of execution and power reserve funds for every one of the business sectors Xilinx All Programmable gadgets serve.
With the NI PXIe-7846R, outlines that need to keep running at superior speeds do not need to come at an outrageous cost of higher power utilization. On the other hand, plans that need to meet strict power necessities can accomplish moderately elite objectives. With the whole 7 arrangement portfolio focusing on the same 28nm HPL silicon process, Xilinx focused on engineering development. For the 7 arrangement, Xilinx presented a full line of adaptable All Programmable FPGAs, which incorporates an amazing failure cost Artix-7 family, a midrange Kintex-7 family, and a top of the line Virtex-7 family. The base FPGA building squares of rationale cells, DSP squares, BlockRAM, etc. are altogether steady over the 7 arrangement, making it significantly more straightforward to move outlines.
| Model | PXIe-7846R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 784143-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 160T |
| Analog Inputs | 8 (16 Bits, 500 kS/s) |
| Analog Outputs | 8 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 202,800 |
| Number of DSP48 Slices | 600 |
| Embedded Block RAM | 11,700 kbits |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |
| I/O Connectors | 2 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 03 A, 02 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.37 lb. |
| Software Driver | NI-RIO |
| Warranty | 2-3 Year Warranty |
| PXIe-7846R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-7846R:
National Instruments PXIe-7846R Frequently Asked Questions
Question: Does the PXIe-7846R include peer-to-peer streaming?
Answer: The PXIe-7846R includes peer-to-peer streaming for direct data transfer to other PXI Express modules.
Question: Can I use the NI PXIe-7846R controller trig line to trigger a measurement?
Answer: It is not recommended to use the NI PXIe-7846R controller trig line to trigger your measurement. A software trigger or a hardware trigger from an I/O module is the best way to achieve this.
Question: What software do you need to have before you install the PXIe-7846R?
Answer: You need to have LabVIEW 2016 or later before you install your PXIe-7846R.
