National Instruments PXIe-7847R PXI Multifunction Reconfigurable I/O Module
The PXIe‑7847R (Part number: 784144-01) comes with a Kintex-7 FPGA that is the perfect instrument in a world suited for some items that use the LabVIEW Reconfigurable I/O (RIO) engineering. This gadget family has the limit and execution of past top of the line FPGAs, however at a large portion of the power utilization. The noteworthy diminishment in control implies gadgets can pack more than double the advanced flag preparing ability per gadget as the past generations of FPGA-empowered equipment from NI. With this expansion in rationale and DSP assets, architects can actualize more mind boggling calculations with more broad utilization of signal handling and constant examination and address the developing I/O information rates and intricacy of the present applications. Notwithstanding more DSP assets, the DDR3 memory controller has helped NI execute a 10 GB/s (hypothetical) interface to brief stockpiling contrasted with the past rates of 3.2 GB/s. Moreover, the implicit PCI Express controller transmission capacity expanded from 800 MB/s to 1,600 MB/s, empowering much quicker information exchanges from the FPGA to the host.
In differential input mode, signals associate with AI<0..n>. On the other hand, in NRSE input mode, the AISENSE signal is associated inside to the instrumentation intensifier for every channel through the negative contribution. In DIFF and RSE input modes, the AISENSE is not utilized. Associating AI signals to the NI PXIe‑7847R module relies upon the information method of the AI channels being used and the type of info flag source. With various information modes, the instrumentation speaker can be used in many ways.
| Model | PXIe-7847R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 784144-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 160T |
| Analog Inputs | 8 (16 Bits, 500 kS/s) |
| Analog Outputs | 8 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 202,800 |
| Number of DSP48 Slices | 600 |
| Embedded Block RAM | 11,700 kbits |
| Onboard DRAM | 1 Bank; 512 MB |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |

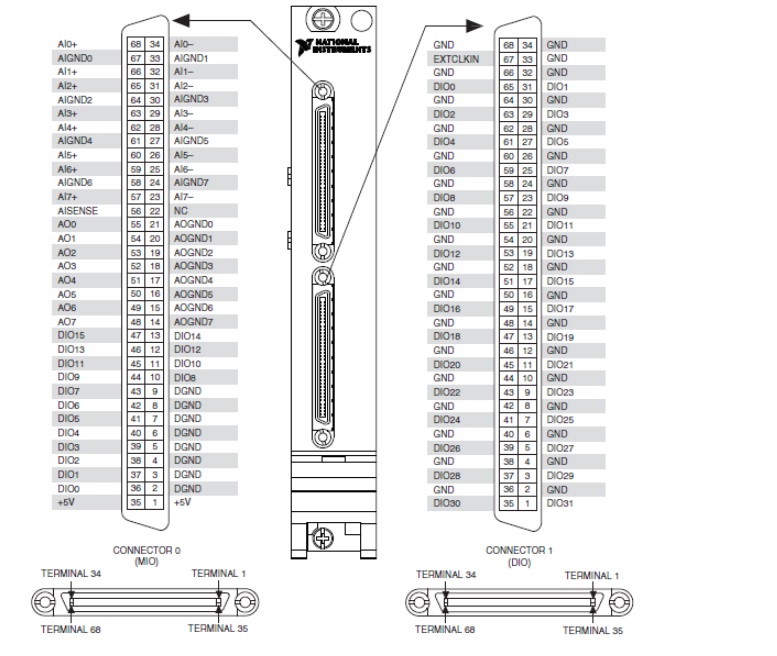

| I/O Connectors | 2 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 3 A, 2 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.38 lb. |
| Software Driver | NI-RIO |
| Warranty | 2-3 Year Warranty |
| PXIe-7847R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-7847R:
National Instruments PXIe-7847R Frequently Asked Questions
Question: What are the input modes for the PXIe-7847R?
Answer: The input modes on the PXIe-7847R are DIFF, NRSE, and RSE.
Question: What is the resolution for the PXIe-7847R?
Answer: The PXIe-7847R resolution is 16 bits.
Question: What type of DAC is used with the NI PXIe-7847R?
Answer: The NI PXIe-7847R uses an Enhanced R-2R DAC.
