National Instruments PXIe-7856R PXI Multifunction Reconfigurable I/O Module
The PXIe‑7856R (Part number: 784145-01) PXI Multifunction Reconfigurable I/O Module includes a devoted converter per channel for free planning and activating. This model offers a huge rate of examining a singular channel activation related to its plan that is capable to offer particular efficacy, which are outside the abilities of regular information procurement equipment. The user can tweak this model if they want to build applications that need exact control and planning. This feat is possible with the LabVIEW FPGA Module. Such applications include the hardware-in-the-loop (HIL) testing, sensor reproduction, fast control, and custom convention correspondence. The NI PXIe-7856R also incorporates a shared spilling for guide information exchange to other PXI Express models.
The instrumentation amplifier shows a huge rate of impedance of the AI signals related to the PXIe-7856R and comes with the possibility to use a regular mode voltage dismissal. This amplifier offers a signal that is the contrast between two info signals and previously was changed while referenced to the gadget ground. This module comes with an ADC that estimates the output voltage when A/D changes occur.
The user should reference all signals to ground either at the source gadget or at the NI PXIe‑7856R. A ground-referenced signal source is associated with the building framework ground, so it is now associated with a shared conviction point, contingent upon the fact that the PC is connected to a similar power framework. Instruments or gadgets with non-isolated outputs that connect to the building power framework are ground referenced signal sources.
| Model | PXIe-7856R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 784145-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 160T |
| Analog Inputs | 8 (16 Bits, 1 MS/s) |
| Analog Outputs | 8 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 202,800 |
| Number of DSP48 Slices | 600 |
| Embedded Block RAM | 11,700 kbits |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |

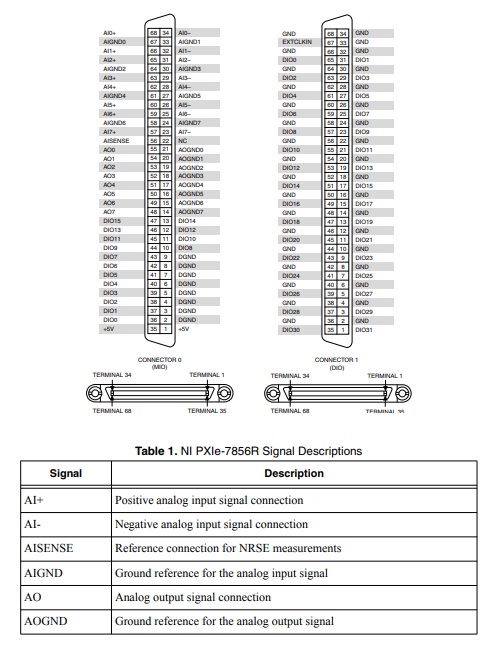

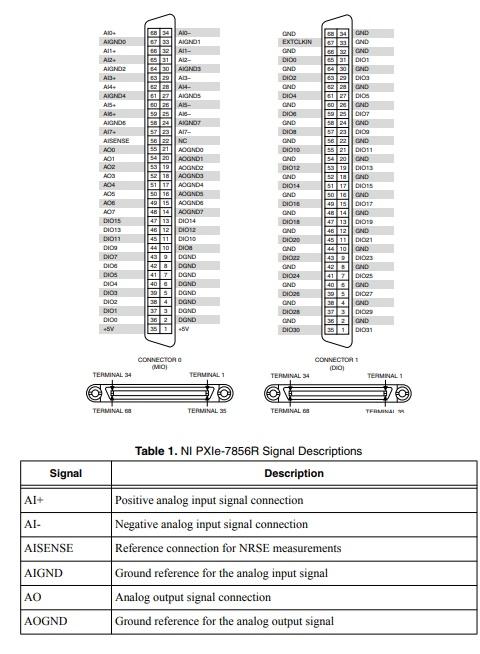

| I/O Connectors | 2 × 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 03 A, 02 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.37 lb. |
| Software Driver | NI-RIO |
| Warranty | 2-3 Year Warranty |
| PXIe-7856R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-7856R:
National Instruments PXIe-7856R Frequently Asked Questions
Question: Does LabVIEW provide documentation on how to calibrate raw data and software with the PXIe-7856R?
Answer: LabVIEW does provide documentation showing how to calibrate raw data with the PXIe-7856R software.
Question: Is LabVIEW required to install the NI PXIe-7856R?
Answer: Yes, you need LabVIEW 2016 or later to install the NI PXIe-7856R.
Question: How many channels does the PXIe-7856R have?
Answer: The PXIe-7856R has 8 channels.
