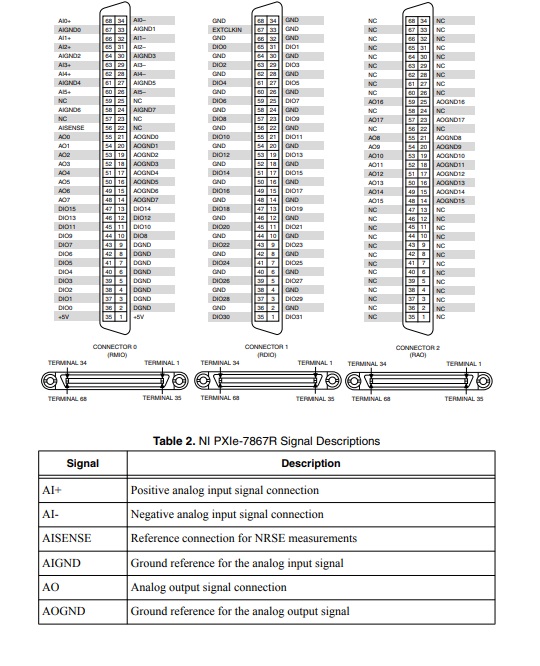

PXIe-7867 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves - Wiring Dia
PXIe-7867 New
PXIe-7867 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXIe-7867 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves | Image

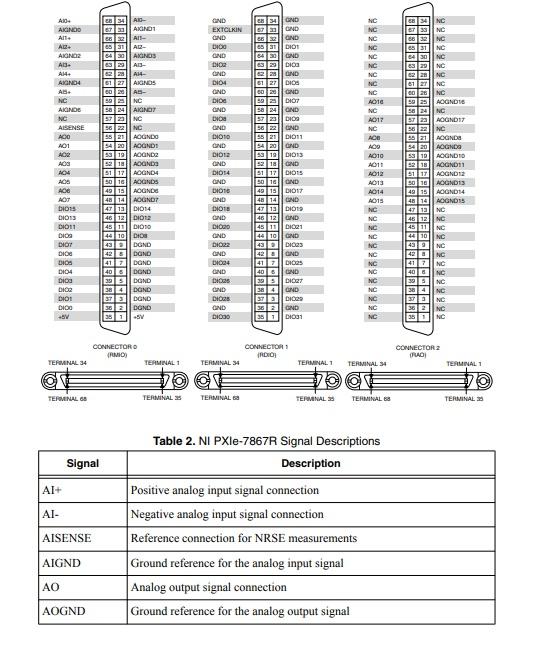

PXIe-7867 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves - Wiring Dia
PXIe-7867 New
PXIe-7867 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-7867 PXI Multifunction Reconfigurable I/O Module

Featured with a Kintex-7 160T FPGA and a dedicated Successive approximation register (SAR) ADC per channel, the National Instruments PXIe-7867 (Part Numbers: PXIe-7867R and 785570-01) is a PXI Multifunction Reconfigurable I/O Module. The user-programmable FPGA incorporated in this module offers onboard processing and direct controlling of I/O signals.

The NI PXIe-7867 has 18 analog output channels directly connected to the FPGA, enabling the user to swiftly design for applications where precise timing is required, such as custom protocol communication, high-speed control, sensor simulation, etc. This model offers individual channel triggering and multi-rate sampling, which are features outside the capabilities of most common typical data acquisition hardware. In addition, the PXIe-7867 also offers peer-to-peer streaming for direct transfer of data to other PXI Express modules.

This Multifunction Reconfigurable I/O Module offers 6 AI, 18 AO, and 48 DIO. Since it is an x4 PXI Express specification v 1.0 compliant module, the NI PXIe-7867 is compatible with x4, x8, x16 PXI Express, and PXI Express hybrid slots. The NI PXIe 7867 comes equipped with three 68-pin VHDCI I/O connectors and 16 DMA channels. This module supports data transfers in DMA, programmed I/O, as well as in interrupt mode. The onboard DRAM installed is 512 MB and has 800 MB/s theoretical data rate.

 The FPGA incorporated in this module offers 202,800 flip-flops, 101,400 LUTs, 11,700 Kbits embedded block RAM, and 600 f DSP48 slices. Like other models from the R Series, this module allows the user to set their desired power-on states.

ModelPXIe-7867
Part Number785570-01
ManufacturerNational Instruments
TypePXI Multifunction Reconfigurable I/O Module
FPGAKintex-7 160T
Maximum Sample Rate1 MS/s
Analog Input Channels6
Dimensions7.3 x 6.8 x 1.4 in.
Weight6.18 oz.
Warranty2-3 Year Warranty
PXIe-7867 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-7867:

National Instruments PXIe-7867 Frequently Asked Questions



Question: How many analog output channels does the PXIe-7867 have?

Answer: The PXIe-7867 has 18 analog output channels.



Question: What is the value of the overvoltage protection for the NI PXIe-7867?

Answer: For the NI PXIe-7867, the overvoltage protection value is ±42 V maximum when powered on and ±35 V maximum when powered off.



Question: What is the resolution of the PXIe-7867 module’s analog output channels?

Answer: The PXIe-7867 module’s analog output channels have 16 bits resolution.



Question: How many I/O connectors are on the NI PXIe-7867?



Answer: There are three 68-pin VHDCI I/O connectors on the NI PXIe-7867.
