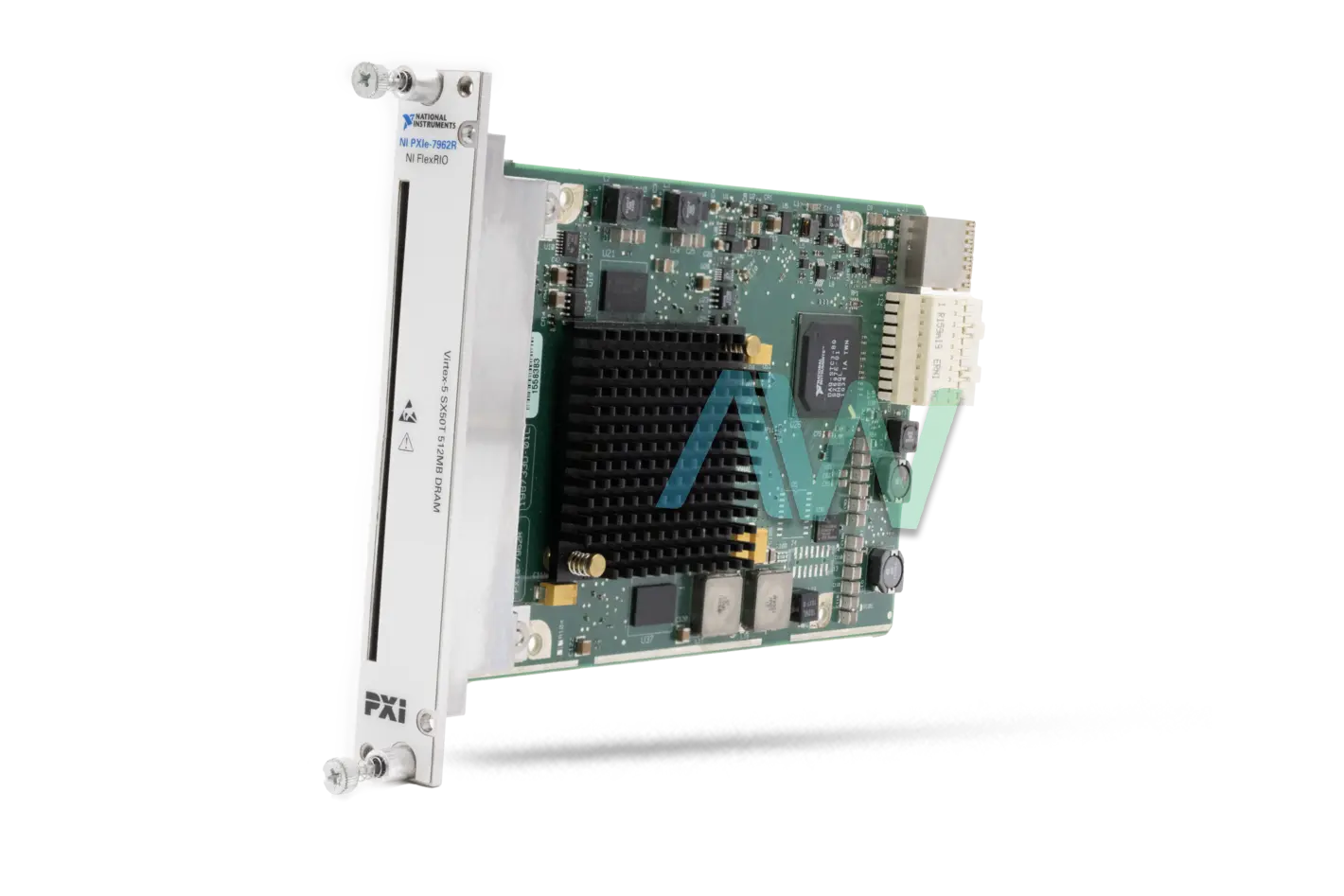

PXIe-7962R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image

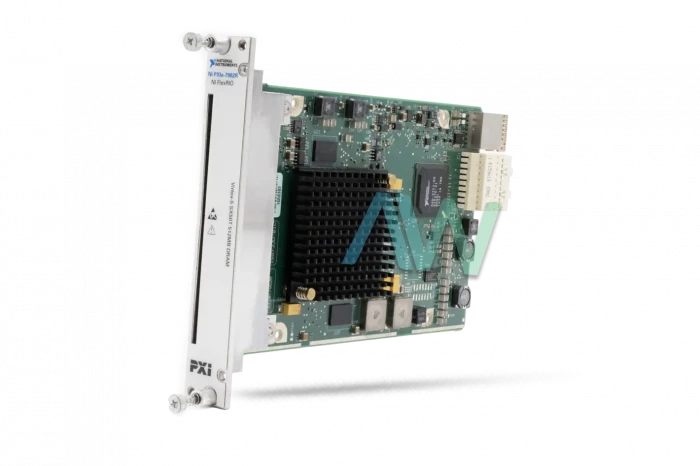

PXIe-7962R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image
PXIe-7962R New
PXIe-7962R Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

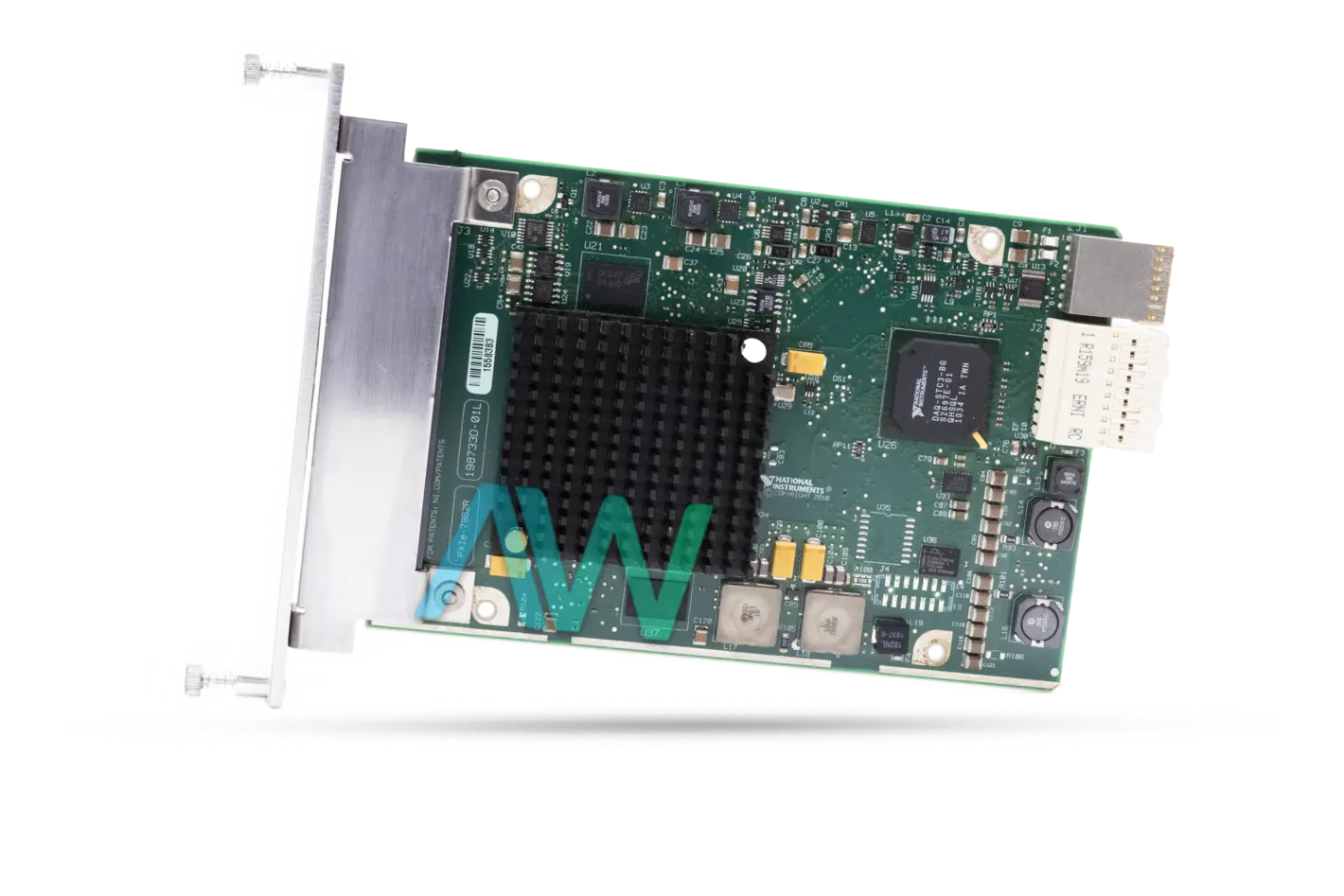

PXIe-7962R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image

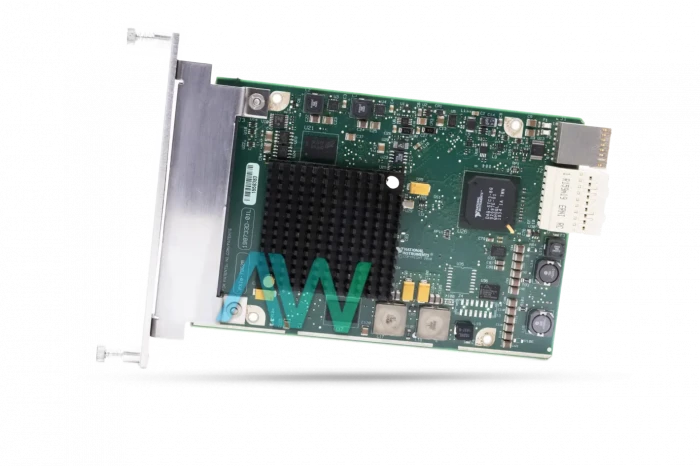

PXIe-7962R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image
PXIe-7962R New
PXIe-7962R Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-7962R PXI FPGA Module for FlexRIO

Featured with the peer-to-peer streaming capability and customizable I/O configurations, the PXIe-7962R (Part Numbers: 781206-01, ) is a PXI based FPGA Module. This module is specifically designed for the FlexRIO platform and can be configured to operate in either single-ended (SE) or differential modes. The peer-to-peer steaming provision of the NI PXIe-7962R makes it capable of sharing data with PXI Express modules or other FPGA modules without involving the host processor. With this transfer mechanism, you will be able to operate with a single FPGA algorithm across two or more FPGAs.

This module features an SX50T FPGA from the Virtex 5 family and has 512 MB of onboard DDR2 DRAM. You can easily customize the I/O of your device through the National Instruments kit for adapter module development (also known as MDK). The National Instruments PXIe-7962R PXI FPGA Module for FlexRIO offers data streaming at rates up to 800 MB/s through the 16 DMA channels. This module can also be used for the construction of reconfigurable instrumentation.

PXIe-7962R Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXIe-7962R
ManufacturerNational Instruments
Part Number781206-01, 198733L-01L
TypePXI FPGA Module for FlexRIO
FPGAVirtex-5 SX50T
General-Purpose Channels132
DRAM512 MB
Embedded Block RAM4,752 kbit
DSP48 Slices288
LUTs/Flip-Flops32,640
Form Factorx4 PXI Express, specification v1.0 compliant
Dimensions6.3 in. x 4.3 in.
Weight1 lb.
Warranty2-3 Year Warranty
PXIe-7962R ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.
