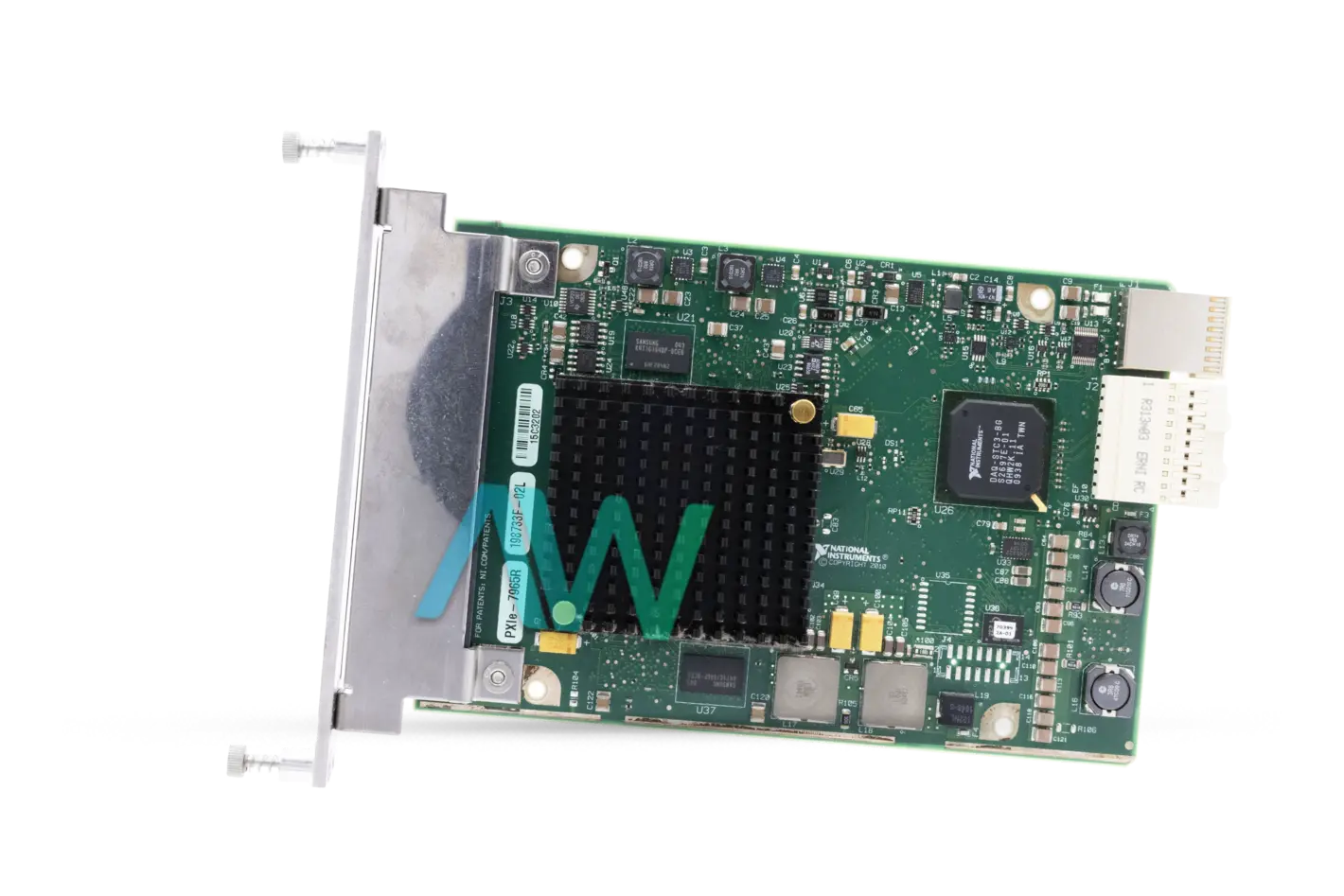

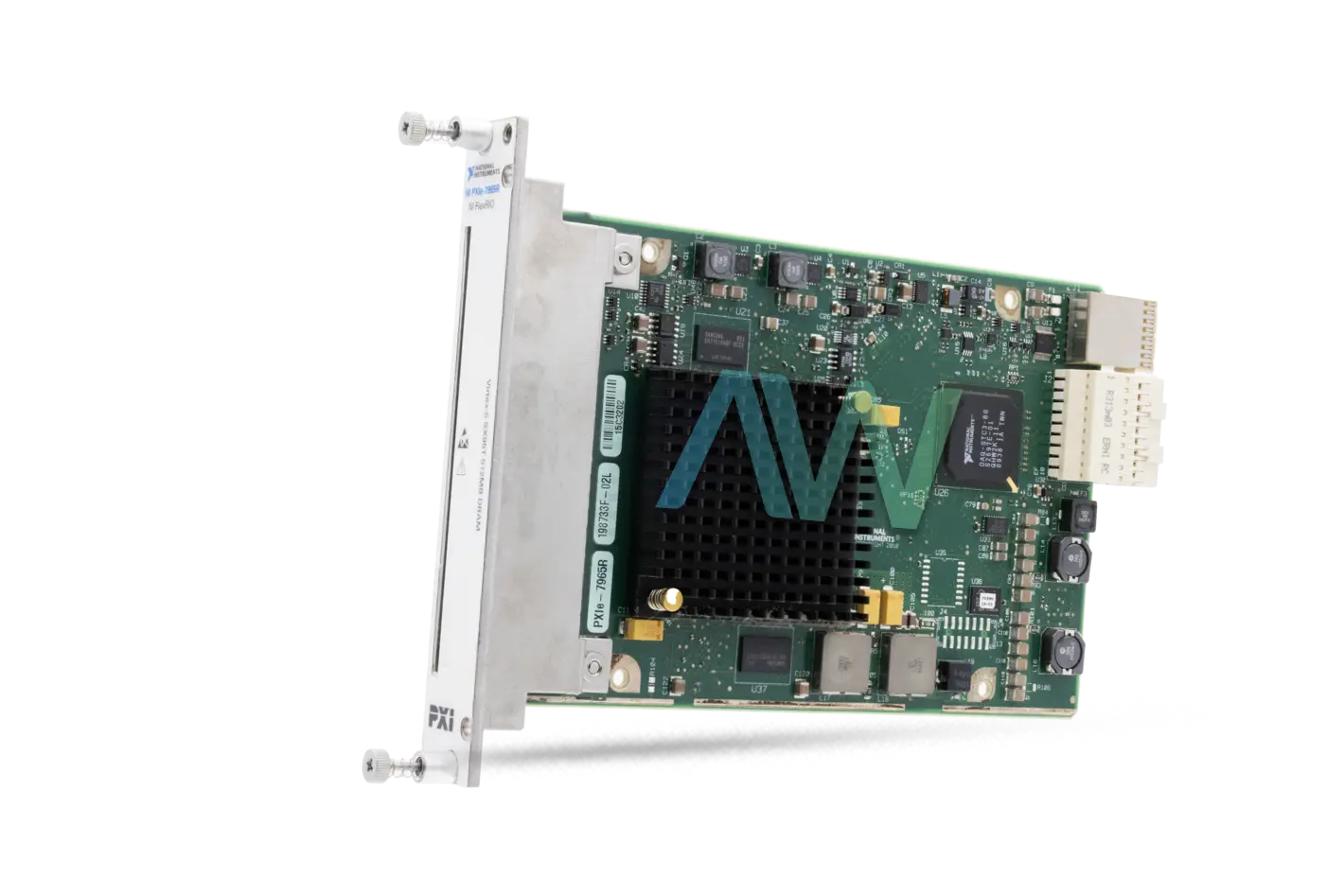

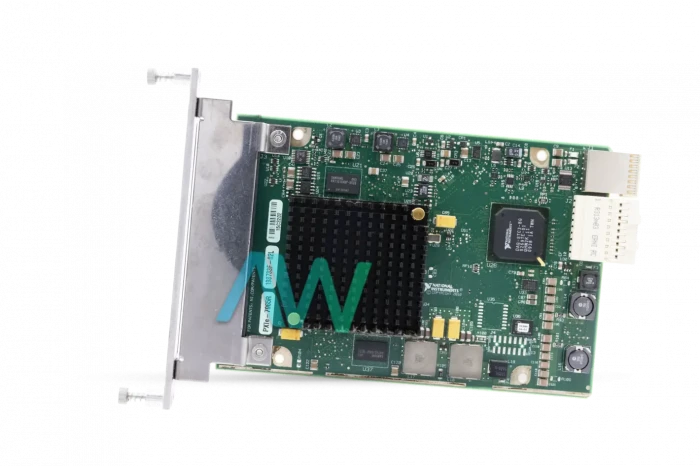

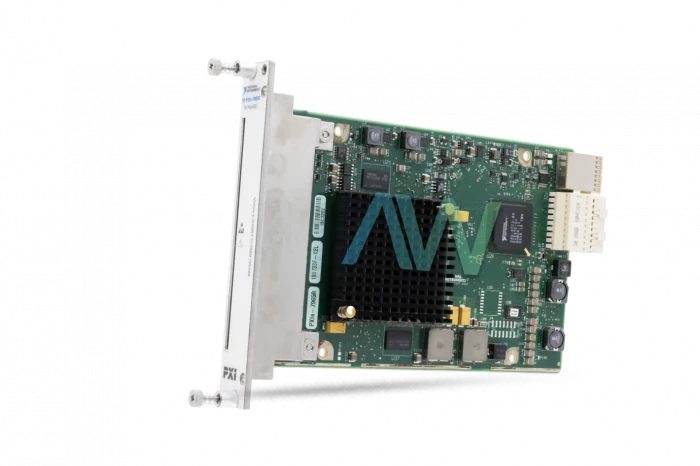

National Instruments PXIe-7965R PXI FPGA Module for FlexRIO
Featured with 32 DMA interrupt channels and 16 DMA channels, the PXIe-7965R (Part Number: 781207-01) is a PXIe based FlexRIO FPGA Module from National Instruments. This module comes featured with a Virtex-5 FPGA (SX95T). The PXIe-7965R has two 256 MB banks of DRAM; each of these two banks can be accessed independently. Through this FPGA Module, you will be able to achieve data transfer rates up to 1 Gb/s in differential mode and 400 Mb/s in single-end mode.
The PXIe-7965R has 66 differential pairs (general-purpose input/output). These general-purpose channels can also be configured as 132 single-ended channels for operating with 132 single-ended signals. The FPGA used in this module has 58,880 LUTs (Flip-Flops), 640 DSP48 Slices, and 8,784 Kbits embedded block RAM. The default time base of the PXIe-7965R operates at a frequency of 40 MHz. This module is designed to support peer-to-peer streaming as well.
| Model | PXIe-7965R |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI FPGA Module for FlexRIO |
| FPGA | Virtex-5 SX95T |
| General-Purpose Channels | 132 |
| Memory Size | 2 banks, 256 MB per bank |
| Embedded Block RAM | 8,784 |
| DSP48 Slices | 640 |
| LUTs/Flip-Flops | 58,880 |
| Form Factor | x4 PXI Express, specification v1.0 compliant |
| Dimensions | 6.3 x 4.3 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| PXIe-7965R Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
