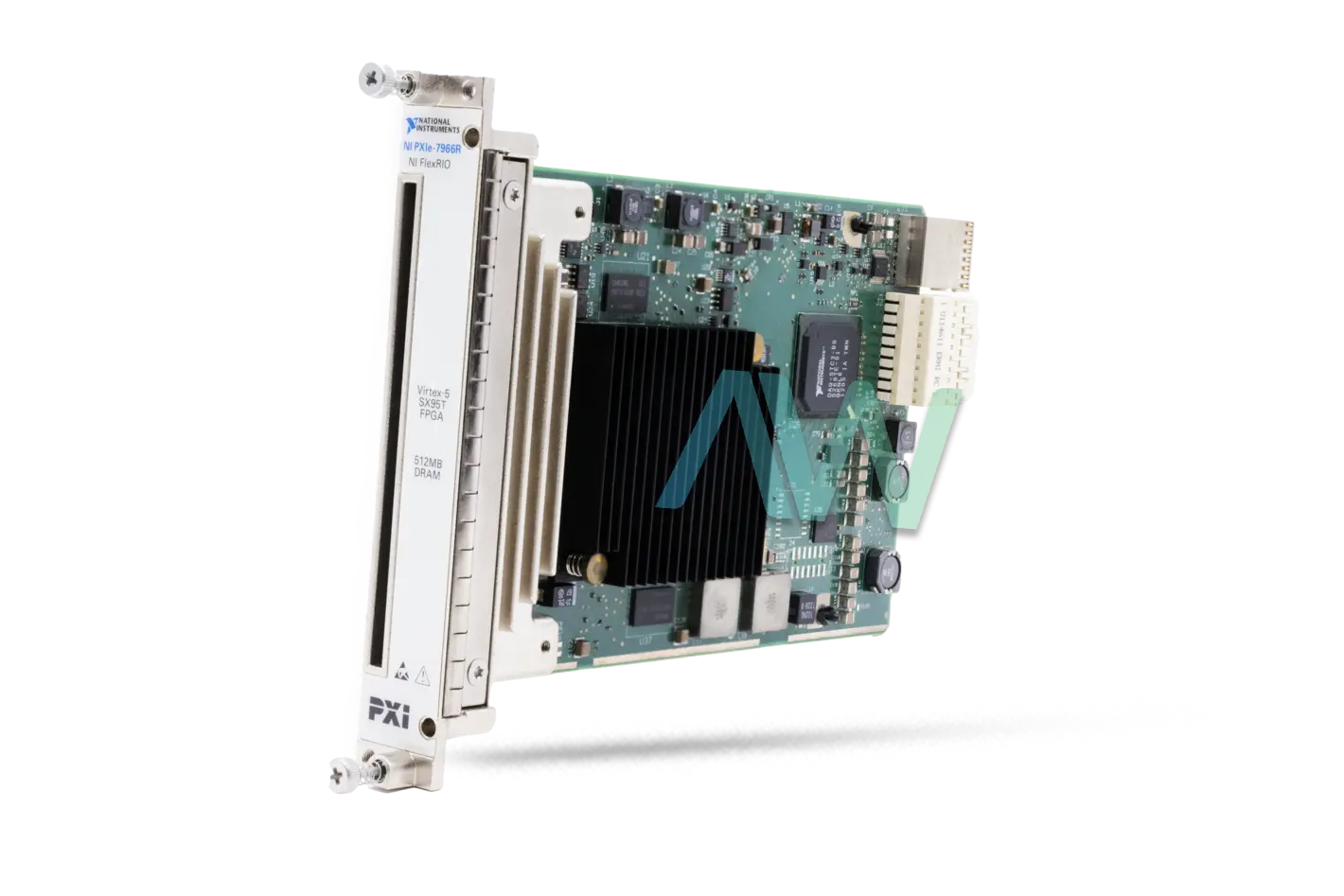

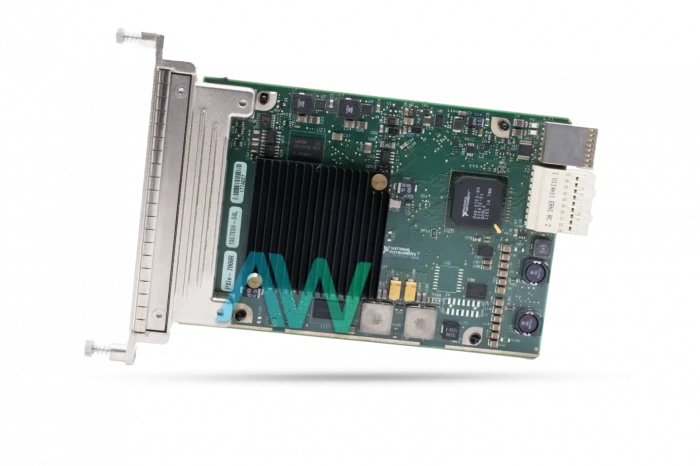

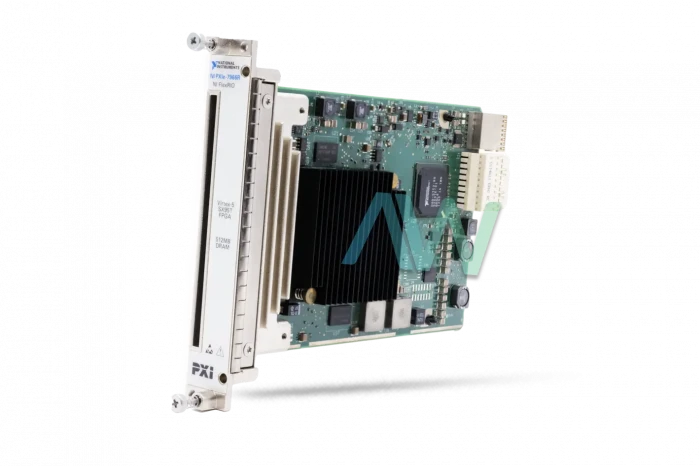

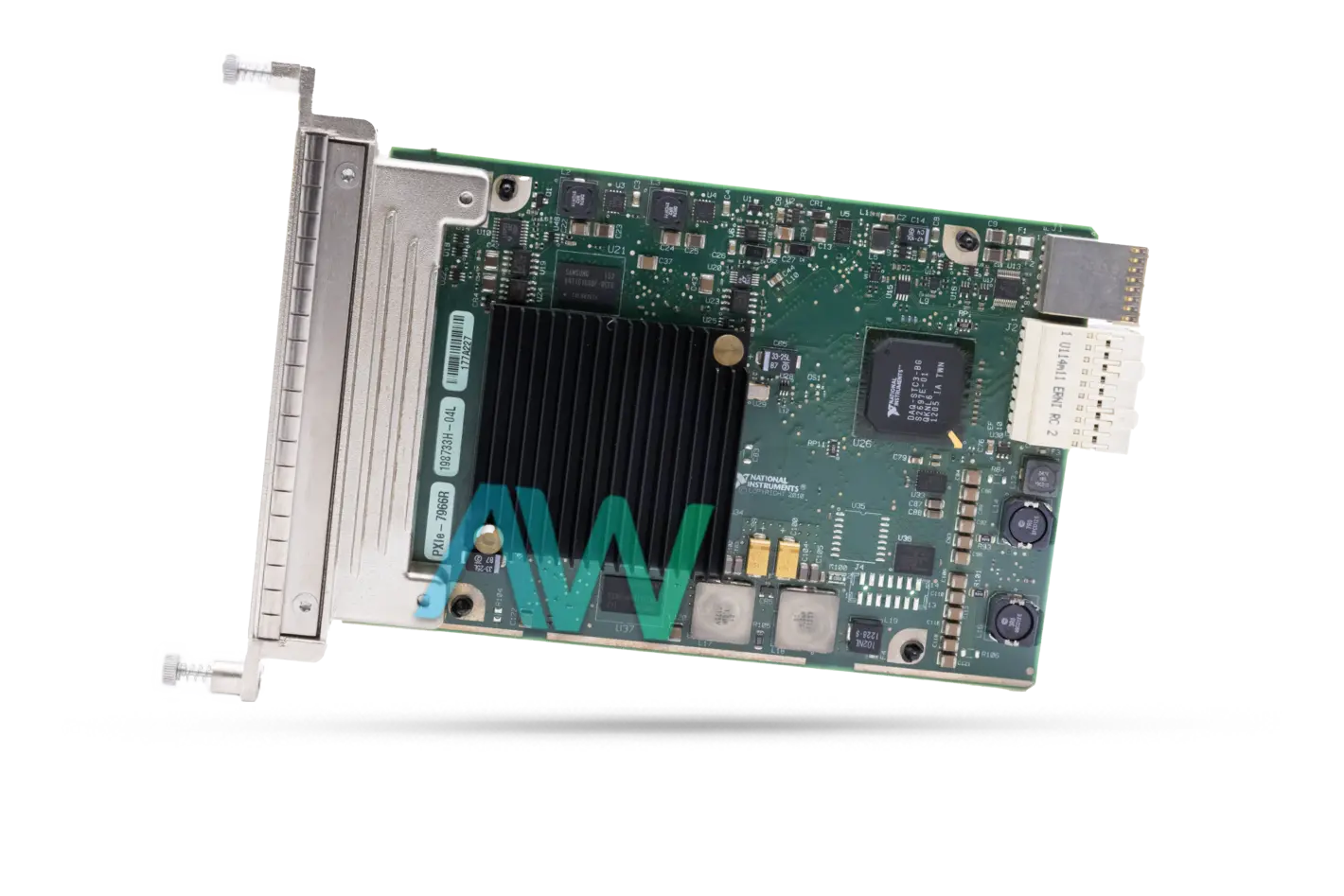

National Instruments PXIe-7966R PXI FPGA Module for FlexRIO
Designed to support peer-to-peer (P2P) streaming, the PXIe-7966R (Part Number: 781805-01) is a PXIe FPGA module featuring a Xilinx Virtex-5 SX95T FPGA. This module utilizes NI’s P2P technology, which enables direct point-to-point data transfer between multiple instruments without adding stress to the host memory or processor
The Virtex-5 SX95T FPGA in the NI PXIe-7966R is reconfigurable and provides 58,880 Look-Up Tables (LUTs), 640 DSP48 Slices, and 8,784 kbits of embedded BRAM (block RAM). This module includes two independent DRAM banks, each with 256 MB of memory, providing a total of 512 MB DRAM. It supports a maximum theoretical data transmission rate of 1.6 GB/s per bank
The PXIe-7966R supports multiple clock sources, including the 100 MHz PXIe timebase, as well as a default 40 MHz onboard clock. This module supports three data transfer modes: Direct Memory Access (DMA), programmed I/O, and interrupts. It is compatible with x4 PXI Express and PXI Express Hybrid slots
PXIe-7966R Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXIe-7966R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781805-01 |
| Type | PXI FPGA Module for FlexRIO |
| FPGA | Xilinx Virtex-5 SX95T |
| General-Purpose Channels | 132 |
| DRAM | 512 MB (2 banks, 256 MB each) |
| Embedded Block RAM | 8,784 kbits |
| DSP Slices | 640 |
| LUTs/Flip-Flops | 58,880 |
| Form Factor | x4 PXI Express, PXIe v1.0 compliant |
| Dimensions | 6.3 in × 4.3 in (16.1 cm × 10.8 cm) |
| Weight | 7.5 oz (213 g) |
| Warranty | 2-3 Year Warranty |
| Data Transfer Modes | DMA, Programmed I/O, Interrupts |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for PXIe-7966R:
National Instruments PXIe-7966R Frequently Asked Questions
Question: What is the timebase accuracy of the PXIe-7966R?
Answer: The timebase accuracy of the PXIe-7966R is ±50 ppm, with 250 ps peak-to-peak jitter
Question: How many DMA channels does the PXIe-7966R have?
Answer: The PXIe-7966R has 16 DMA channels.
Question: What is the maximum theoretical data rate of the PXIe-7966R?
Answer: The PXIe-7966R features two independent DRAM banks, each capable of a maximum theoretical data rate of 1.6 GB/s, resulting in a total potential bandwidth of up to 3.2 GB/s. This high-speed data transfer capability makes the PXIe-7966R well-suited for streaming applications, real-time signal processing, and high-throughput FPGA computing.
