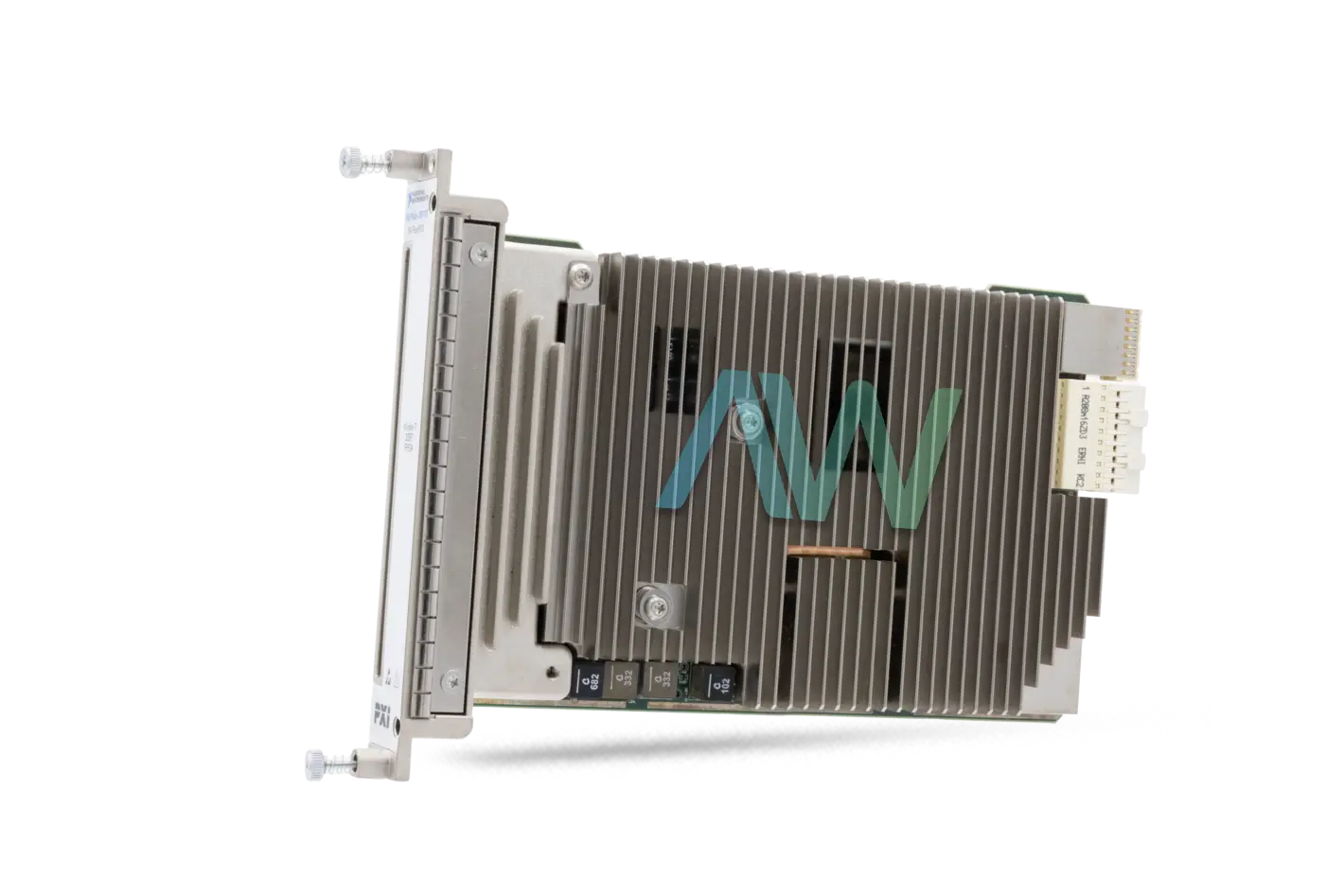

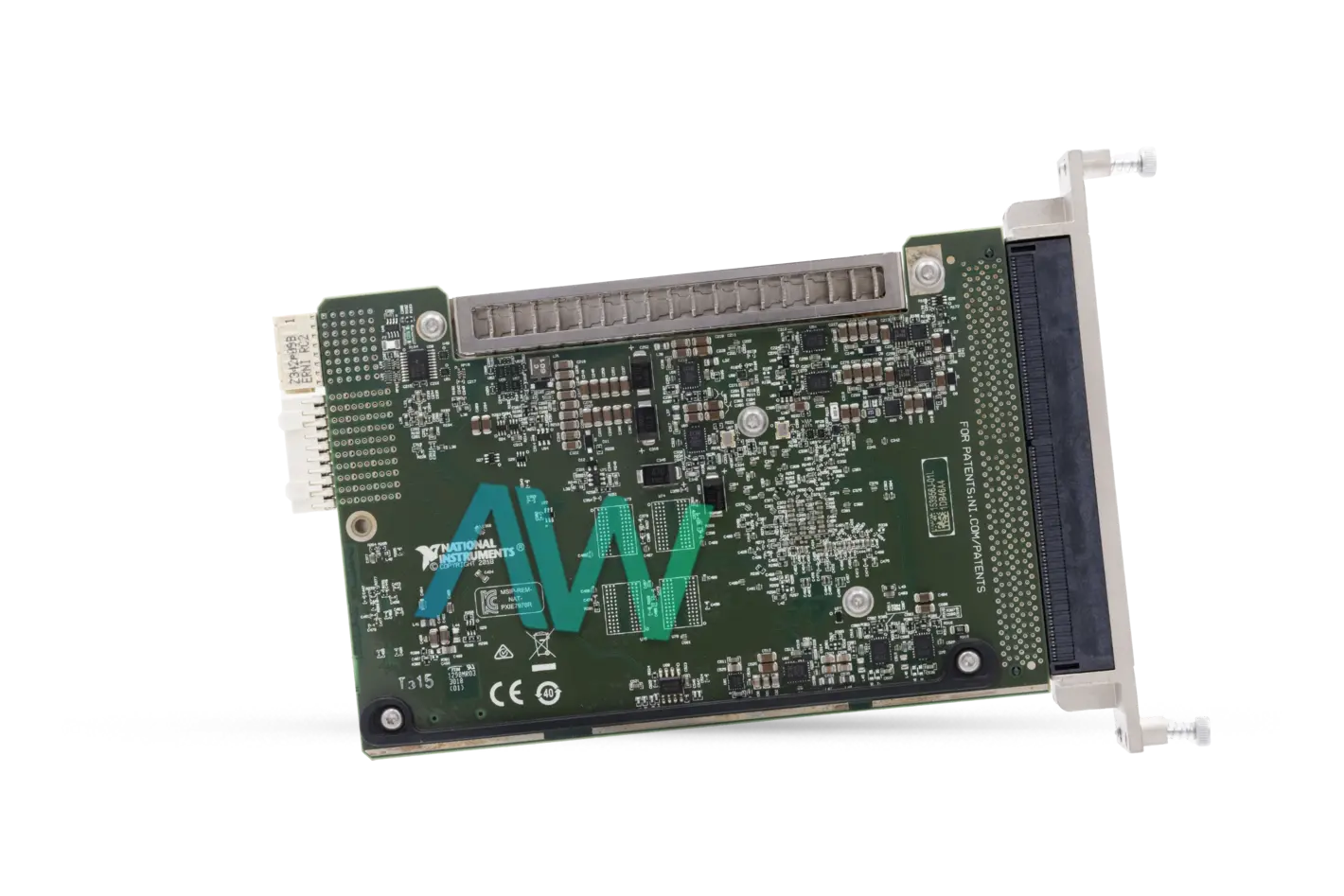

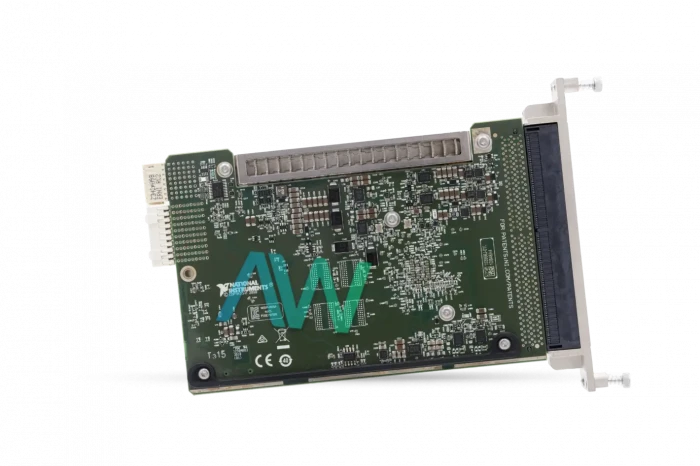

National Instruments PXIe-7971R PXI FPGA Module for FlexRIO
Featuring a Kintex-7 XC7K325T FPGA, the NI PXIe-7971R (Part Number: 782953-01) is a National Instruments FPGA Module in PXIe form-factor. This module is designed to operate with FlexRIO using channels configured in modes that are single-ended, differential, or a combination of both. In single-ended mode, the PXIe-7971R can send/receive signals through the 136 channels at transmission rates up to 400 megabits per second. The robust FPGA integrated into this module has an embedded block RAM of 16,020 kbits. It also boasts 203,800 LUTs and 840 DSP48 slices.
The 40 MHz default timebase in the XC7K325T FPGA offers a maximum timebase accuracy of ±100 ppm. The NI PXIe-7971R is offered in x4 PXIe form-factor and is compliant with the specification version 2.1 and can be deployed in x4 PXIe slot, x8 PXIe slot, x16 PXIe slot or PXIe hybrid slot. This module consumes around 3 amperes of current in standard operating conditions and while operating at +3.3 VDC (±5%).
The maximum power requirements for the PXIe-7971R FPGA Module depend on the adapter module used in the application, as well as the contents of the LabVIEW FPGA VI. At maximum, the module draws 3 A of power at both +3.3 VDC and +12 V. When not including the connectors, the module measures dimensions of 7.4 in. × 5.1 in. (18.8 cm × 12.9 cm). It weighs in at 6.7 oz (190 g). The environmental specifications of the PXI-7971R include an ambient operating temperature range of 0 °C to 55 °C and an ambient storage temperature range of -20 °C to 70 °C.The (noncondensing) relative humidity ranges for the operating and storage environments are 10% to 90% and 5% to 95%, repectively. These environmental specifications were tested in accoradance with the IEC-60068-2-1, IEC-60068-2-2, and IEC-60068-2-56. standards.
Designed for indoor use only, this FPGA Module has a pollution degree of 2 and can be operated at altitudes up to 2,000m at an ambient temperature of 25 °C.
| Model | PXIe-7971R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782953-01 |
| Type | PXI FPGA Module for FlexRIO |
| FPGA | Kintex-7 XC7K325T |
| General-Purpose Channels | 136 |
| DRAM | 0 MB |
| Embedded Block RAM | 16,020 kbits |
| DSP48 Slices | 840 |
| LUTs/Flip-Flops | 203,800 |
| Form Factor | x4 PXI Express, Specification v2.1 Compliant |
| Max Working Voltage | 0 V to 3.3 V |
| DMA Channels | 32 |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -20 °C to 70 °C |
| Dimensions | 7.4 x 5.1 in. (18.8 cm × 12.9 cm) |
| Weight | 6.7 oz (190 g) |
| Warranty | 2-3 Year Warranty |
| PXIe-7971R Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Request a Quote for Pricing |
Associated part numbers for PXIe-7971R:
National Instruments PXIe-7971R Frequently Asked Questions
Question: How is the maximum working voltage of the PXIe-7971R calculated?
Answer: The maximum working voltage is derived by adding the signal voltage to the common-mode voltage.
Question: Are there any Measurement Category restrictions for this FPGA Module?
Answer: Yes, the PXIe-7971R should only be used for signals in Measurement Category 1. It should not be used for Measurement Categories 2-4.
Question: How are the 136 channels of the PXIe-7971R dispersed?
Answer: The 136 channels of the module go across 3 FPGA banks.
