PXIe-4357, 24 Bit Resolution, 20 RTD Channels, Temperature Input Module

Rated 4.8/5 | 19 ratings

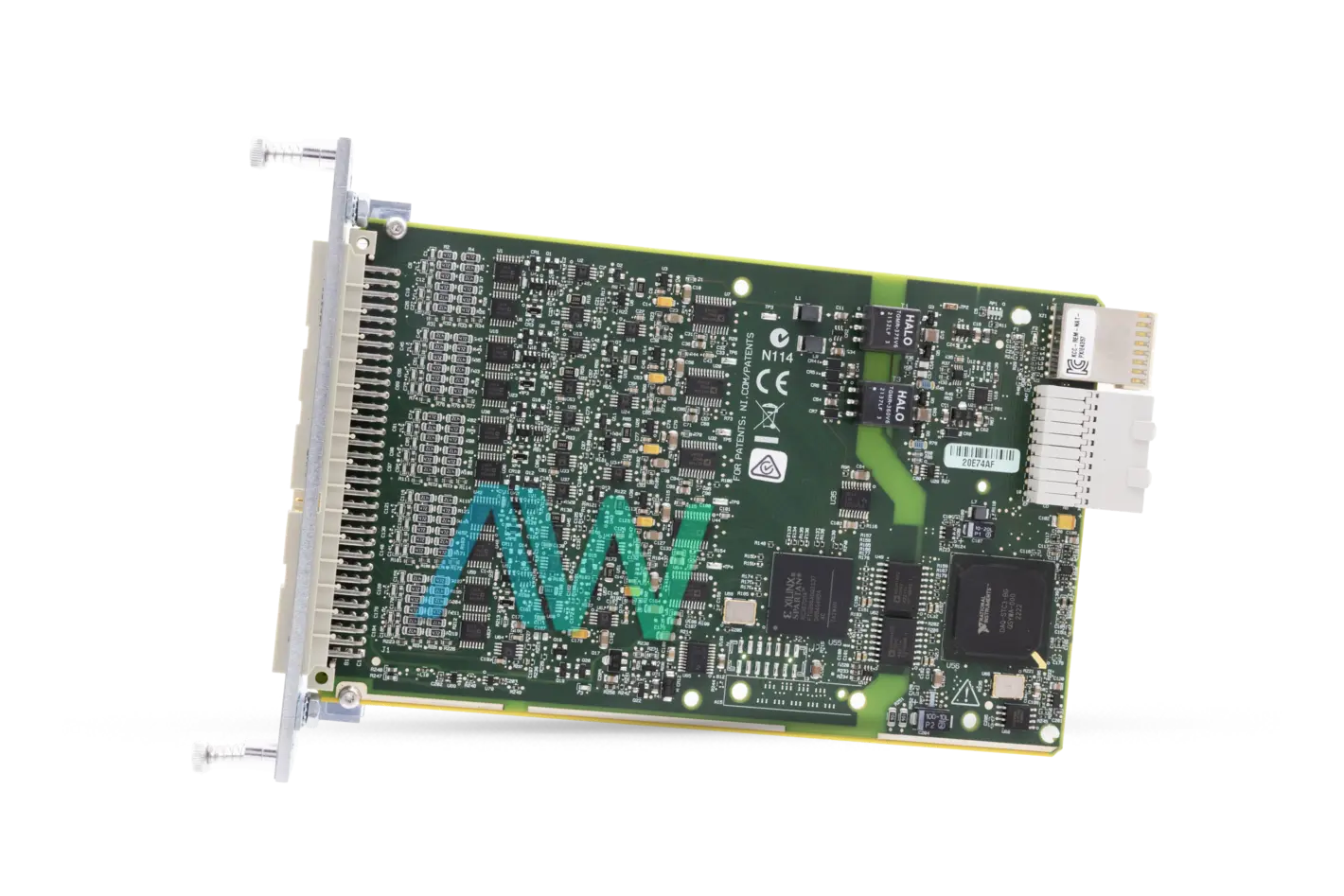

PXIe-4357 National Instruments PXI Temperature Input Module | Apex Waves | Image

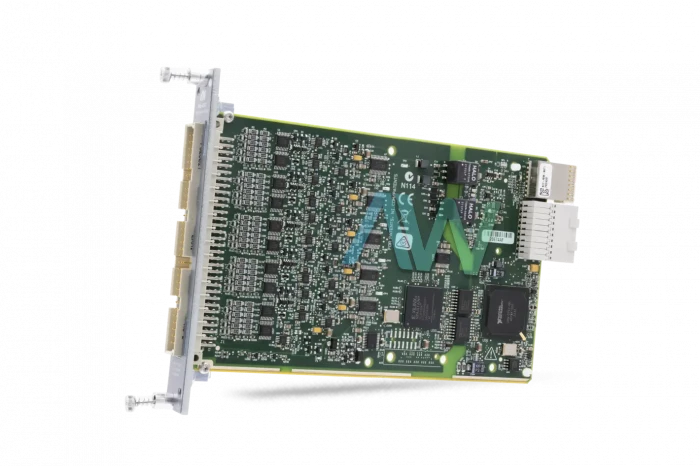

PXIe-4357 National Instruments PXI Temperature Input Module | Apex Waves | Image
PXIe-4357 New
PXIe-4357 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

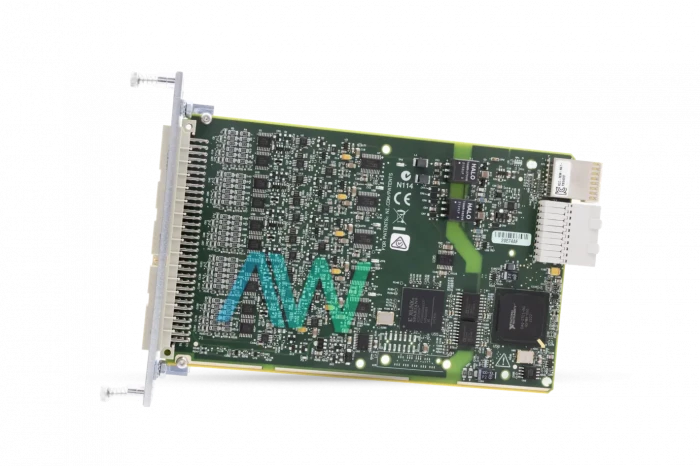

PXIe-4357 National Instruments PXI Temperature Input Module | Apex Waves | Image

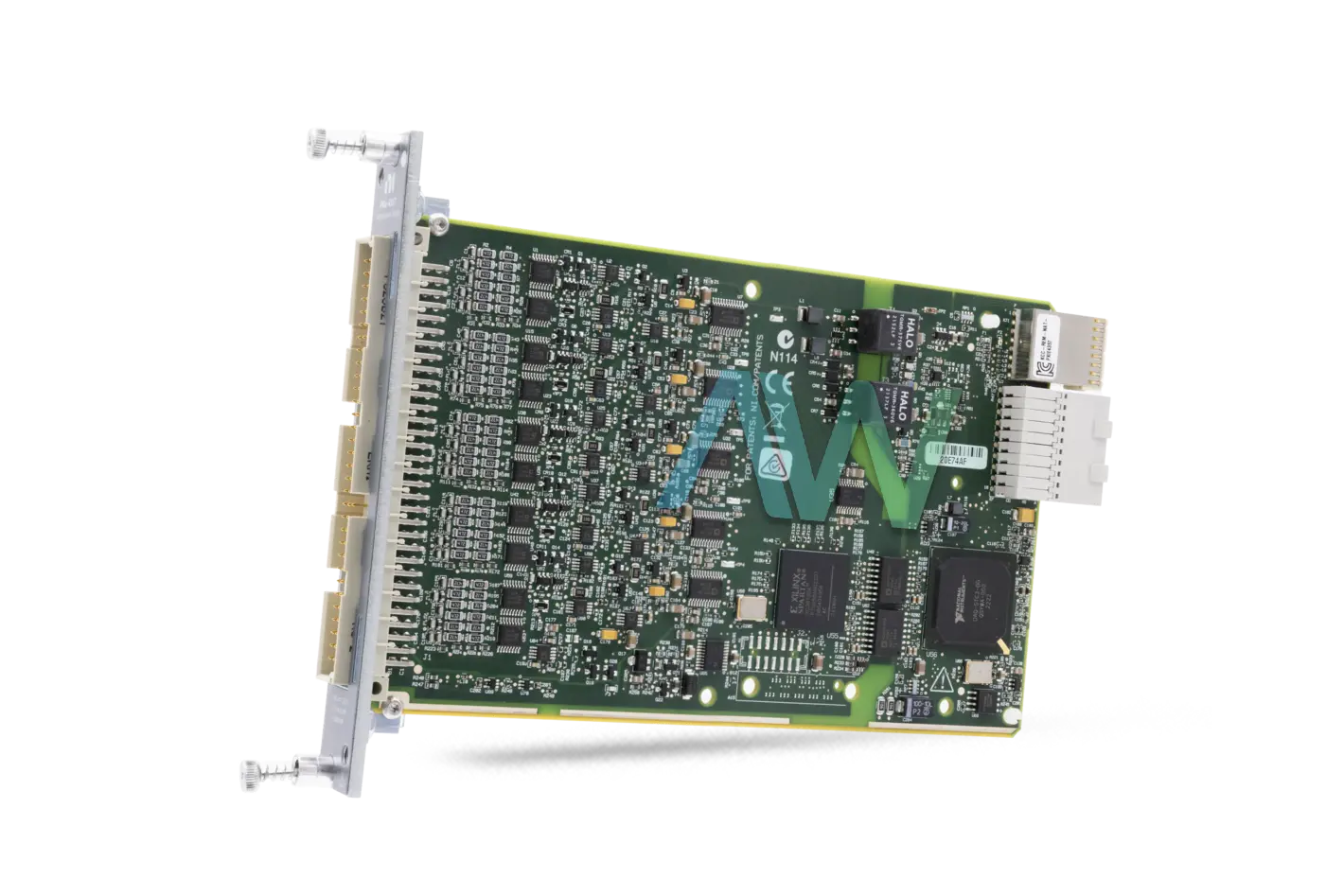

PXIe-4357 National Instruments PXI Temperature Input Module | Apex Waves | Image
PXIe-4357 New
PXIe-4357 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-4357 PXI Temperature Input Module

The PXIe‑4357 (Part Number: 782118-01) is a Temperature Input Module from National Instruments, which provides integrated data acquisition and signal conditioning for 2‑, 3‑, or 4‑wire RTD measurements with the help of the NI TB-4357. The NI TB-4357 is a front mount terminal block that provides screw terminal connectivity. The NI PXIe‑4357 can perform on both high-speed and high-resolution modes. This 20-channel module features five 24-bit delta-sigma analog-to-digital converters. It can achieve measurement accuracies of 0.09 °C with antialiasing and low pass filters.

The NI PXIe-4357 RTD Input Module includes a built-in device driver software “NI-DAQmx”. It gives the flexibility of per channel software-programmable configurations.  It also automatically scales measured data into engineering units. The NI PXIe-4357 can optimize for PT100 RTDs by using signal conditioning circuitry.

The PXIe 4357 is flexible with a 2-wire measurement mode. It allows a basic 2-wire connection. This mode can be used for low accuracy applications. The 2-wire mode offset specifications include 10 m of 22 AWG copper lead wires. The PXIe-4357 RTD Module additionally supports a 3-wire measurement mode, which allows an improved accuracy over that of the 2-wire mode by efficiently canceling out the effects of lead-wire resistance. The resistance of the lead wire connected at both terminals must be the same. This mode provides a significant reduction of lead wire errors. The 3-wire mode offset specifications include 10 m of 22 AWG copper lead wires. Lastly, the module can perform with a 4-wire measurement mode. The best accuracy is attained with the 4-wire measurement mode. The NI PXIe-4357 measures the accurate resistance of a sensor by this mode.

ModelPXIe-4357
Part Number782118-01
ManufacturerNational Instruments
TypePXI Temperature Input Module
Differential Analog Input Channels20
Supported Sensor TypeRTD
ADC Resolution24 Bits
ADC TypeDelta-Sigma
DMA ChannelsOne Analog Input
Analog Input IsolationN/A
Dimensions6.3 x 3.9 in.
Weight5.1 oz.
Warranty2-3 Year Warranty
PXIe-4357 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-4357:

National Instruments PXIe-4357 Frequently Asked Questions



Question: What is the ADC resolution of the NI PXIe-4357 RTD Input Module?

Answer: The ADC resolution of the NI PXIe-4357 RTD Input Module is 24 bits.



Question: Which sampling mode is available on the PXIe-4357 RTD Module?

Answer: Scanned sampling mode is available on the PXIe-4357 RTD Module.



Question: What is the maximum sampling rate of the NI PXIe-4357?

Answer: The NI PXIe-4357 has a maximum sampling rate of 100 S/s.



Question: What is the part number for the terminal block that can be used with the PXIe-4357 RTD?

Answer: The TB-4357 terminal block (Part number: 782119-01) can be used with the PXIe-4357 RTD.
