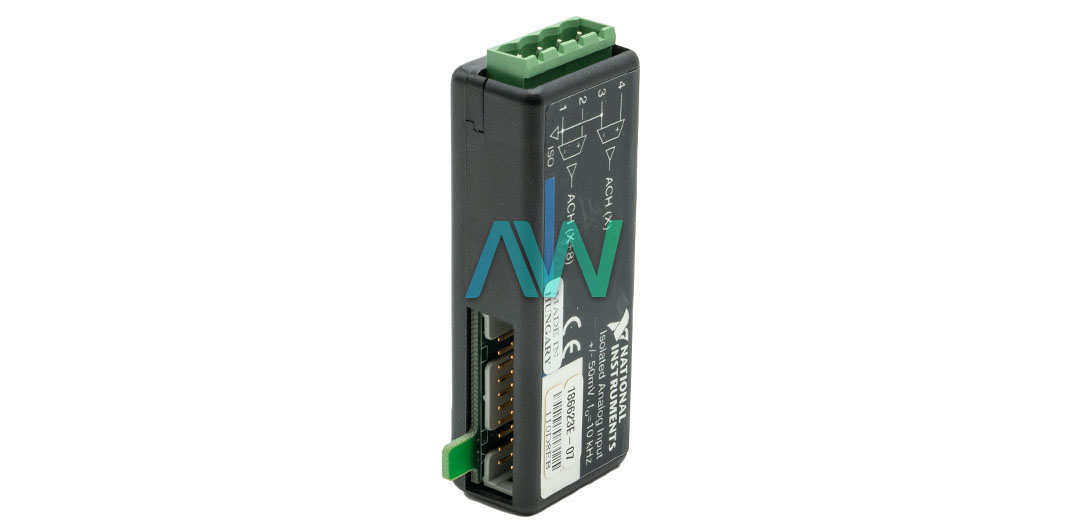

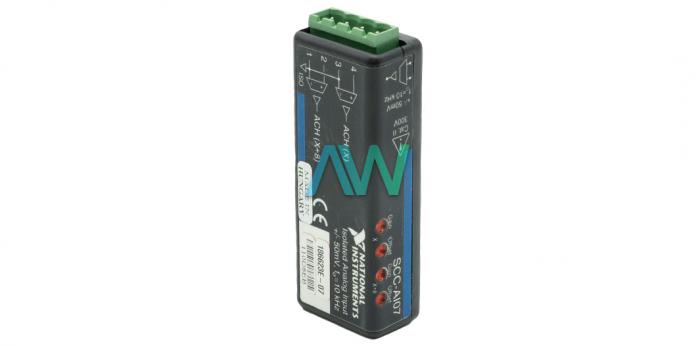

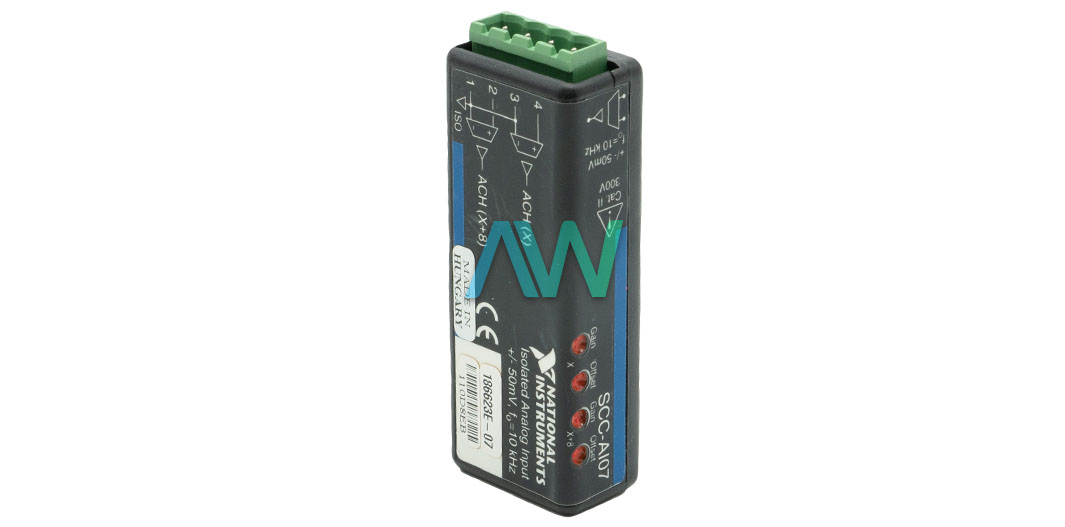

National Instruments SCC-AI07 Isolated Analog Input Module
The SCC-AI07 (Part Number: 777459-26) has inputs designed in a floating configuration of a solitary end. If the estimated signals are floating, the user can interface the negative input pins, 1 and 3, to AISENSE on the SCC-AI07 terminal block through a 10 kω to 100 kω resistor. If a high normal mode voltage is available, then interface the negative input pins, 1 and 3, to the signal reference.
For each SCC module physically introduced in the SCC-AI07, include a relating entry in the SCC-AI07 setup window. To include the SCC, tap the socket drop-down list and select the right module. If the module name does not show up in the list, either the module is not permitted in that area or the user does not have the current version of NI-DAQ. When Virtual Channels, Physical Channels, and Tasks After are installed and configured in the user’s SCC equipment, they can utilize programming instruments inside MAX to additionally arrange the module and take estimations.
The National Instruments SCC-AI07 is calibrated at the industrial facility before shipment. If the user needs to change the gain of the SCC-AI07 in their framework utilizing their E Series DAQ gadget, they need a voltage source that is a few times more exact than the SCC itself and capable of giving the DC voltage. In this model, the user can additionally change the trimpot labeled Gain situated on the highest point of the SCC-AI07. If the esteem received in stage 8 is not as much as the input voltage, turn the trimpot clockwise to expand the gain.
| Model | SCC-AI07, 777459-26 |
|---|---|
| Manufacturer | National Instruments |
| Series | SCC |
| Type | Isolated Analog Input Module |
| Input Range | ±50 mV |
| Output Range | ±10 V |
| Gain | 200 |
| Warranty | 2-3 Year Warranty |
| SCC-AI07 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SCC-AI07:
National Instruments SCC-AI07 Frequently Asked Questions
Question: Does the SCC-AI07 have cold-junction compensation?
Answer: The SCC-AI07 does not have cold-junction compensation (CJC).
Question: Can the SCC AI07 be used with thermocouples?
Answer: Yes, the SCC AI07 can be used with thermocouples.
Question: What is the input range of the NI SCC-AI07?
Answer: The NI SCC-AI07 has an input range of +/-50 mV, provided by a constant gain of 200.
