National Instruments SCC-AI13 Isolated Analog Input Module

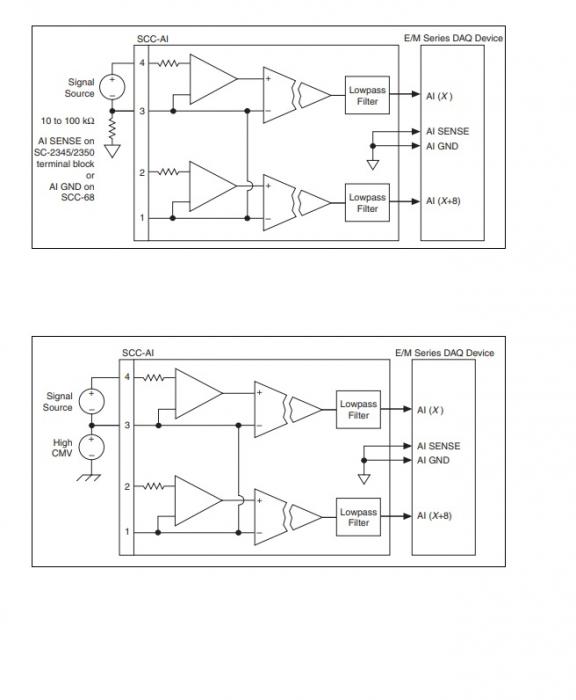

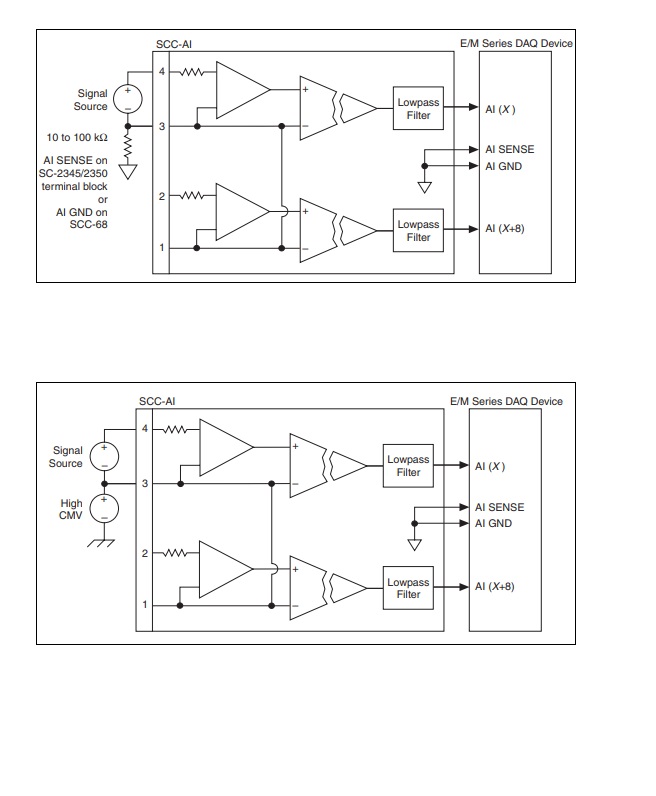

The SCC-AI13 (Part Number: 777459-27) has a relating signal to each pin of the I/O connector in the lower part of the SCC-AI13. ACH (X) and ACH (X + 8) are the analog input E-model DAQ gadget channels. AIGND is the analog input ground signal, which is the reference for ACH (X) and ACH (X + 8). AGND is the reference for provisions ± 15 V and REF5V, AIGND, and AGND associate with SCC-AI13 on the SCC-PWR connector and GND is the reference for +5 V supply. If the user picked an SCC carrier with configurable connectors, they can likewise choose connectors and interface panel slots. Distinctive carriers offer diverse quantities of panel slots. Additionally, some panels involve more than one slot.
National Instruments SCC-AI13 modules are double channel bank-isolated analog input modules designed for reading input voltages from ±50 mV to ±42 V. Both channels of a SCC-AI13 module incorporate the following: an instrumentation speaker, a low-pass filter, and a potentiometer for calibration. These modules are rated for Category I and offer a safety working isolation of 300 V for each module.
The SCC-AI13 is suited for use with transients related with local level primary supplies of up to 300 V Installation Category (over-voltage class) II. Class II 300 V local level primary supplies can see intermittent transients of up to 1500 V. In consistence with IEC/EN 61010-1, UL 3111-1, and CSA/CAN C22.2 No. 1010.1 safety standards, all SCC modules are factory tested at 2300 V, input to output, to guarantee that the security protection stays intact.
| Model | SCC-AI13, 777459-27 |
|---|---|
| Manufacturer | National Instruments |
| Series | SCC |
| Type | Isolated Analog Input Module |
| Input Range | ±10 V |
| Output Range | ±10 V |
| Gain | 1 |
| Warranty | 2-3 Year Warranty |
| SCC-AI13 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SCC-AI13:
National Instruments SCC-AI13 Frequently Asked Questions
Question: Which version of NI-DAQmx is compatible with the NI SCC-AI13?
Answer: The NI SCC-AI13 is compatible with the NI DAQmx 18.6.
Question: What is the supported Device ID of the SCC-AI13?
Answer: The device ID of the SCC-AI13 is 0x04E1.
Question: What is the lowpass filter bandwidth of the SCC AI13?
Answer: The lowpass filter bandwidth of the SCC AI13 is 4 Hz.
