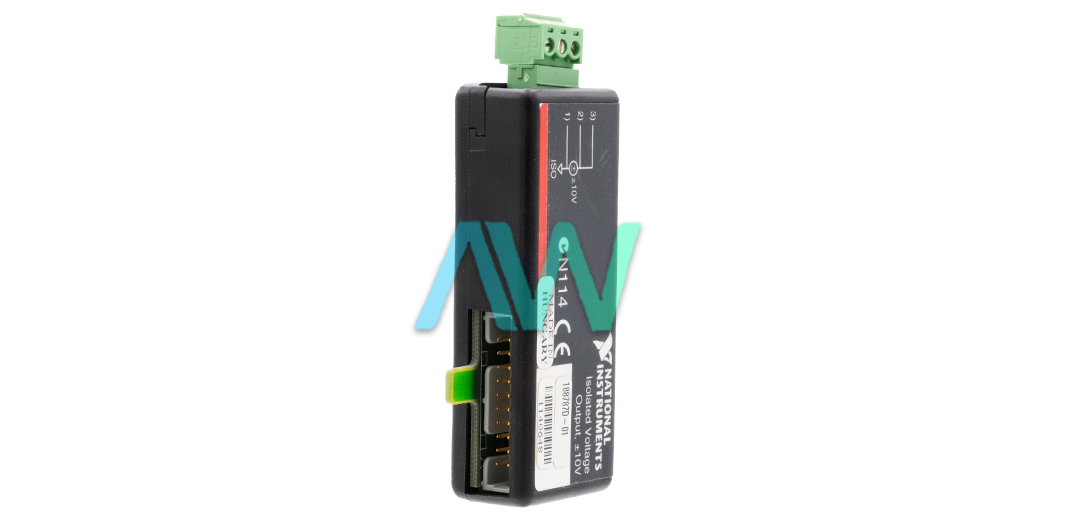

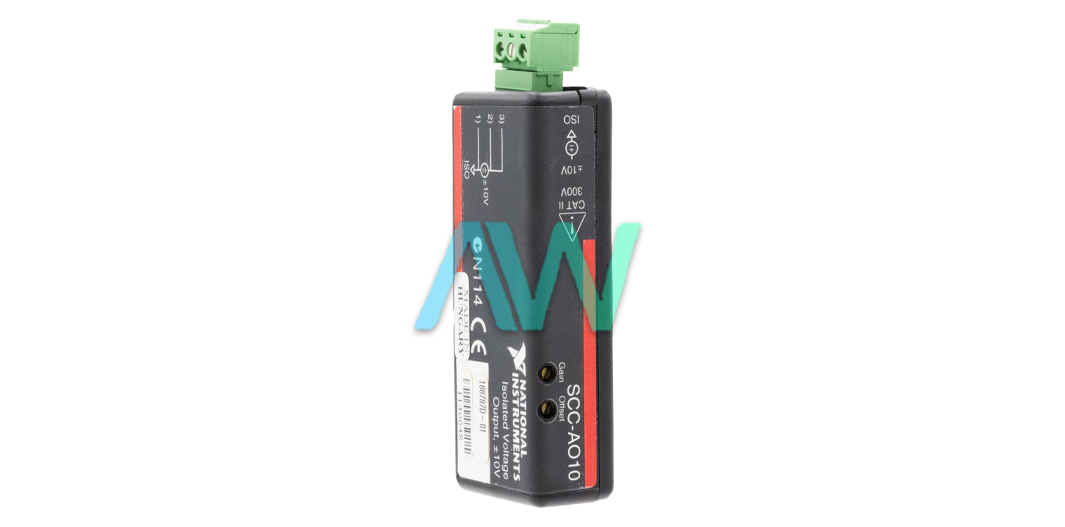

National Instruments SCC-AO10 Isolated Analog Output Module
The SCC-AO10 (Part Number: 777459-50) is a reliable Isolated Analog Output Module from National Instruments. This module offers a wide range of output voltage up to ± 10 volts. This module allows the user to control the output voltage level through an E/M Series DAQ device, by utilizing a DAC output of the DAQ device. The two NI SCC-AO10 modules can connect and operate together, which allows for operational flexibility and enhanced capabilities. Additionally, the user can increase the output voltage level up to ± 20 volts.
The National Instruments SCC-AO10 Isolated Analog Output Module permits the user to complete measurements for scaling voltages. The module comes with the capability to be referenced with its own isolated ground. The module allows for the voltage level of 60 VDC for the common mode of operation of the module, which is measured between itself and ground channel or chassis ground. It also incorporates the capabilities to rectify gain and offset errors. In addition, it is recommended to warm up the DAQ device for 30 minutes before starting the calibration procedure. This ensures the user will receive accurate measurement levels at the output.
The National Instruments SCC-AO10 module has a current drive value of ± 30 mA. The nonlinearity of the gain at a full-scale output range is 0.5 %. There are also low RMS values for the output noise. The typical value is 2.5 mV and the maximum value is 4 mV. The NI SCC-AO10 Isolated Analog Output Module also has a helpful short circuit protection mechanism, which enables the user to protect the module for the maximum value of the current (37 mA) for an unlimited duration.
| Model | SCC-AO10, 777459-50 |
|---|---|
| Manufacturer | National Instruments |
| Series | SCC |
| Type | Isolated Analog Output Module |
| Input and Output Range | ±10 V |
| Bandwidth | >23 kHz |
| Short Circuit Current Protection | 37 mA max |
| Warranty | 2-3 Year Warranty |
| SCC-AO10 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SCC-AO10:
National Instruments SCC-AO10 Frequently Asked Questions
Question: What voltage can the SCC AO10 tolerate?
Answer: The SCC AO10 can tolerate up to 300 V of common-mode voltage between grounds.
Question: Can you cascade two SCC-AO10 modules to double the output range?
Answer: Yes, you can cascade two SCC-AO10 modules to double the output range. You may not have more than two SCC-AO10 modules per carrier.
Question: How is the output voltage level of the NI SCC-AO10 controlled?
Answer: The NI SCC-AO10 voltage level is controlled by the DAC output of an E/M series DAQ device.
Question: What size wires does the NI SCC-AO10 terminal connector accept?
Answer: The NI SCC-AO10 terminal connector accepts 28 to 16 AWG wires.
Question: Can you connect an external voltage source to the output terminal of the SCC-AO10?
Answer: No, connecting an external voltage source to the output terminals of the SCC-AO10 may damage the module.
