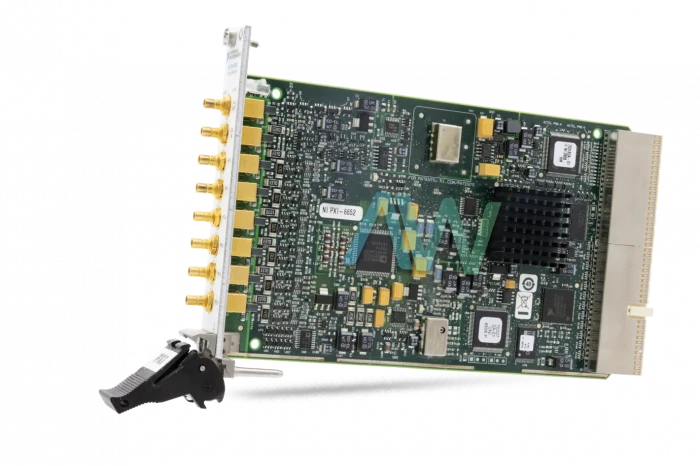

PXI-6652 National Instruments Timing and Control Module | Apex Waves | Image

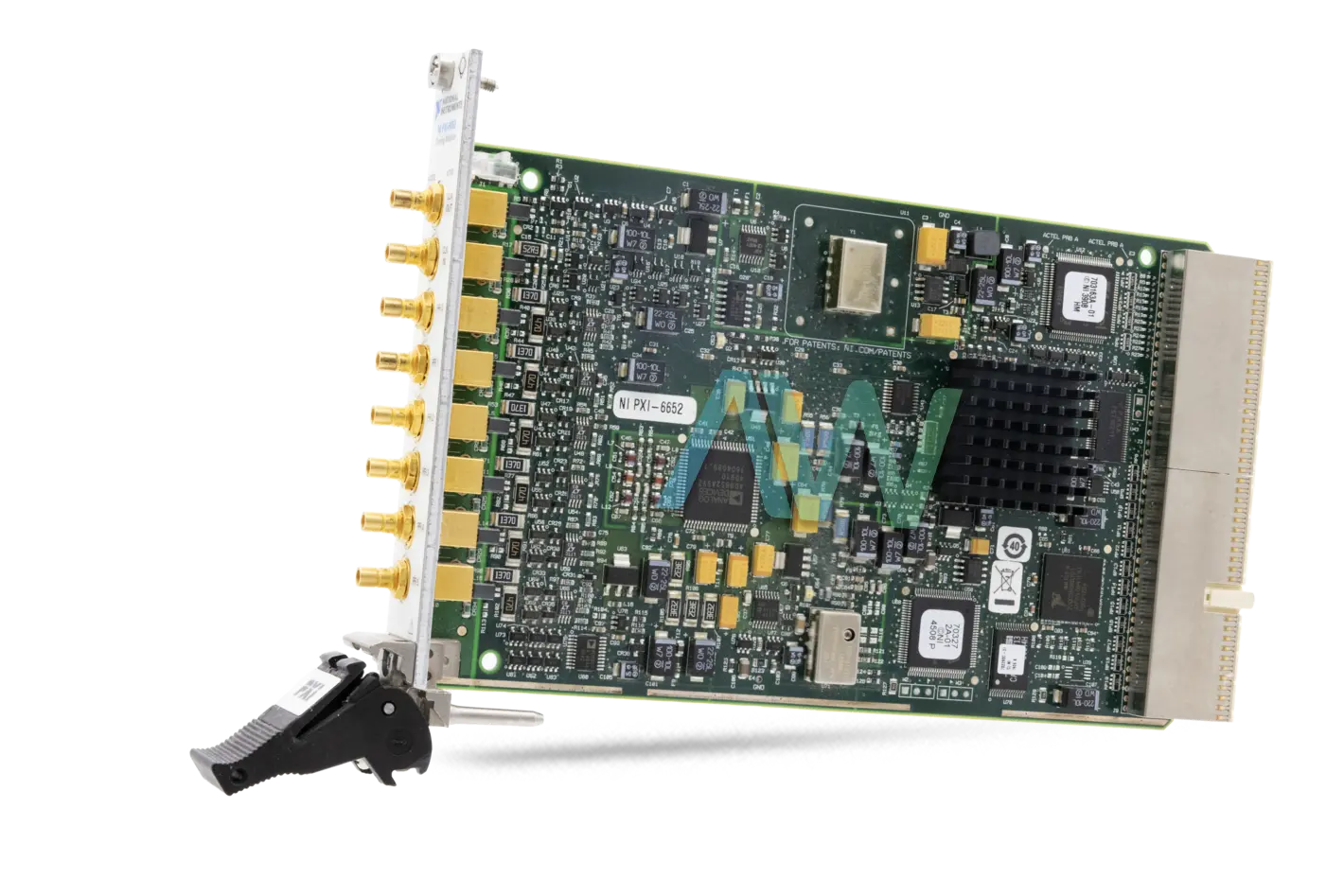

PXI-6652 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6652 New
PXI-6652 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

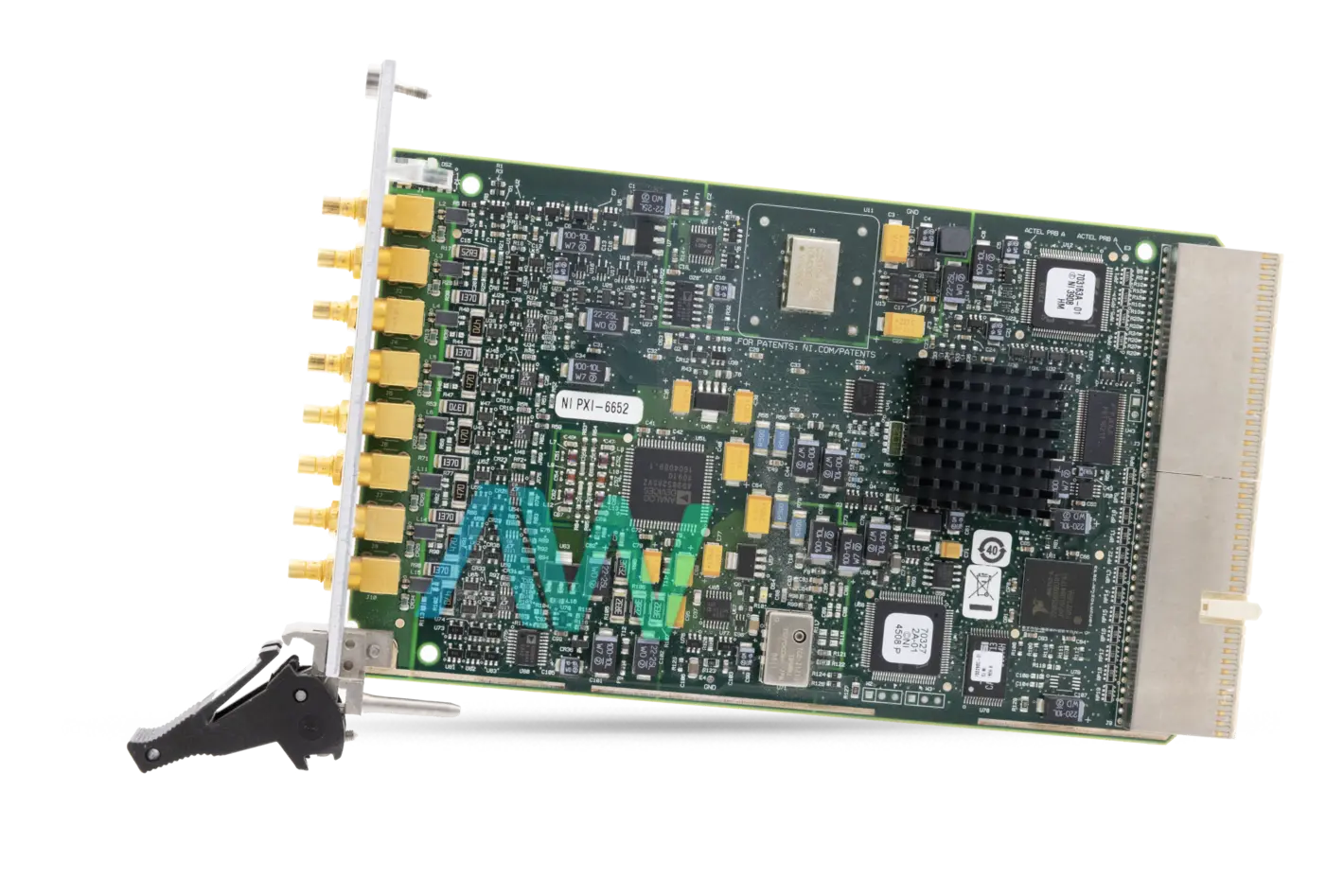

PXI-6652 National Instruments Timing and Control Module | Apex Waves | Image

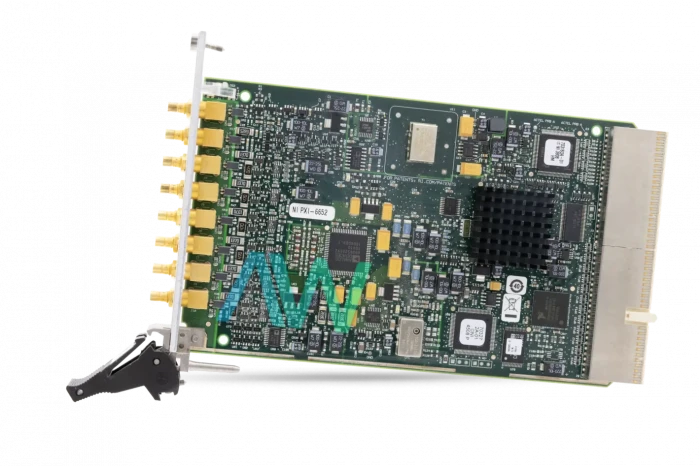

PXI-6652 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6652 New
PXI-6652 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6652 PXI Timing and Synchronization Module

Featured with 711 nHz resolution and DC to 105 MHz high-resolution clock generation, the National Instruments PXI-6652 (Part Number:  778726-01) is a PXI Timing and Multi-Chassis Synchronization Module. This module comes with the capability to import/export triggers to the PXI backplane, drive PXI start trigger lines, and generate a TCXO 10 MHz reference clock with alleviated stability for instrumentation. The NI PXI 6652 can also be used to enhance the instrument’s accuracy within a system or for the synchronization of several PXI systems together. It is equipped with 1 3U PXI slot, and a 50 Ω SMB male front panel connector.

When this module is inserted in slot 2 of a PXI chassis, the PXI-6652 module can supersede the built-in 10 MHz reference clock on a PXI chassis. The clock preciseness is increased to 1 ppm with the NI PXI-6652 module.

The Clock Input (CLKIN) connector provided on the front panel of the NI PXI-6652 supplies the module with a clock. This clock can be routed to the onboard PLL programmatically for its utilization as a reference or routed to the PXI backplane (PXI_CLK10_IN) directly for distribution to other modules sharing the same chassis. This Timing and Synchronization Module comes equipped with a Clock Output (CLKOUT) connector. The CLKOUT can be routed programmatically from the temperature-compensated crystal oscillator (TCXO), backplane clock (PXI_CLK10), direct digital synthesis (DDS), or oven-controlled crystal oscillator (OCXO).

The National Instruments PXI-6652 features Programmable Function Interfaces (PFI) <0..5>. Each of these connectors can be used as an input or output. In addition, the user can configure the PFI 0 as a clock input for the internal synchronization of other signals. With this timing and multi-chassis synchronization module, the user can program PFI connections in their individual capacity. The National Instruments PXI-6652 can generate clock signals using either its onboard DDS chip or a precise 10 MHz oscillator.

The PXI-6652 is run using the NI-Sync driver software which can be programmed with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI or Microsoft Visual C++. The NI device measures 3.9 x 6.3 in. in physical dimensions.

Despite it's Obsolete status, the PXI-6652 will remain available in perpetuity with Apex Waves!

ModelPXI-6652
ManufacturerNational Instruments
Part Number778726-01
TypePXI Timing and Control Module
CLKIN Frequency Range1 MHz to 105 MHz, Sine or Square wave
10 MHz TimebaseTCXO
Chassis RequirementOne 3U CompactPCI or PXI slot
Dimensions3.9 by 6.3 in.
Front Panel ConnectorsSMB male, 50 Ω
Input CouplingAC
Output CouplingDC
Operating Temp Range    0 to 55 °C
Storage Temp Range-20 to 70 °C
Dimensions3.9 by 6.3 in. (10 by 16 cm)
WarrantyThree Year Warranty
PXI-6652 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6652:

National Instruments PXI-6652 Frequently Asked Questions



Question: What is the square wave rise/fall time (10 to 90%) of the Timing and Control Module?

Answer: The PXI-6652 has a square wave rise/fall time (10 to 90%) of 0.5 ns minimum and 2.5 ns maximum for both the low drive and high drive.



Question: What type of input coupling do the PFI lines have on the NI PXI-6652?

Answer: The PFI lines of the module have DC input coupling.



Question: Where can I find more information for the PXI-6652?

Answer: Official manuals and documentation from the manufacturer can be found under the "Manuals & PDFs" tab



Question: What is the resolution of the NI PXI-6652?

Answer: The Timing and Control Module has 711 nHz resolution.
