Modular Systems > National Instruments > Timing and Synchronization Modules

PXI-6653 In Stock | Ships in 3-5 Days

PXI-6653, DC to 100 MHz Frequency, SMB Male Connectors, PXI Timing and Synchronization Module

Rated 4.5/5 | 8 ratings

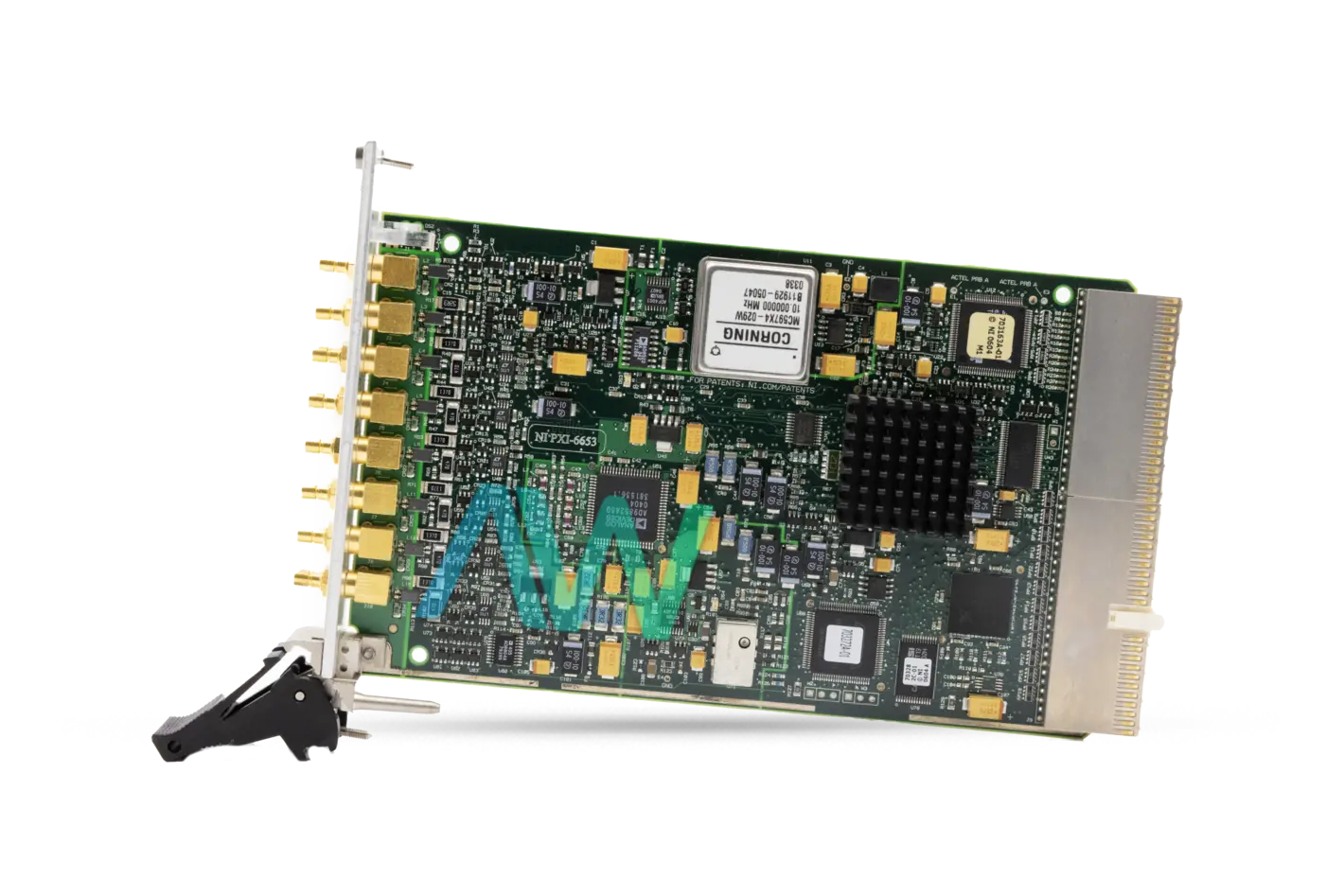

PXI-6653 National Instruments Timing and Control Module | Apex Waves | Image

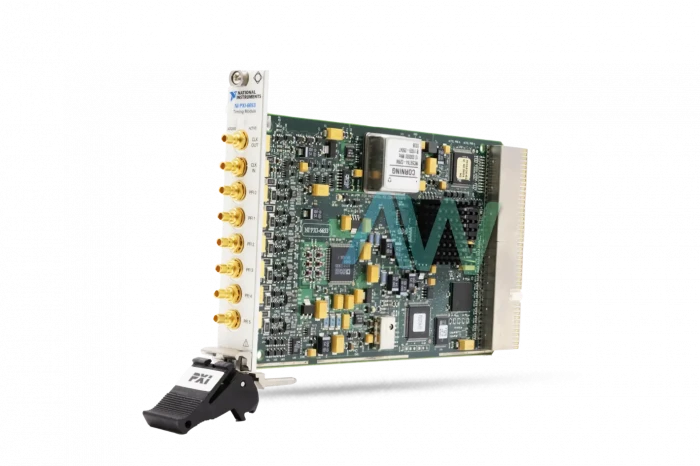

PXI-6653 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6653 New
PXI-6653 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

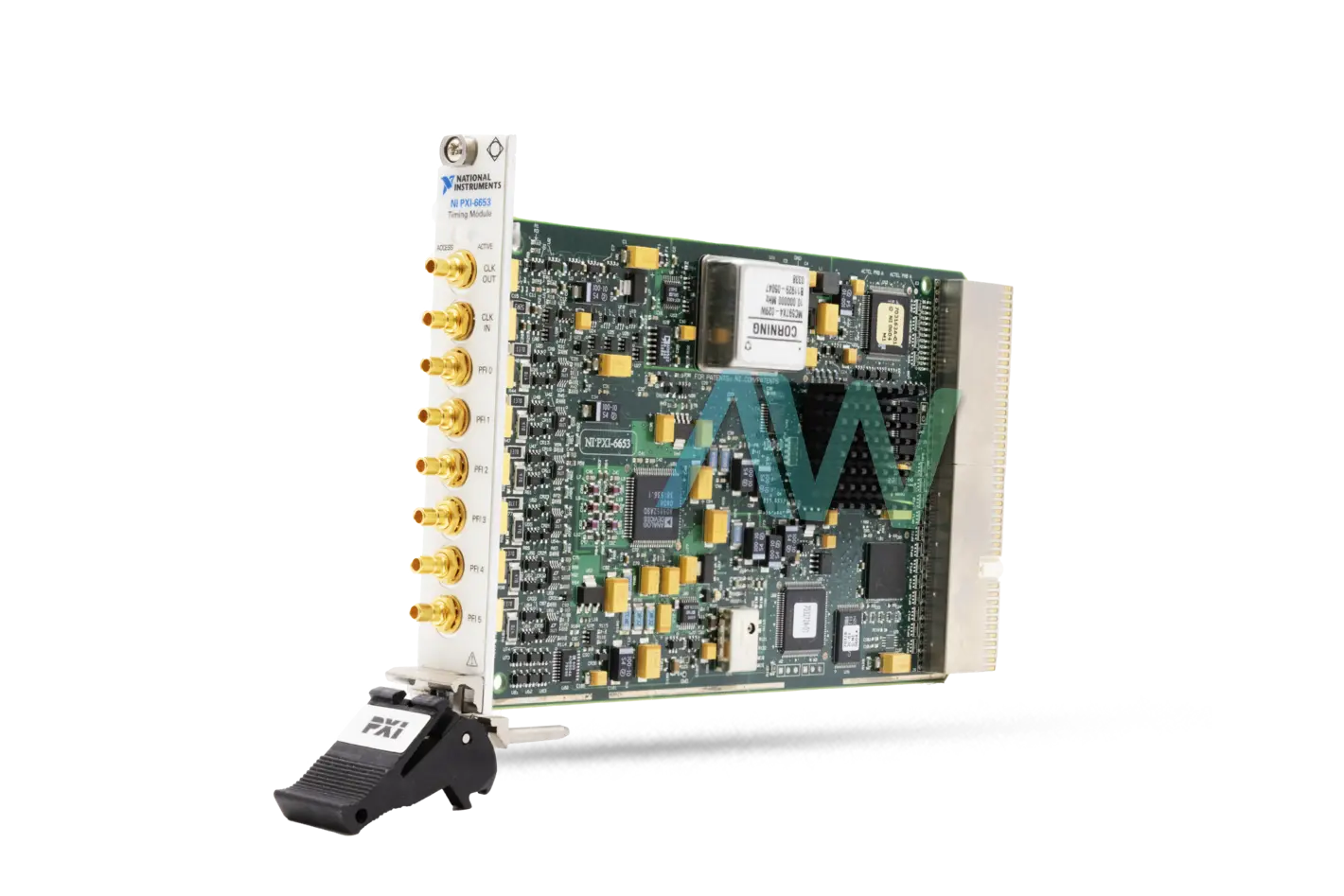

PXI-6653 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6653 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6653 New
PXI-6653 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6653 PXI Timing and Control Module

The National Instruments PXI-6653 (Part Number: 778715-01) is a Timing and Multi-Chassis Synchronization Module. This model comes featured with an onboard high-stability reference OCXO, star trigger controller with low-skew triggering for precision, and integrated routing of the trigger and clock signals. The front panel of the PXI-6653 has one CLKOUT Connector, one CLKIN Connector, PFI <0..5> Connectors, one Access LED, and one Active LED. This Timing and Control Module can generate and route trigger and clock signals from one location to another. The PFI connections can be configured for either input or output. The NI PXI-6653 consumes 2 A max at +5 V, 600 mA max at +3.3 V, 500 mA max at +12 V, and 0 A max at -12 V. This Timing and Control Module requires one 3U PXI Slot and weighs around 203 g.

With this module, the user can adjust the behavior of the PFI connections individually. The National Instruments PXI-6653 supports PXI_Star and PXI_Trig signals for the synchronization of the PXI_STAR triggers and RTSI/PXI triggers respectively. By type, the front panel connectors of this module are SMB male. This module comes with a broad range of routing capabilities as it can route signals to and from the PXI start triggers, front panel, and the PXI/RTSI triggers as well. In addition, the NI PXI-6653 can route a 10 MHz clock from Clock In (CLKIN) towards the 10 MHz reference clock or a clock from CLKIN to any number of PXI_STAR lines. It can also lock the OCXO timebase to an external reference clock and route that towards the 10 MHz reference clock. Additionally, it has a CLKIN frequency range of 1 MHz to 105 MHz.

The NI device is run using the NI-Sync driver software. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of -20 to 70 °C, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 to 500 Hz.

PXI-6653 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6653
ManufacturerNational Instruments
Part Number778715-01
TypePXI Timing and Synchronization Module
CLKIN Frequency Range1 MHz to 105 MHz, Sine or Square Wave
10 MHz TimebaseOCXO
Chassis RequirementOne 3U CompactPCI or PXI slot
General-Purpose PFI Lines6 SMB
Input CouplingAC
WarrantyThree Year Warranty
PXI-6653 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6653:

National Instruments PXI-6653 Frequently Asked Questions



Question: What is the accuracy of the 10 MHz reference clock?

Answer: On the PXI-6653, the 10 MHz reference clock has an accuracy of 50 ppb.



Question: What is the voltage level of the PFI lines on the NI PXI-6653?

Answer: The PFI lines have a voltage level of 0 to 5 V.



Question: What is the warm-up time of the OCXO on the PXI-6653 module?

Answer: The module’s OCXO has a warm-up time of 3 minutes.



Question: Where can I find the pinout for this Timing and Synchronization Module?

Answer: The NI PXI-6653 pinout can be found under the "Manuals & PDFs" tab.
