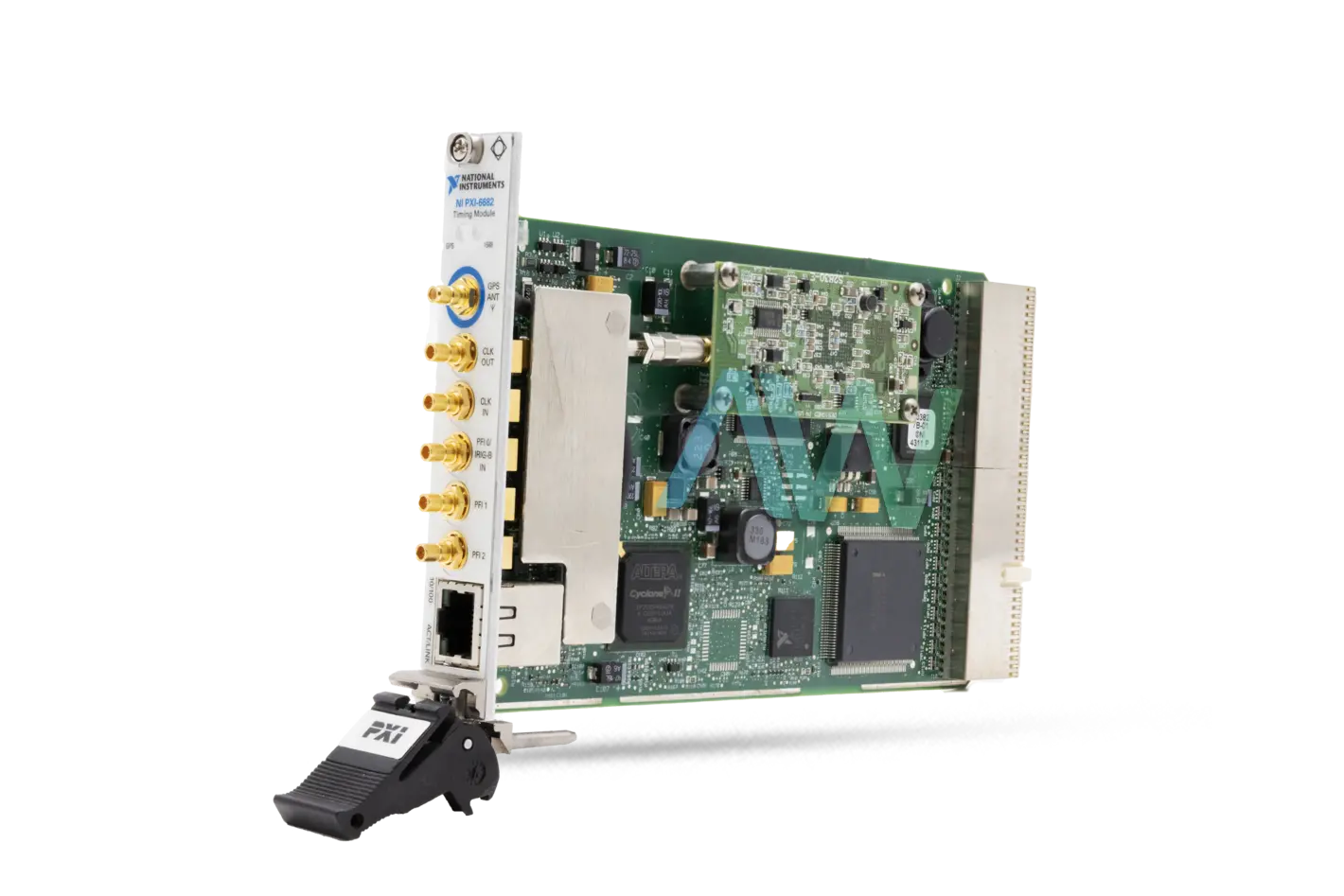

PXI-6682 National Instruments Timing and Control Module | Apex Waves | Image

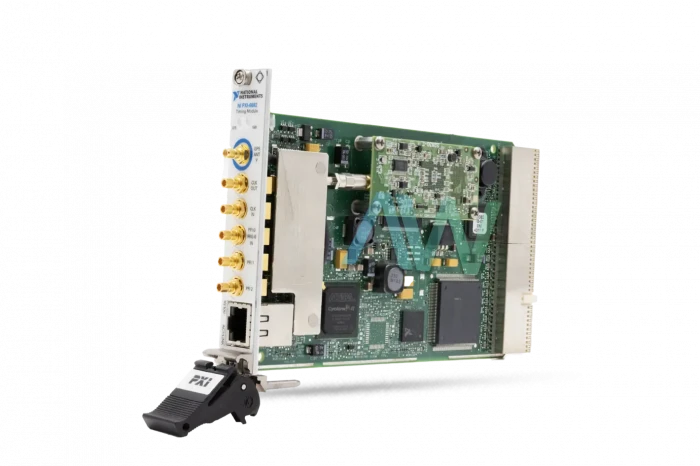

PXI-6682 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6682 New
PXI-6682 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

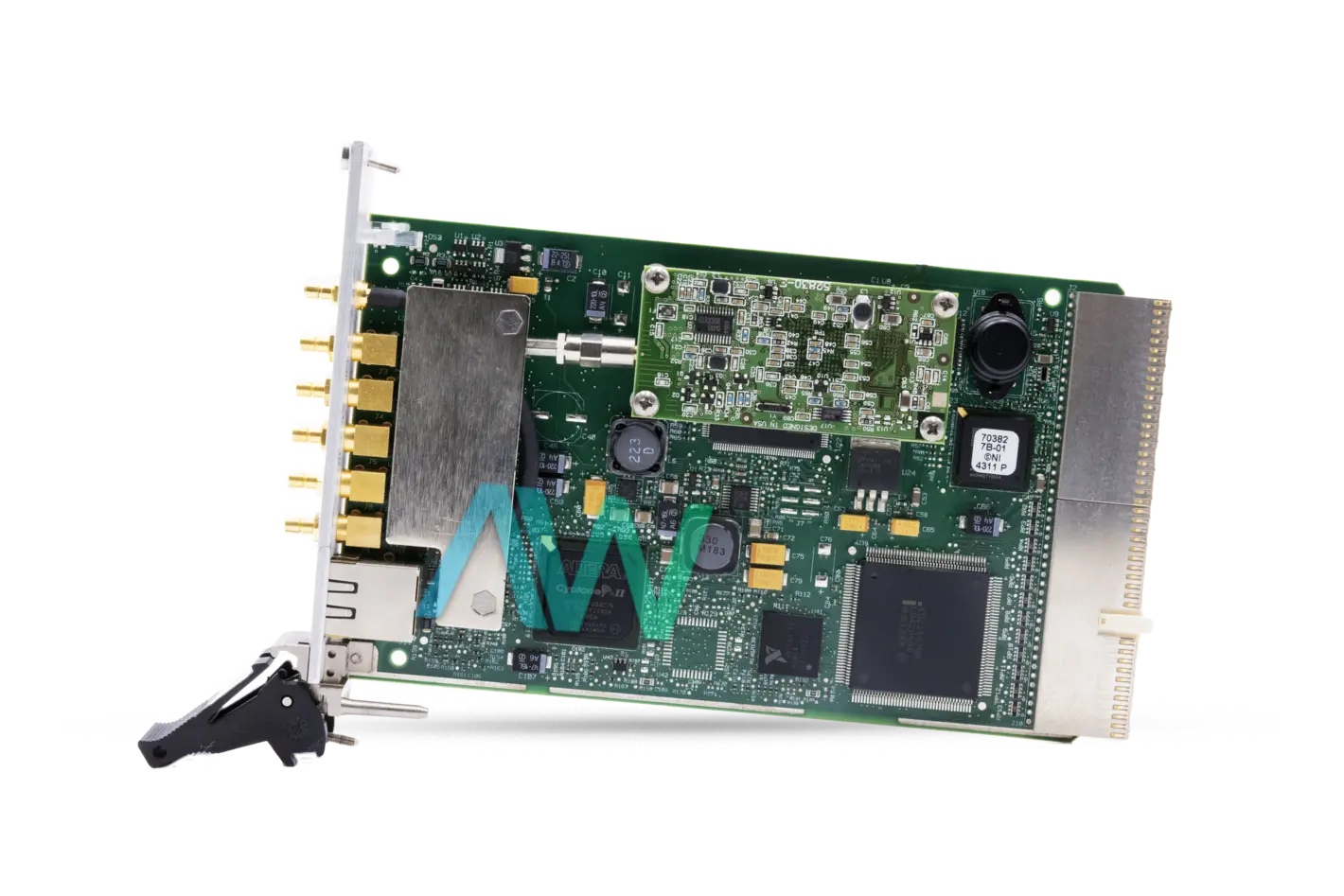

PXI-6682 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6682 National Instruments Timing and Control Module | Apex Waves | Image
PXI-6682 New
PXI-6682 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6682 PXI Timing and Control Module

The National Instruments PXI 6682 (Part Number: 779929-01) is an IEEE 1588, IRIG-B, TCXO, GPS PXI Synchronization Module. This Timing and Control Module is utilized to synchronize PXI and PXI Express systems through IEEE 1588, IRIG-B, and GPS to perform synchronous events. This module can generate clock signals and events at specifically synchronized future times and timestamp input events, accompanied with the synchronized system time. This module comes featured with an onboard and integrated temperature-compensated crystal oscillator (TCXO). The TCXO can be disciplined to EEE 1588, IRIG-B, and GPS for long-term stability. The NI device requires one 3U PXI slot for operation. It has a DC to 1.5 MHz programmable clock.

The NI PXI 6682 can also be utilized for the routing of clock triggers and signals within a PXI chassis or between several chassis with low skew, providing the user a way to synchronize multiple devices in a single PXI system. On its front panel, the National Instruments PXI 6682 features one GPS Antenna Connector, one CLKOUT Connector, one CLKIN Connector, a PFI0/IRIG-B Input Connector, an Ethernet Connector, PFI <1..2> Connectors, and LEDs for GPS, 1588, Ethernet Link, and Ethernet speed. The GPS ANT RF input provides 5 VDC for the attached active antenna. This connector can also serve to receive the input for the RF signal coming from the attached GPS antenna. The device is equipped with 3 SMB general-purpose PFI lines.

As its driver, the NI PXI-6682 uses NI Sync software. When programming within this model, the user can utilize the NI application development environment (ADE) program, such as LabWindows/CVI, LabVIEW, or Visual C/C++. This module is usually installed in slot 2 of the PXI Chassis and requires one slot.

The NI device weighs 235 g. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, a noncondensing operating and storage humidity range of 10% to 90% and 5% to 95% respectively, and an operating and nonoperating random vibration of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 to 500 Hz.

ModelPXI-6682 (779929-01)
ManufacturerNational Instruments
TypePXI Timing and Synchronization Module
Programmable ClockDC to 1.5 MHz
10 MHz TimebaseTCXO
General-Purpose PFI Lines3 SMB
Chassis RequirementOne 3U CompactPCI or PXI slot
Weight235 g.
WarrantyThree Year Warranty
PXI-6682 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6682:

National Instruments PXI-6682 Frequently Asked Questions



Question: What is the accuracy of the 10 MHz timebase on the PXI-6682?



Answer: On the PXI-6682, the accuracy of the 10 MHz timebase is 1 ppm.



Question: How many front panel connectors does the NI PXI-6682 have?



Answer: The NI PXI-6682 has six SMB male (50 Ohm) connectors and one standard RJ-45 Ethernet connector on the front panel.



Question: What is the recommended GPS antenna for the PXI-6682?



Answer: The recommended GPS antenna for the PXI-6682 is the Trimble Bullet III.



Question: What is the minimum pulse width for timestamping on the NI PXI-6682?



Answer: The minimum pulse width for timestamping on the NI PXI-6682 is 36 ns.
