National Instruments FPT-1015 Flat Panel Touch Screen Monitor

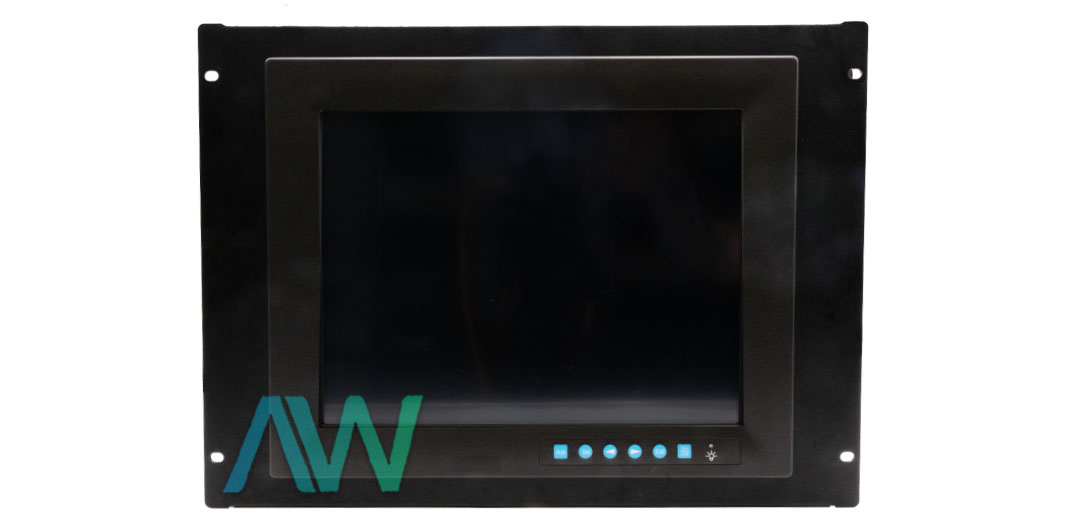

The FPT-1015 Flat Panel Touch Screen Monitor contains a 15 in. colored TFT LCD for commercial and industrial utilities. The NI FPT-1015 is a device with a smooth and user-friendly control interface, which can be easily changed into a remote access system. The FPT-1015 is developed by National Instruments. The FPT-1015 has the part number 779560-01.

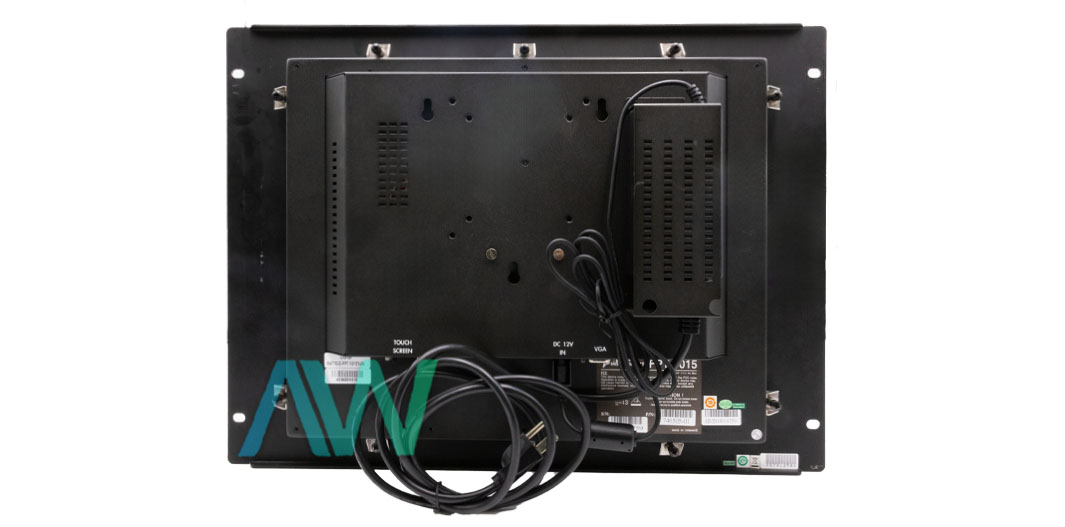

This Flat Panel Touch Screen Monitor is equipped with a built-in direct VGA input, which makes it compatible with most industrial gadgets, computers, and PLCs. The front panel of the NI FPT-1015 is made of aluminum-magnesium and the chassis is made of durable steel. The FPT-1015 follows the NEMA4/IP65 standards. Using the 15-pin DB-15 connector of the VGA port, you can connect the FPT-1015 with your test system, making sure that the vertical frequency of the system must be in range with it. The National Instruments FPT-1015 has a USB type B connector and a touchscreen cable, which is complementary for the touchscreen installation. The NI FPT-1015 has an on-screen display pad, which can control the backlight on/off functions and adjustment of the display.
The touchscreen of the FPT-1015 has 1024 × 1024 resolution with a USB or RS232 interface and is compatible with Windows 9x/NT/2000/XP/CE 4.2 and MS-DOS. The NI FPT-1015 has an XGA TFT LCD with a resolution of 1024 × 768. IEC 60950-1 and UL 60950-1 are the safety standards followed during the designing of the National Instruments FPT-1015.
FPT-1015 Obsolete Status has been announced by National Instruments, but the Flat Panel Touch Screen Monitor will still be available for purchase and repairs by Apex Waves.
| Model | FPT-1015 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779560-01 |
| Type | Flat Panel Touch Screen Monitor |
| Display Size | 15 in. |
| Touchscreen Resolution | 1024 × 1024 |
| OS Support | Windows 9x/NT/2000/XP/CE 4.2, MS-DOS |
| Power Consumption | +12 V ±10% @ 2.5 A |
| Dimensions | 14.7 in. × 11.71 in. |
| Weight | 9.9 lb. |
| Warranty | 2-3 Year Warranty |
| FPT-1015 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
