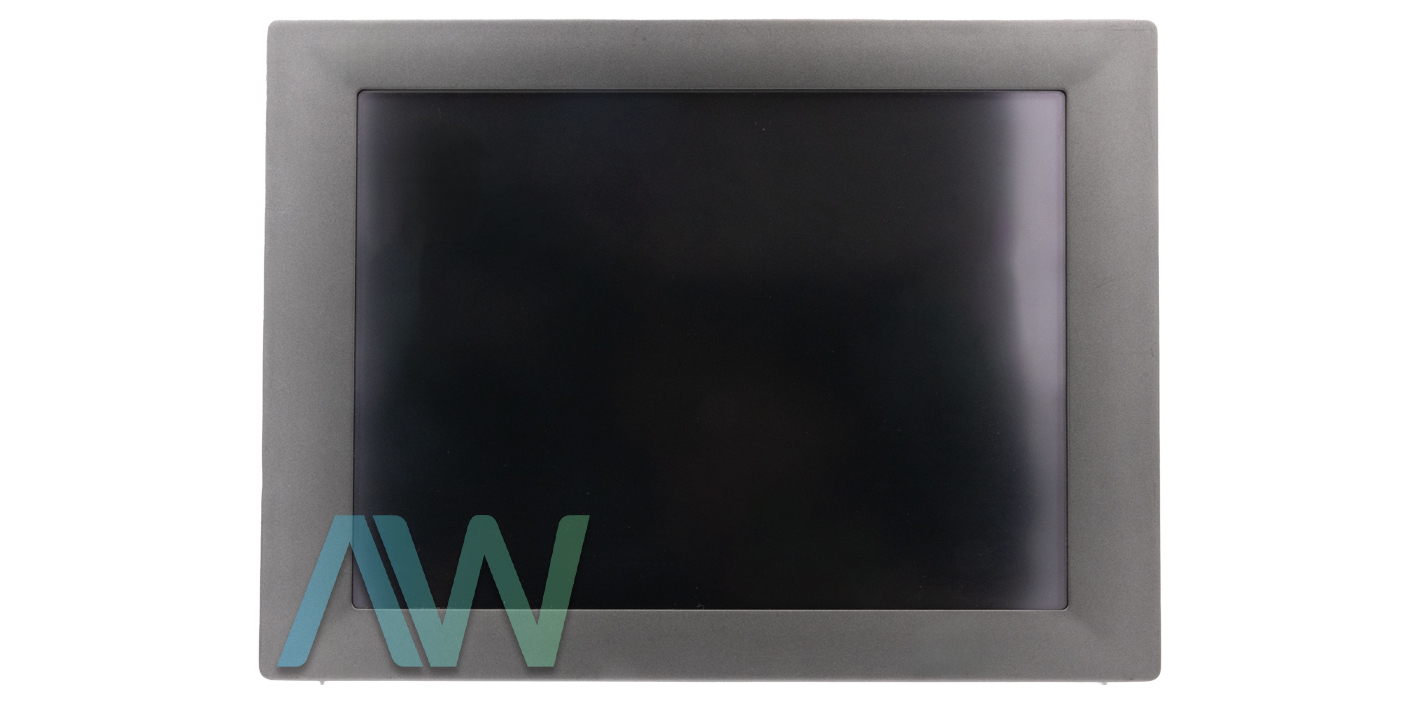

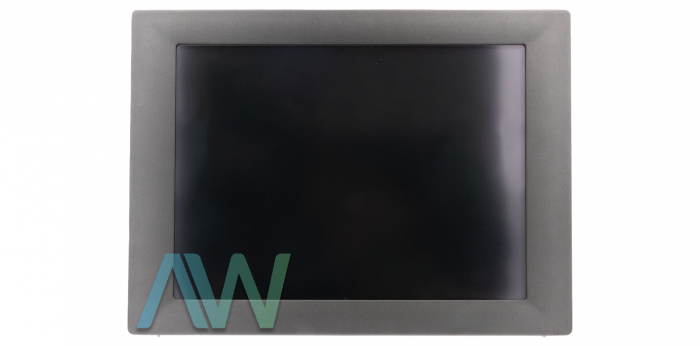

National Instruments TPC-2012 Industrial Touch Panel Computer
The TPC-2012 is an industrial Touch Panel Computer. The manufacturer of the TPC-2012 is National Instruments. The NI TPC-2012 comes with part number 779861-01. The TPC-2012 computer comes with pre-installed Windows CE. The TPC-2012 is equipped with a CompactFlash storage card for the installation of Windows CE. An important feature of the NI TPC-2012 is the touch panel module that comes with it.
This Touch Panel Computer has a 12.1 in. LCD touch screen. The touch screen of the TPC-2012 is an SVGA LCD. The maximum resolution of the SVGA touch screen is 800 x 600. The processor used in the NI TPC-2012 is AMD GX3. The CPU frequency is 500 MHz. For powerful tasks, the TPC-2012 is equipped with a DDR SDRAM with 256 MB memory. The processor and RAM of the TPC-2012 are powerful enough for HMI graphics. This Touch Panel Computer also supports TCP/IP communication with a 10/100 Ethernet Port. Different types of application software can be used for TCP/IP communication, such as TCP/IP VIs and NI LabVIEW shared variables. For Modbus TCP/IP communication, Modbus LabVIEW library is used.

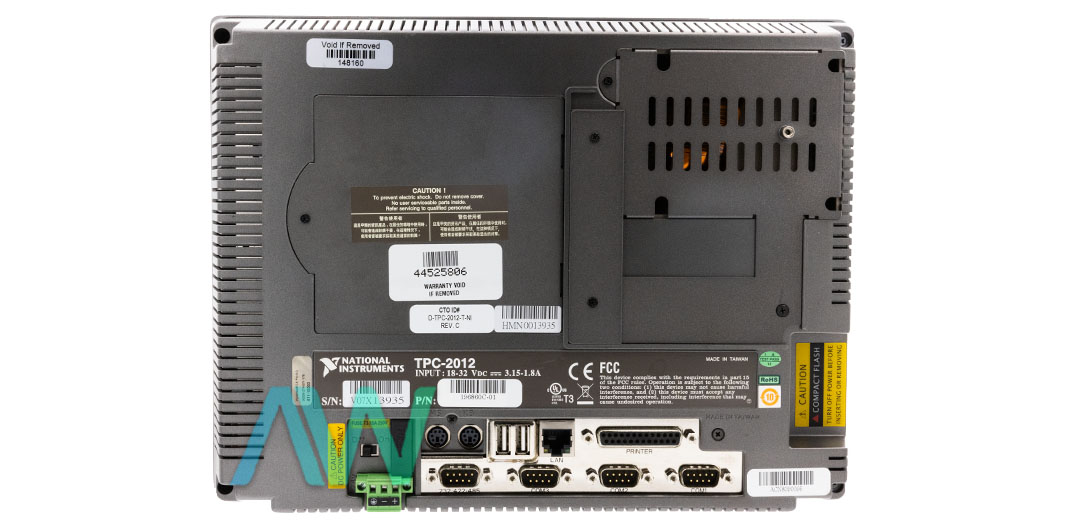

The NI TPC-2012 incorporates several ports for different functions. These ports include USB ports, serial ports, and PS/2 ports. The operating system of the TPC-2012 is Windows CE.NET. This Touch Panel Computer is pre-configured with different utilities for remote access installed. Some of these utilities are FTP configuration, IP address configurator, and a remote display.
TPC-2012 Obsolete Status has been announced by National Instruments, but the Touch Panel Computer will still be available for purchase and repairs by Apex Waves.
| Model | TPC-2012 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779861-01 |
| Type | Touch Panel Computer |
| Processor | 500 MHz GX3 LX800 |
| Display Size | 12.1 in. |
| Display Type | SVGA TFT LCD |
| Display Resolution | 800 x 600 |
| Memory | 256 MB DDR SDRAM |
| Dimensions | 12.24 by 9.33 by 1.97 in. |
| Weight | 4.84 lb. |
| Warranty | 2-3 Year Warranty |
| TPC-2012 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
