National Instruments TPC-2106T Touch Panel Computer
The TPC-2106T is a computer with touch panel capabilities. The TPC-2106T is manufactured by National Instruments. This Touch Panel Computer can additionally be identified by the part numbers 780029-01 and 197736B-01. The TPC-2106T computer is compatible with Windows CE operating system version 5.0 or later.

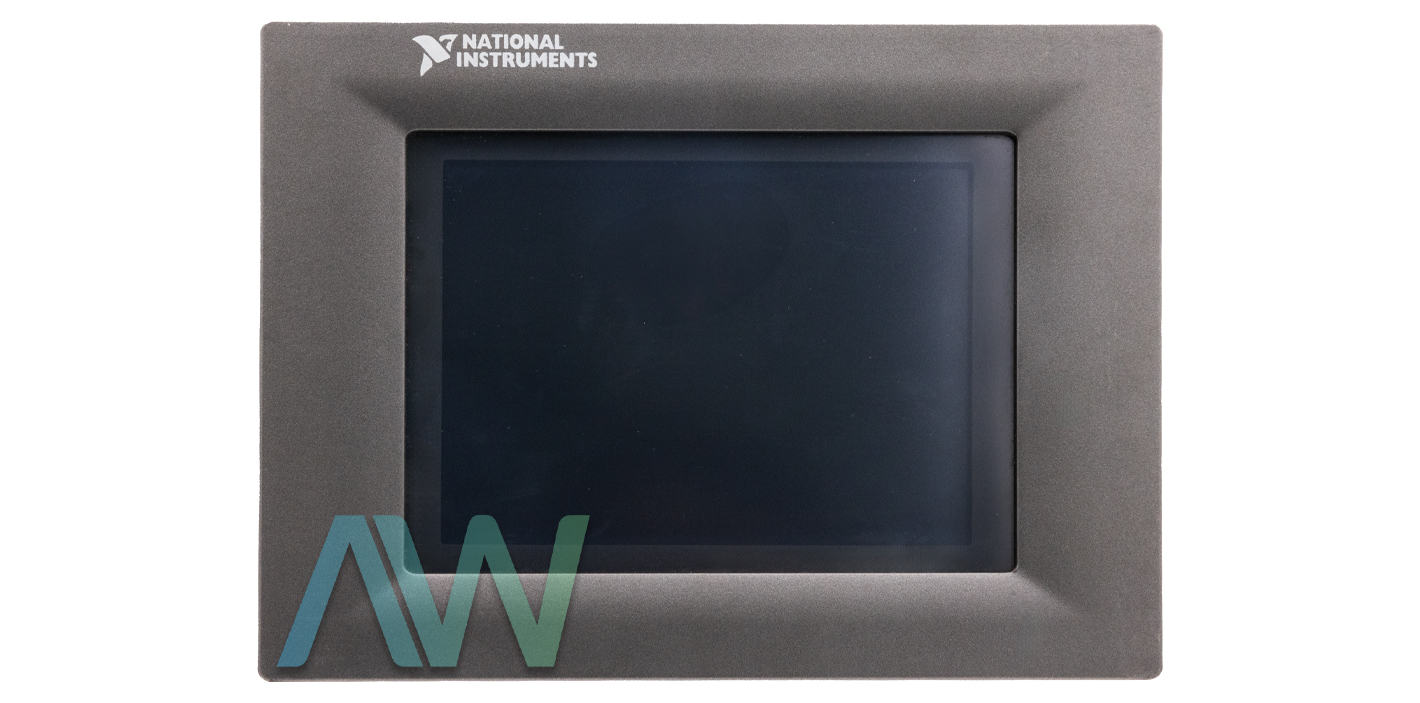

The NI TPC-2106T can be used with several accessories, including the PS-5 Power Supply or the Touch Panel Deployment License. The TPC-2106T has a 5.6 in. TFT LCD display. The touch screen us analog resistive with tempered glass. The screen display resolution is 320 by 234. The luminance of the LCD display is 500 cd/m2 and the contrast ratio is 400 to 1. This Touch Panel Computer can be utilized with the NI LabVIEW Touch Panel Module, which allows code to be easily exchanged since both devices are compatible with binary. The NEMA4 and IP65 rating of the front panel on the TPC-2106T ensures this computer is well-suited for challenging environments on the factory floor, in industrial plants, or for pharmaceuticals.

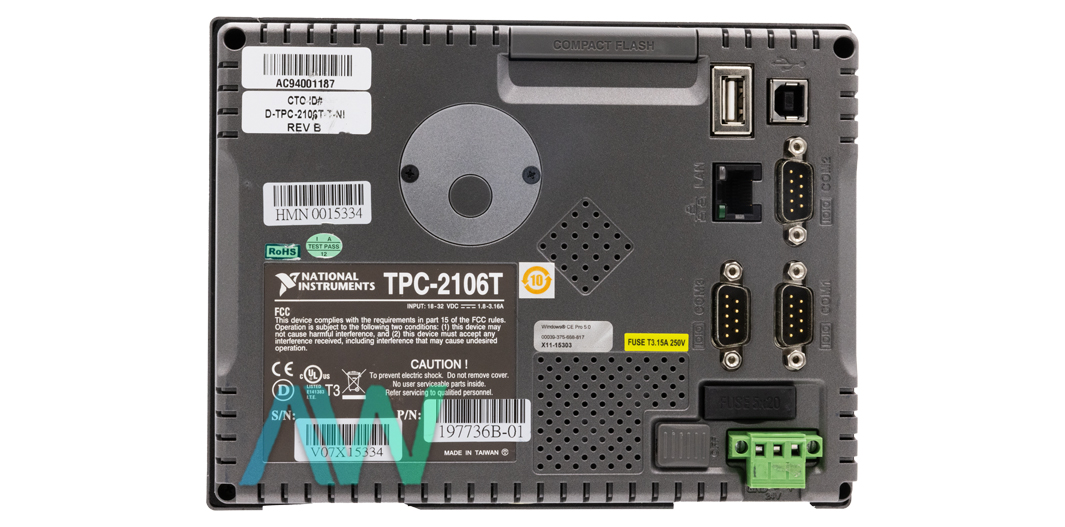

The NI TPC-2106T is developed with a 416 MHz XScale processor and is equipped with solid-state hard drives. The TPC-2106T additionally has one USB port, three serial ports, and an Ethernet port. The NI TPC-2106T has a maximum power consumption of 20 W maximum. The input range of this Touch Panel Computer is 18 to 32 VDC.
TPC-2106T Obsolete Status has been announced by National Instruments, but the touch panel computer will still be available for purchase and repairs by Apex Waves.
| Model | TPC-2106T |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780029-01, |
| Type | Touch Panel Computer |
| Industrial Ratings | NEMA4/IP65 |
| Processor | 416 MHz Intel XScale |
| Display Size | 5.6 in. |
| Display Type | TFT transflective color LCD |
| Dimensions | 5.83 by 7.68 by 1.75 in. |
| Weight | 1.76 lb. |
| Warranty | 2-3 Year Warranty |
| TPC-2106T Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
