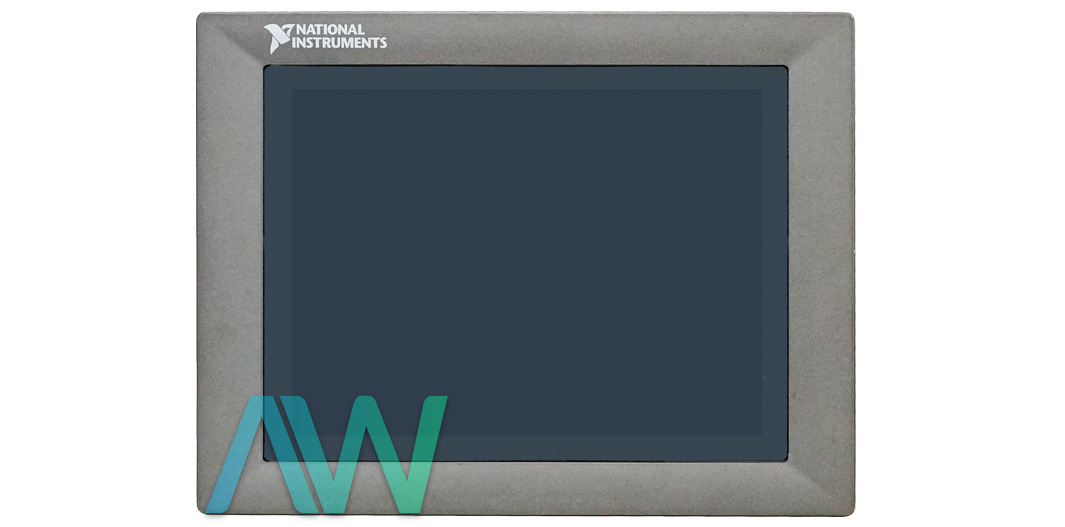

National Instruments TPC-2212 Touch Panel Computer
The TPC-2212 is an Industrial Touch Panel Computer. The NI TPC-2212 computer is especially designed for useful applications in the industrial sector. The TPC-2212 is manufactured by National Instruments. This Touch Panel Computer belongs to the UMI controlling NI modules series. The NI TPC-2212 is an effective human machine interface for smooth communication with other devices.
The National Instruments TPC-2212 does not need a cooling mechanism due to a low power operating processor. The TPC-2212 can be used in the temperature range from -20 to 60 °C. This Touch Panel Computer can be operated safely by avoiding use in excessive humid environments. The NI TPC-2212 should be disconnected from the AC supply before cleaning it. Cleaning should not be done with liquid. While using this Touch Panel Computer, never cover the opening to keep it safe from overheating.

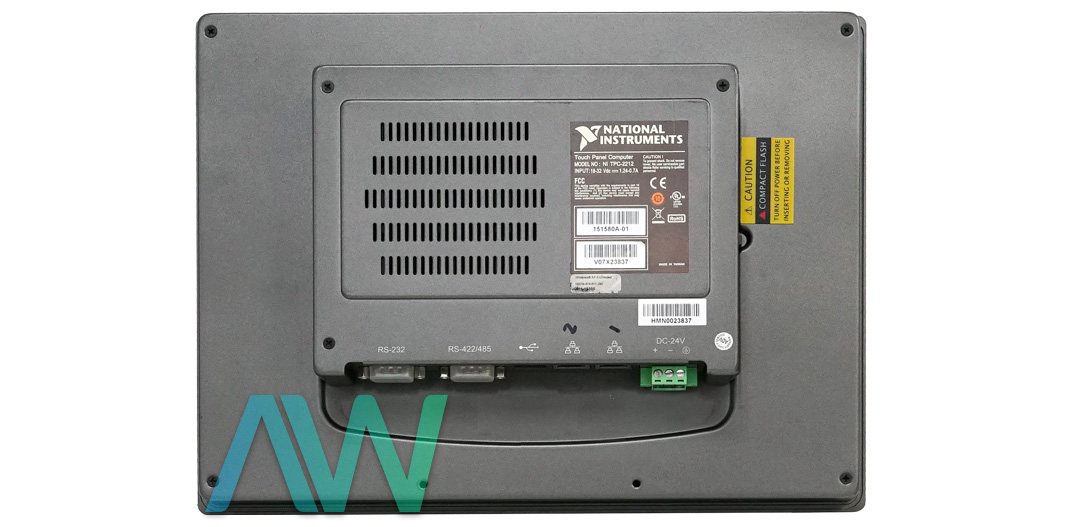

The NI TPC-2212 comes with several types of communication ports. The TPC-2212 has two serial ports (COM1 and COM2), two RJ-45 Gigabit Ethernet ports, and two USB ports. The COM ports of the TPC-2212 have different types of connectors. The COM1 port has an RS232 connector, whereas the COM2 port is equipped with an RS422/485 connector. The COM2 serial port is adjustable, which means it may detect and control the flow of data on auto. With the NI TPC-2212 Touch Panel Computer, you can use the latest Windows operating systems like Windows XP embedded.
TPC-2212 Obsolete Status has been announced by National Instruments, but the Touch Panel Computer will still be available for purchase and repairs by Apex Waves.
| Model | TPC-2212 |
|---|---|
| Manufacturer | National Instruments |
| Type | Touch Panel Computer |
| CPU | Intel Atom Processor Z520PT 1.33 GHz w/HyperThreading |
| RAM | 1 GB DDR2 |
| Display Size | 12.1 in. |
| Display Type | TFT LCD |
| Maximum Resolution | 800 × 600 SVGA |
| Dimensions | 12.24 × 9.33 × 2.13 in. |
| Weight | 5.5 lb. |
| Warranty | 2-3 Year Warranty |
| TPC-2212 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for TPC-2212:
National Instruments TPC-2212 Frequently Asked Questions
Question: What are the cutout dimensions of the TPC-2212?
Answer: The suggest cutout dimensions measure 11.91 × 9.00 in. (302.5 × 228.5 mm)
Question: What type of backlight does the LCD screen have?
Answer: The LCD screen of the TPC-2212 has a LED backlight with a lifespan of 50,000 h
Question: What is the environmental temperature specifications of the TPC-2212?
Answer: The temperature range for both operating and storage conditions of the Touch Panel Computer ranges from –20 to 60 °C.
